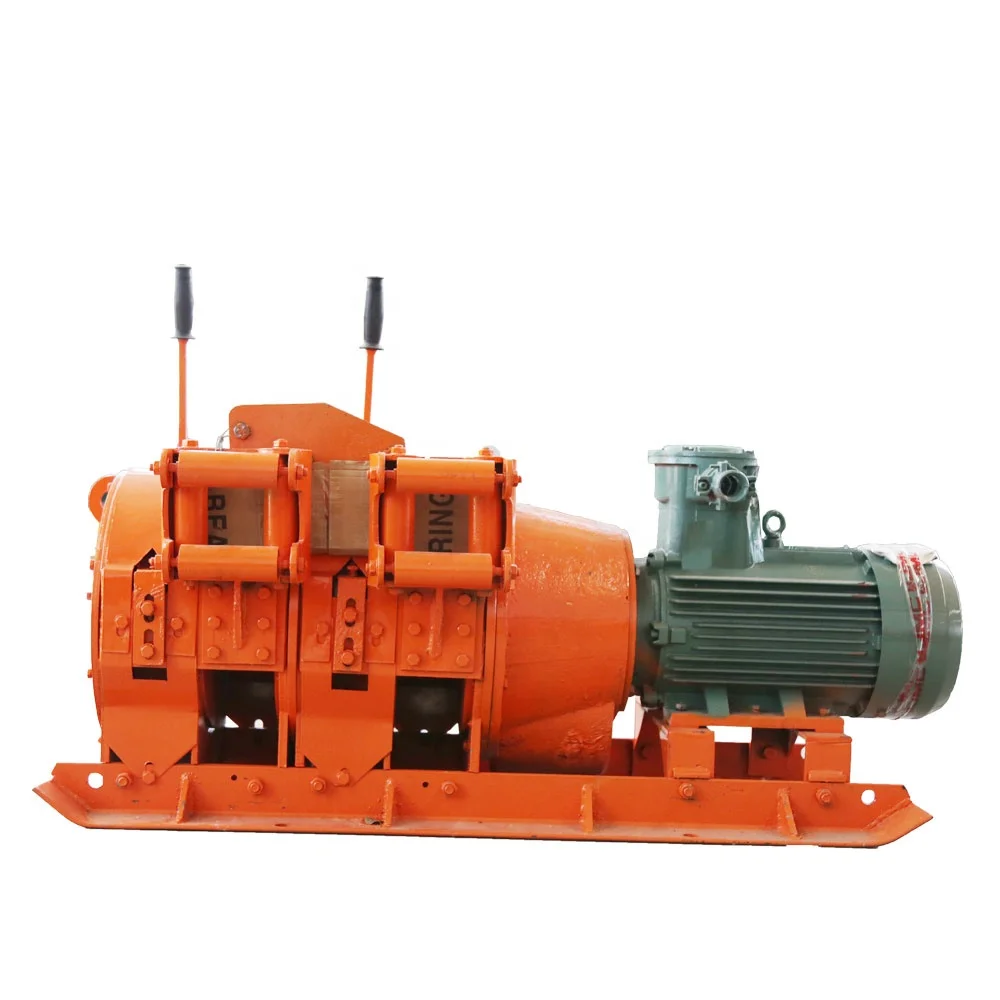

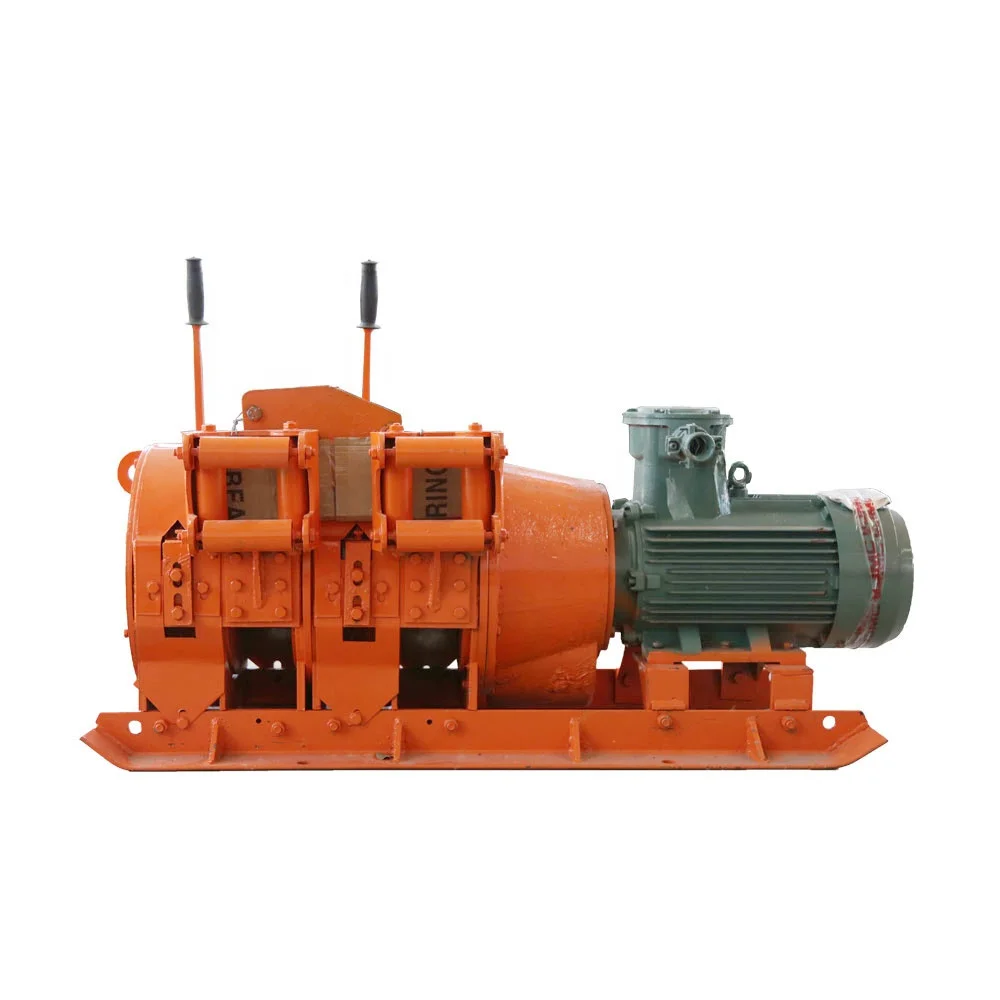

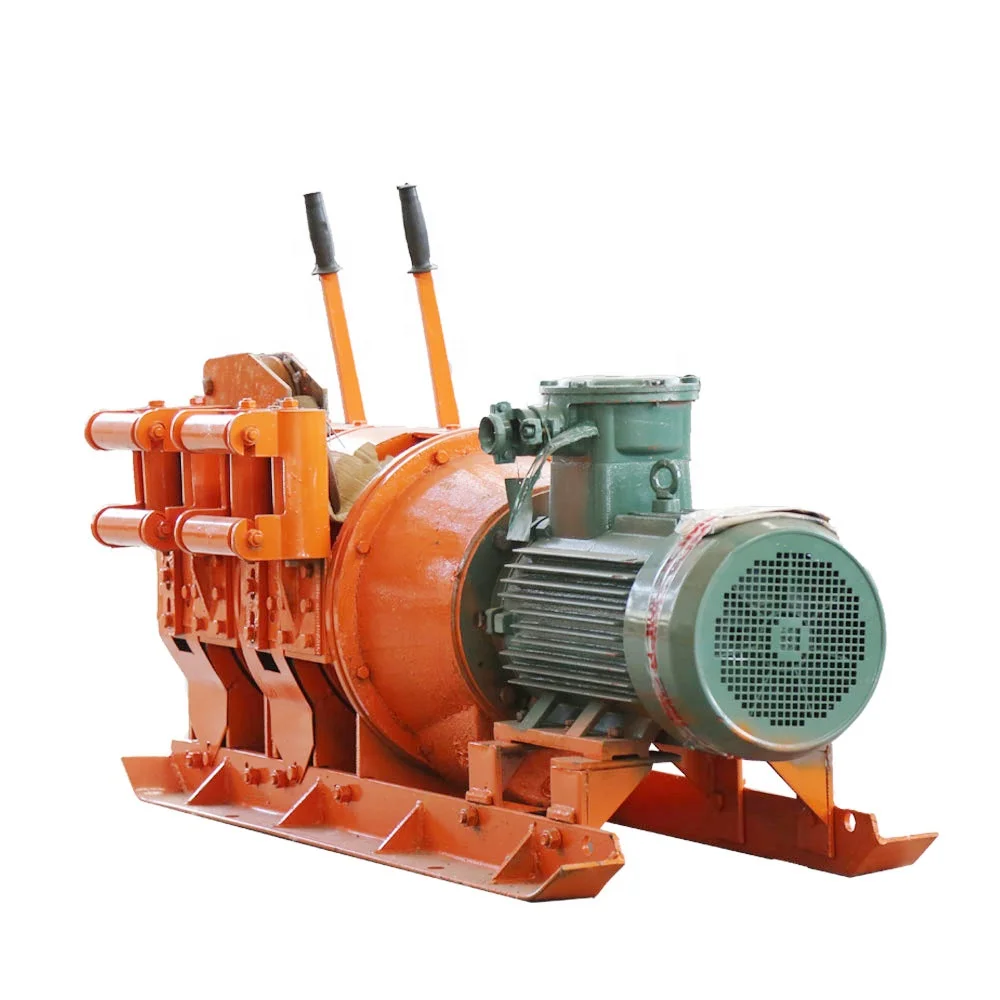

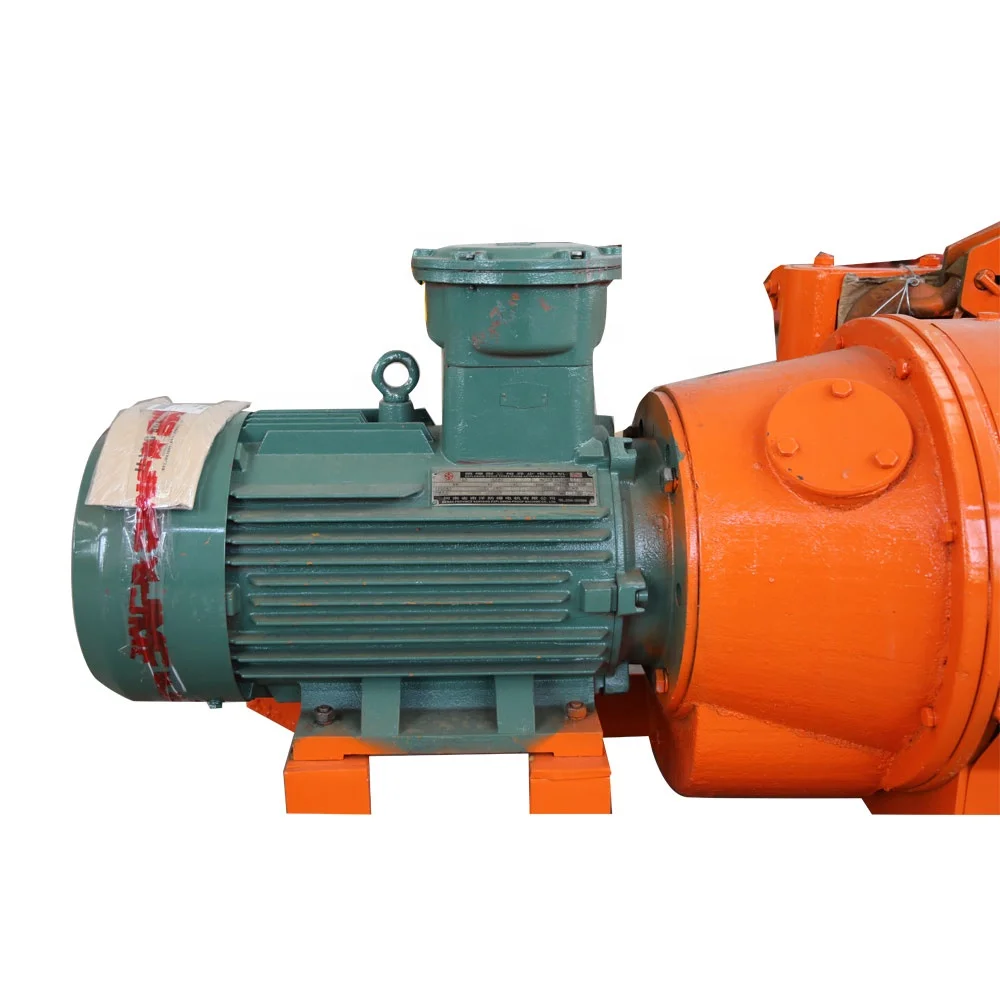

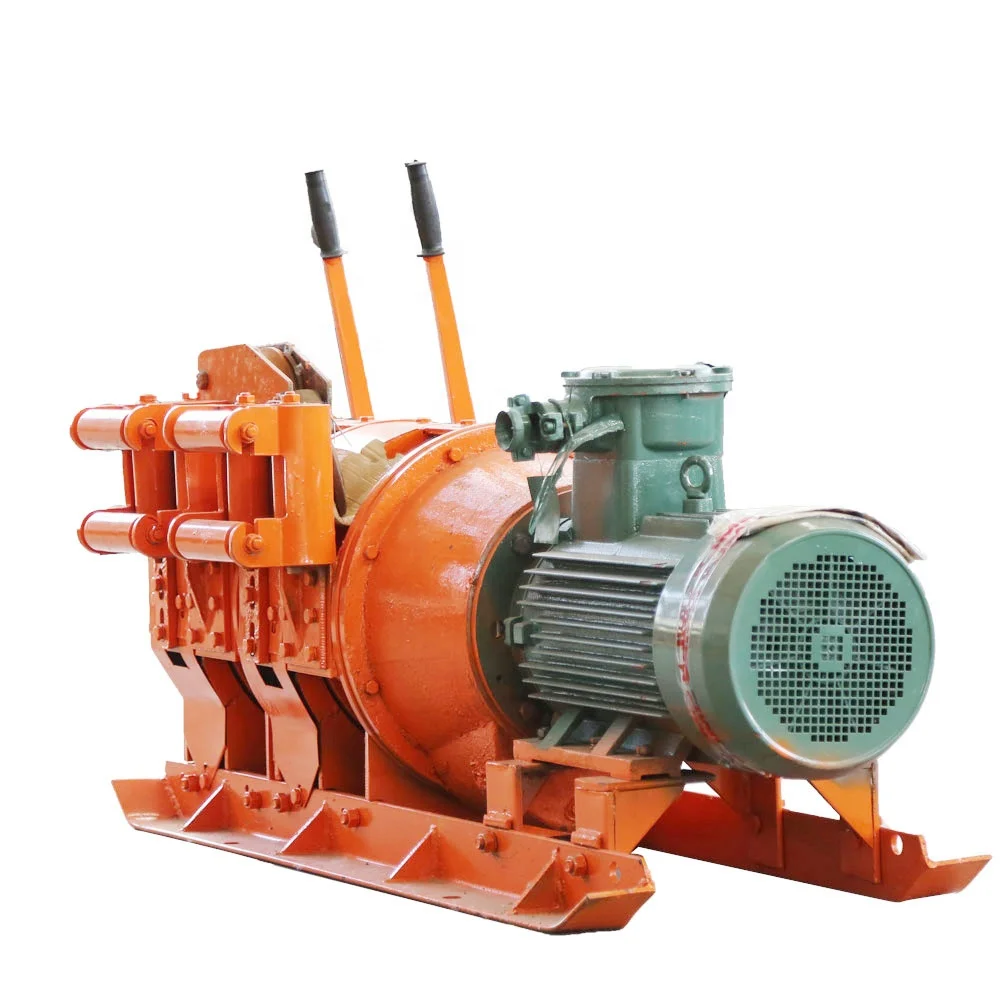

Scraper 2JPB Winch For Sale Good Products Assured Products 220V Underground Mining Metal Ore Scraper Winch

Product Overview

Description

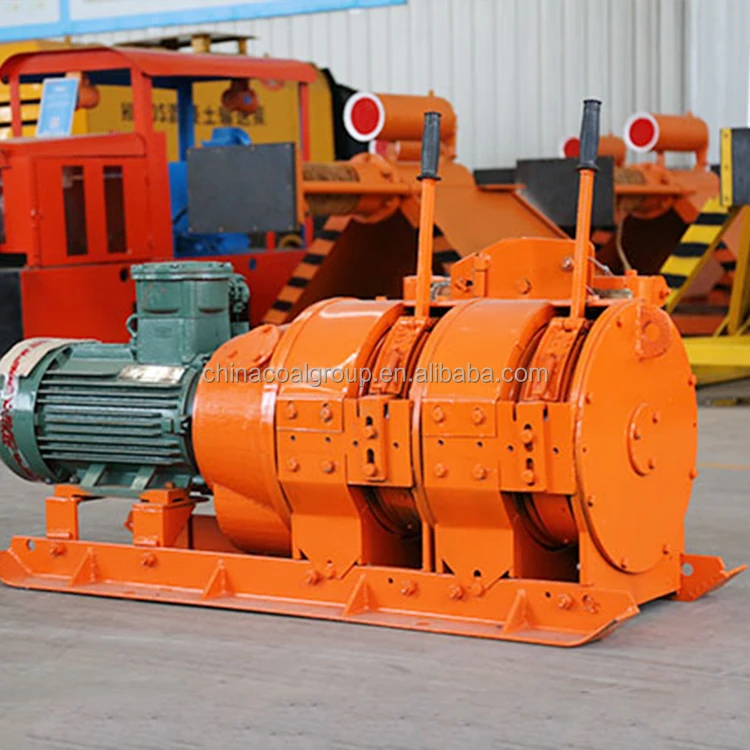

Introduction of  Underground Mining Electric Scraper Hoist Winch Mine Lift Hoist Winch Machine For Sale



Mining Scraper Winch is mainly used for coal mine & other underground mine or open-pit ore handling and filling operations. It is mainly used for horizontal plane transport and slope dumping with small slope angle, but it cannot be used as lifting equipment. The parallel arrangement of electric tweezers is common to the PB series bucket loading machine.

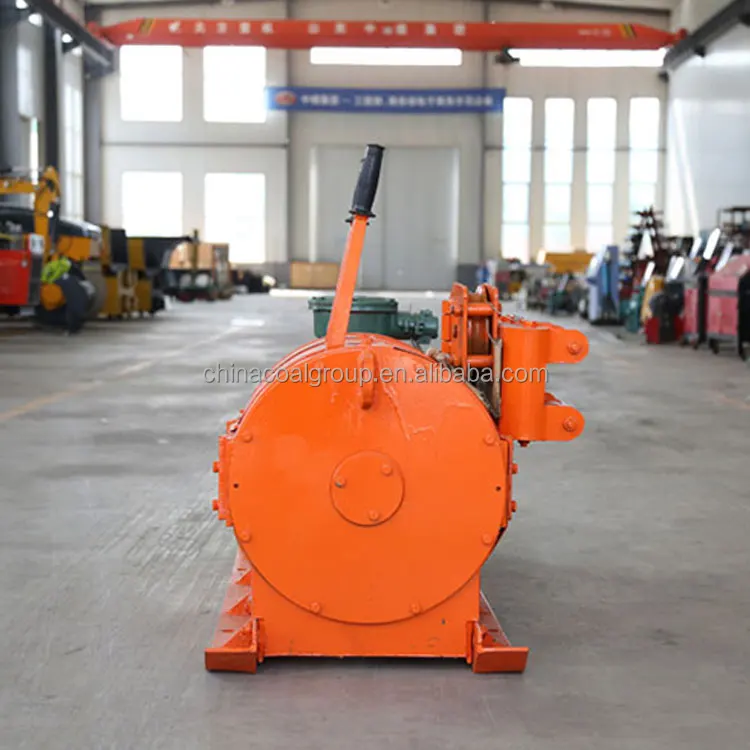

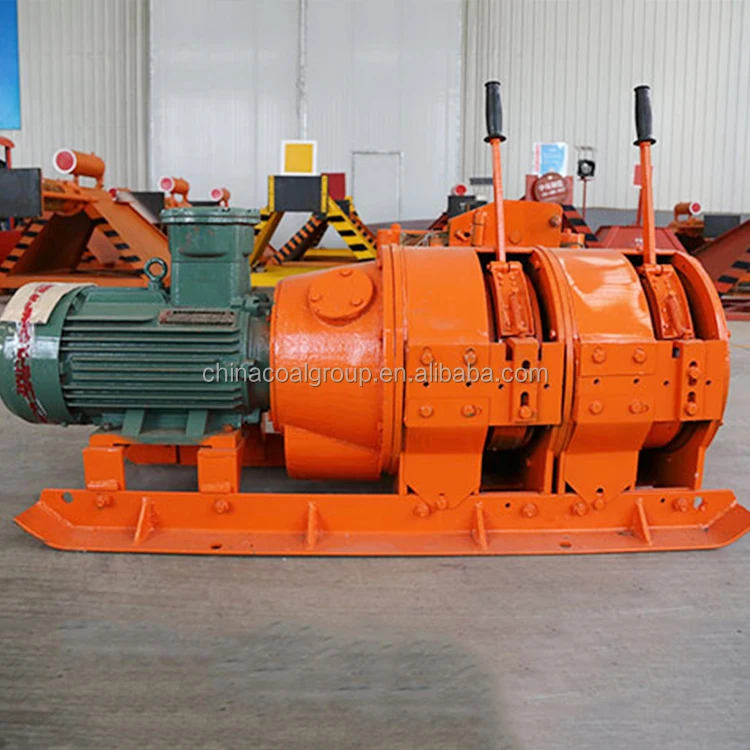

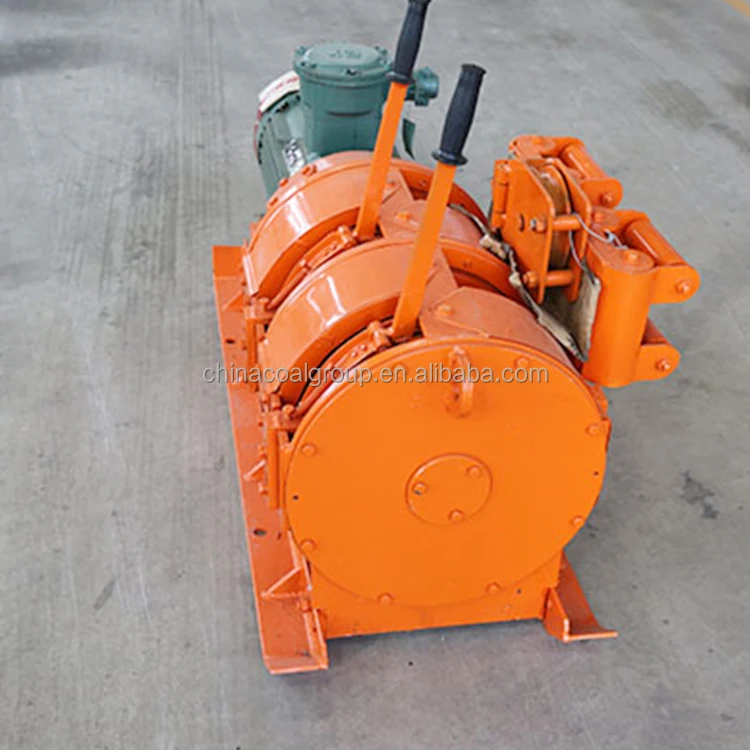

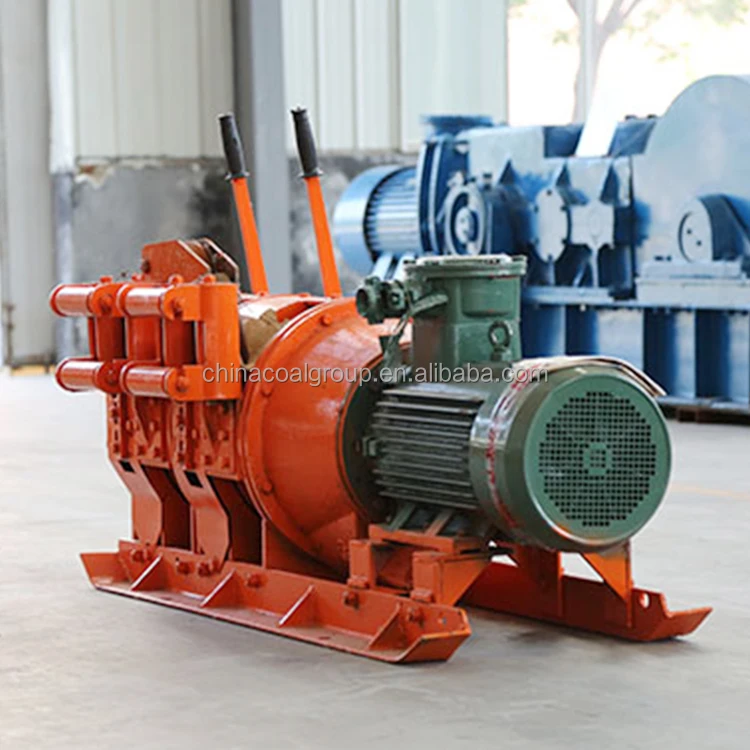

The main components of the electric tweezers are a speed reducer, a main reel, a secondary reel, an operating device, a steel wire for guide and an electric motor. These components are housed inside and outside the housing. The housing is a component with good rigidity, which serves as a protection, support and full load.zmwm11

Working principle: After the motor is started, if all the internal gears are not locked, all the internal gears will rotate, and the drum will not move under the action of the steel rope and the rake bucket. If one of the internal gears is locked by the control device, the corresponding drum will rotate and wrap the rope, driving the rake bucket to move. At this time, the other gear is not locked, and the drum will be driven by the active action of the steel rope to release the steel. rope. Control the brake handle to lock the inner gear of the main and auxiliary drums alternately, and the rake bucket reciprocates to carry out the rake work.

Item		unit	Model
			2JPB-7.5	2JPB-15	2JPB-22	2JPB-30	2JPB-55
			2JP-7.5	2JP-15	2JP-22	2JP-30	2JP-55
Main wire rope Min. tension		N	8000	14000	20000	275000	44000
Average speed	Main wire rope	±5%m/s	1.00	1.10	1.20	1.20	1.20
	Secondary wire rope		1.00	1.50	1.50	1.60	1.80
Wire rope diameter	Main wire rope	mm	9.3	12.5	14.0	15.5	18.5
	Secondary wire rope		9.3	11.0	11.0	14.0	16.0
Drum	Dia.	mm	205	225	280	280	350
	Rim diameter	mm	350	435	510	510	625
	Width	mm	80	125	160	160	180
Wire rope size	Main drum	m	45	80	80	80	100
	Secondary drum	m	45	100	100	110	130
Electric motor	Model	/	YBK-132M-4	YBK-160L-4	YBK-180L-4	YBK-200L-4	YBK-250M-4
		/	Y-132M-4	Y-160L-4	Y-180L-4	Y-200L-4	Y-250M-4
	Power	KW	7.5	15	22	30	55
	Rotating speed	r/min	1440	1460	1470	1470	1470
Dimensions	Length	mm	1210	1525	1600	1650	2070
	Width	mm	565	660	730	820	1010
	Height	mm	490	620	640	700	890
Total weight (excluding skips and pulleys)		kg	390	660	980	1155	2125
