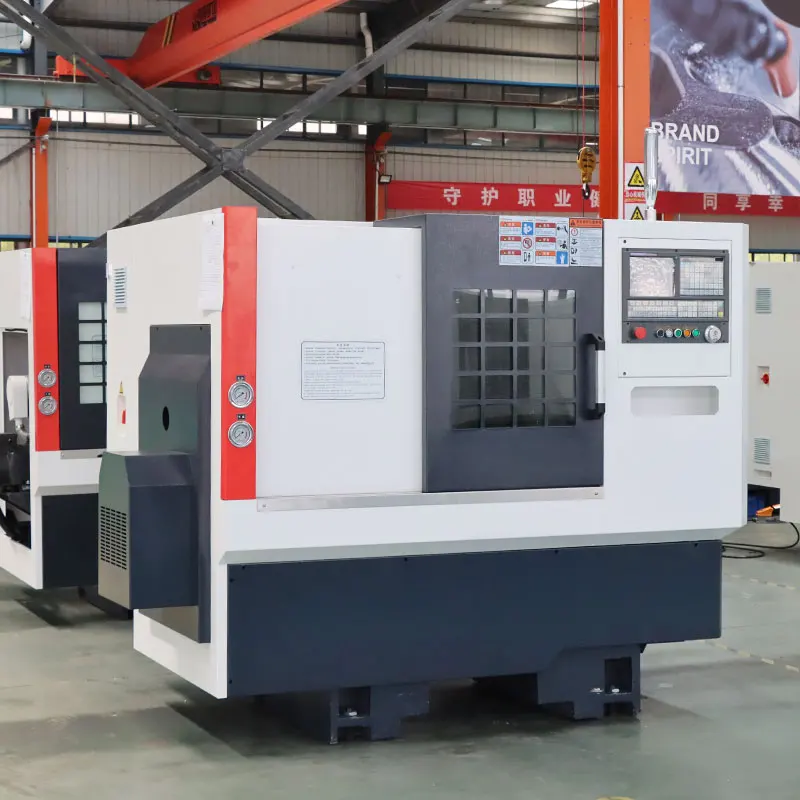

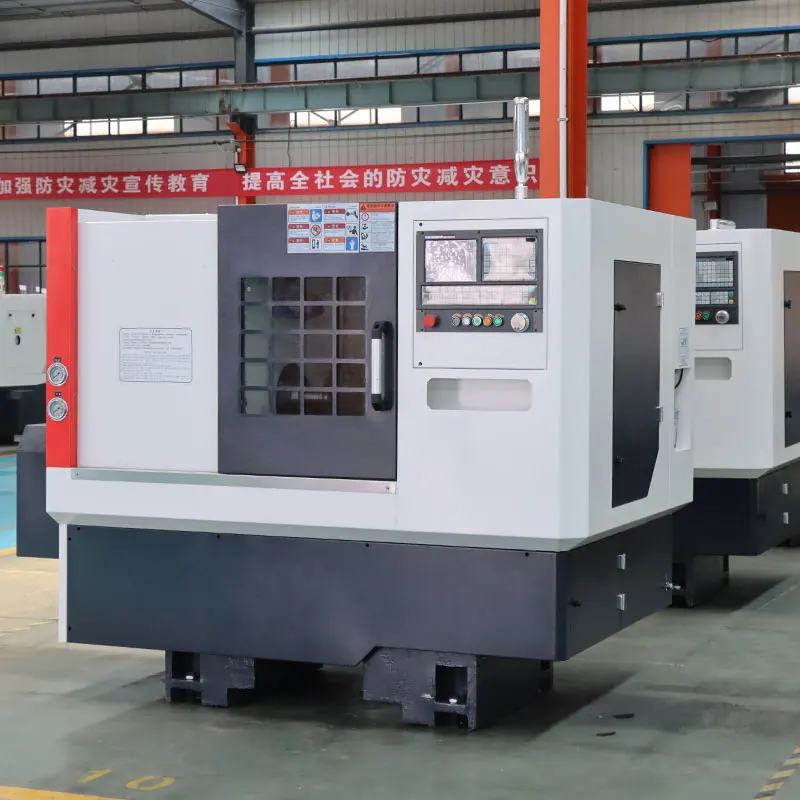

TCK6340 Высокоточный токарный станок с ЧПУ Токарный станок для продажи
- Category: >>>
- Supplier: Zaozhuang Wojie CNC Machinery Co. Ltd.
Share on (1600712908449):
Product Overview
Description
Product Description
Product Application
This machine is mainly used for processing various shaft, disk parts, turning can be all kinds of screw thread, arc, cone and plane of internal and external surface, can satisfy the ferrous and non-ferrous metals the speed requirement of high-speed chip. Suitable for cars, motorcycles, electronics, aerospace, military industry and other industries to high efficiency, large quantity and high precision of parts processing. Machining precision can reach level 7.
Product main technical specifications:
This machine is mainly used for processing various shaft, disk parts, turning can be all kinds of screw thread, arc, cone and plane of internal and external surface, can satisfy the ferrous and non-ferrous metals the speed requirement of high-speed chip. Suitable for cars, motorcycles, electronics, aerospace, military industry and other industries to high efficiency, large quantity and high precision of parts processing. Machining precision can reach level 7.
Product main technical specifications:
SPECIFICATIONS | Units | TCK6340 | TCK6340S | TCK6350 |
Swing over bed | mm | 400 | 400 | 500 |
Swing over cross slide | mm | 140 | 140 | 220 |
Distance between centers | mm | 200 | 500 | 410 |
Spindle bore | mm | 48 | 56 | 66 |
Spindle nose type | - | A2-5 | A2-5 | A2-6 |
Spindle speed steps | - | Stepless | Stepless | Stepless |
Spindle speed range | rpm | 3500 | 3500 | 3000 |

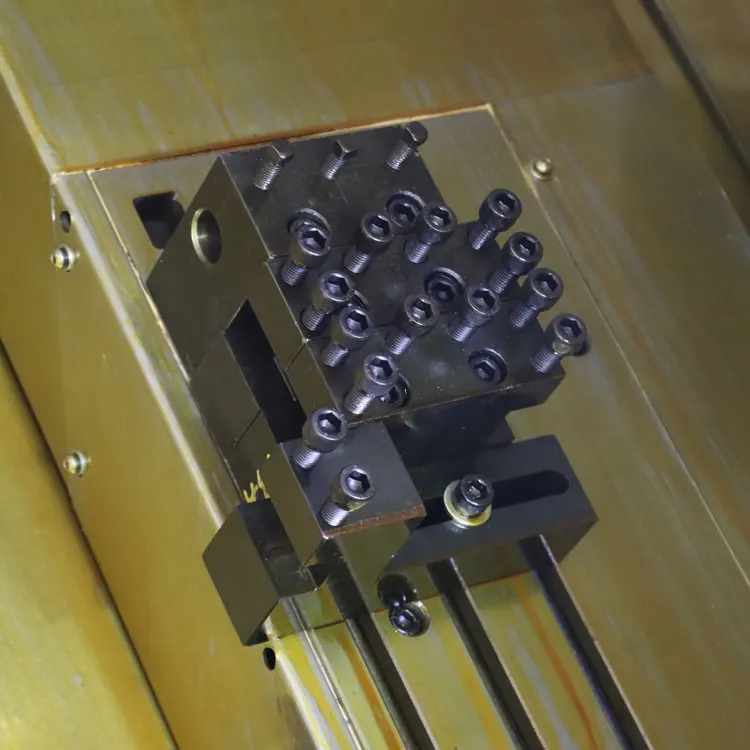

Turret/tool post | - | Gang type | Gang type | Gang type |
Tool size | mm | 20 x 20 | 20x 20 | 25 x 25 |
X axis travel | mm | 400 | 400 | 500 |
Z axis travel | mm | 300 | 500 | 410 |
X axis rapid traverse | mm/min | 18000 | 18000 | 18000 |
Z axis rapid traverse | mm/min | 18000 | 18000 | 18000 |
Main spindle motor | kw | 5.5 | 5.5 | 7.5 |
Guide rail type | - | Linear rail | Linear rail | Linear rail |
Machine weight | kg | 2300 | 2500 | 2900 |
Overall dimension | mm | 2200x1600x1780 | 2400x1600x1780 | 2500x1600x1890 |
Standard Accessories: Optional Accessories:

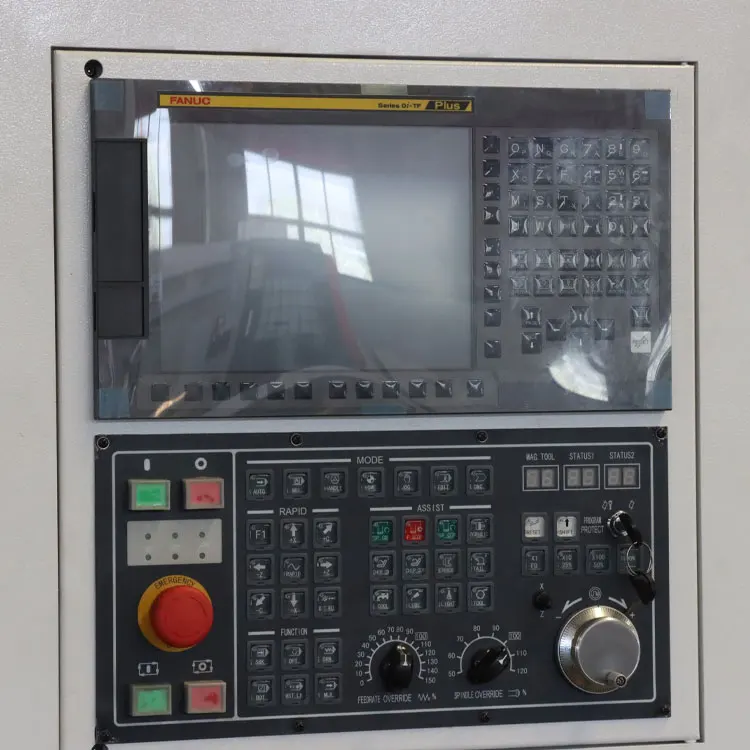

1. System: GSK 1.CNC system: KND ,Siemens ,Fanuc etc
2. Servo spindle motor 2.Tool post (turret):-Electric 6-station / 8-station /Gang type
3. Stepless speed changer 4- station

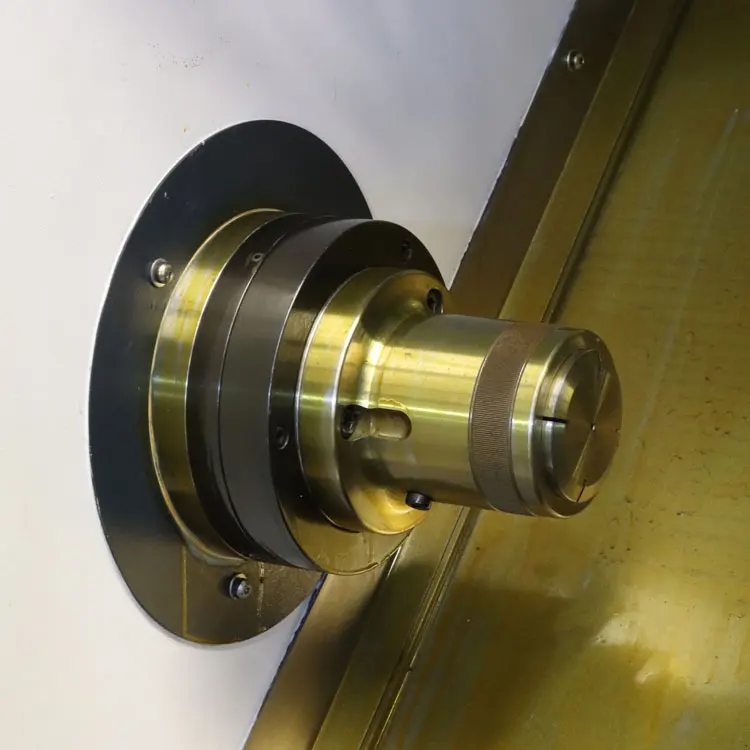

4. Gang type tool post 3.Chuck:Spring chuck ,Hydraulic chuck ,pneumatic chuck
5. Hydraulic chuck 4.Feeder:Automatic Bar feeder
6. Linear rails 5.Conveyor:Automatic chip conveyor
7. Lighting system
8. Cooling system
9. Automatic lubrication system
1. System: GSK 1.CNC system: KND ,Siemens ,Fanuc etc
2. Servo spindle motor 2.Tool post (turret):-Electric 6-station / 8-station /Gang type
3. Stepless speed changer 4- station
4. Gang type tool post 3.Chuck:Spring chuck ,Hydraulic chuck ,pneumatic chuck
5. Hydraulic chuck 4.Feeder:Automatic Bar feeder
6. Linear rails 5.Conveyor:Automatic chip conveyor
7. Lighting system
8. Cooling system
9. Automatic lubrication system
Detailed Images
Related Products
Company Introduction
Packing&Shipping
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . When we receive theadvance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . When we receive theadvance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
