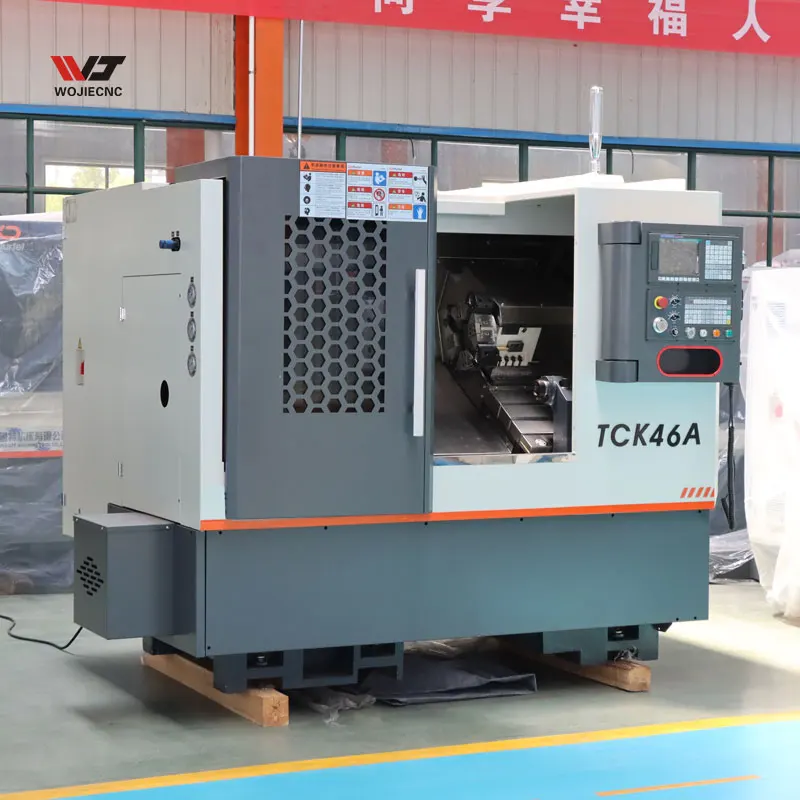

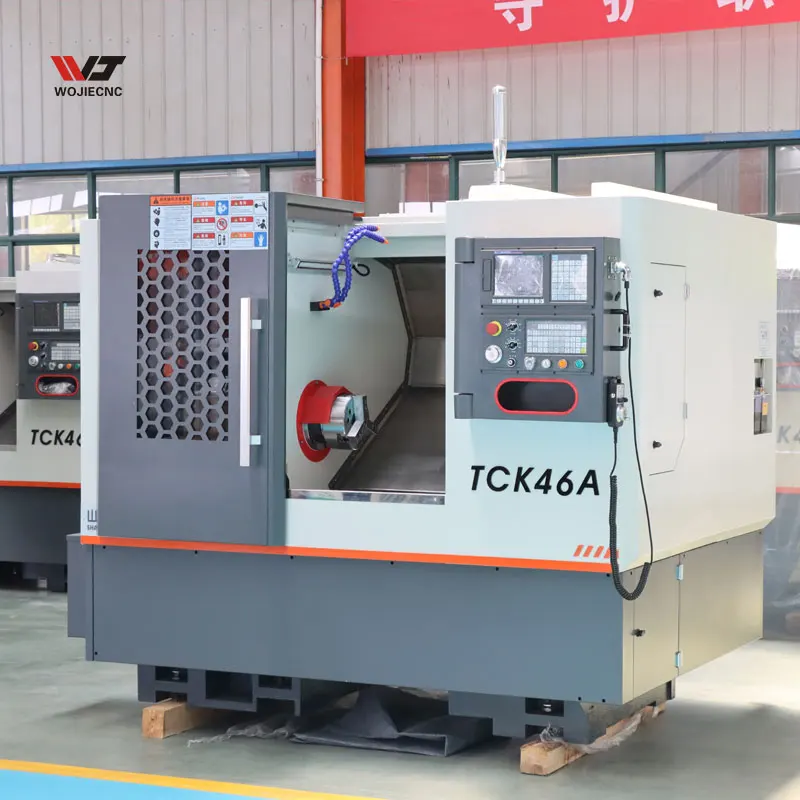

Токарный станок с ЧПУ TCK46A, токарный станок с ЧПУ, токарный станок на продажу
- Category: >>>
- Supplier: Zaozhuang Wojie CNC Machinery Co. Ltd.
Share on (1600712974092):
Product Overview
Description
Product Description
Product main technical specifications:
SPECIFICATIONS | Units | TCK46A |
Swing over bed | mm | 460 |
Swing over cross slide | mm | 170 |
Distance between centers | mm | 350 |
Spindle bore | mm | 56 |
Bar capacity | mm | 45 |
Spindle nose type | - | A2-5 |
Spindle speed steps | - | Stepless |
Spindle speed range | rpm | 3500 |

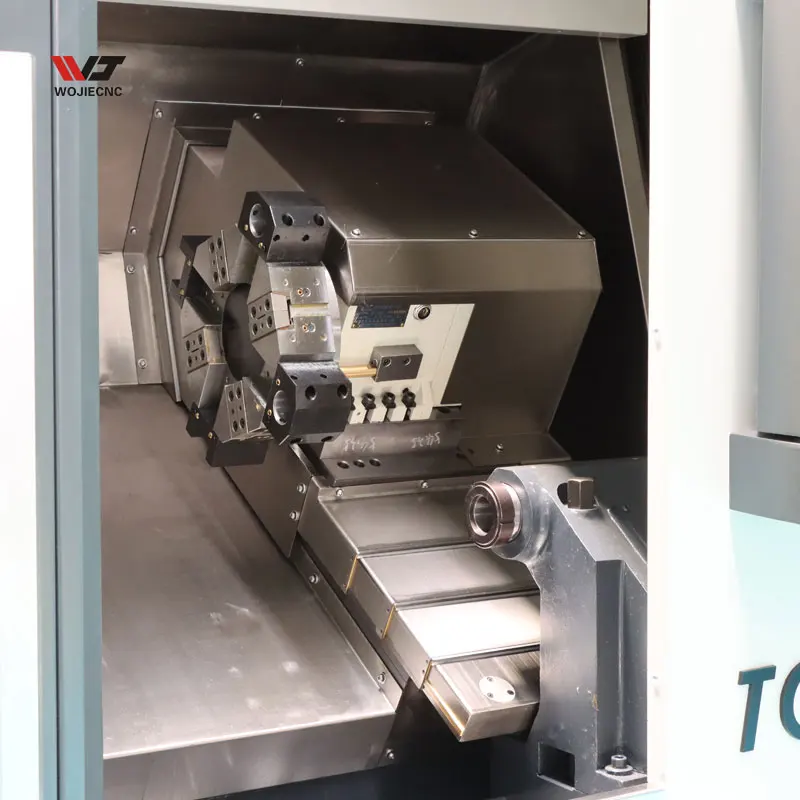

Turret/tool post | - | 8 Hydraulic turret |
Tool size | mm | 25 x 25 |
X axis travel | mm | 240 |
Z axis travel | mm | 400 |
X axis rapid traverse | mm/min | 18000 |
Z axis rapid traverse | mm/min | 18000 |
Main spindle motor | kw | 7.5 |
Tailstock quill diameter | mm | 70 |
Tailstock quill taper | - | MT4 |
Tailstock quill travel | mm | 80 |
Tailstock travel | mm | 200 |
Guide rail type | - | Slant bed linear rail |
Machine weight | kg | 2600 |
Overall dimension | mm | 2500x1700x1750 |
Standard Accessories:
Taiwan higher accuracy linear guide ways
Taiwan ball screw
Hydraulic magazine

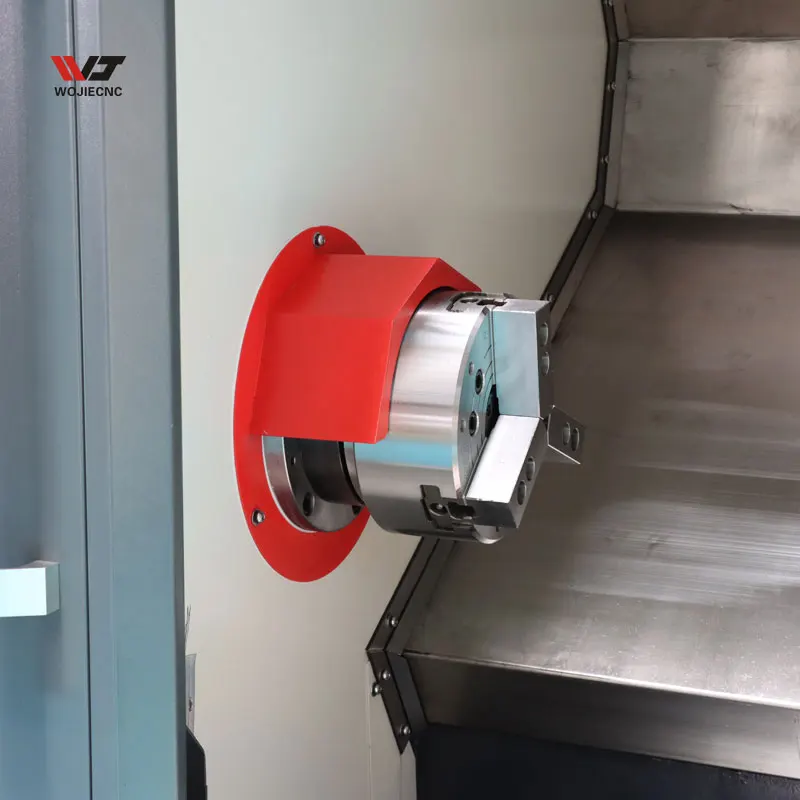

Taiwan hydraulic chuck
Hydraulic tailstock
Taiwan hollowed rotary cylinder
8 station hydraulic turret
Optional Accessories:

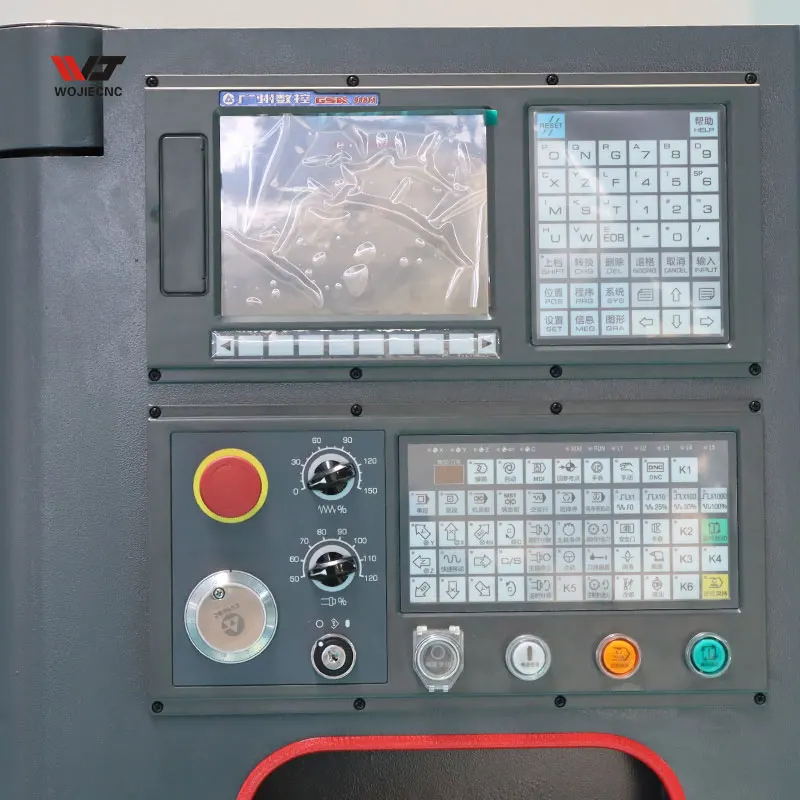

1. NC System: KND1000Ti, Fanuc Oi Mate-T
2. Main Motor: Servo 11/15 KW
3. Turret: 8 station electric turre
4. Chuck: 8″Non-through hole hydraulic chuck
5. 8″Non-through hole hydraulic chuck (Taiwan)
6. 8″through hole hydraulic chuck(Taiwan)
7.10″Non-through hole hydraulic chuck
8. 10″through hole hydraulic chuck(Taiwan)
9.Chip conveyor
10.Steady Rest
11.Without tailstock
12.Inverter 11 KW
Taiwan higher accuracy linear guide ways
Taiwan ball screw
Hydraulic magazine
Taiwan hydraulic chuck
Hydraulic tailstock
Taiwan hollowed rotary cylinder
8 station hydraulic turret
Optional Accessories:
1. NC System: KND1000Ti, Fanuc Oi Mate-T
2. Main Motor: Servo 11/15 KW
3. Turret: 8 station electric turre
4. Chuck: 8″Non-through hole hydraulic chuck
5. 8″Non-through hole hydraulic chuck (Taiwan)
6. 8″through hole hydraulic chuck(Taiwan)
7.10″Non-through hole hydraulic chuck
8. 10″through hole hydraulic chuck(Taiwan)
9.Chip conveyor
10.Steady Rest
11.Without tailstock
12.Inverter 11 KW
Products Detail
Related Products
Sales And Service Network
Company Information
Packaging & Shipping
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will besome longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You canplace order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will besome longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You canplace order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
