customized cyclone water curtain booth clear water curtain tent spray paint booth for painting waste gas treatment
- Category: >>>
- Supplier: Guangzhou Aucare Automobile Technology Co. Ltd.
Share on (1600713264267):
Product Overview
Description
Our Advantages
Axial fans with copper motor
Two pcs 3KW axial flow fans are high power and low noise.
stainless steel air duct
Not easy to rust.longer using life
Explosion-proof lamp
Safety assuranced
Water cyclone system, the purification efficiency can reach 90%
The size and material can be customized.Full machine are stainless steel.
Products Description
Product overview：
It is mainly used for painting waste gas treatment in painting assembly line workshops of all works. The model has
the advantages of simple operation, stable use, safety, etc
It is mainly used for painting waste gas treatment in painting assembly line workshops of all works. The model has
the advantages of simple operation, stable use, safety, etc

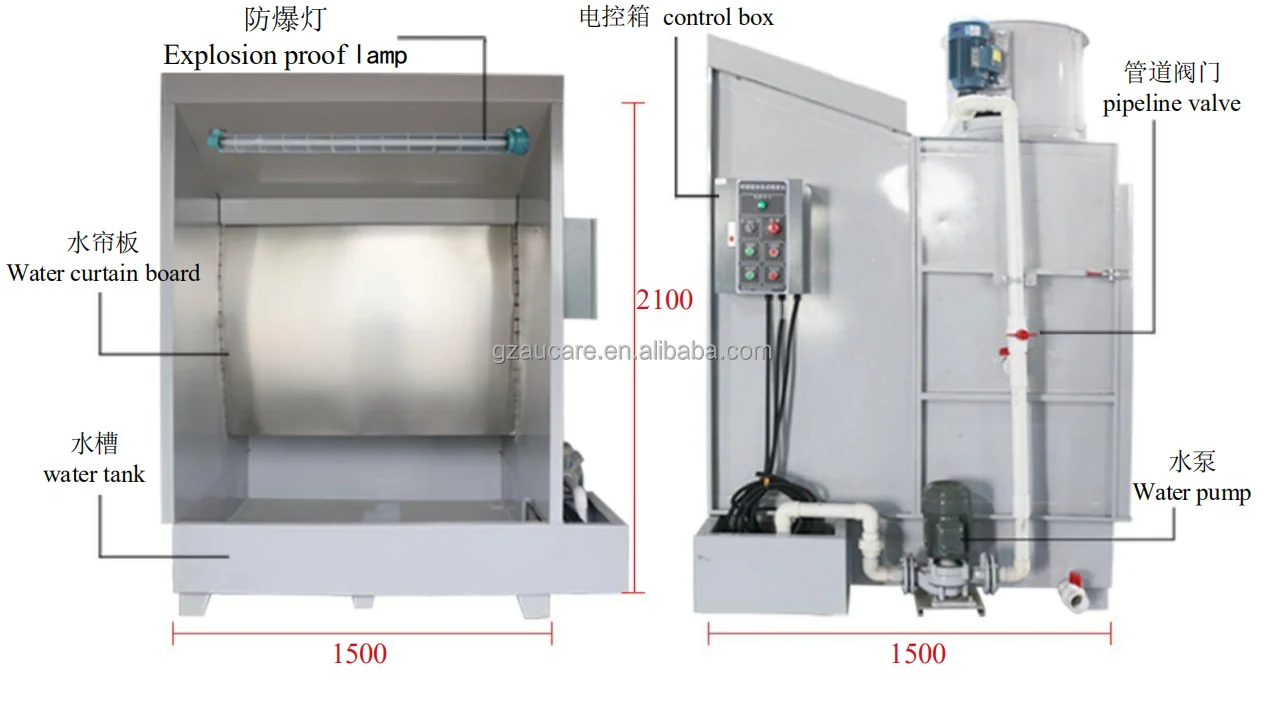

Product Features

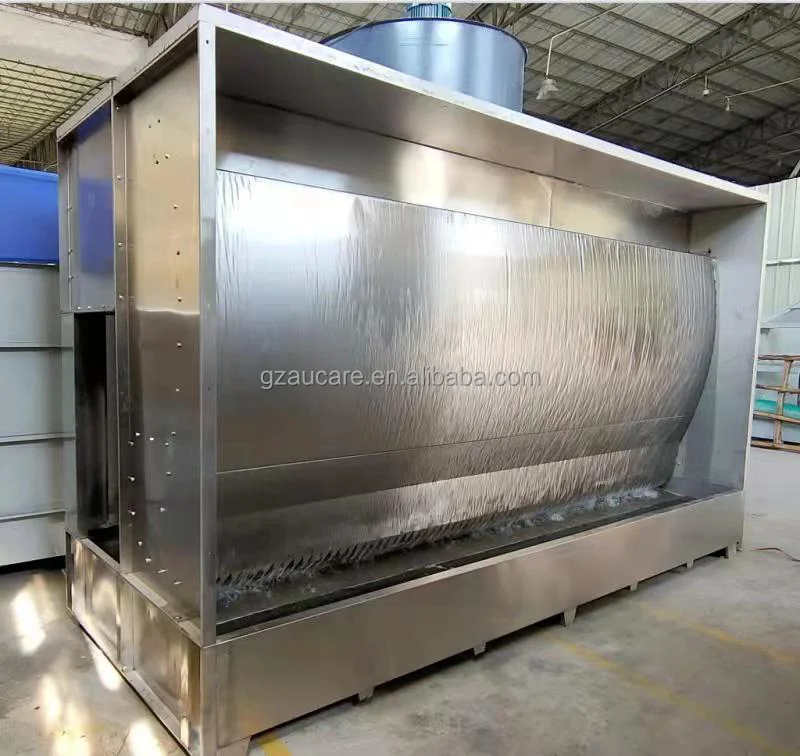

The cyclone water curtain booth adopts the external pumping mode with negative pressure. The exhaust gas in the production process is sucked into the booth by the suction of the exhaust fan, and then enters the mixing and dust removal area after being decelerated in the waste gas buffer area.The waste gas dust and water mist collide and fuse at a high speed,and the dust finally return to the circulating water tank for sedimentation and treatment.
outer size： | Length 2500*width 2000*height 2400mm. | Cabinet | The cabinet body is made of 1.2mm201# stainless steel plate, and the bottom support seat is made of stainless steel plate.Other 1.5mm thickness. |
water pump | 4kw | light | 40 W explosion-proof lamp |
Control system | Control the light, fan ,water pump switch on and off | Cyclone barrel | Two φ600mm cyclone barrels are arranged on the back of the water curtain cabinet, and the oil and water are separated by using the principle of high pressure of the cyclone. |
Air duct | All stainless steel | Fan system | Axial fan with copper Motor, low energy consumption and low noise |

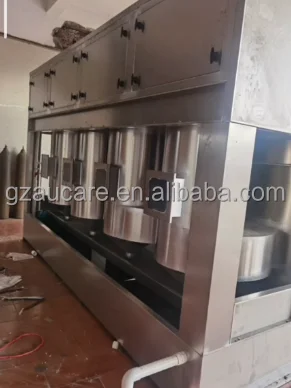

Customer Cases:
For referrence

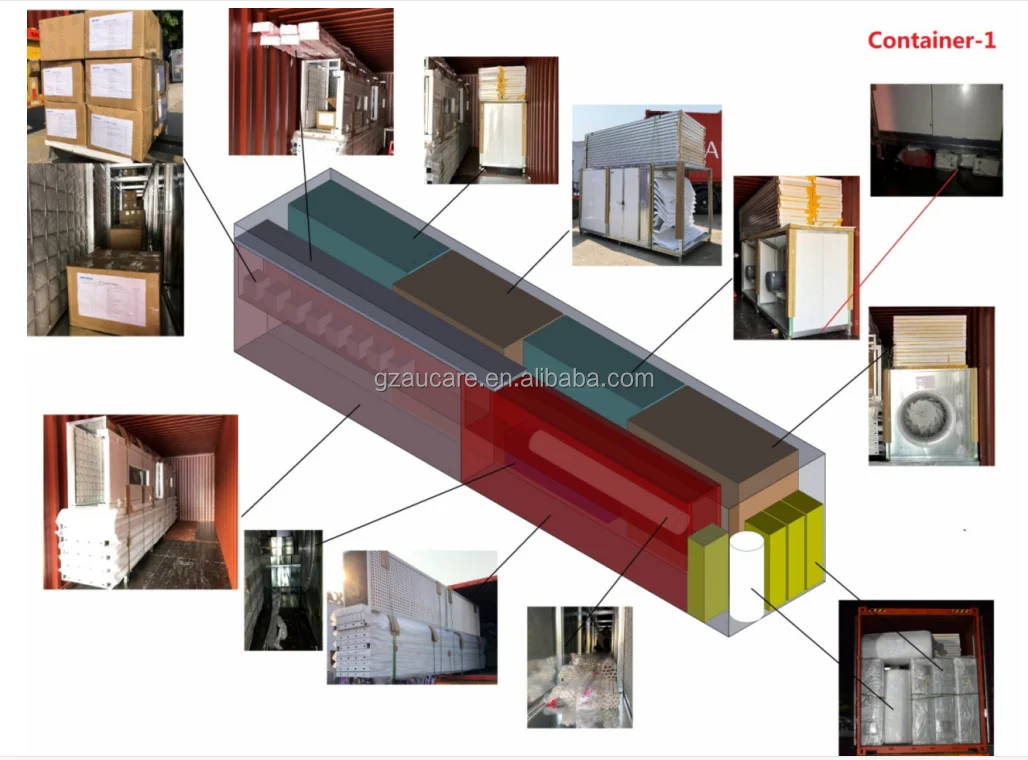

Product packaging
Container requirements:
One 20GP can load one piece spray booth
One 40 HQ can load 3-4 pcs spray booth
Recommend products
Company Profile
Company Profile:
Guangzhou aucare automobile technology co.,ltd was established in 2007. It is a comprehensive enterprise integrating R&D, production, sales and export of automobile maintenance equipments. It is located in Baiyun District, Guangzhou city. It produces spray paint booths, car lift, tire changer, wheel balancer,wheel alignment by itself and it also owns shares in several other auto repair equipment factories. At the same time, it is also the core agent of well-known brands of domestic automobile maintenance equipments.
Guangzhou aucare automotive technology Co., Ltd. has long been engaged in the wholesale export business of various types of vehicle maintenance equipments. It has decades of experience in support domestic vehicle workshops and 10 years of support and service experience in export bussiness. The main target market are Europe, Middle east, North America, etc.
Adhere to the service tenet of "credibility first, customers first", and adhere to the business philosophy of market-oriented and continuous innovation. We firmly believe that the AUCARE brand will become a comprehensive brand of products, services and support in the automotive aftermarket.
Guangzhou aucare automotive technology Co., Ltd. has long been engaged in the wholesale export business of various types of vehicle maintenance equipments. It has decades of experience in support domestic vehicle workshops and 10 years of support and service experience in export bussiness. The main target market are Europe, Middle east, North America, etc.
Adhere to the service tenet of "credibility first, customers first", and adhere to the business philosophy of market-oriented and continuous innovation. We firmly believe that the AUCARE brand will become a comprehensive brand of products, services and support in the automotive aftermarket.
Our teams

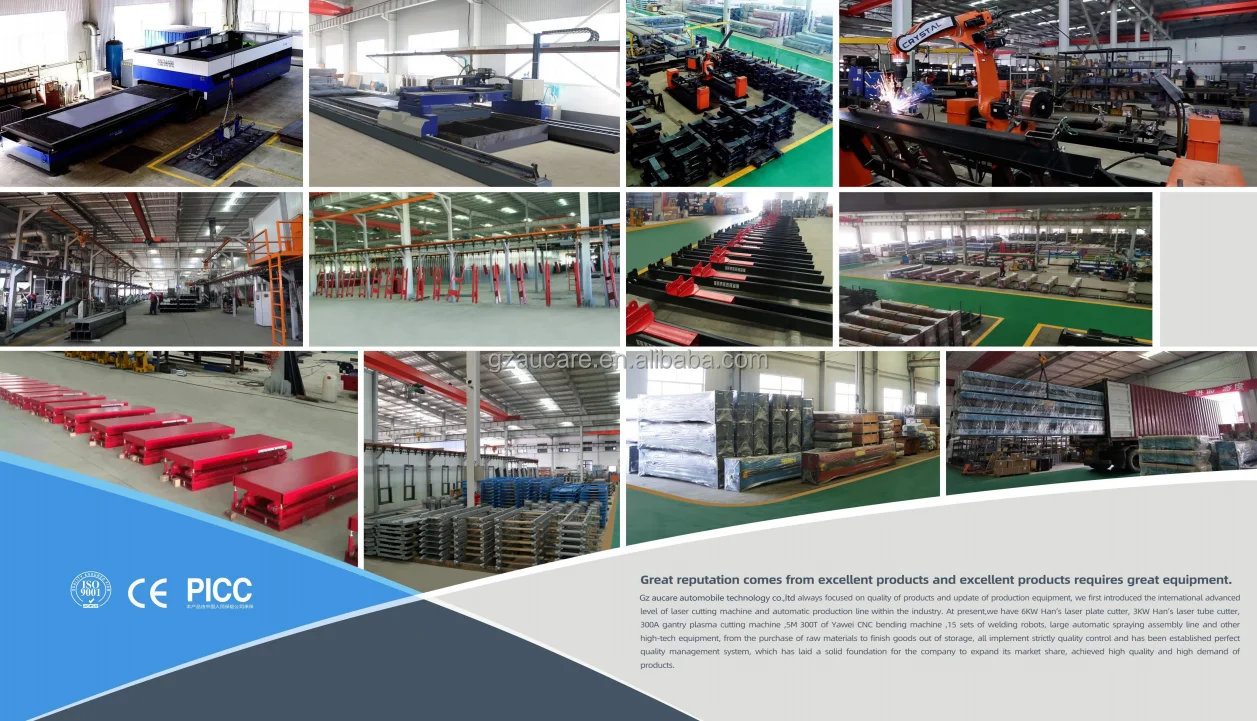

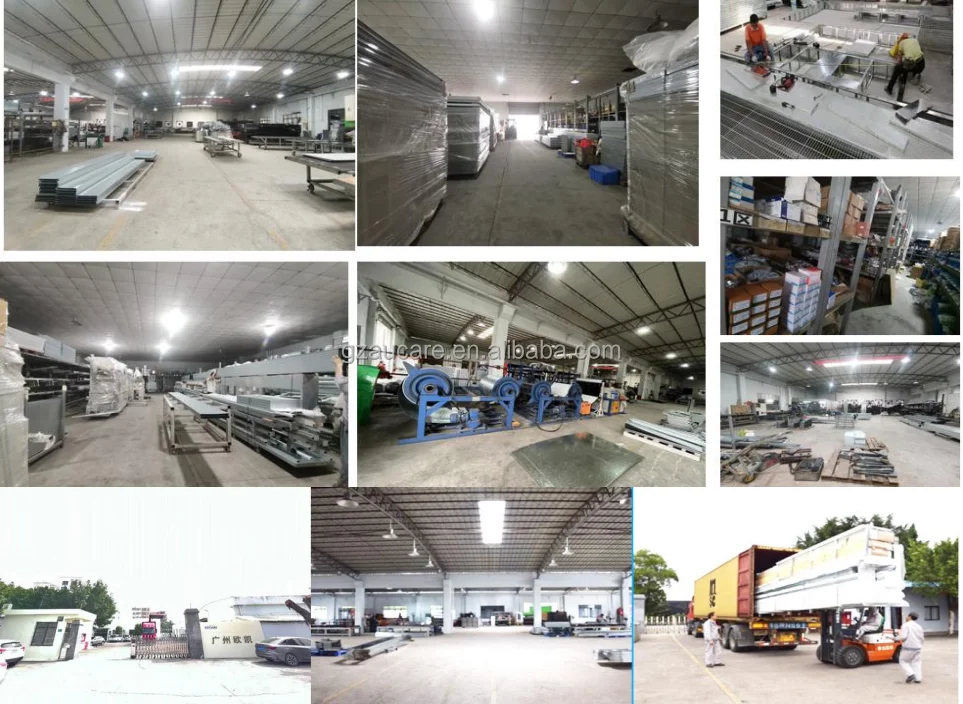

Production area: 10000m2
Total workshop area: 6000m2
On-site production staff: 40 person
Technical engineers: 15 person
Total workshop area: 6000m2
On-site production staff: 40 person
Technical engineers: 15 person
Sales team :30 person
