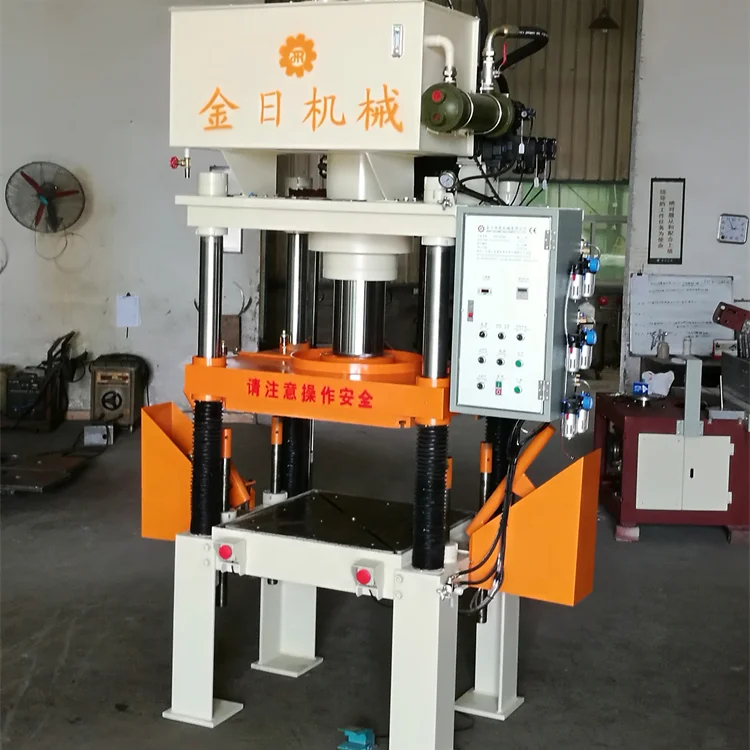

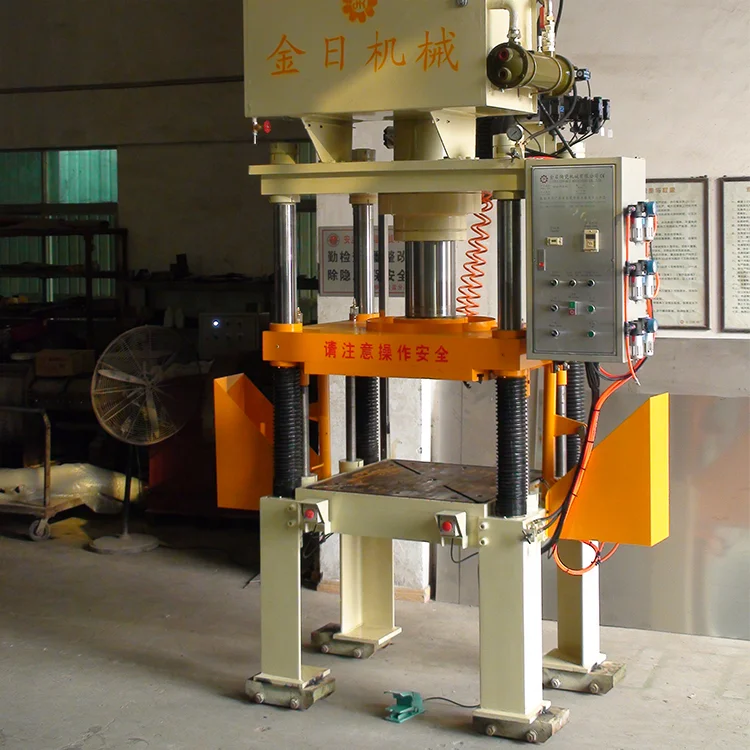

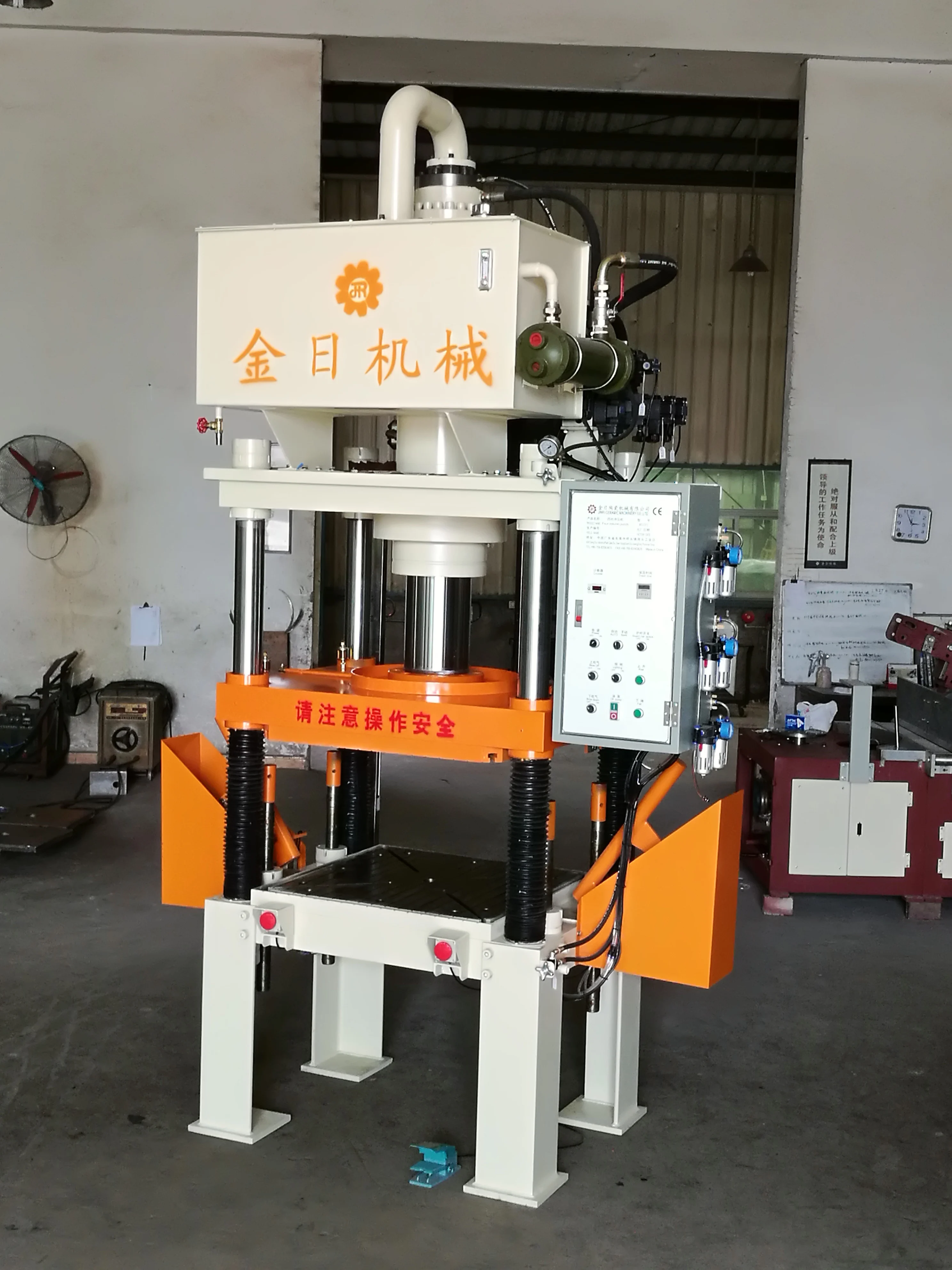

Ceramic Press Machine Ceramic Plate Making Machine Tableware Press Ceramic Ram Press Machine
Feature
Clay body made by this machine with high density,strong strength,and not easy to deform. High efficiency and low labor cost.

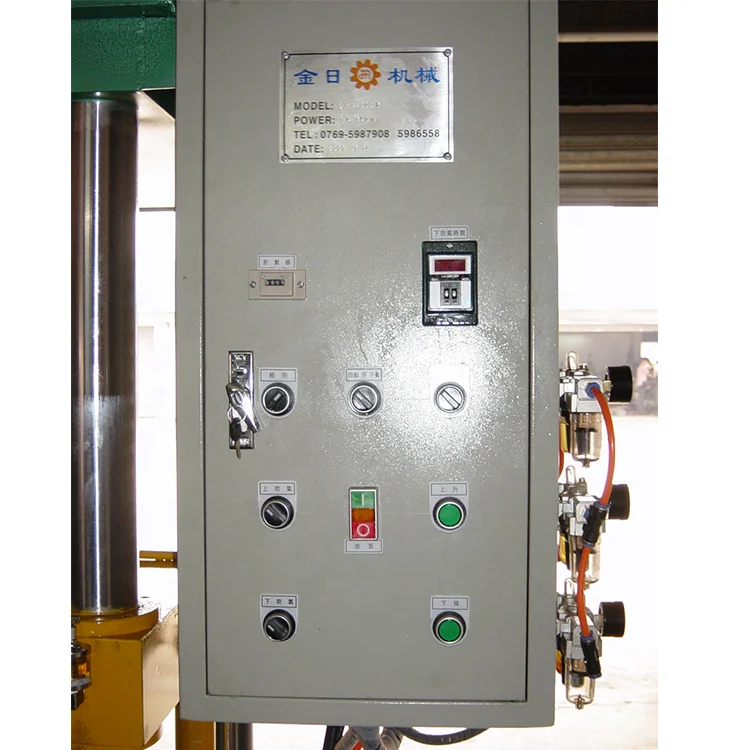

The machine equipped with Double button starting,double protection rodsand photoelectric protection, then greatly improved security.
Function
Used for making non-round plates and other special-shape plates, like turkey dishes, fish dishes, square dishes.
| Model | CY-100 |
| External Dimension | L2150*W1400*H3500 |
| Macimal Working Pressure | 200kg/cm2 |

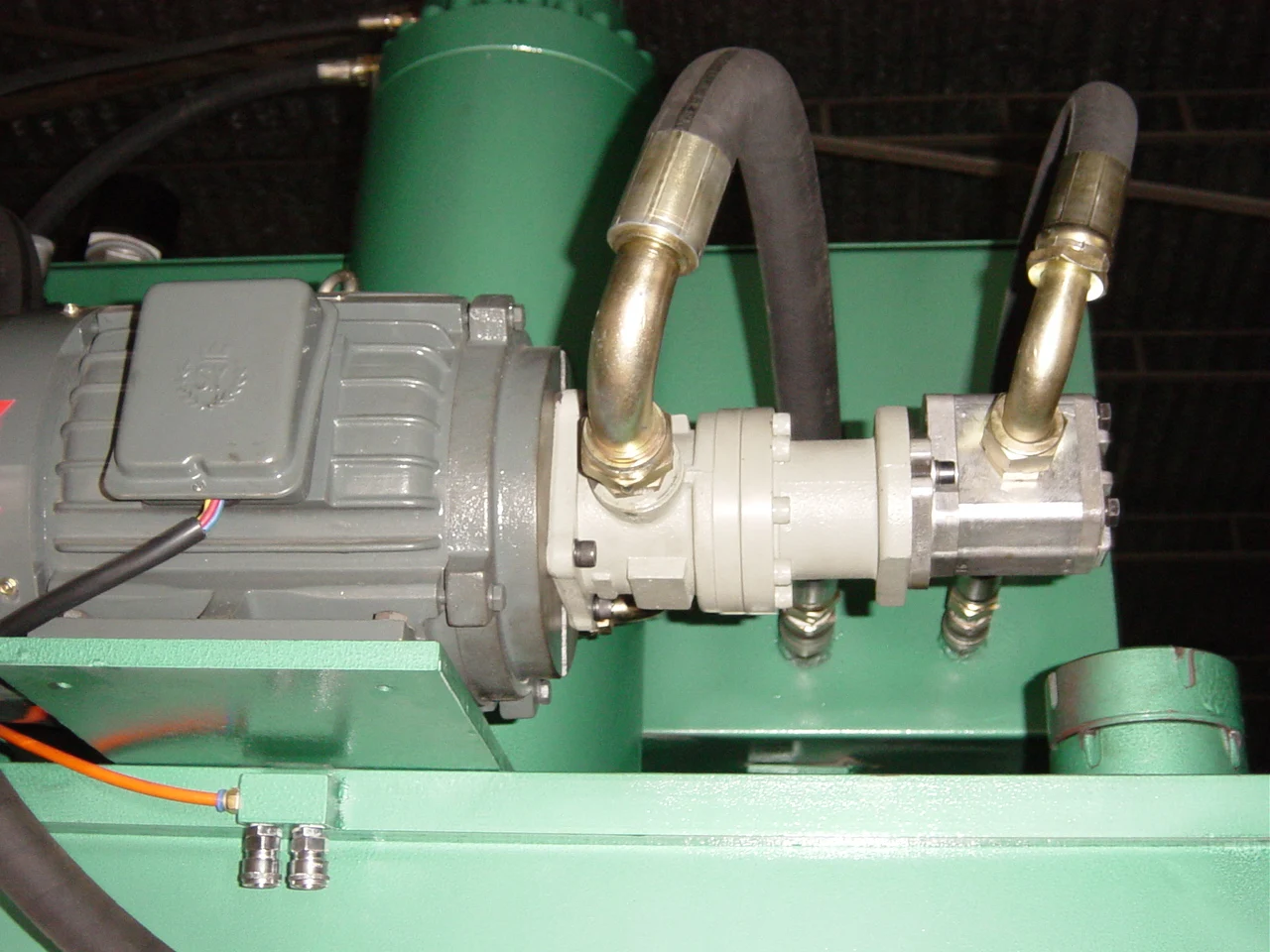

| Hydraulic Motor Power | 10HP/7.5KW |
| Dimension of Working Bench(mm) | 900*900 |
| Travel of Moving Beam(mm) | 800 |
| Down Fast speed of moving beam(mm/s) | 250 (Adjustable) |
| Down slow speed of moving beam(mm/s) | 50 (Adjustable) |
| Up speed of moving beam(mm/s) | 200 |
Application Area
Hot Selling
Company Profile
Jinri Ceramic Machinery Co. , Ltd
Established in 2002, it is an equipment manufacturer of daily ceramic factories at home and abroad.It is a representative of domestic daily ceramic machinery, and cooperated with Japan Takahama Industries Co., Ltd. KAJISEKI in 2016.The main production of daily ceramic machinery, suitable for daily ceramics, art ceramics, filter ceramics, household ceramics, etc.
