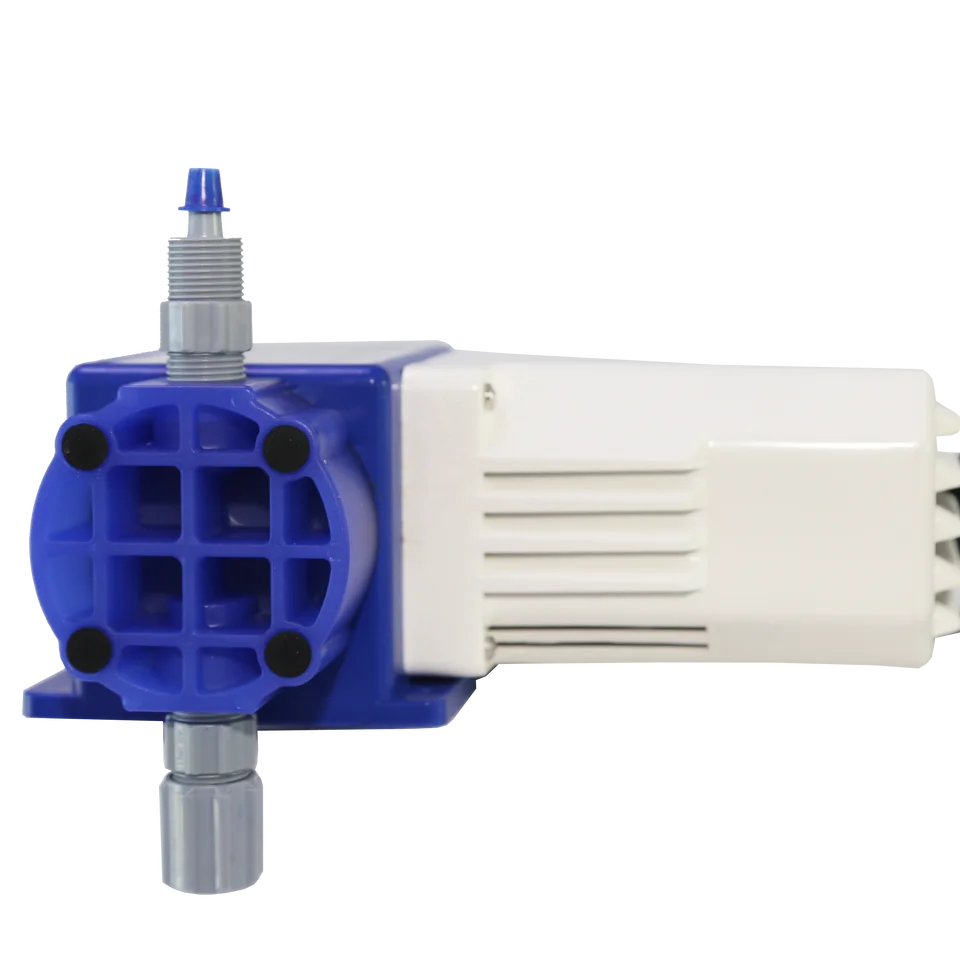

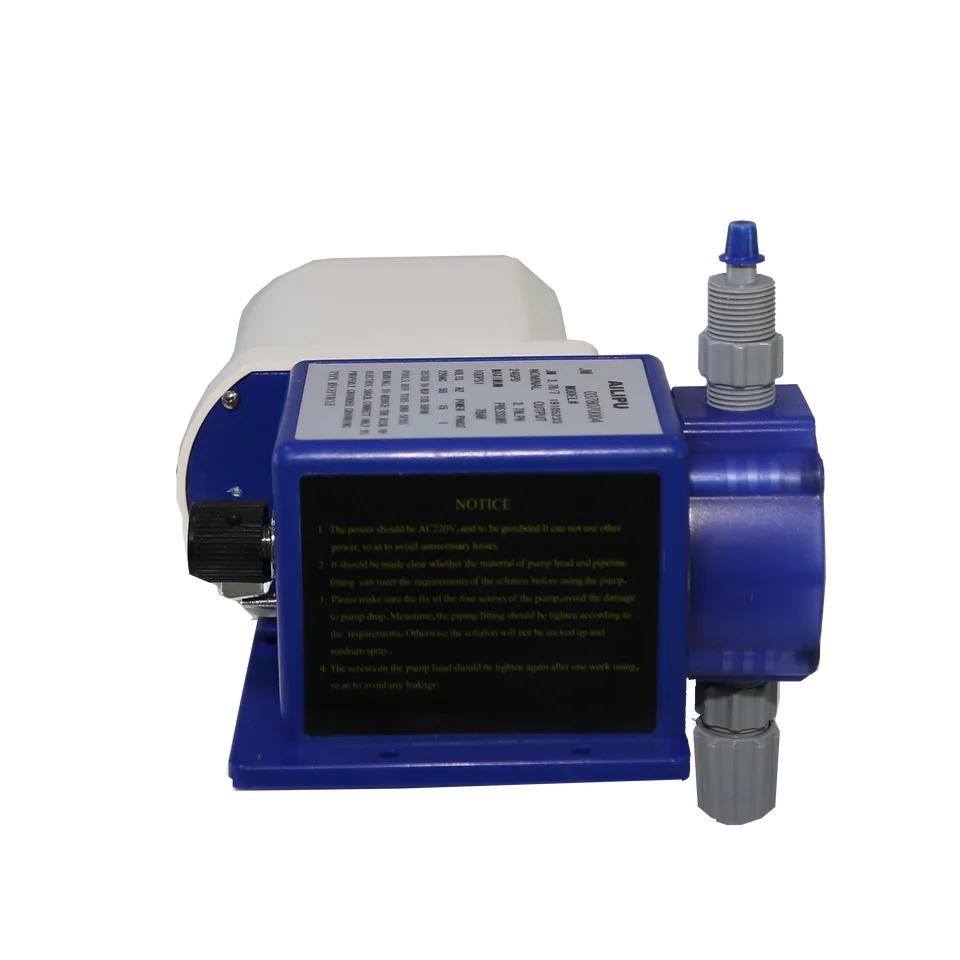

JM Series Chemical Liquid Metering Pump Diaphragm Pump Automatic Dosing Pump
- Category: >>>
- Supplier: Zhejiang,Ailipu,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Show

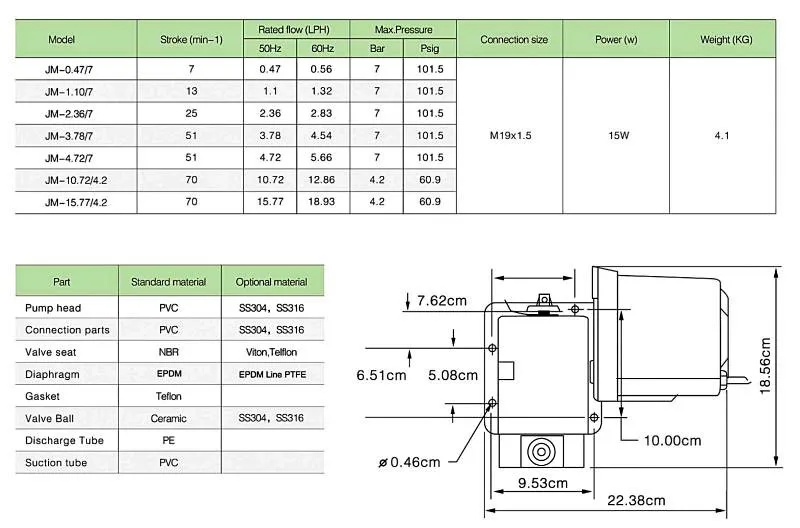

Technical Date
Model | Stroke (min-1) | Rated Flow (LPH) | Max.Pressure | Connection Size | Power (w） | Weight (KG) | ||||
50Hz | 60Hz | Mpa | Psig | M19x1.5 | 15W | 4.1 | ||||
JM-0.47/7 | 7 | 0.47 | 0.56 | 7 | 101.5 | |||||
JM-1.10/7 | 13 | 1.1 | 1.32 | 7 | 101.5 | |||||
JM-2.36/7 | 25 | 2.36 | 2.83 | 7 | 101.5 | |||||
JM-3.78/7 | 51 | 3.78 | 4.54 | 7 | 101.5 | |||||
JM-4.72/7 | 51 | 4.72 | 5.66 | 7 | 101.5 | |||||
JM-10.72/4.2 | 70 | 10.72 | 12.86 | 4.2 | 60.9 | |||||
JM-15.77/4.2 | 70 | 15.77 | 18.93 | 4.2 | 60.9 | |||||

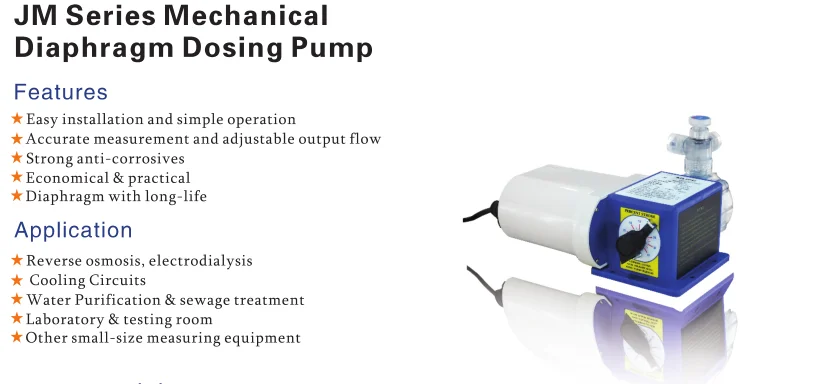

Products Description

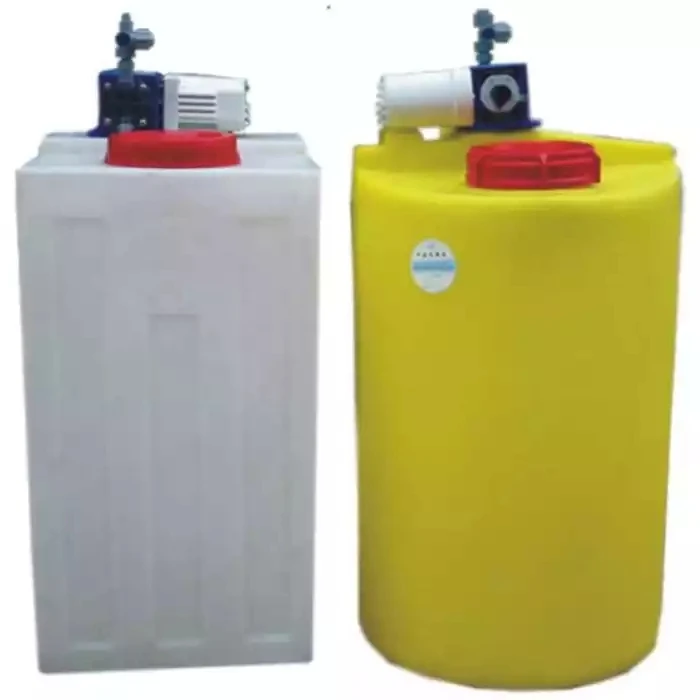

More Products Show
Certificate
Packaging&Transportation
About Us
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory, and our factory has the independent research and development capacity
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer sample but it must be paid
Q: What is your terms of payment ?
A:TT, LC. etc.....
A: We are factory, and our factory has the independent research and development capacity
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer sample but it must be paid
Q: What is your terms of payment ?
A:TT, LC. etc.....
