Customized Chemical and pharmaceutical double Single Layer Explosion proof 1L to 200L double layer glass reactor
Customized Chemical and pharmaceutical double Single Layer Explosion-proof 1L to 200L double-layer glass reactor
Customized Chemical and pharmaceutical double Single Layer Explosion-proof 1L to 200L double-layer glass reactor
Customized Chemical and pharmaceutical double Single Layer Explosion-proof 1L to 200L double-layer glass reactor
Customized Chemical and pharmaceutical double Single Layer Explosion-proof 1L to 200L double-layer glass reactor
Customized Chemical and pharmaceutical double Single Layer Explosion-proof 1L to 200L double-layer glass reactor
Customized Chemical and pharmaceutical double Single Layer Explosion-proof 1L to 200L double-layer glass reactor

Customized Chemical and pharmaceutical double Single Layer Explosion proof 1L to 200L double layer glass reactor

Share on (1600713345927):


Price:$1,260.00 - $1,299.00

Quantity:


Product Overview

Description



Product Description

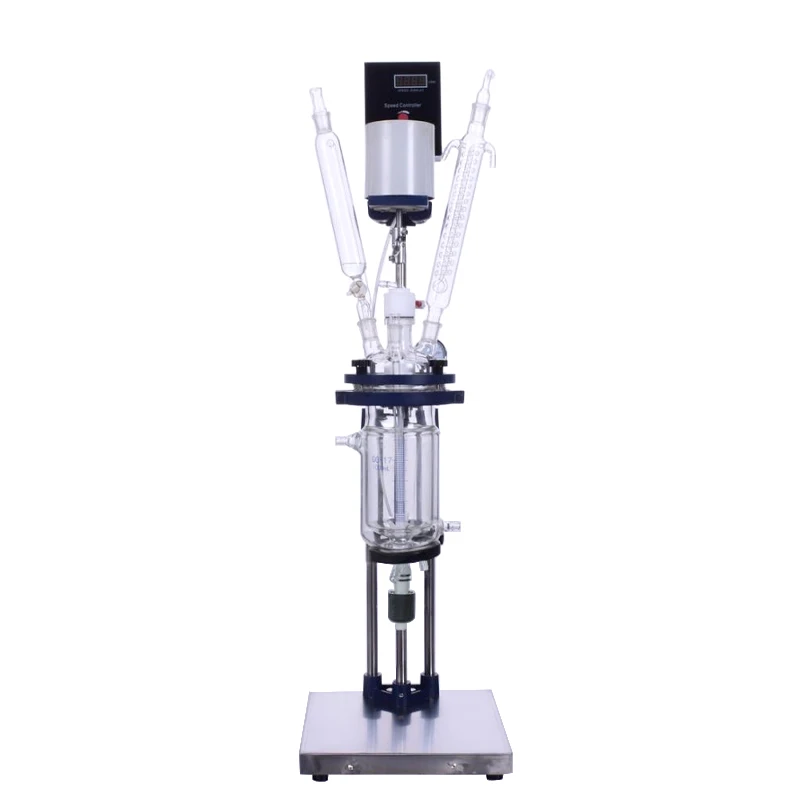

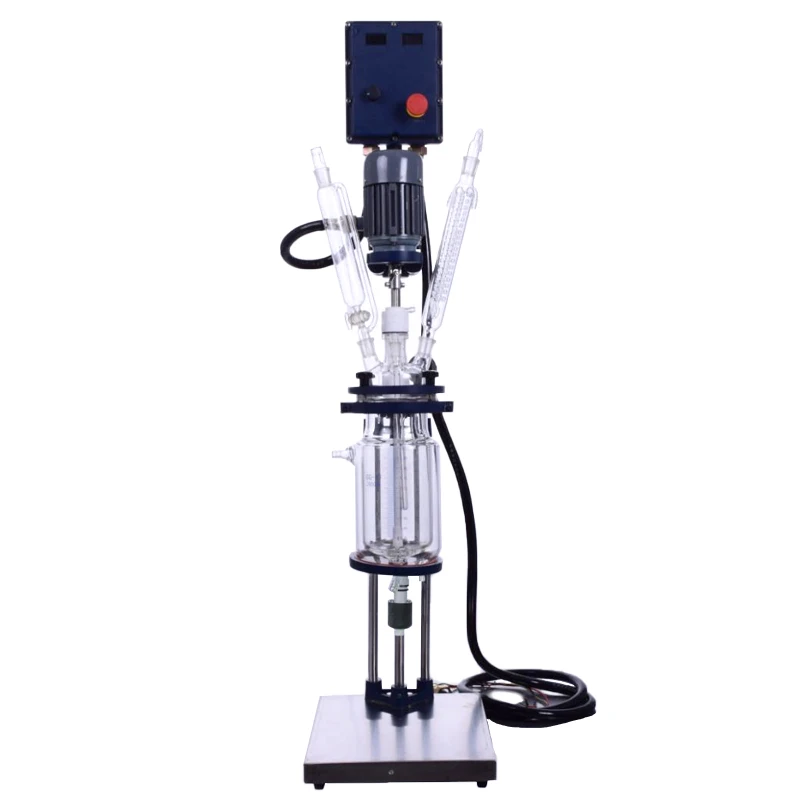

Explosion-proof double-layer glass reactor TST-EXS212-3L

Working principle
This machine has an electric constant speed stirring system, condensation and drip feeding system, and the interlayer of the kettle body needs external heating or refrigeration circulation equipment. At the same time of stirring the materials, the circulating hot solution or coolant is injected through the interlayer to heat or cool the materials in the kettle at constant temperature. When the material is heated, the evaporation efficiency can be improved under vacuum conditions (a vacuum device needs to be connected). When the solvent vapor passes through the glass condensing coil, it is cooled into liquid (a cooling device needs to be connected), which can be returned to the kettle or recovered through the lower valve of the return elbow. After the reaction is completed, the material can be released from the side discharge port at the bottom of the kettle.
This series of products need to be equipped with vacuum device, high temperature or low temperature circulation device and other system devices.


Specification


Model Number
TST-EXS212-3L
Volume of kettle
3L inner diameter 180mm outer diameter 230mm inner length 240mm
Interlayer capacity
About 600ml
Voltage frequency
220V/50HZ
Mixing motor power
EX90W
Stirring speed
 0-1400rpm/min
Temperature range of kettle body
 -80 ℃ ~ 250 ℃
Temperature measurement accuracy
± 1 ℃
 Vacuum degree
0.098Mpa
Kan cover Φ205mm 5
Mixing port Φ50mm flange port
Condensation port 29# Marked Port
Constant pressure funnel mouth 29# Marked Port
Decompression port 24# Marker
Temperature measuring port 24# Marker
 Mixing paddle
φ 10 × 600H(mm) leaf spread 125mm
Condenser
φ Φ60mm × 600H(mm) 29# plug under 24# mark port
Constant pressure funnel
500ml upper 24# marking port with glass plug lower 29# marking plug
Pressure reducing valve
24# standard plug valve drain nozzle (pagoda connector) outer diameter 10mm
Temperature measuring port
 24# plug glass temperature tube
Interlayer inlet and outlet circulation port
φ 35 flange opening matching flange, adapter pagoda joint outer diameter 15mm
discharge port
Wire mouth with PTFE discharge valve Φ18mm discharge hole inclined discharge nozzle (pagoda joint) Φ12mm 350mm from ground
Vacuum suction head
24# glass suction head suction nozzle (pagoda joint) outer diameter 10mm
Condensation coil inlet and outlet circulation nozzle
Pagoda joint outer diameter 10mm
Size of space occupied by the whole machine
330 × 410 × 1450mm width and depth
Net weight of machine
 30.5KG
Package size
 1360 × 530 × 490mm wooden box 0.36m ³
Packing weight
 54KG
