flatbed leather pattern cutting plotter cardboard box sample making machine for garment
- Category: Paper Product Making Machinery >>>
- Supplier: Jinan,Wise,Cnc,Laser,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview
cnc digital fully automatic oscillating knife die cardboard grey paper board cake card making corrugated box cutting machine
CNC oscillating knife cutting machine with creasing wheel is used for packaging, carton box making, display, stands etc.
Cutting Materials: corrugated cardboard, paper board, plastic wave board, honeycomb cardboard, paper card
If cutting material is heavy duty and very thick corrugated cardboard, can use v cut tool to cut 45 degree angle.
if want to cut printed carton paperboard, can add ccd camera. It will cut out layout of printed image on paperboard.
Application:
Mainly for cardboard box making, cardboard package, for processing double- and tripple-wall corrugated cardboard, applied into carton box making
Mainly for cardboard box making, cardboard package, for processing double- and tripple-wall corrugated cardboard, applied into carton box making
Cutting Materials: corrugated cardboard, paper board, plastic wave board, honeycomb cardboard, paper card
FEATURES AT A GLANCE
CNC oscillating knife cutting machine is also called flatbed cutting machine, its good partner for flatbed uv printer.
Long lifespan, stable performance, high precision
Front Look
Side outlook
Back Side
PRODUCT SPECIFICATIONS
Technical Parameters of CNC Oscillating Knife Cutting Machine | ||||||||
Model | WS1625 | |||||||
Working size | 1550*2600mm | |||||||
Cutting height | 10mm max by vibrating knife (if cut thick material, can use vcut tool to cut 45 degree angle in folding corner) | |||||||
Cutting head | Oscillating knife+ creasing wheel (can add v cut tools for thick cardboard cutting, and ccd for printed image cutting) | |||||||
Machine table | Aluminum bellow suction table with 9 suction zone | |||||||
Vaccum pump | 9kw air cooling vacuum pump | |||||||
Driving system | Taiwan delta servo motor and driver | |||||||
Control system | Ruida controller | |||||||
Software | Vcutworks | |||||||
Transmission | Helical rack pinion | |||||||
Cutting speed | 30m/min | |||||||
Traveling speed | 50m/min | |||||||
Working power | 380V 3 phase 50HZ | |||||||
Machine weight | 800kgs | |||||||
Safety switch | with four safety sensor switch to guarantee operator safety | |||||||
PRODUCT CONFIGURATION
Creasing wheel
Taiwan Square Guide Rail
Taiwan Delta Servo Motor
Thick aluminum bellow table
6mm textile canvas on table
V cut Tool
4 pieces safety sensor to keep operator safety, when operator is near to machine, it will stop work
4 pieces stop switch around machine, easily stop machine under emergency situation
Ruida Controller
easy operation, support multi language
easy operation, support multi language
9kw vacuum pump
9 vacuum zone, big sucking power

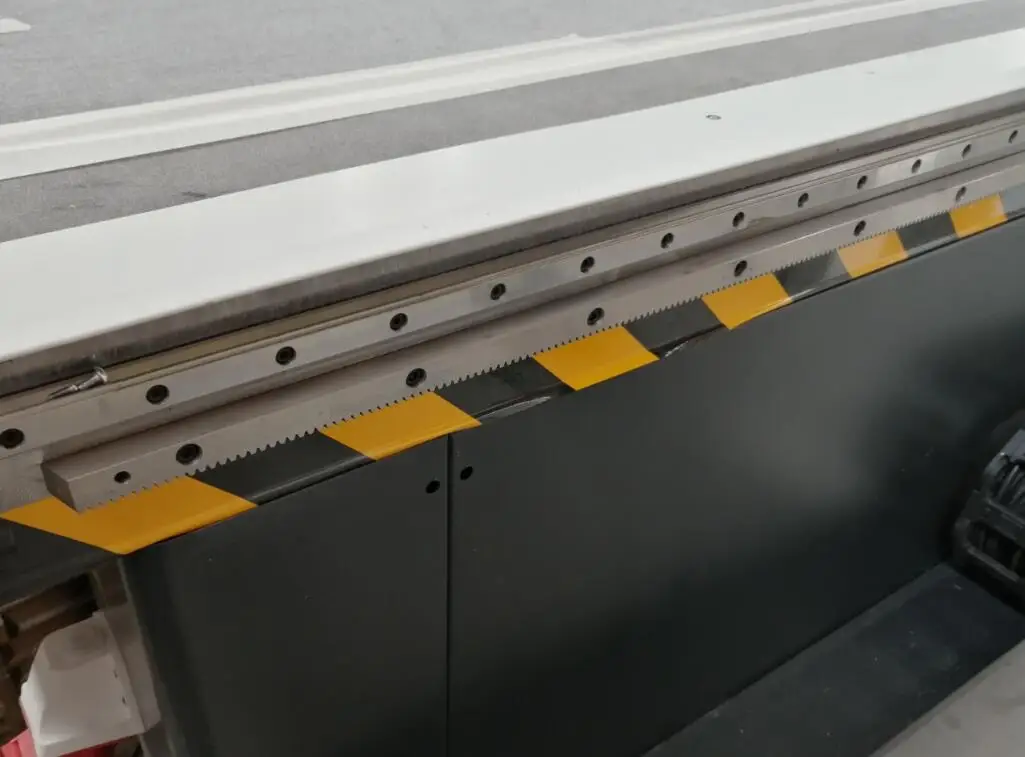

high precision rack pinion
longer lifespan, more stalbe
different tools for various material cutting
round knife, punching tool, kiss cut tool
Samples made by cnc oscillating knife cardboard box making cutting machine:
