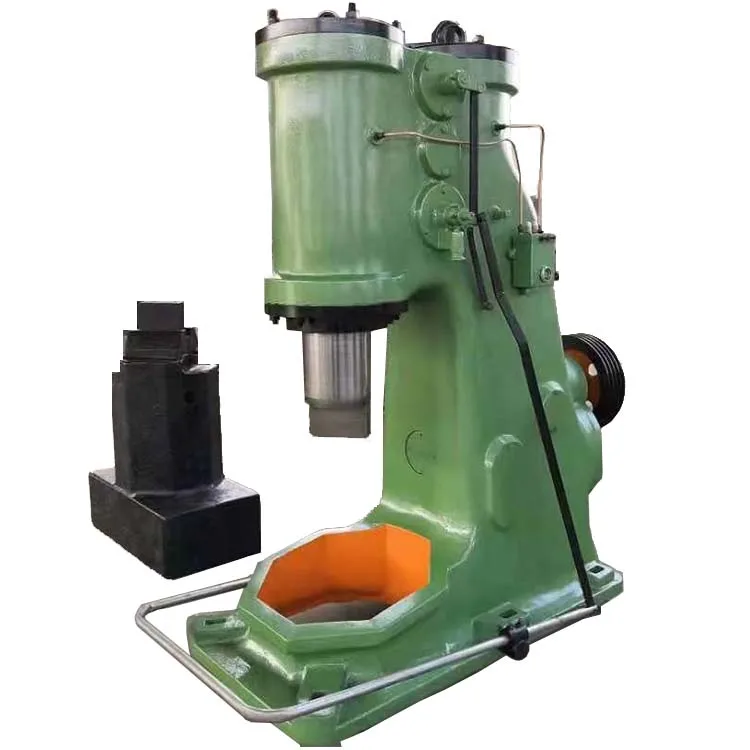

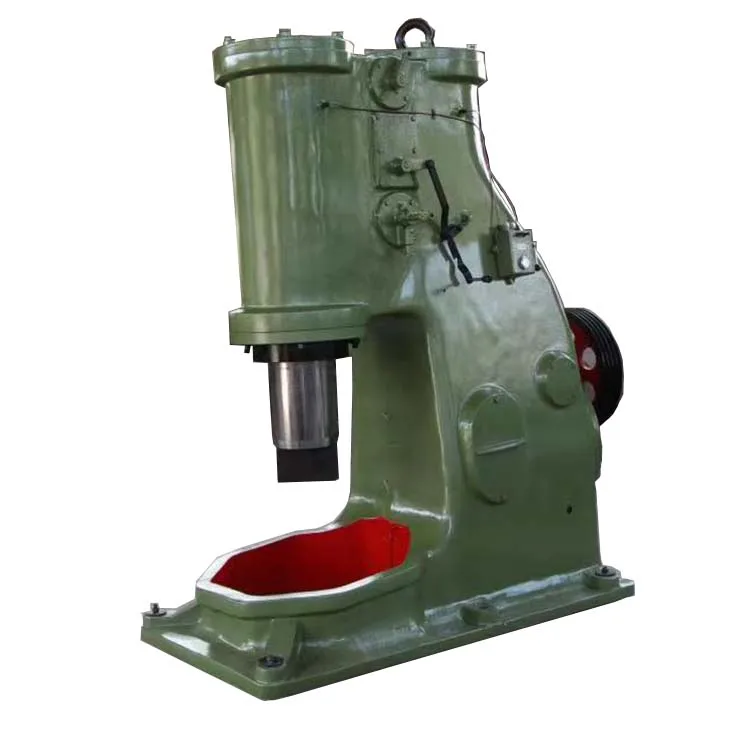

C41 40 Pneumatic Forging Press Power Hammer Blacksmith
- Category: >>>
- Supplier: Henan Austing Machinery Co. Ltd.
Share on (1600713459686):
Product Overview
Description
Products Description
Features
1. Powered by compressed air, meet the needs of production safety, and tapping force against frequency by adjusting the air pressure control
2. The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel,
3. Simple mechanism ,Is not easy to damage
2. The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel,
3. Simple mechanism ,Is not easy to damage
Application
Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending using a die cushion can be a variety of open die forging.
Specification
Parameter | Units | C41-40kg | C41-25kg | C41-20kg |
Blow energy | K j | 0.53 | 0.27 | 0.22 |
Height of working area | mm | 245 | 240 | 200 |
Number of blows | min-1 | 245 | 250 | 255 |
Anvil block size | mm | 120x50 | 100x50 | 90x50 |
Malleable square steel length | mm | 52x52 | 40x40 | 30x30 |
Malleable circular steel length | mm | ￠68 | ￠45 | ￠35 |
Match use of power | K w | 4 | Single-phase 3/220V, Three-phase 2.2/380V | Single-phase 2.2/220, Three-phase 2.2/380 |
Motor speed | r. p. m | 1440 | 1440 | 1440 |
Anvil sitting of weight | kg | - | - | - |
Gross weight | kg | 880 | - | - |
Appearance size | mm | 1080x600x1430 | -- | -- |

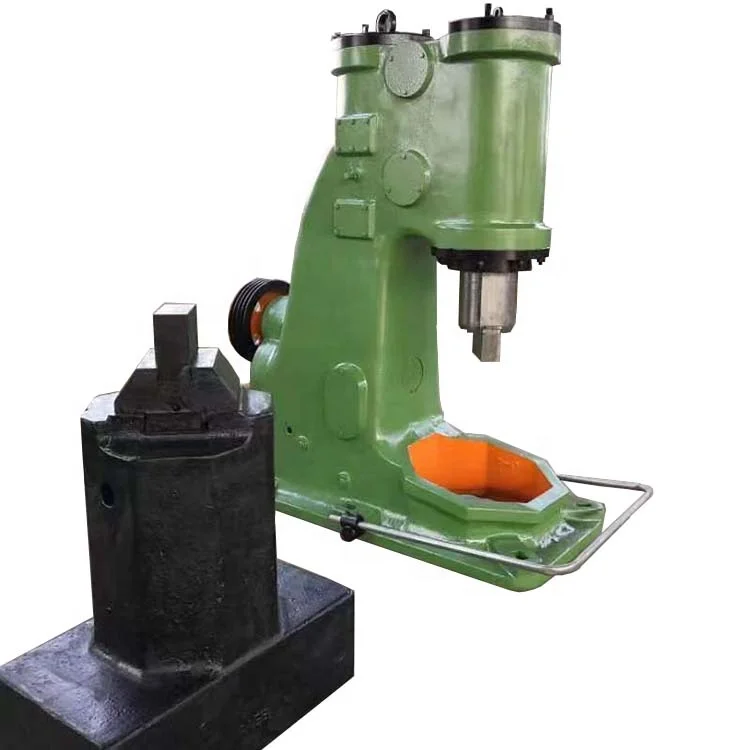

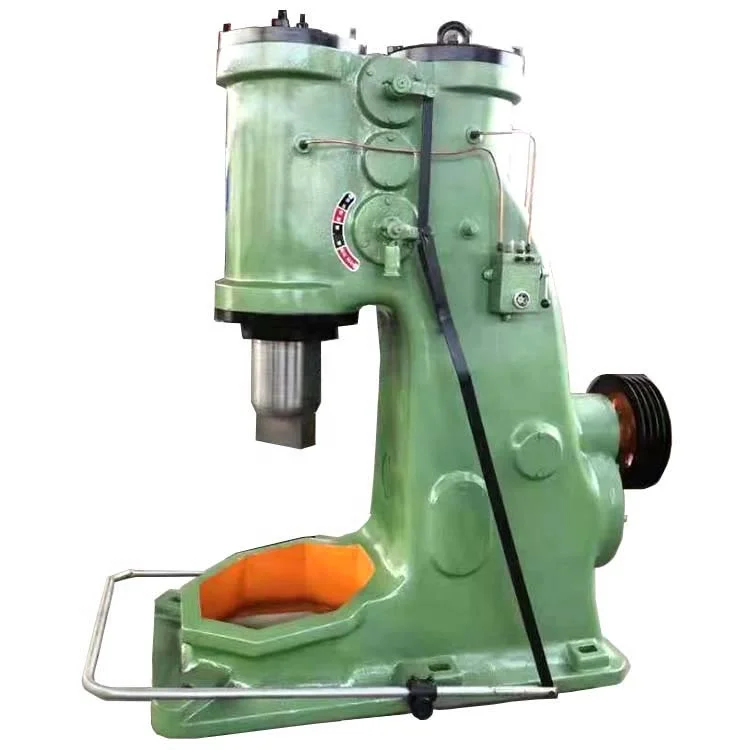

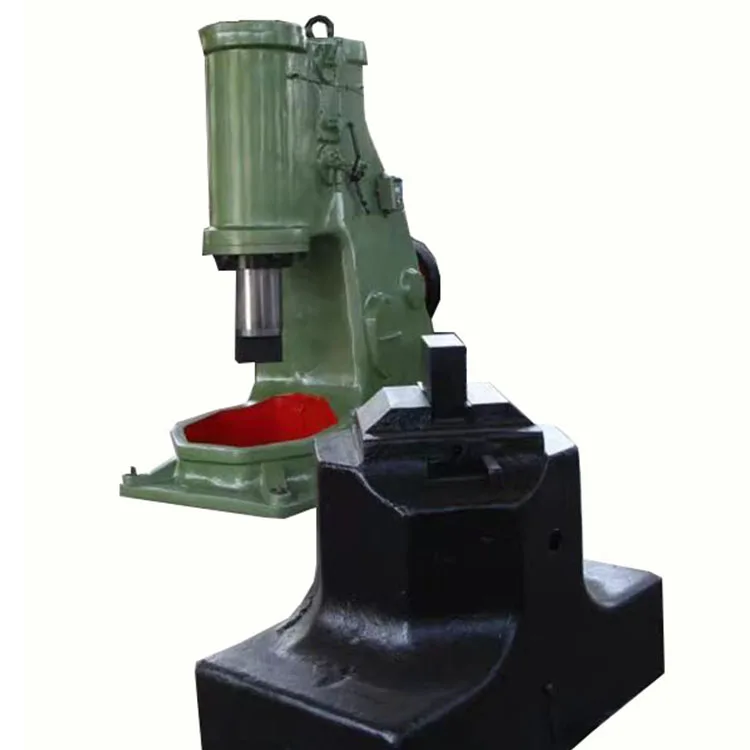

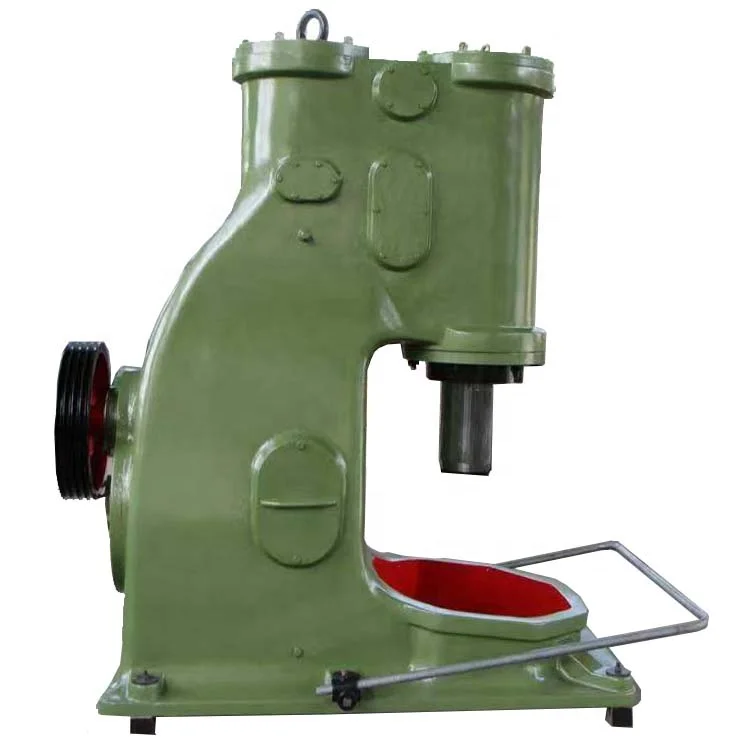

Details Images

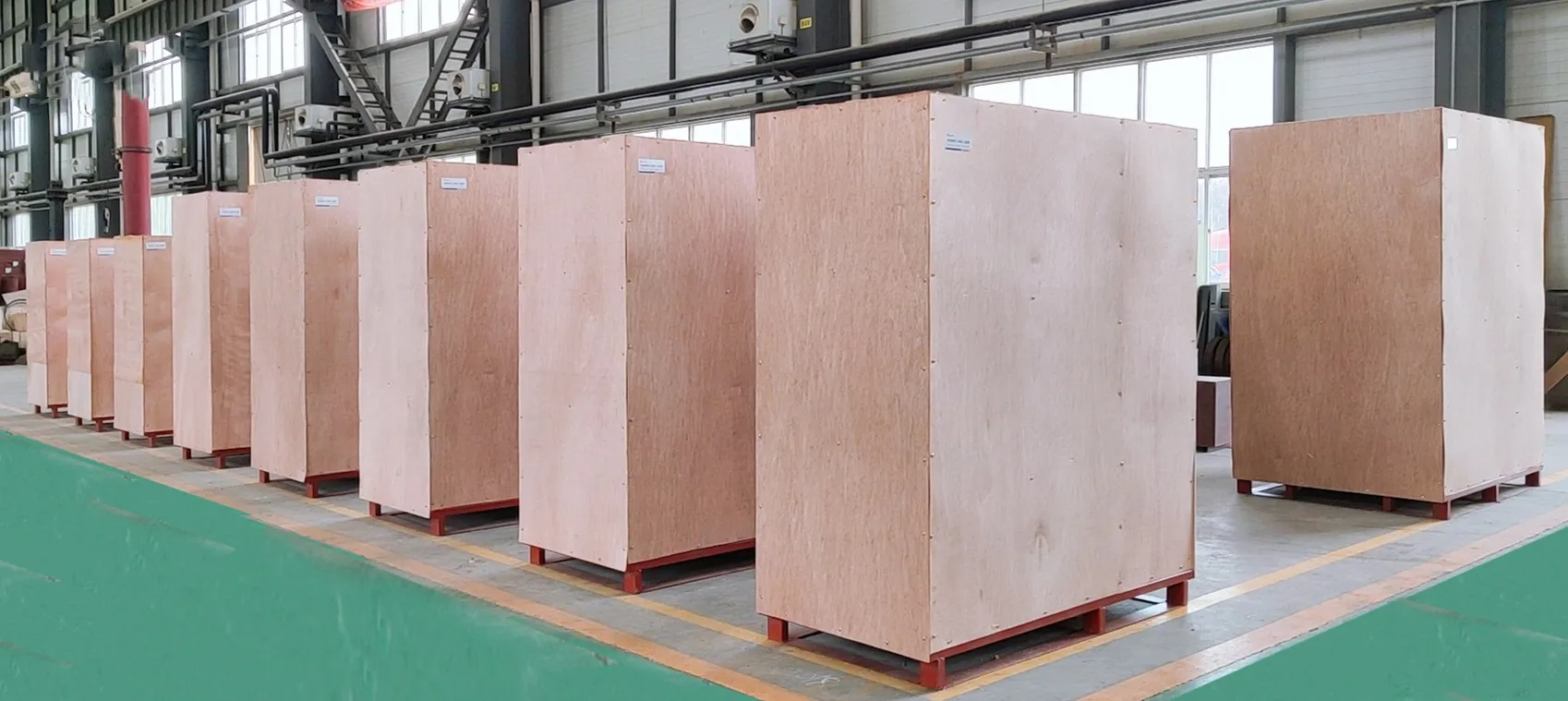

Packaging & Shipping
Why Choose Us
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as Roll Forming Machine, CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Zhengzhou City , Henan Province, China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight
A: We specialized in all kinds of machines ,such as Roll Forming Machine, CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Zhengzhou City , Henan Province, China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
