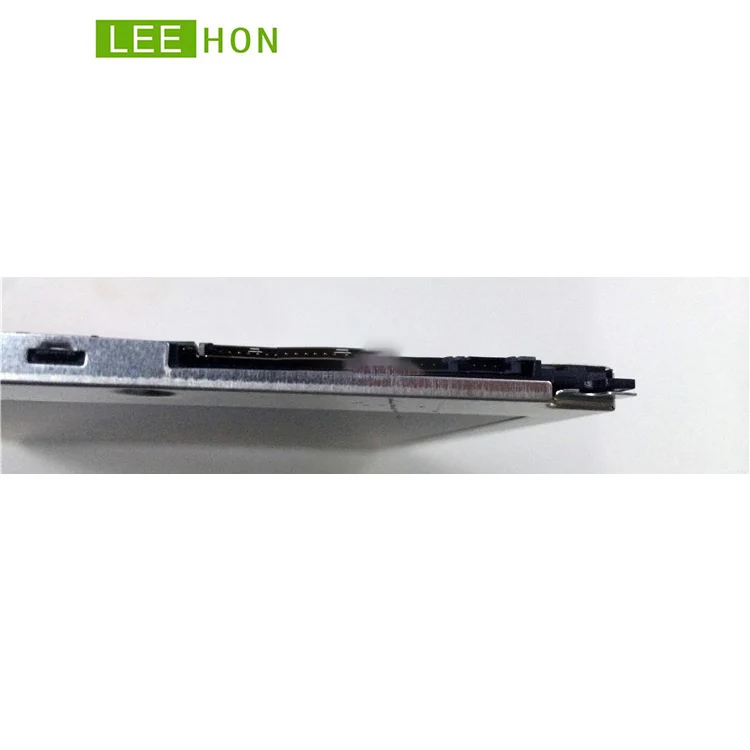

Original Industrial Grade 8.4 Inch 800x600 TIANMA TFT LCD Screen LVDS LCD Panel TM084SDHG01 Driver Board
- Category: >>>
- Supplier: Hangzhou,Leehon,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Specification
Original Industrial Grade 8.4 Inch 800x600 TIANMA TFT LCD Screen LVDS LCD Panel TM084SDHG01 Driver Board
item | value |
Type | TFT |
Display Size | 8.4 inch |
Supplier Type | Agent |
Place of Origin | China |
Shanghai | |
Brand Name | TIANMA |
Display size | 8.4 inch |
Resolution | 800(RGB)x600 , SVGA |
Active Area | 170.4 (W) x 127.8(H)mm |
Outline | 203(W) x 142.5(H) x 5.7(D)mm |
Pixel pitch | 0.213(H) x 0.213(V)mm |
Arrangement | R.G.B. Vertical Stripe |
Treatment | Anti Glare |
POWER Supply Voltage VDD | +3.3 V |
Support color | 262K/16.7M , 50% NTSC |
View angle | 70/70/60/70 (Typ.)(CR≥10) Left/Right/Up/ Down |
Brightness | 250 cd/m² |
Contrast Ratio | 500:1 |
Interface Type | LVDS (1 ch, 6/8-bit) , 20 pins |
Backlight | WLED , 50K hours , with LED driver |
Operate temperature | -20 ~ +70 (°C) |
Storage Temperature | -30 ~ +80 (°C) |
Response time | 25ms |
Weight | TBD |
Display Mode | TN , Normally White , Transmissive |
Company Profile
Applications

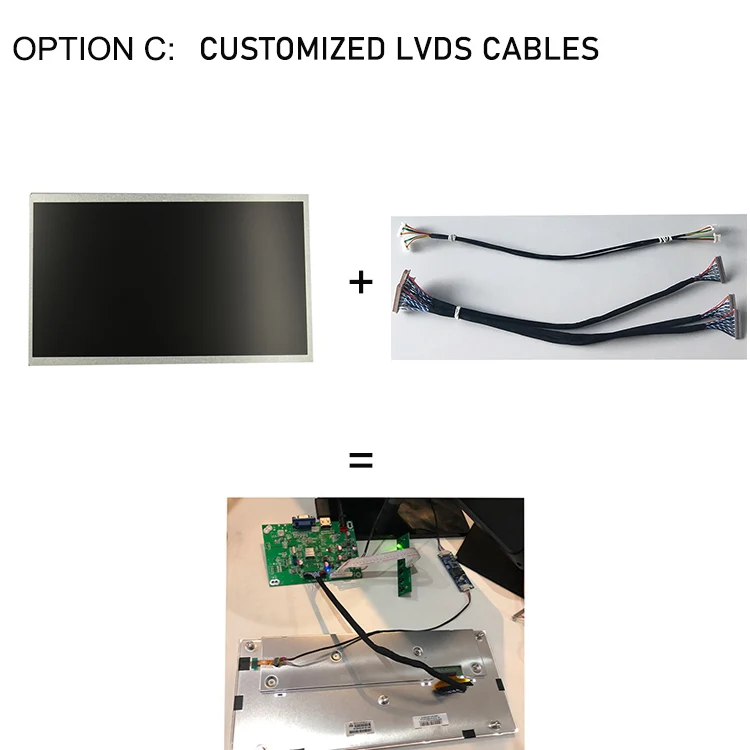

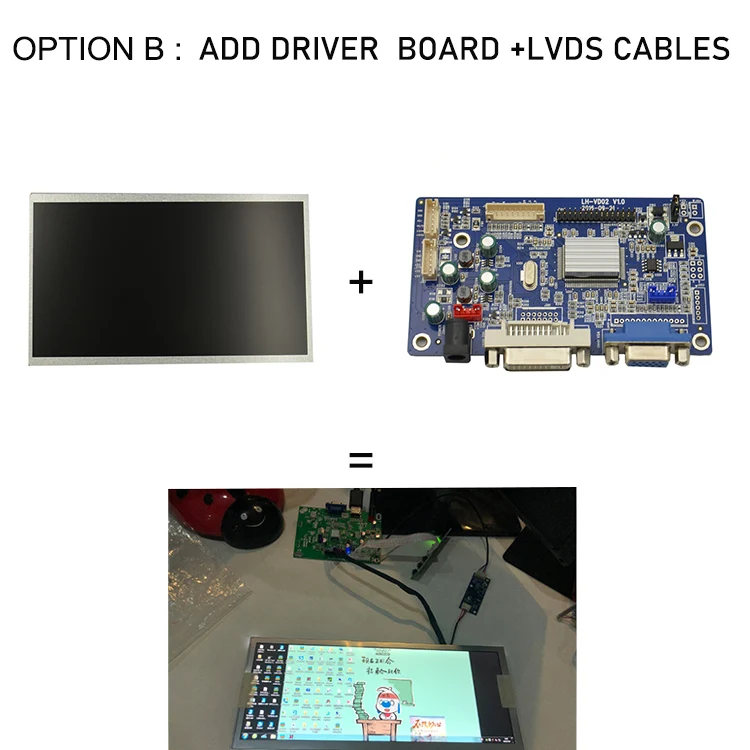

We can supply total set of display solution :

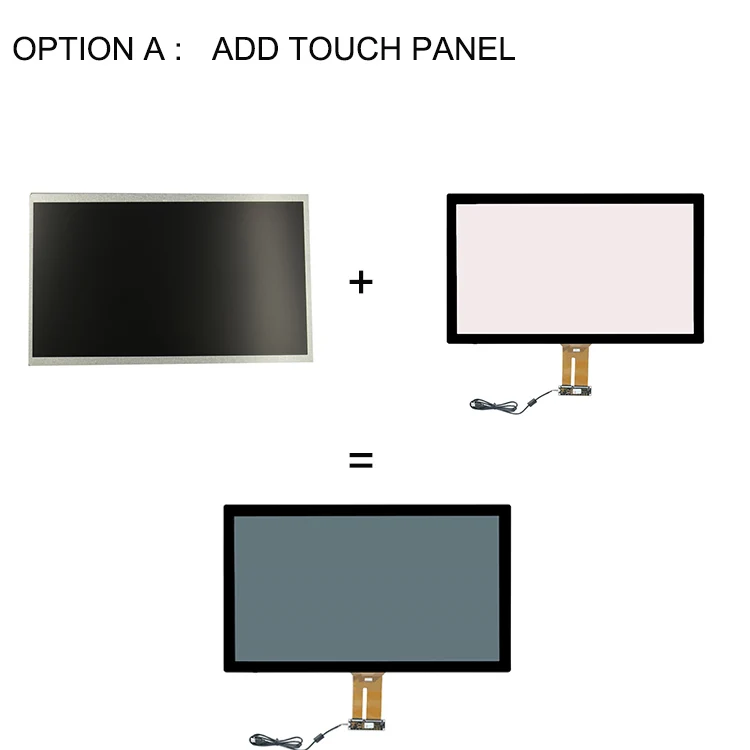

TFT LCD screen + touch screen + controller board + cables + open frame
Why Choose Us

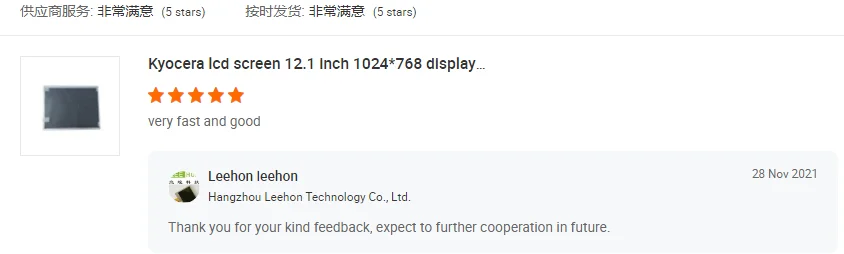

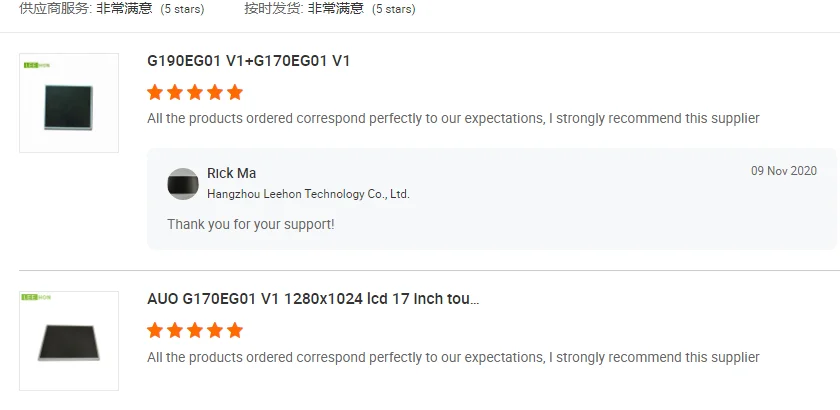

Customer Reviews
Packing & Delivery
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2009,sell to Western Europe(30.00%),North America(30.00%),Eastern Europe(10.00%),South America(5.00%),Northern Europe(5.00%),Mid East(4.00%),Southern Europe(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?

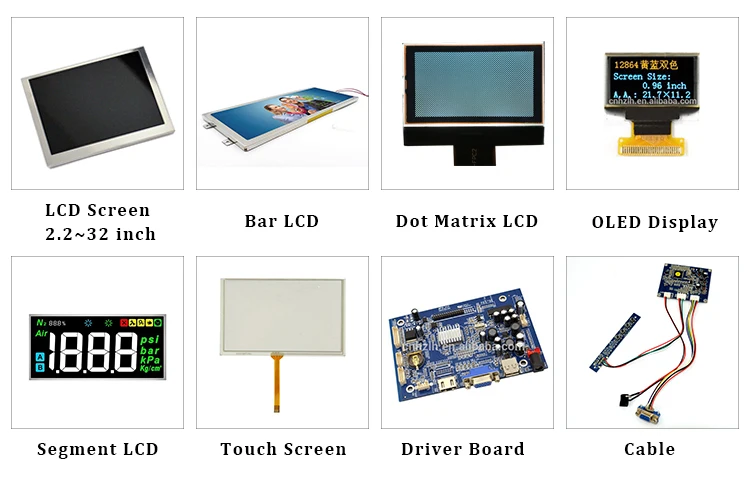

LCD Displays,Touch panels,LCD controller board,LCD panel,Touch screen
4. why should you buy from us not from other suppliers?
Hangzhou Leehon Technology Co., Ltd is a main distributor of AUO/ BOE/ Kyocera /Innolux TFT-LCD modules in China mainland, founded in 2009, the products vary from 2.2 to 43 inches, which include GD(Industrial grade), AV(car class), PID(General Application)
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Zhejiang, China, start from 2009,sell to Western Europe(30.00%),North America(30.00%),Eastern Europe(10.00%),South America(5.00%),Northern Europe(5.00%),Mid East(4.00%),Southern Europe(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
LCD Displays,Touch panels,LCD controller board,LCD panel,Touch screen
4. why should you buy from us not from other suppliers?
Hangzhou Leehon Technology Co., Ltd is a main distributor of AUO/ BOE/ Kyocera /Innolux TFT-LCD modules in China mainland, founded in 2009, the products vary from 2.2 to 43 inches, which include GD(Industrial grade), AV(car class), PID(General Application)
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
