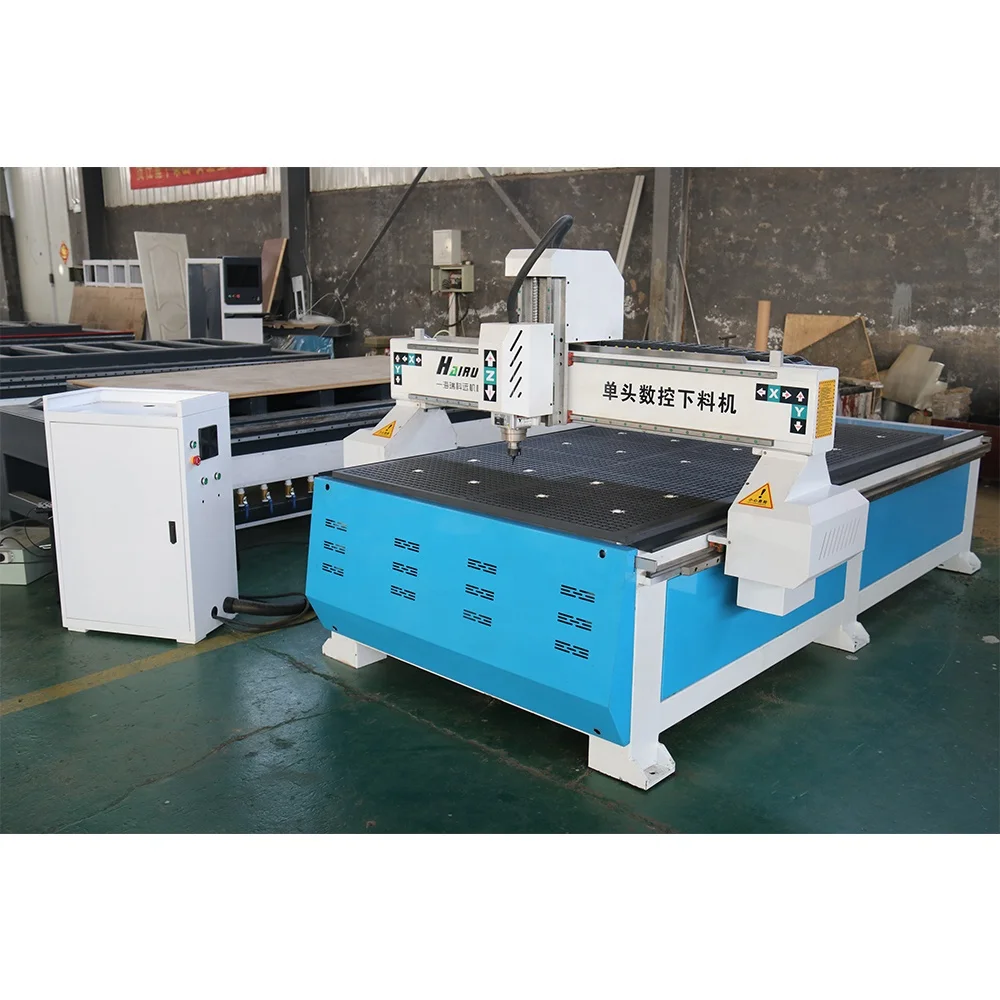

Cheap Cnc Router Suda Vg 1325 Engraving Machine
- Category: >>>
- Supplier: Qingdao Hairuikeyuan Machinery Co. Ltd.
Share on (1600713529927):
Product Overview
Description
Main Features
1) High temperature tempering treatment, welded steel tube machine bed and gantry, high rigidity, bearing strength better.
2) Y axis with double stepper motor and Leadshine driver, moving stably.
2) Y axis with double stepper motor and Leadshine driver, moving stably.
3) Linear square guide rail with automatic oil lubrication device, ensuring long life time working, reduce the time of machine
maintenance.
4) China air or water cooling spindle, more powerful, low noise, not easy to break cutters, suitable for engraving and cutting
work.
5) With rack and gear transmission for X Y axis it can have faster speed than ball screw machines. Ball screw transmission for Z
axis, ensuring the machine fast speed and higher precision.
6) Good software compatibility, with machine, we provide Artcam, Aspire, Powermill software etc .
maintenance.
4) China air or water cooling spindle, more powerful, low noise, not easy to break cutters, suitable for engraving and cutting
work.
5) With rack and gear transmission for X Y axis it can have faster speed than ball screw machines. Ball screw transmission for Z
axis, ensuring the machine fast speed and higher precision.
6) Good software compatibility, with machine, we provide Artcam, Aspire, Powermill software etc .
7) With Mach3 control system,very popular control system with high quality.
8) Vacuum table using high-density material with great suction strength, comfortably all sizes of work piece.
8) Vacuum table using high-density material with great suction strength, comfortably all sizes of work piece.
Devicename device name | 1325 single-head engraving machine | ||||||
mesa | Vacuum adsorption table | ||||||
control system | WEIHONG control system | ||||||
spindle motor | spindle motor 6KW | ||||||
kind of drive | X, y axis high precision grinding grade rack drive, Z axis high precision grinding grade ball screw transmission | ||||||
servo motor | XYZ triaxial adopts shenzhen Lesdshine servo motor | ||||||
guide rail | HWN straight line 20 guide rail | ||||||
Working dimensions | 1300*2500*200mm | ||||||
Maximun machining speed | 20000mm/min | ||||||
repositioning accuracy | ±0.05mm | ||||||
working accuracy | ±0.1mm | ||||||
Carving instruction | Standard G Code | ||||||
Weight | 1500KG | ||||||
