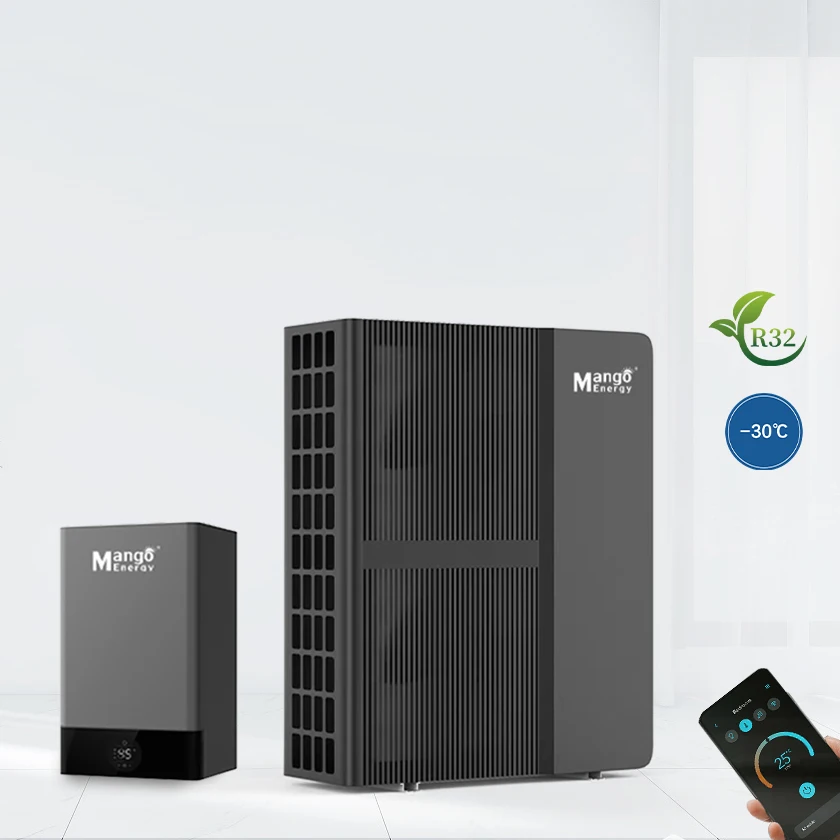

controller air source heat pump water chiller air waterheatpumps for hot tub 13 kw new energy heatpump pompe a chaleur air eau
- Category: >>>
- Supplier: Guangdong Europe Mango New Energy Technology Co. Ltd.
Share on (1600713568474):
Product Overview
Description
Product Description
Evi DC Inverter Heat pump
1. Heating Capacity: DC Inverter 9KW to 25kw heat pump
2. Best Selling Market: Central, North & East Europe, North Europe, North America
3. Ambient Temp of Using: Minus 30C, highest 60C hot Water Output and cooling
4. Certification: ISO9001, CE, Erp Energy Label A+++, ROHS,TUV…
5. Use *Panasonic* dual-rotor Compressor for Dc Inverter Air Source Heat Pump
2. Best Selling Market: Central, North & East Europe, North Europe, North America
3. Ambient Temp of Using: Minus 30C, highest 60C hot Water Output and cooling
4. Certification: ISO9001, CE, Erp Energy Label A+++, ROHS,TUV…
5. Use *Panasonic* dual-rotor Compressor for Dc Inverter Air Source Heat Pump
Itel No. | MGSDC-030IIC | MGSDC-050IIC | MGSDC-060IIC | MGSDC-080IIC | MGSDC-100IIC | ||||||
3HP | 5HP | 6HP | 8HP | 10HP | |||||||
220-240V/50-60Hz/1ph or 380-415V/50-60Hz/3ph | 380-415V/50-60Hz/3ph | ||||||||||
+20°C/55°C | |||||||||||
Heating Outlet | 11（kW） | 20（kW） | 24（kW） | 30（kW） | 34（kW） | ||||||
Power input | 2（kW） | 3.57（kW） | 4.31（kW） | 5.5（kW） | 6.66（kW） | ||||||
Cop | 5.5 | 5.6 | 5.56 | 5.45 | 5.1 | ||||||
+7°C/35°C | |||||||||||
Heating Outlet | 9（kW） | 14（kW） | 16（kW） | 24（kW） | 30（kW） | ||||||
Power input | 2（kW） | 3.04（kW） | 3.5（kW） | 5.4（kW） | 7.3（kW） | ||||||
Cop | 4.5 | 4.6 | 4.56 | 4.45 | 4.1 | ||||||
+7°C/9-55°C | |||||||||||
Heating Outlet | 9（kW） | 14（kW） | 16（kW） | 24（kW） | 28（kW） | ||||||
Power input | 2.78（kW） | 4.35（kW） | 5.03（kW） | 7.55（kW） | 8.8（kW） | ||||||
-12℃/40℃ | |||||||||||
Heating Outlet | 6（kW） | 10.5（kW） | 11.5（kW） | 17.8（kW） | 22（kW） | ||||||
Power input | 2.6（kW） | 4.5（kW） | 5.1（kW） | 7.74（kW） | 9.6（kW） | ||||||
Cop | 2.3 | 2.36 | 2.26 | 2.3 | 2.3 | ||||||
DC Inverter 9 Kw to 25 kw heat pump

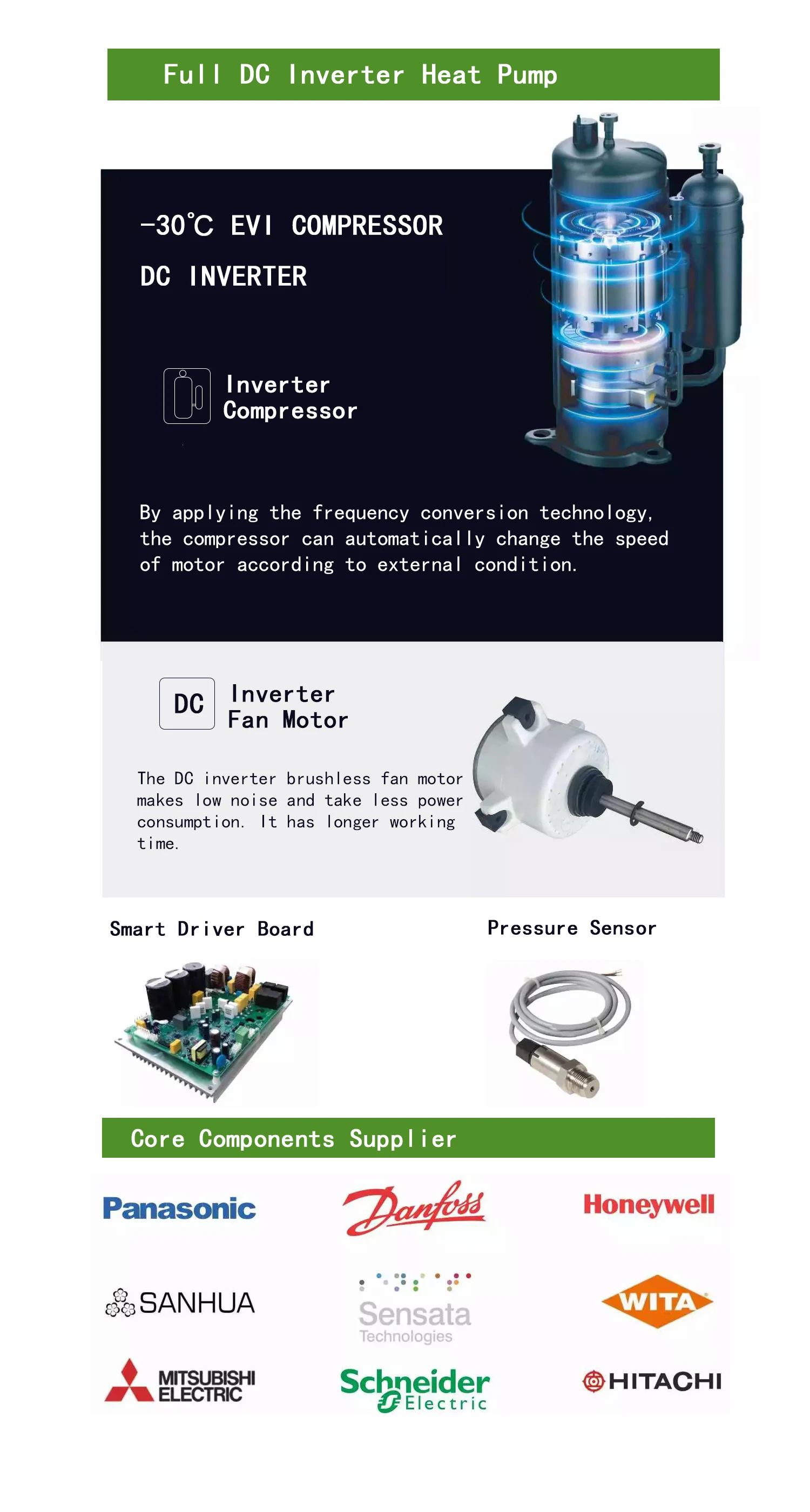

*Panasonic* dual-rotor Compressor
Features
A.Top SCOP
Panasonic/Toshiba/Sanyo Inverter Rotary compressor and ECO R32/R410 refrigerant for max heat capacity and less refrigerant, large volume of latent heat from the air via evaporator in coldest season.
B.Ultra frequency conversion technology
Based on the principle of proportional relationship between motor speed and input frequency of working power supply: n =60f(1-s)/p and changing motor speed by changing working power frequency of the motor, it adopts AC-DC-AC power conversiontechnology, relying on our powerful control system with PWM generation ability, integrate V/F, vector control (VC) and direct torque control (DTC) to achieve control method of variable frequency PID calculus, mainly drive variable frequency by way of PWM synthesis drive, fully integrate power, electronics, microcomputer control and other technologies.

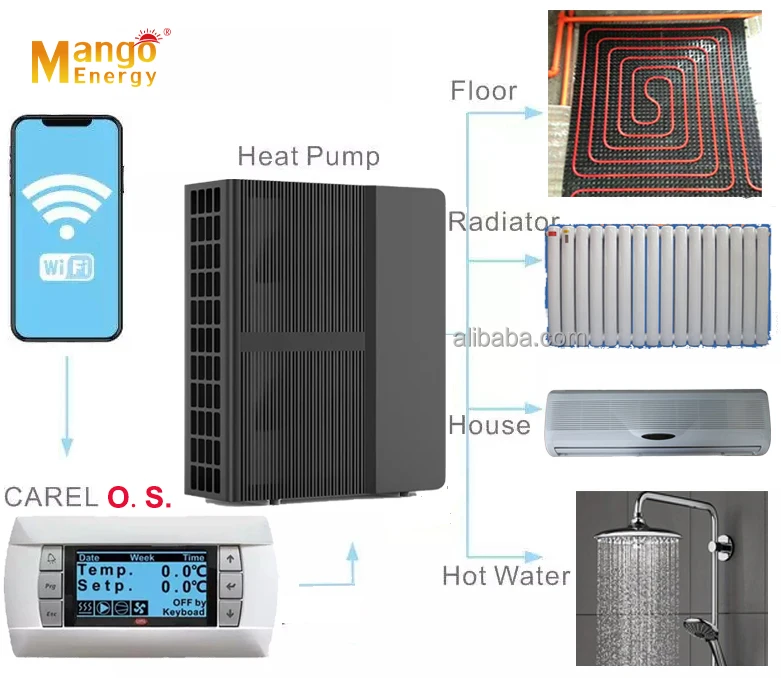

C.Advanced Carel Operate System, ultra intelligent
Based on the principle of proportional relationship between motor speed and input frequency of working power supply: n =60f(1-s)/p and changing motor speed by changing working power frequency of the motor, it adopts AC-DC-AC power conversiontechnology, relying on our powerful control system with PWM generation ability, integrate V/F, vector control (VC) and direct torque control (DTC) to achieve control method of variable frequency PID calculus, mainly drive variable frequency by way of PWM synthesis drive, fully integrate power, electronics, microcomputer control and other technologies.
C.Advanced Carel Operate System, ultra intelligent
Especially superior heat dissipation circuit board design, longer service, over 3 time of other brand's, simple click and fully play the characteristics of DC inverter frequency conversion system to achieve overlocking performance.
D.Multi-speed mute fan motor
ROHS fan blades, ultra-low noise, durable & reliable, constant max air flow to satisfy heat supply.
E.Soft-start and soft-shutdown
Protecting both electrical system and all key parts, such a EEV, SANHUA 4-way valve, LG AC contactor & other World famous brand components ensure heat pump device 2-3 time longer service by
1) making output torque of the motor meeting the requirements of mechanical system for starting torque, ensuring smoothacceleration & smooth transition, and avoiding destructive torque impact;
2) achieving both starting current meeting the requirements of motor's bearing capacity, and the insulation damage or burnout caused when it starts.
3) reducing both voltage sag range and the content of high-order harmonics etc.
F.High-tech shock-absorption all copper construction piping
High-accurate completely automatic silver welding, easy maintenance.
G.High-density protective jacket for minimum heat lost
Aviation class insulation foam with outstanding sound absorption.
H.Classic European outlook forming
Fashion taste, never out of time.
I.Portable compact design
Saving room for installation & operation.
J.Fast heating and cooling speed
Before the indoor temperature reaches the set value, the Panasonic rotary compressor delivers high levels of efficiency, enabling the unit to operate at high frequency so that it can heat water or provide house heating/cooling at a faster speed.
Five Working Functions:
D.Multi-speed mute fan motor
ROHS fan blades, ultra-low noise, durable & reliable, constant max air flow to satisfy heat supply.
E.Soft-start and soft-shutdown
Protecting both electrical system and all key parts, such a EEV, SANHUA 4-way valve, LG AC contactor & other World famous brand components ensure heat pump device 2-3 time longer service by
1) making output torque of the motor meeting the requirements of mechanical system for starting torque, ensuring smoothacceleration & smooth transition, and avoiding destructive torque impact;
2) achieving both starting current meeting the requirements of motor's bearing capacity, and the insulation damage or burnout caused when it starts.
3) reducing both voltage sag range and the content of high-order harmonics etc.
F.High-tech shock-absorption all copper construction piping
High-accurate completely automatic silver welding, easy maintenance.
G.High-density protective jacket for minimum heat lost
Aviation class insulation foam with outstanding sound absorption.
H.Classic European outlook forming
Fashion taste, never out of time.
I.Portable compact design
Saving room for installation & operation.
J.Fast heating and cooling speed
Before the indoor temperature reaches the set value, the Panasonic rotary compressor delivers high levels of efficiency, enabling the unit to operate at high frequency so that it can heat water or provide house heating/cooling at a faster speed.
Five Working Functions:
Mode 1:Central Hot Water: Constant Temperature, Sufficient Water Volume, 24-hour Instant Supply
Mode 2:Central Cooling: Water Cooled Air Conditioning, Soft Air Supply, Comfortable for Human Body.
Mode 3: Whole House Heating: Water Cycled Floor Heating,Well-distributed Heat Dissipation, Healthy & Energy Saving.
Mode 4: HotWater + House Cooling: Meet the Requirements of Both Central Hot Water and Air Conditioning.
Mode 5: Hot Water + House Heating: Meet the Requirements of Both Central Hot Water and Room Heating.
Mode 3: Whole House Heating: Water Cycled Floor Heating,Well-distributed Heat Dissipation, Healthy & Energy Saving.
Mode 4: HotWater + House Cooling: Meet the Requirements of Both Central Hot Water and Air Conditioning.
Mode 5: Hot Water + House Heating: Meet the Requirements of Both Central Hot Water and Room Heating.
Parameter

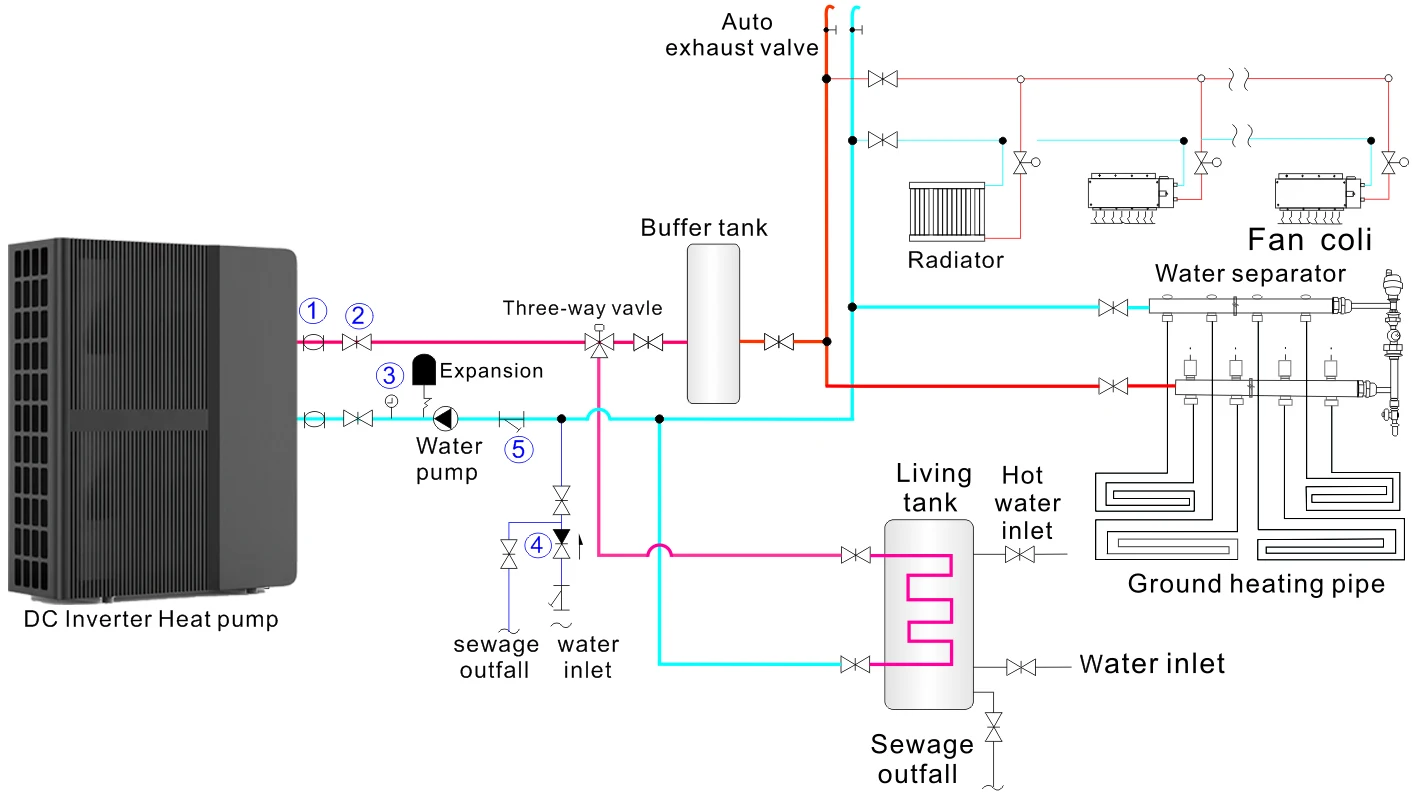

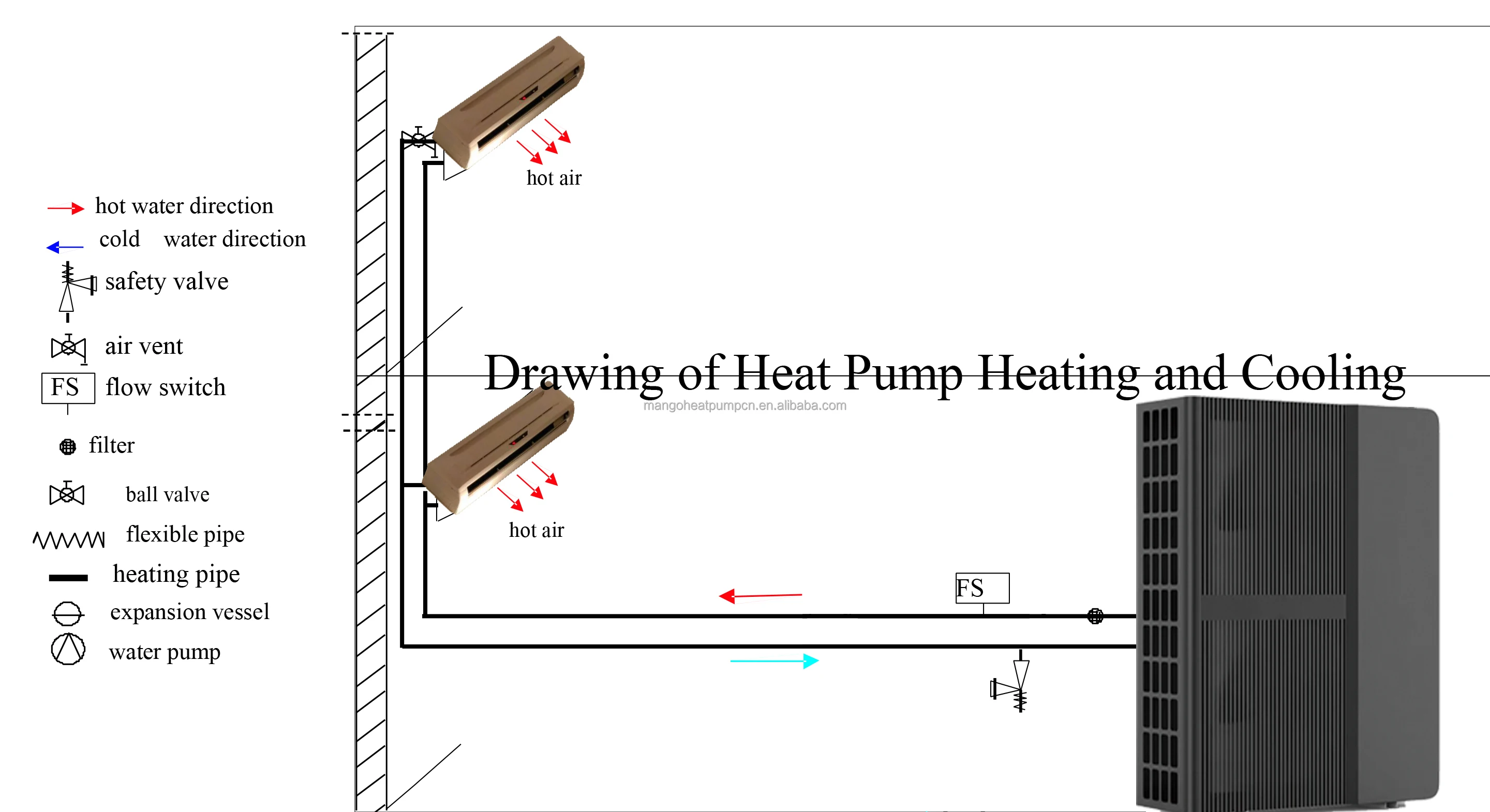

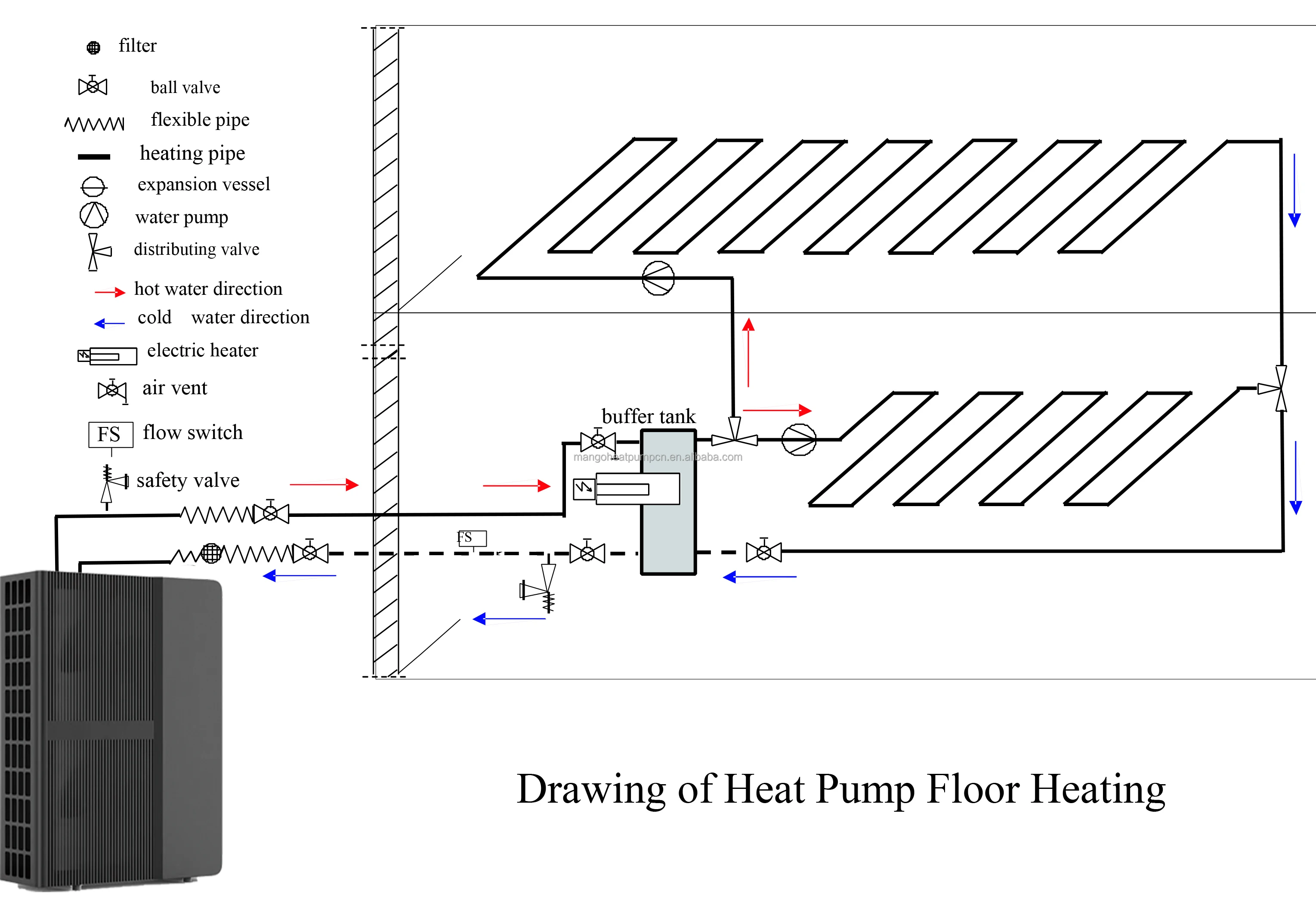

How do we install--So Esay!
Why choose us? --Your ideal home

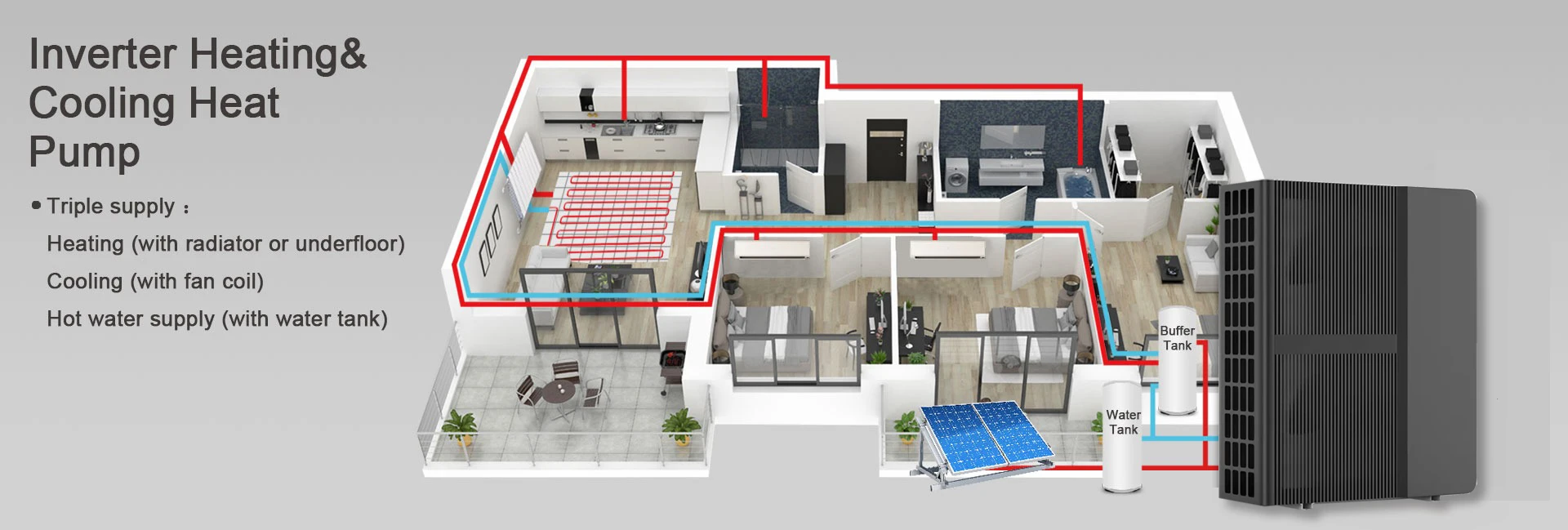

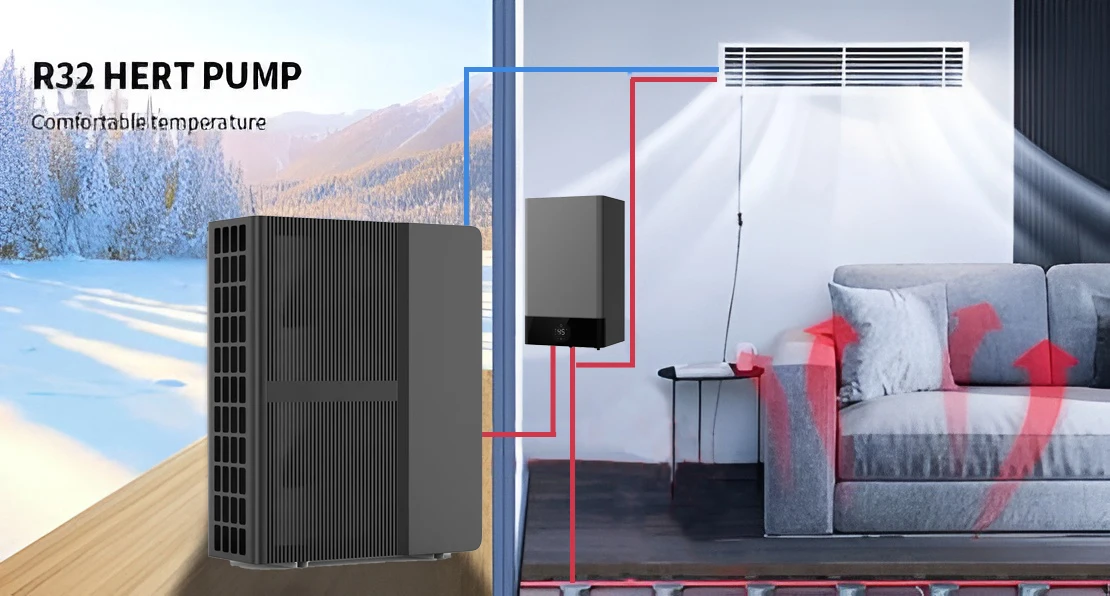

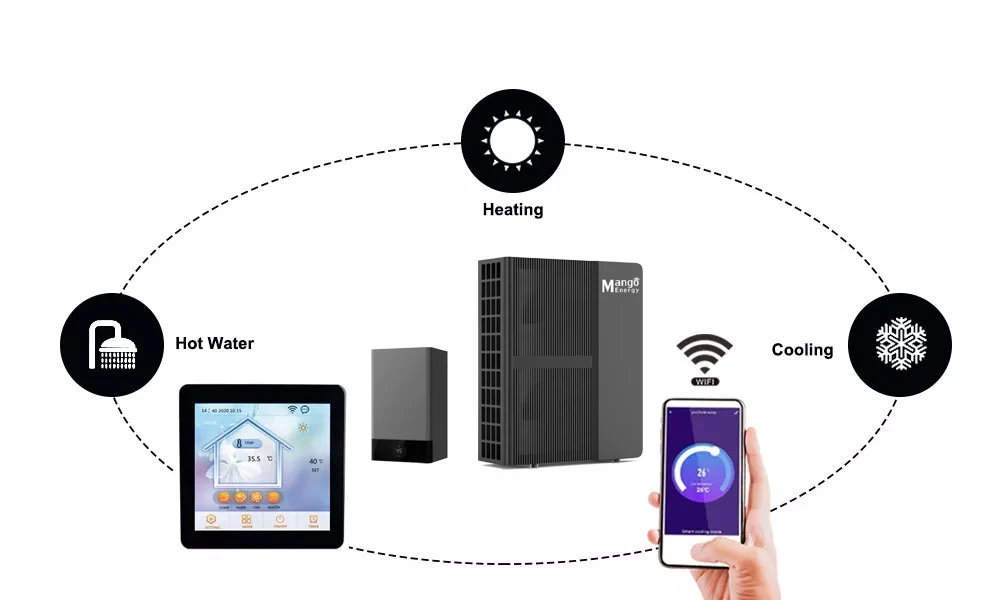

For House DHW +Heating+Cooling

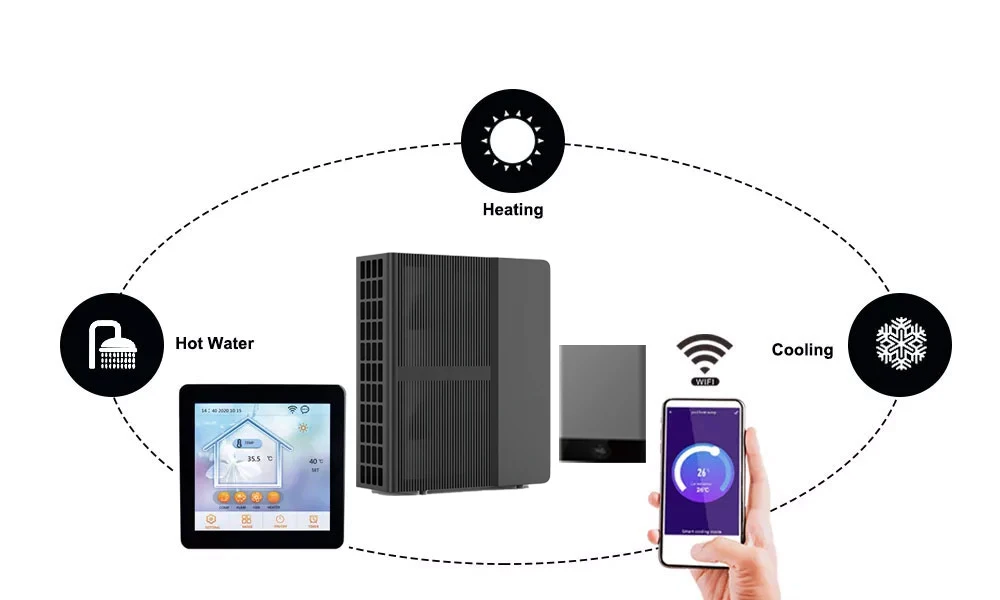

*Adopt RS485 intelligent care controller, connect WiFi and control it anytime, anywhere.
* Energy Efficient-Capable of connecting solar panels
What we can get? --Mango Energy multi-function
333

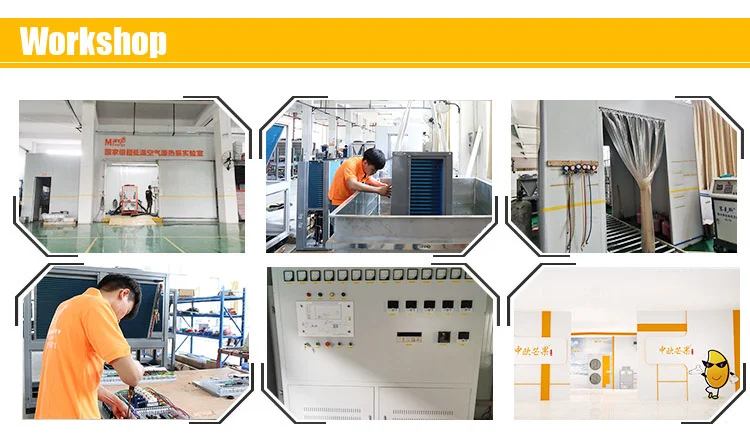

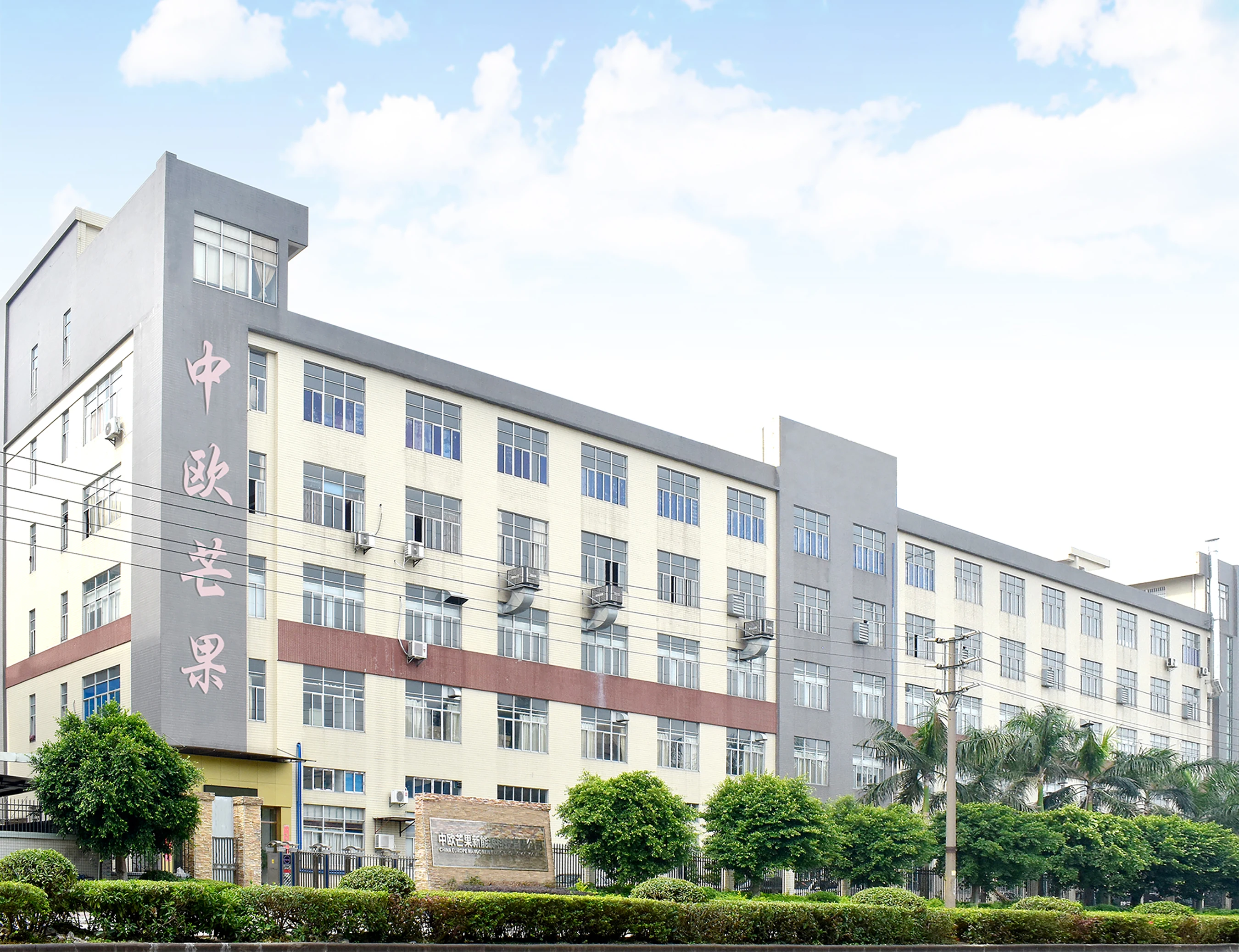

Company profile
FAQ
1:Are you a manufacturer?
: Of course, Mango is professional heat pump manufacturer since 2019, with experienced and improved R&D, production, sales and service supplying.
: Of course, Mango is professional heat pump manufacturer since 2019, with experienced and improved R&D, production, sales and service supplying.
2: Do you accept OEM & ODM?
: Yes. We can produce standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.
3: What support do you offer to clients?
: We can provide product certification requirements for local markets; provide catalogs, technical manuals; co-exhibit with the clients in leading industry exhibitions; do promotion on the local market’s media by our news release resources.
4: Will you provide technical promotion support?
:Sure, we can provide corresponding pictures and videos to you.
: Yes. We can produce standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.
3: What support do you offer to clients?
: We can provide product certification requirements for local markets; provide catalogs, technical manuals; co-exhibit with the clients in leading industry exhibitions; do promotion on the local market’s media by our news release resources.
4: Will you provide technical promotion support?
:Sure, we can provide corresponding pictures and videos to you.
5: How is your price?
:We have our own factory not the trading company. There is no middleman between clients and us. We give customers the most favorable price.
6: How long is your Heat Pump delivery time?
: It is 3-7 working days if the goods are in stock. if the goods are not in stock, Generally 21-30 working days,it is according
to quantity.
:We have our own factory not the trading company. There is no middleman between clients and us. We give customers the most favorable price.
6: How long is your Heat Pump delivery time?
: It is 3-7 working days if the goods are in stock. if the goods are not in stock, Generally 21-30 working days,it is according
to quantity.
