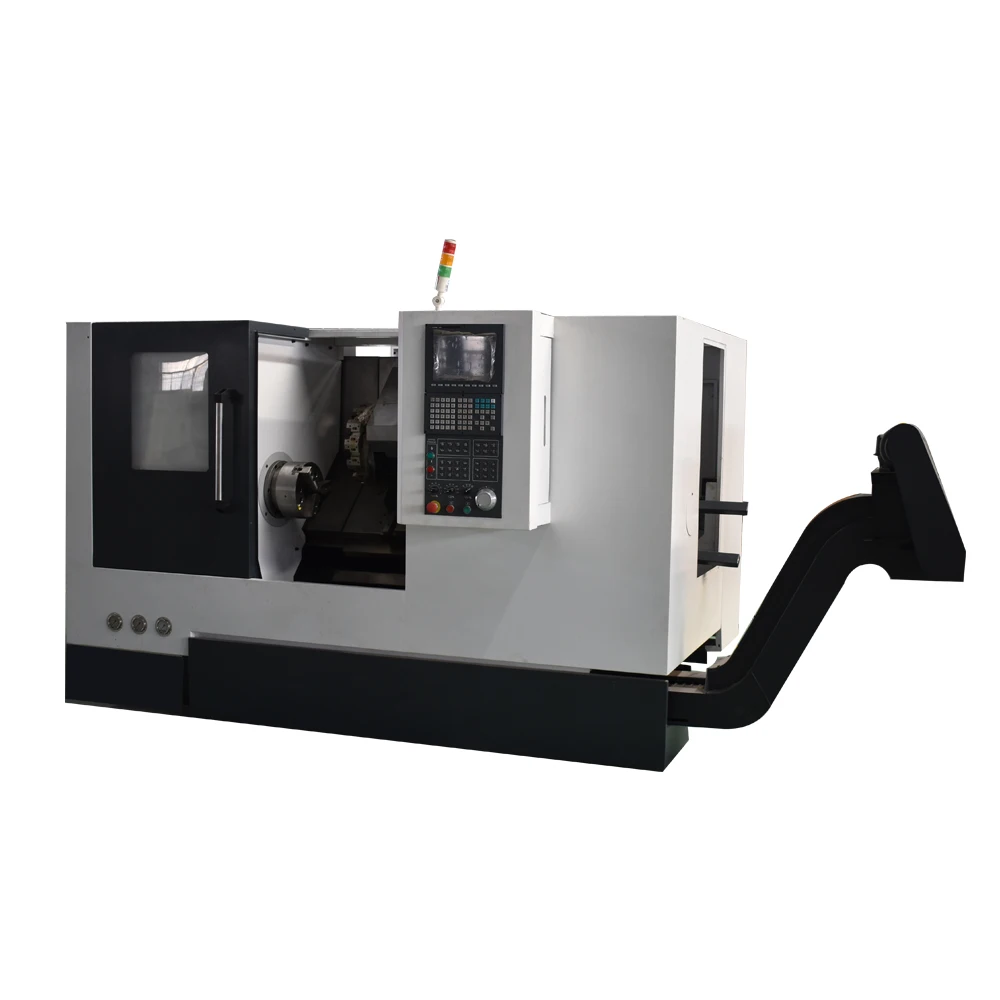

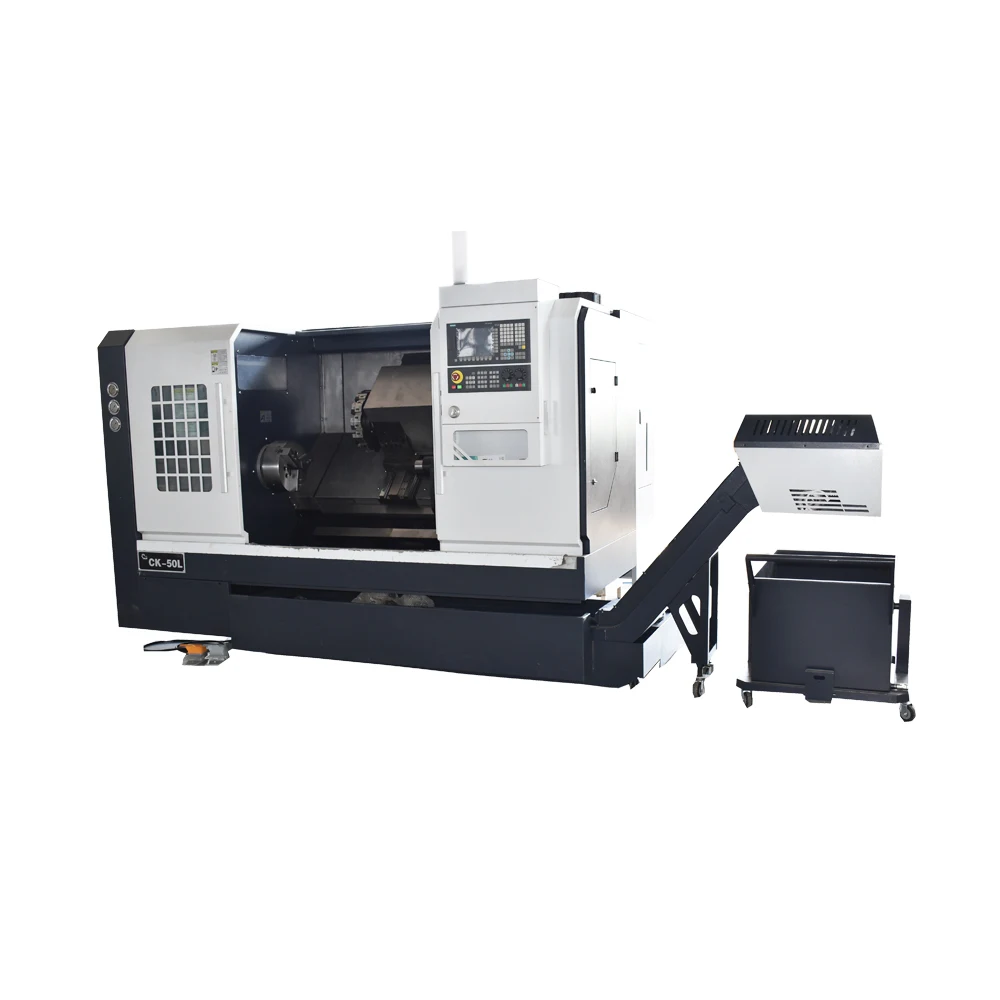

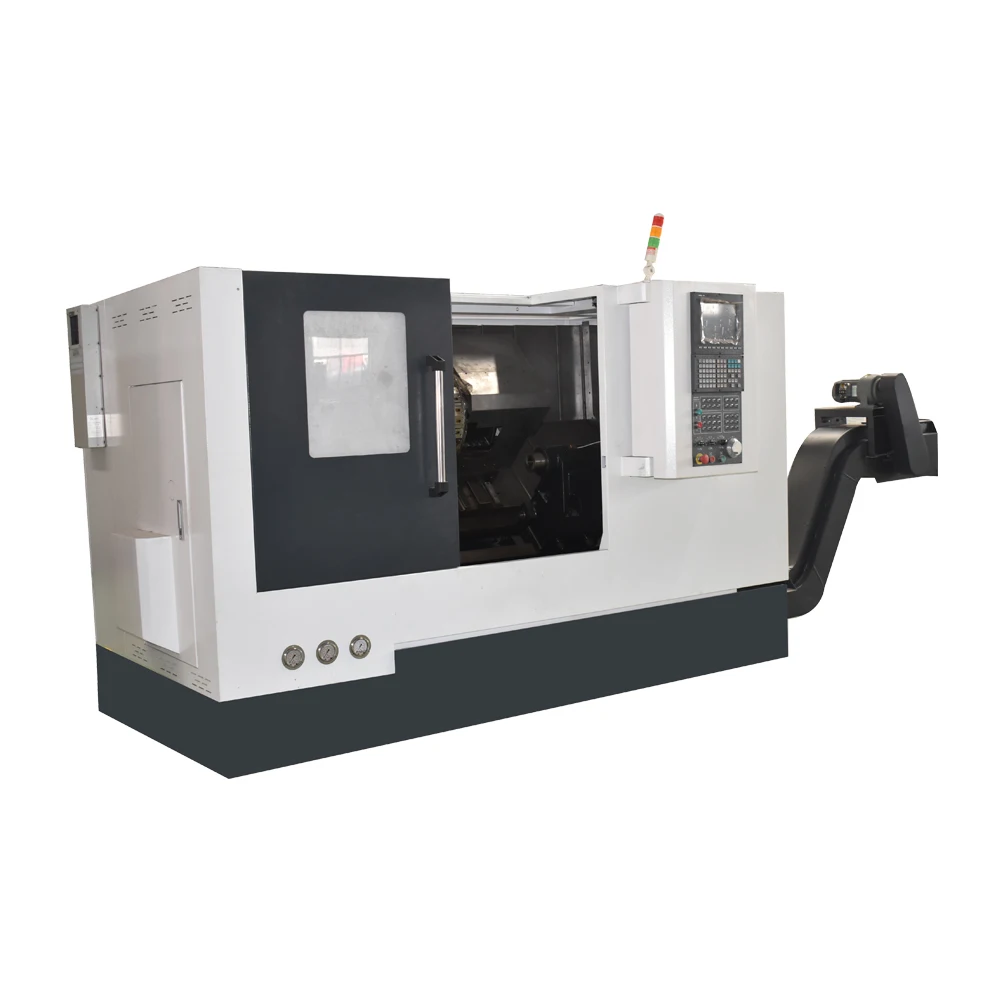

Horizontal China CNC Mini Lathe Machine 8 Post Turret Horizontal CNC Lathe Price
- Category: >>>
- Supplier: Jinan Shangneng CNC Equipment Co. Ltd.
Share on (1600713579846):
Product Overview
Description
Product Overview
PRODUCT SPECIFICATIONS
Specification | CK32 | CK36 | CK40 | CK50 |
Max swing over bed | 320mm | 360mm | 400mm | 500mm |
Max swing over slide | 160mm | 160mm | 220mm | 320mm |
Max processing length | 350mm | 350mm | 450mm | 550mm |
Max cutting diameter | 200mm | 254mm | 360mm | 420mm |
Max bar diameter | 40mm | 55mm | 55mm | 80mm |
Spindle speed | 3500 | 4000 | 3500 | 2500 |
Spindle nose ISO form | A2-5 | A2-5 | A2-5 | A2-8 |
Through hole diameter | 41mm | 56mm | 56mm | 56mm |
Chuck diameter | 160mm | 200mm | 200mm | 250mm |
Motor power(servo) | 3.7kw | 3.7/5.5kw | 3.7/5.5kw | 5.5/7.5/11kw |

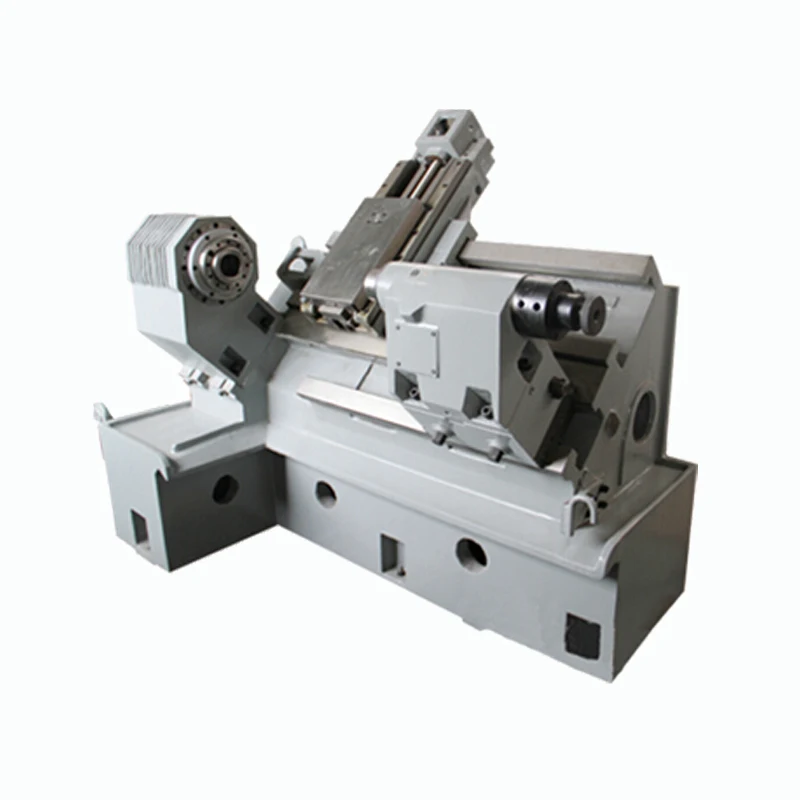

Body structure | 30°(integrated) | 30°(integrated) | 45°(integrated) | 45°(integrated) |
X axis travel | 200mm | 200mm | 210mm | 260mm |
Z axis travel | 350mm | 350mm | 450mm | 550mm |
X/Z axis rapid speed | 24/24 m/min | 24/24 m/min | 24/24 m/min | 24/24 m/min |

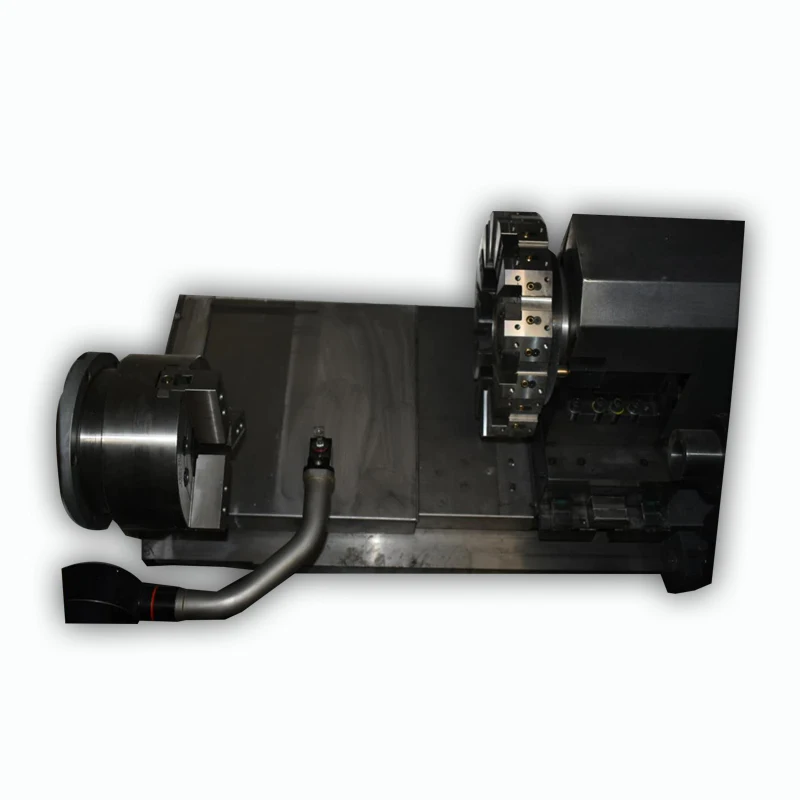

Type | 63-8T | 80-8T | 100-8T | |
Tool size | 20*20mm | 20*20mm | 20*20mm | 25*25mm |
Tailstock sleeve diameter | 52mm | 52mm | 75mm | |
Tailstock sleeve travel | 60mm | 60mm | 100mm | |
Tailstock sleeve taper | MT4 | MT4 | MT4 | |
Processing precision | IT6 | IT6 | IT6 | IT6 |
Reposition precision | X:0.006, Z:0.008 | X:0.006, Z:0.008 | X:0.006, Z:0.008 | X:0.006, Z:0.01 |
Roughness | Ra.≤0.8 | Ra.≤0.8 | Ra.≤0.8 | Ra.≤1.25 |
Weight | 2200kg | 2700kg | 3500kg | 3700kg |
Dimension | 1.6*1.4*1.6m | 1.8*1.6*1.6m | 2.8*1.6*1.6m | 3.1*1.8*1.8m |

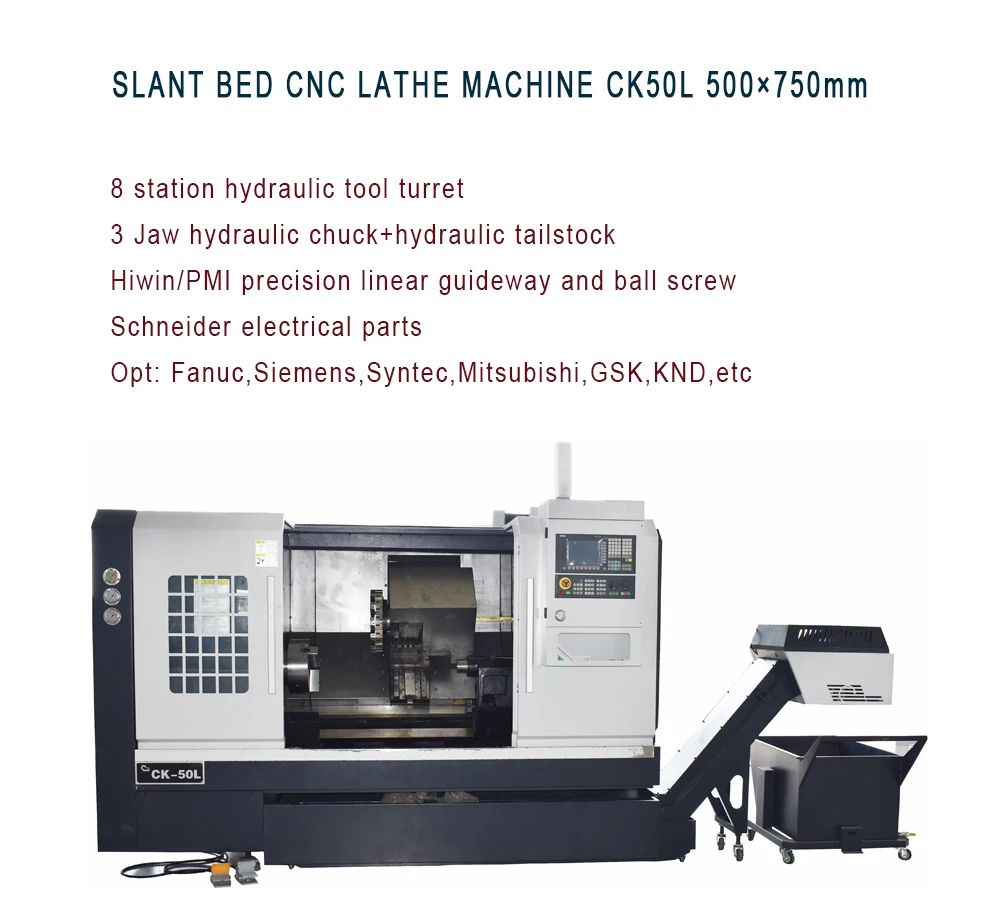

PRODUCT CONFIGURATION
SIMILAR PRODUCTS
PACKAGES AND SERVICE
COMPANY INFO
CONTACT ME
Vicky
--------------------------------------------------------
Email: vicky@hkcnclathe.com
Tel/Whatsapp: +86 13656405707
Skype: amychen1616
FAQ
1. What is your minimum order quantity and warranty? MOQ is one set, and warranty is one year.
2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI, GSK ,KND, SYNTEC. It depends on your choice.
3. Payment Terms
30% by T/T as deposit, 70% balance by T/T before delivery. If others payment terms, we can discuss.
4. How can I choose the most suitable machines?
Please tell us your detailed requirements, then we will give you the best solutions
5. Do you provide frame or customized service?
Yes,we provice frame and customized service including LOGO,outlook and configurations of the machine
2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI, GSK ,KND, SYNTEC. It depends on your choice.
3. Payment Terms
30% by T/T as deposit, 70% balance by T/T before delivery. If others payment terms, we can discuss.
4. How can I choose the most suitable machines?
Please tell us your detailed requirements, then we will give you the best solutions
5. Do you provide frame or customized service?
Yes,we provice frame and customized service including LOGO,outlook and configurations of the machine
