Anaya / Daiwa /Metallurgical Standard Ceramic Coated Oxygen Lance Pipes For Steelmaking Furnace
- Category: >>>
- Supplier: Jiangsu Xing Rui Piping Co. Ltd.
Share on (1600713596240):
Product Overview
Description
Products Description

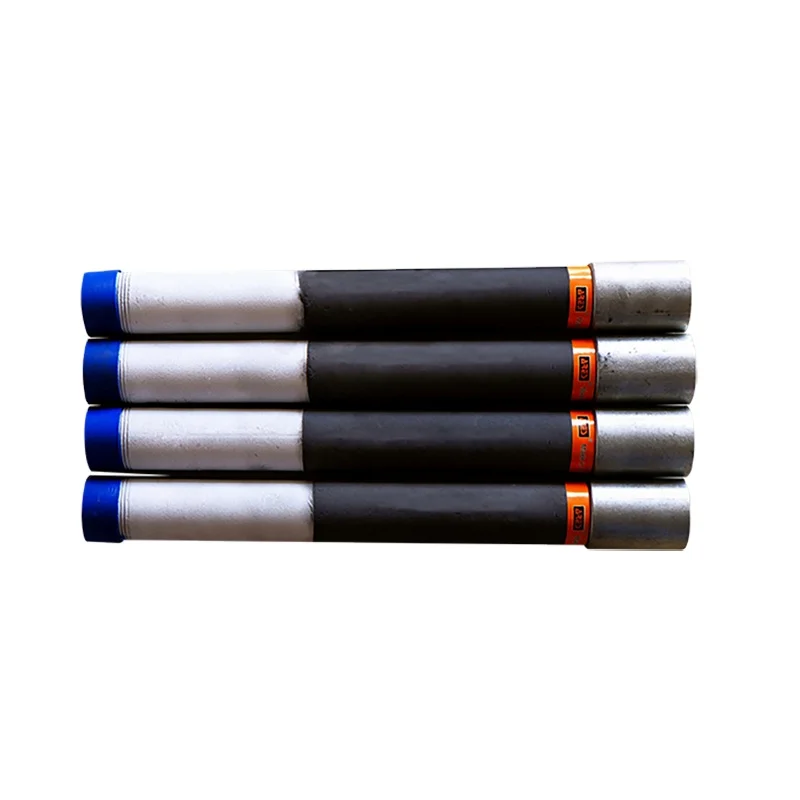

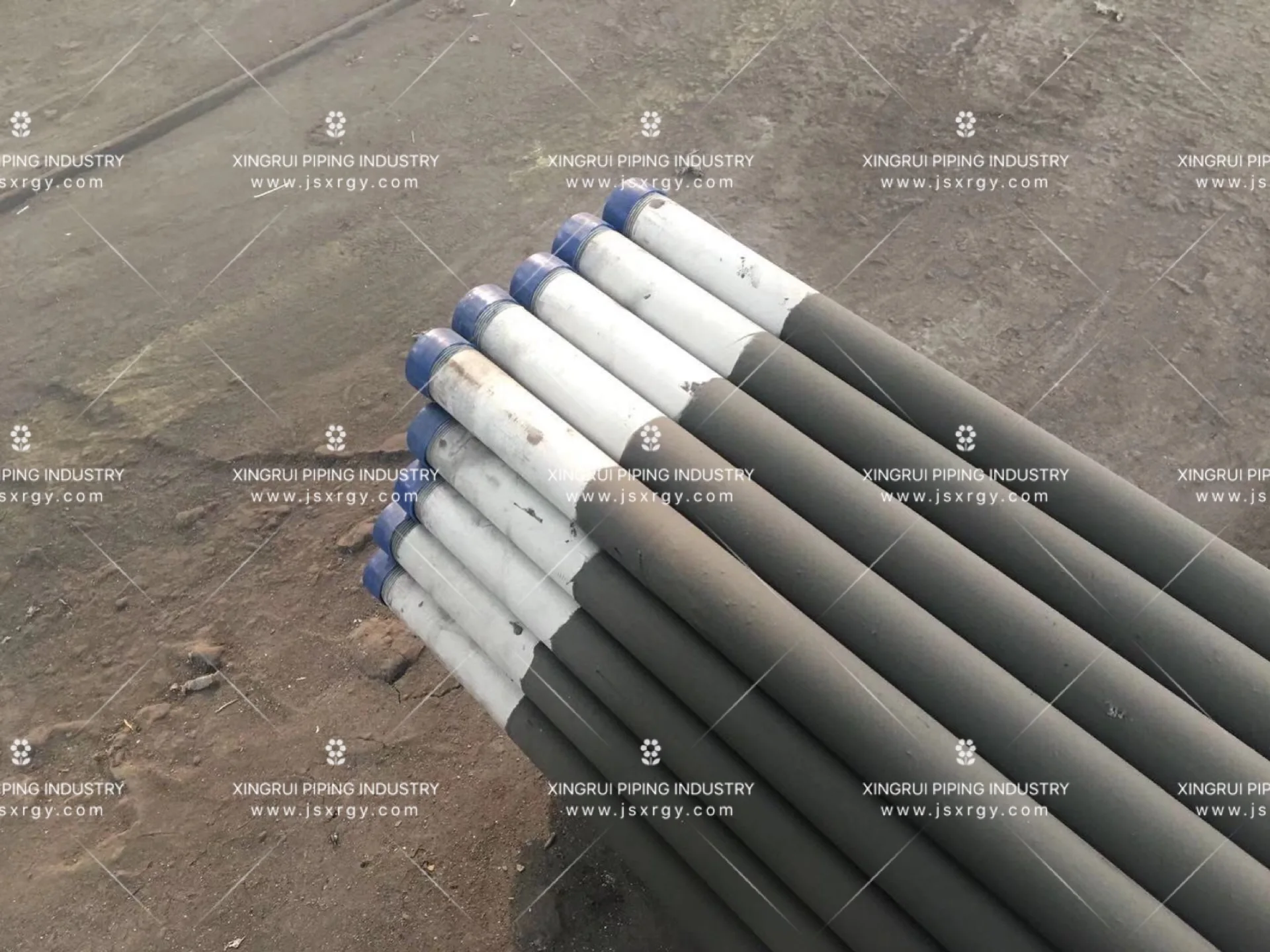

Ceramic coated oxygen lance pipe
Ceramic coated pipe is a carbon steel pipe with multiple, thin layers of ceramic coating outside and in. The ceramic coating is resistant to slag attack and extends the life of the pipe when it is immersed into molten metal or in high temperature atmospheres. The applications include powder injections, tap-hole cleaning and opening nozzles in ladles, tundishes and launders.
Ceramic coated pipe was developed to increase the lance life beyond conventional calorized or black pipes. Due to innovative methods of refractory deposition for interior and exterior coatings, it provides unequaled lance life at lower cost. A special ceramic coating has been developed for copper smelter applications.
Product Details
Product Name | Ceramic Coated Oxygen Lance Pipe |
Material | Carbon Steel |
End protector | Plastic Pipe Cap |
Size | Customized |
Application | Steel Making Smelting Electric Arc Furnace Carbon Powder/ Oxygen Injection |
INCH | OD | MM | Connection | LENGTHS | COATING THICKNESS | ||||
PLAIN | PRESS ON COUPLING | THREADED & Socket | |||||||
1/2'' | 0.85'' | 21.4 | YES | YES | YES | 9' & 18' | 350 gal/avg | ||
3/4'' | 1.05'' | 26.7 | YES | YES | YES | 9' & 18' | 350 gal/avg | ||
1'' | 1.315'' | 33.4 | YES | YES | YES | 9' & 18' | 400 gal/avg | ||
1 1/4'' | 1.660'' | 42 | YES | YES | YES | 9' & 18' | 450 gal/avg | ||
1 1/2'' | 1.900 | 48 | YES | YES | YES | 9' & 18' | 450 gal/avg | ||
Products Application

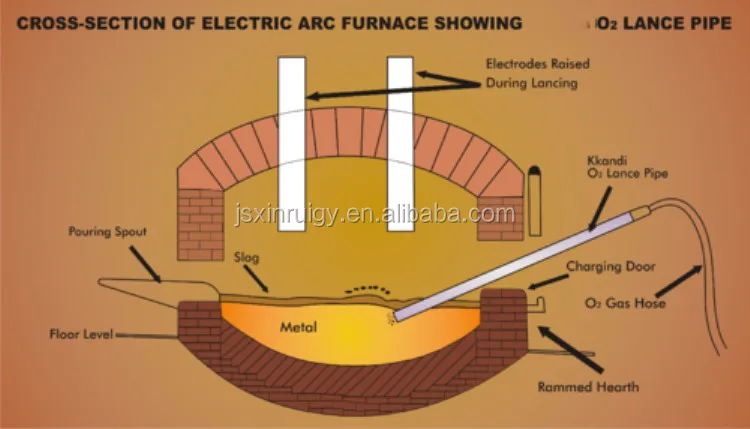

Application of Cupola Furnace Usage Welded Carbon Steel Pipe Oxygen Lance
Cutting scrap, raising bath temperatures
Opening nozzles and ladles
Injecting carbon and other powders into the electric furnace and ladle
Opening the iron notch of a blast furnace
Injecting argon into ladles
Injecting argon and oxygen into the A.O.D. furnace
Injecting flux for degassing in aluminum melting furnaces
Related Products
Aluminum coated oxygen pipe
Calorised steel pipe
Ceramic coated oxygen steel pipe
oxygen lance pipe
underwater cutting oxygen pipe
Thermal lance
Product Packing

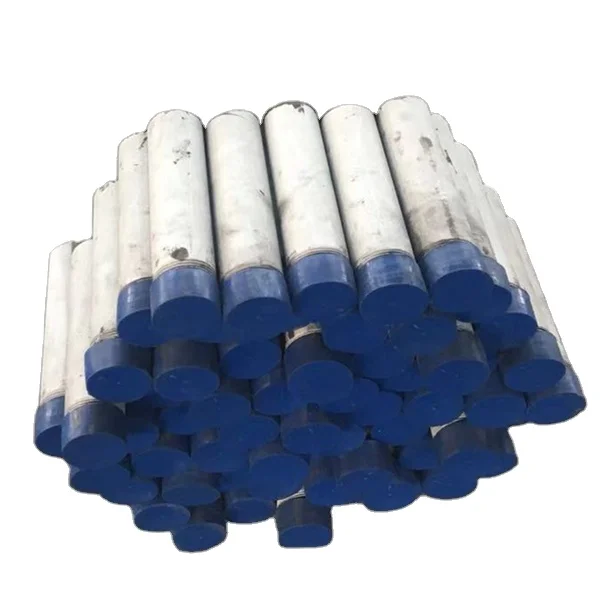

STRAPPED BUNDLE WRAPPED IN PLASTIC
Company Profile
In 2011, JIANGSU XINGRUI PIPING CO.,LTD was formed to provide OXYGEN LANCE and THERMIC LANCE to the commercial steel-making and foundry casting industry. We provided the base of industry blow oxygen or inject carbon into electric arc furnace solutions and skilled experience of exothermic cutting methods.
Today, the company operates within a 24,000 square foot multiplex in China,this location offers a large inventory storage capability and four workshops for complex on-site fabrication capable of designing and producing standard or customized oxygen lancing pipe & thermic lances.
All Xingrui pipes are manufactured according to the highest relevant safety standards and passes our
rigorous quality controls before dispatch.
Innovation and inspiration,we always meet and value your various requirements.
Today, the company operates within a 24,000 square foot multiplex in China,this location offers a large inventory storage capability and four workshops for complex on-site fabrication capable of designing and producing standard or customized oxygen lancing pipe & thermic lances.
All Xingrui pipes are manufactured according to the highest relevant safety standards and passes our
rigorous quality controls before dispatch.
Innovation and inspiration,we always meet and value your various requirements.
FAQ
1) Why will you choose us ?
Because we are factory and can supply OEM and ODM for the pipe. We can get the lowest ex-factory prices. The price are quite reasonable and it is lower than our commercial peers. Also, we can guarantee the qualities of our products.
2) Our minimum order quantity?
2 Metric Tons as to different products.
3) How about the Delivery Time?
The steel pipe will be produced since we getting your deposit by T/T or Your original L/C. For normal size, some stocks in our factory now, we can supply timely once you need. 4)What kind of payment does your company support? T/T, 100% L/C at sight, Cash, Western Union are all accepted.
5) Do you charge for the samples?
According to our company principle, we just charge for samples, you pay for the freight charge.
6) Our main market?
Middle East, South America, South Asia, Africa, Southeast Asia, Northern Europe, Western Europe etc.
Because we are factory and can supply OEM and ODM for the pipe. We can get the lowest ex-factory prices. The price are quite reasonable and it is lower than our commercial peers. Also, we can guarantee the qualities of our products.
2) Our minimum order quantity?
2 Metric Tons as to different products.
3) How about the Delivery Time?
The steel pipe will be produced since we getting your deposit by T/T or Your original L/C. For normal size, some stocks in our factory now, we can supply timely once you need. 4)What kind of payment does your company support? T/T, 100% L/C at sight, Cash, Western Union are all accepted.
5) Do you charge for the samples?
According to our company principle, we just charge for samples, you pay for the freight charge.
6) Our main market?
Middle East, South America, South Asia, Africa, Southeast Asia, Northern Europe, Western Europe etc.
