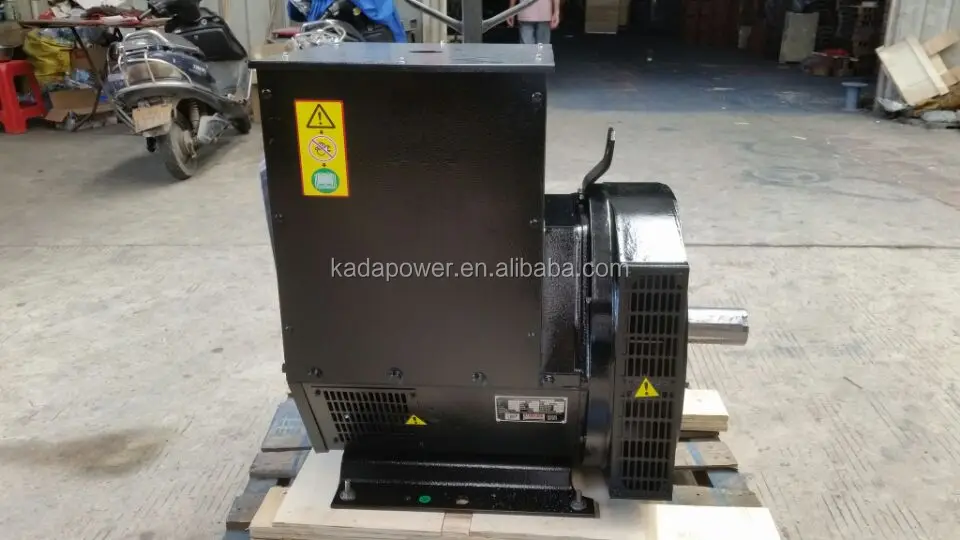

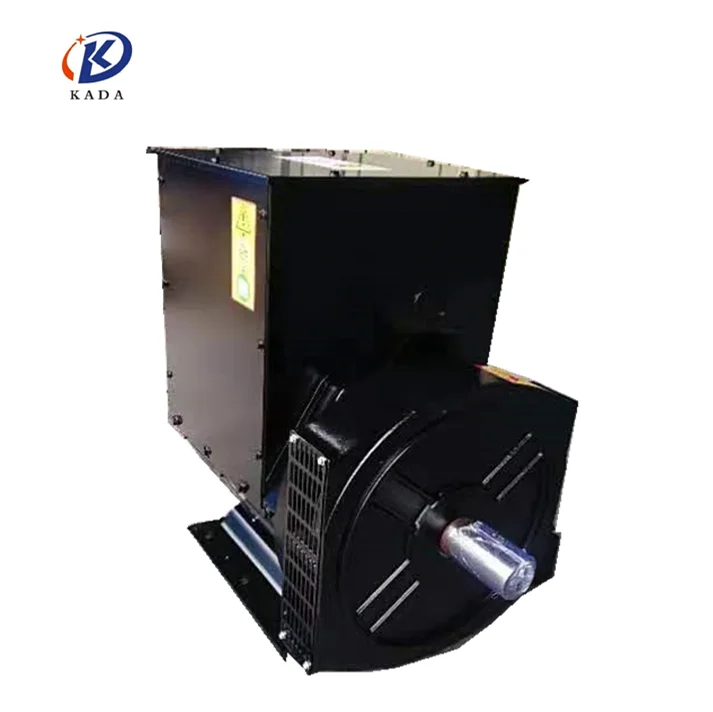

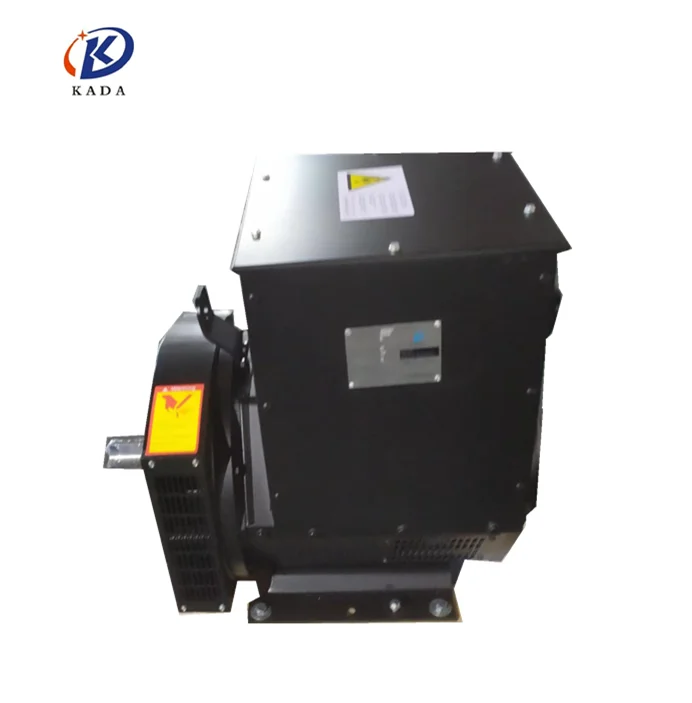

Kada magnetic brushless generator 50kw 60hz three phase
- Category: Other Generators >>>
- Supplier: Ningde,Kada,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Features
1. Easy to be connected with power network or other ac generator. Standard 2/3pitch windings avoid excessive neutral current.
2. Dynamically balanced rotors, with single or two sealed ball bearings.
3. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts.
4. Wide range of flange adapter and single bearing coupling disc.
5. Built to conform to all leading industrial standards.
Operating environment
Under the following conditions, generator can be at rated load operation.
1. The altitude does not exceed 1000m.
2. Cooling air temperature 258~313K(-15°C~40°C)
3.Relative humidity does not exceed 90%.
Insulation
The insulation system is class H. All wound components are impregnated with materials and processes designed specifically to
provide protection against the harsh environments encountered in generator applications. Resin based materials are selected and
developed to provide the high build required for static windings and the high mechanical strength required for rotating
components.
1. Easy to be connected with power network or other ac generator. Standard 2/3pitch windings avoid excessive neutral current.
2. Dynamically balanced rotors, with single or two sealed ball bearings.
3. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts.
4. Wide range of flange adapter and single bearing coupling disc.
5. Built to conform to all leading industrial standards.
Operating environment
Under the following conditions, generator can be at rated load operation.
1. The altitude does not exceed 1000m.
2. Cooling air temperature 258~313K(-15°C~40°C)
3.Relative humidity does not exceed 90%.
Insulation
The insulation system is class H. All wound components are impregnated with materials and processes designed specifically to
provide protection against the harsh environments encountered in generator applications. Resin based materials are selected and
developed to provide the high build required for static windings and the high mechanical strength required for rotating
components.
Specification

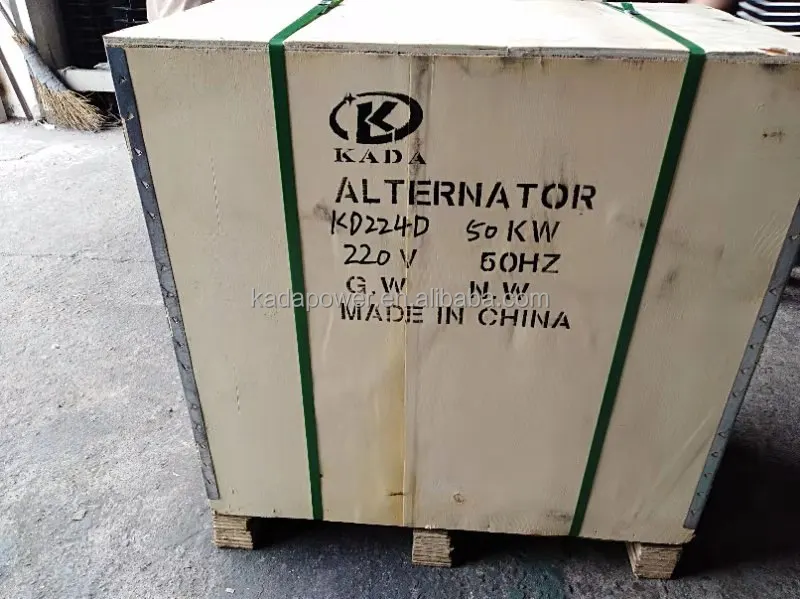

Packing & Delivery
Company Profile
FAQ
1.Q: Classification of generator:
(1).Single phase or three phase is optional.
(2).Single bearing or double bearing is optional.
(3).PMG is optional: Alternators with PMG,Models:KD224-KD314,KD354-KD404,
(4).Droop Kit and Anti-condensation heater are optional according to the operation environment.
(5).4 pole alternators are available.
2.Q:How to choose AVR?
KD164,KD184,KD224,KD274, series SX460, KD314 series SX440, KD354,KD404 series AS440
3.Q:How to select generator?
(1). Working environment(less than 1000m above sea level & less then 40℃ ambient temperature).
(2). Different country with different rated frequency(50Hz or 60Hz).
(3). For sea side operating environment,anti-condensation heater and droop CT.
(4). Generator insulation class H.(Inccopper wire,rotor,stator,)
(5). Generator stators are wound to 2/3 pitch.The 2/3 pitch design avoids excessive neutral currents sometimes seen with higher
winding pitches,when in parallel with the mains.
4.Q:What is your MOQ of this item?
A: Above 1pcs
5.Q: What is the lead time?
A: 25-30 days after receiving your L/C or T/T deposit.
6. Q: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
7. Q: Where is your Loading Port?
A: Fuzhou Port, China.
8. Q: What are your payment terms?
A: 30% deposit and balance T/T before shipment or L/C at sight.
9.Q: What certificates do you have?
We have CE,ISO and we can apply for specific certificate for different country, such as SONCAP for Nigeria, SASO for Saudi
Arabic,ect
(1).Single phase or three phase is optional.
(2).Single bearing or double bearing is optional.
(3).PMG is optional: Alternators with PMG,Models:KD224-KD314,KD354-KD404,
(4).Droop Kit and Anti-condensation heater are optional according to the operation environment.
(5).4 pole alternators are available.
2.Q:How to choose AVR?
KD164,KD184,KD224,KD274, series SX460, KD314 series SX440, KD354,KD404 series AS440
3.Q:How to select generator?
(1). Working environment(less than 1000m above sea level & less then 40℃ ambient temperature).
(2). Different country with different rated frequency(50Hz or 60Hz).
(3). For sea side operating environment,anti-condensation heater and droop CT.
(4). Generator insulation class H.(Inccopper wire,rotor,stator,)
(5). Generator stators are wound to 2/3 pitch.The 2/3 pitch design avoids excessive neutral currents sometimes seen with higher
winding pitches,when in parallel with the mains.
4.Q:What is your MOQ of this item?
A: Above 1pcs
5.Q: What is the lead time?
A: 25-30 days after receiving your L/C or T/T deposit.
6. Q: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
7. Q: Where is your Loading Port?
A: Fuzhou Port, China.
8. Q: What are your payment terms?
A: 30% deposit and balance T/T before shipment or L/C at sight.
9.Q: What certificates do you have?
We have CE,ISO and we can apply for specific certificate for different country, such as SONCAP for Nigeria, SASO for Saudi
Arabic,ect
