ADSS Fiber Optic Cable 6/12/24/48/96 Core Adss De Cable With Aramid Yarns
- Category: >>>
- Supplier: Guangzhou Jiqian Fiber Optic Cable Co. Ltd.
Share on (1600713624188):
Product Overview
Description
products description
Applications.
1 .Adopted to Outdoor distribution.
2 .Adopted to trunk power transmission system.
3 . Access network and local network in high interfering places.
Quick details.
Place of Origin:guangzhou, China (Mainland)
Brand Name:YOFC
Model Number:ADSS
Certification:ISO 9001& ISO 14000
Color:Customized
Application:areial
Jacket:Customized

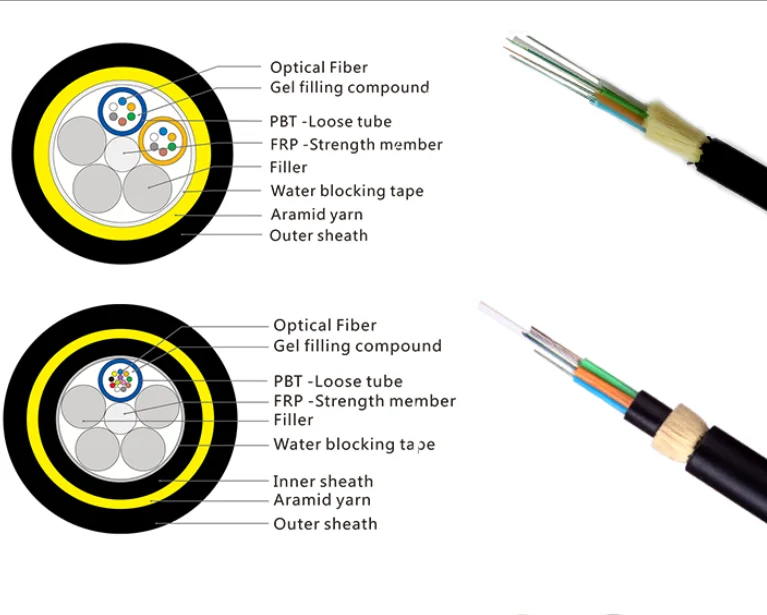

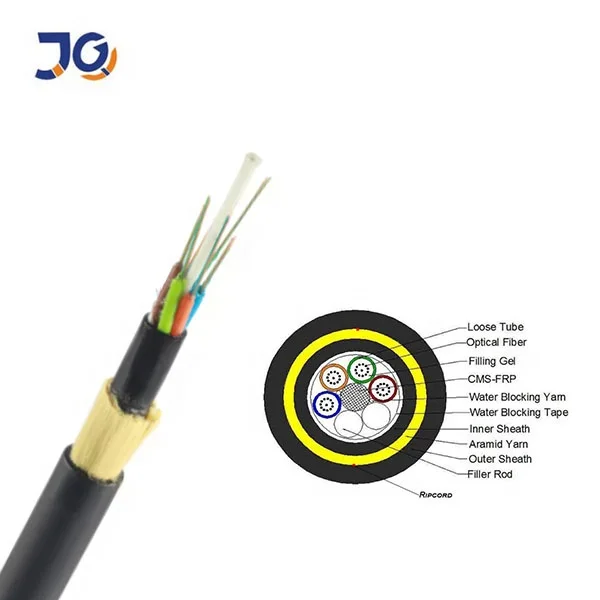

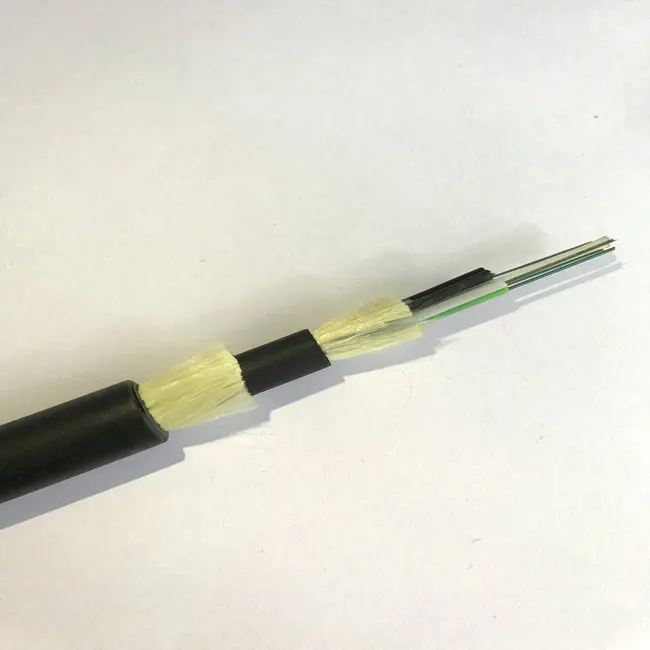

ADSS cable is loose tube stranded fiber optic cable. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound.it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as
strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Cable fiber count | 2~30 | 32~60 | 62~72 | 96 | |||||||
Structure | 1+5 | 1+5 | 1+6 | 1+8 | |||||||
Fiber style | G.652D | ||||||||||
strength member | material | mm | FRP | ||||||||
Diameter (average) | 1.5 | 1.5 | 2.1 | ||||||||
Model Number | ADSS |
Type | Coaxial |
Number of Conductors | ≥ 10 |
Application | Aerial fiber cable |
Function | Delivery signal light |
Certification | ADSS pass ISO9001, CE |
Sheath material | PE or AT for adss fiber optic cable |
Fiber type | OS1/OS2,OM1,OM2,OM3,OM4 |
Length per roll | 2km/3km/4km ADSS fiber |
Marking | printing |
Fiber count | 2core to 288 core |
Strength member | FRP |

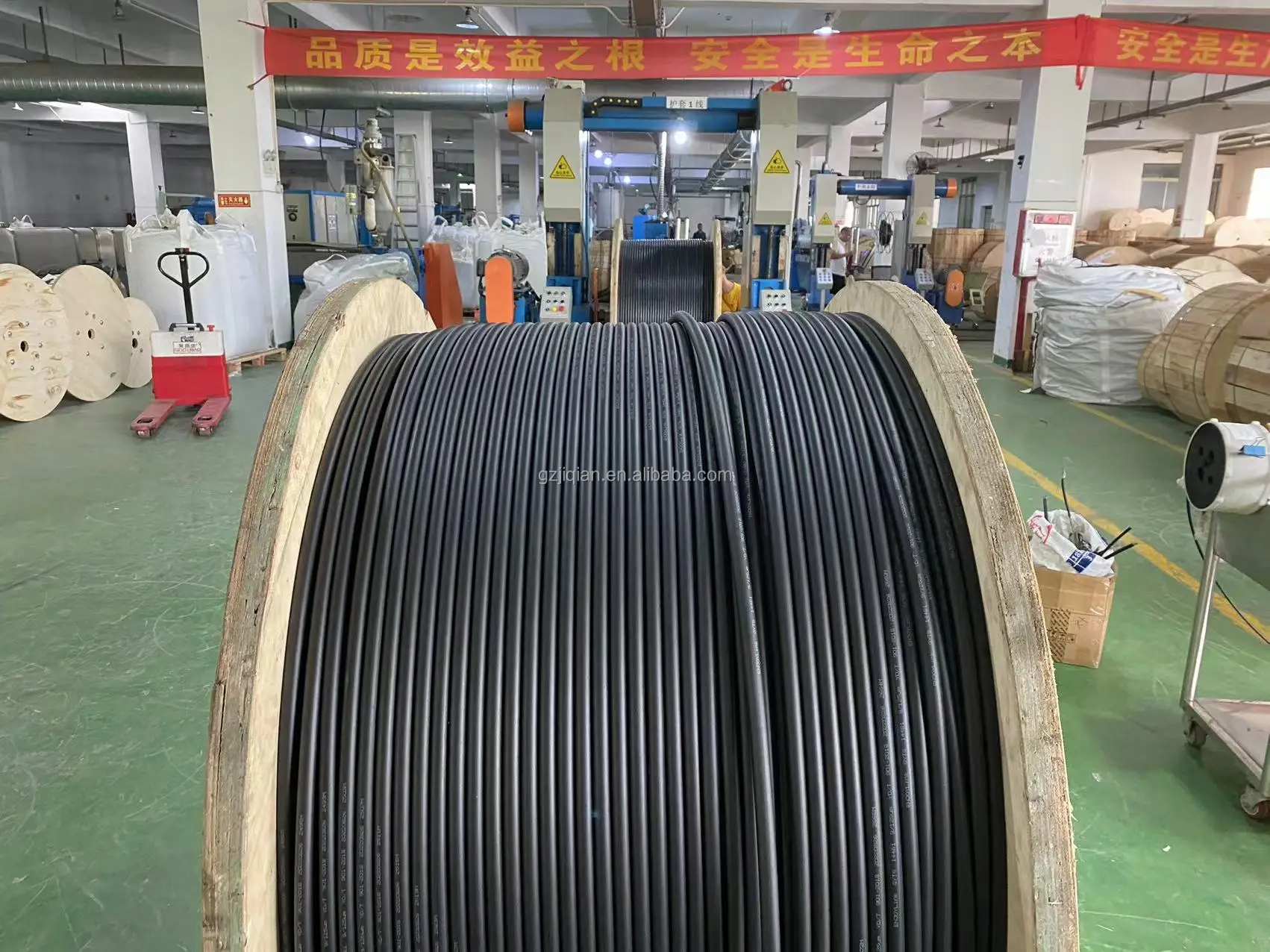

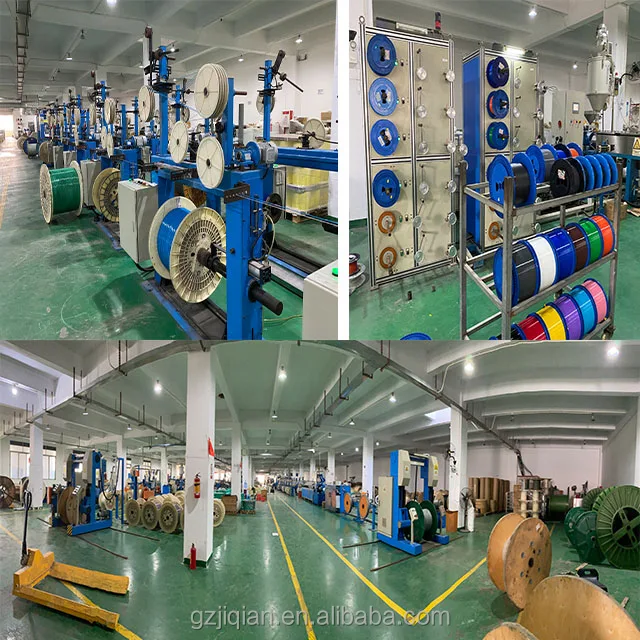

Company Information.

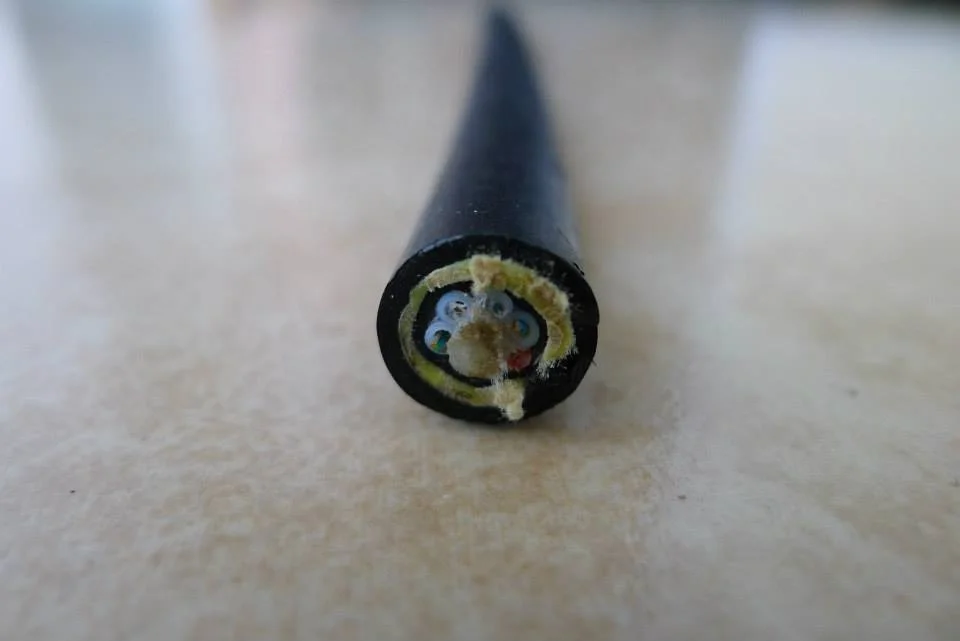

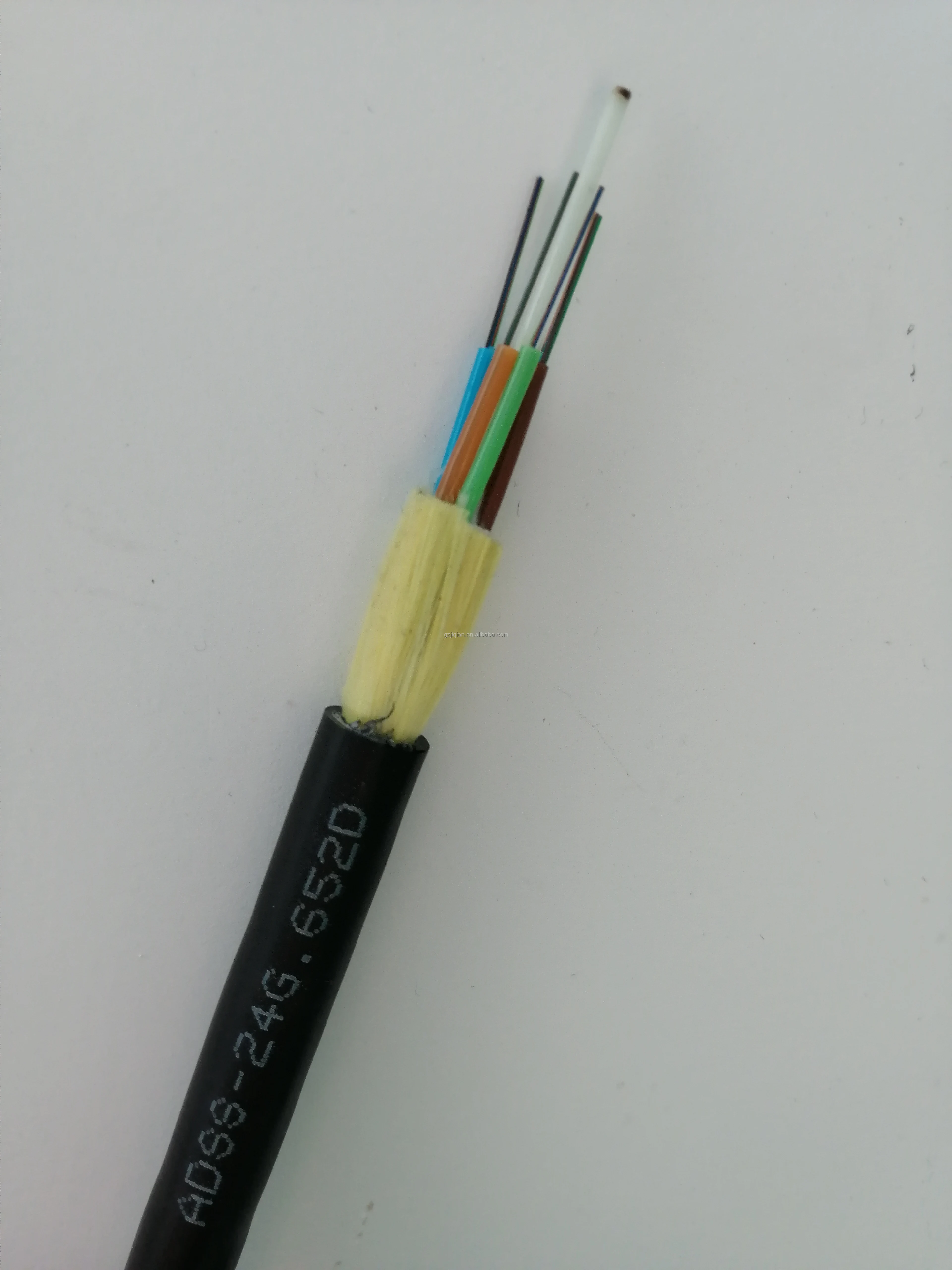

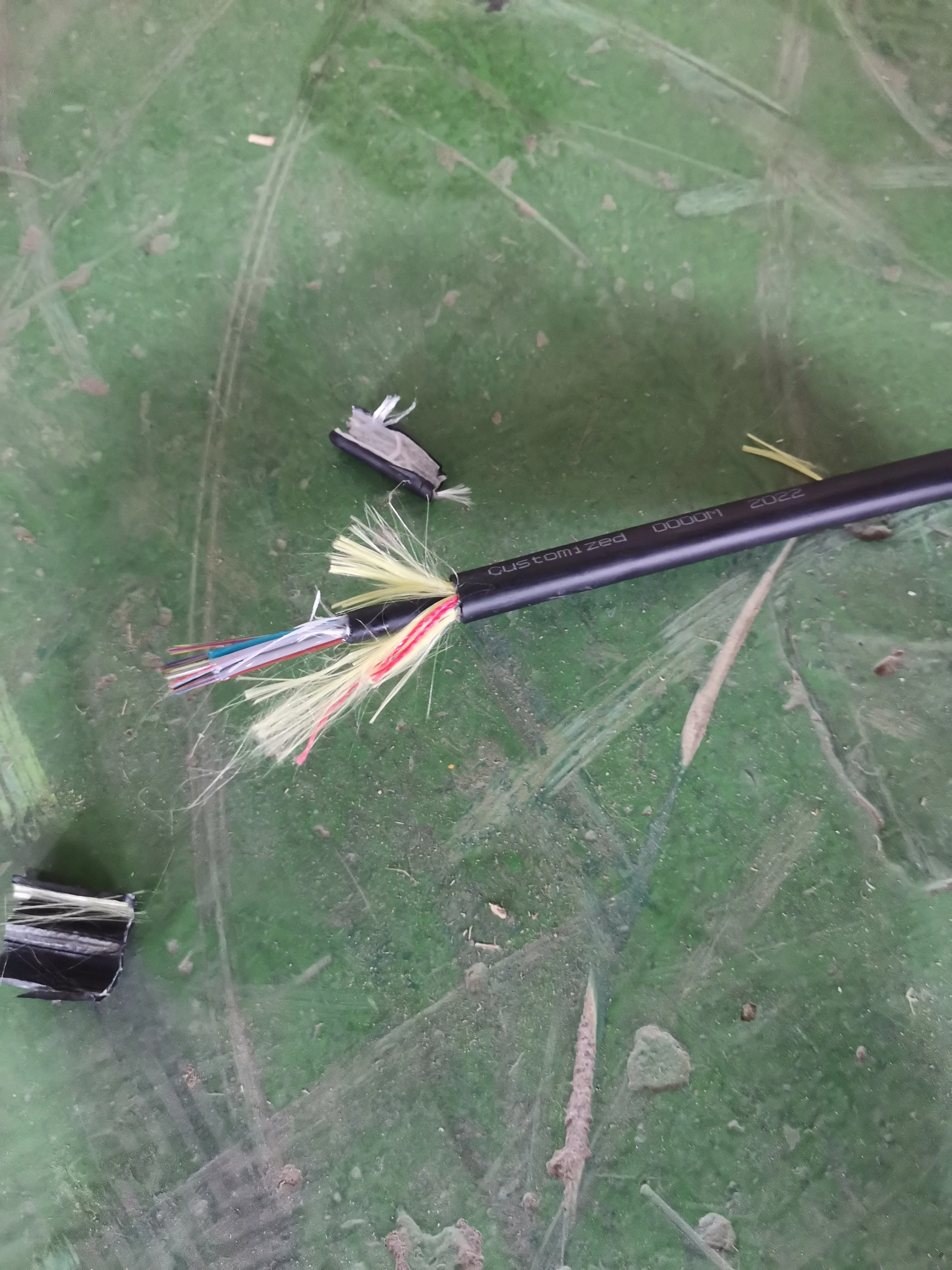

Detailed Images
Exhibition (Mexico).
Packing & Delivery
Delivery:
FAQ:
1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!
2.what is your minimum quantity?
1KM. We support new project of our customers, trial order is available.
3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.
4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.
5.Delivery time?
Generally 3-7 working days, also it is according to qty.
6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
