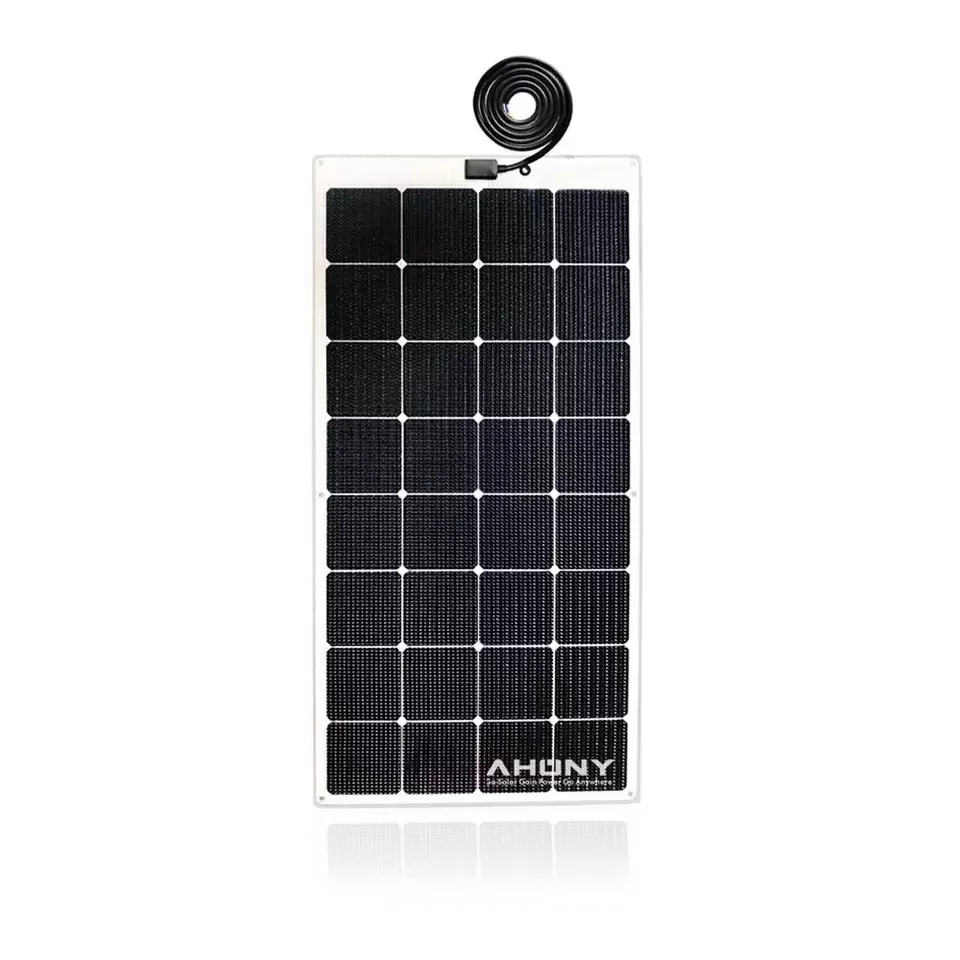

walkable solar panel 120w ETFE anti slippery surface semi lighter flexible solar panel for marine riverside boat yacht
- Category: >>>
- Supplier: Shenzhen Ahony Power Co. Ltd.
Share on (1600713634696):
Product Overview
Description
Product Description
| Model No. | eMarvel 120w |

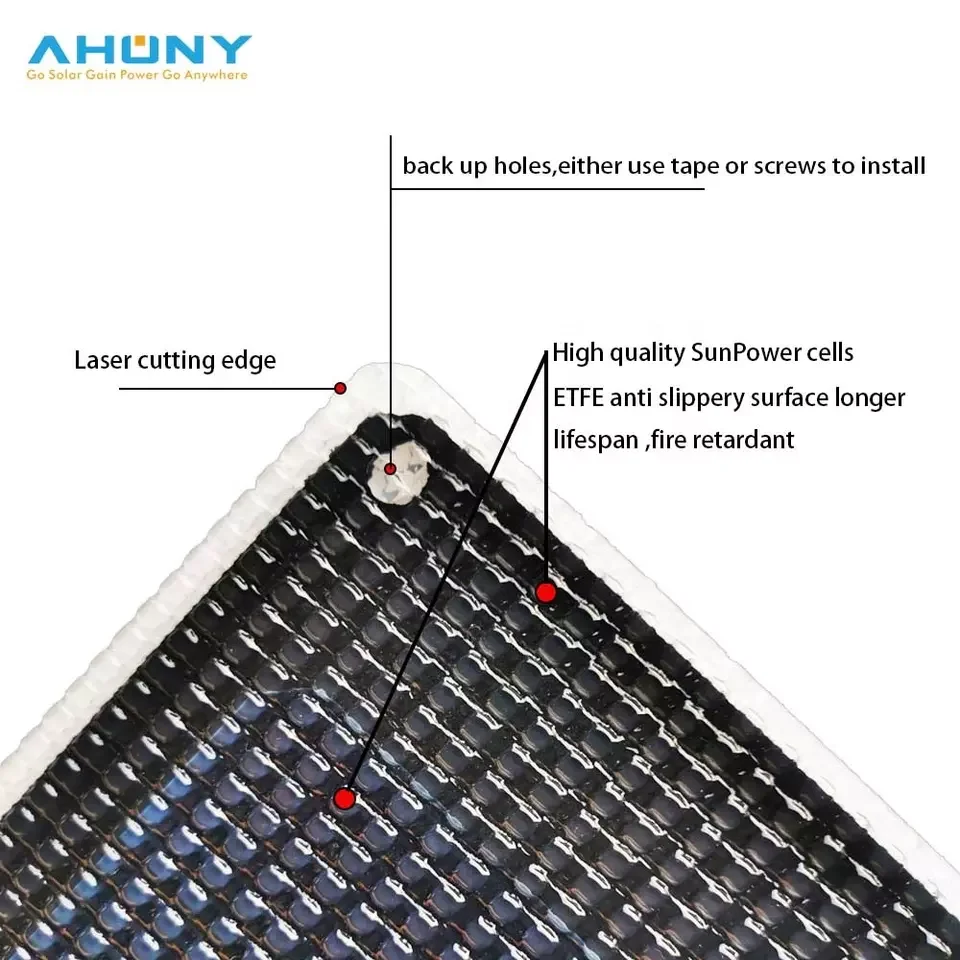

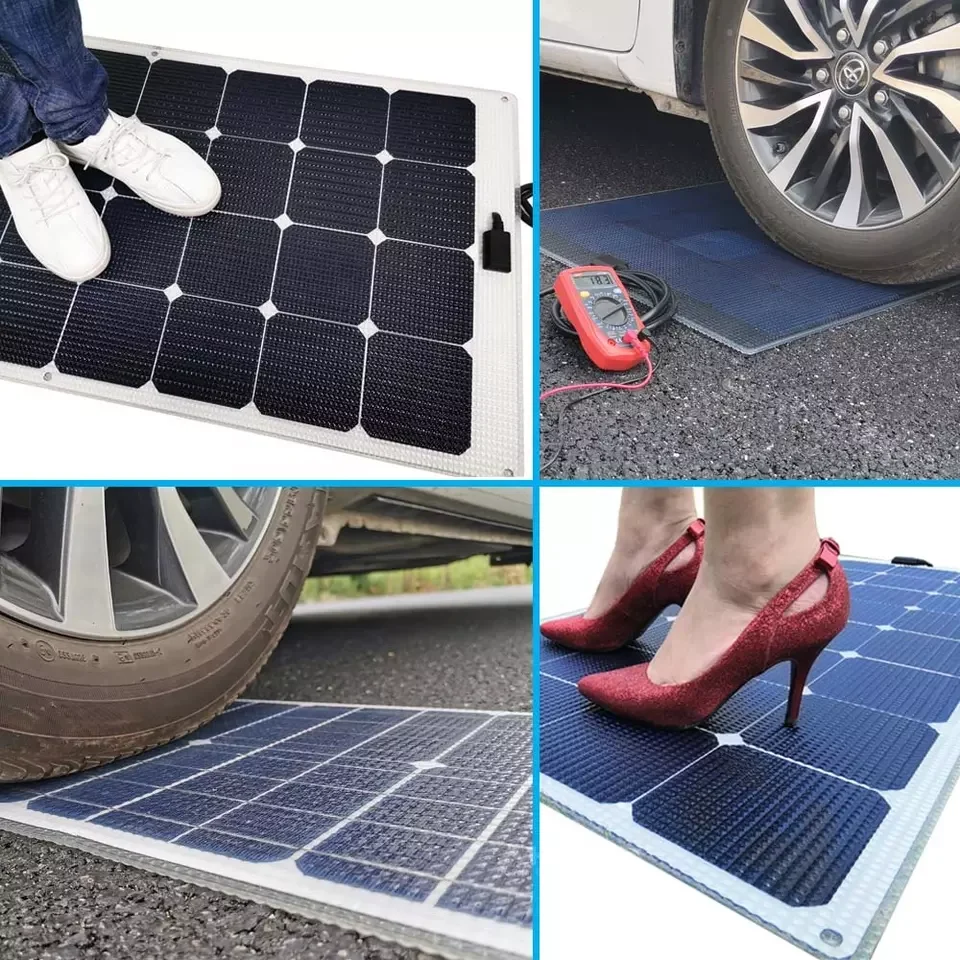

| Feature | solar panel can walk on step on with rough surface anti slippery |
| Product Name | walkable solar panel 120w anti slippery surface rough ETFE from Japan for marine riverside boat yacht |
| Maximum Power[Wp] | 120 |
| Solar Cell | Back Contact Cell |
| Cell Array[Pcs] | 4*8 |
| Cell Efficiency | 24.4% |
| Size[mm] | 550*1090*4 |
| Max Power Voltage Vmp[V] | 20.10 |
| Max Power Current Imp[A] | 5.97 |
| Open Circuit Voltage Voc[V] | 23.72 |
| Short Circuit Current Isc[A] | 6.45 |
| Net.Weight[kg] | 3.8 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.27 |
| Temperature Coefficient Voc[[%/K] | -0.236 |
| Temperature Coefficient Isc[[%/K] | 0.058 |
| Maximum System Voltage[V] | 200 V |
| Maximum Reverse Current[V] | 0A<IR<2A |
| Flame retardancy | UL94 VTM-0 |
| Certification and test | CE,ROHS,S GS,IEC,85°C& 85% humidity test |
| Maximum bend radius(θ) | 20° |
| Cables and Connectors | APJB010,2m dual cores cable 2.5mm2 bare at end |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Other notes | round corner R10,with installation hole |
