DEEM wire terminals butt connector heat shrink waterproof wire connectors Marine Automotive Splice Wire Cable Crimp connector
- Category: Connectors & Terminals >>>
- Supplier: Deem,Electronic,&,Electric,Material,Co.,Ltd.
Share on:
Product Overview
Description
Applications

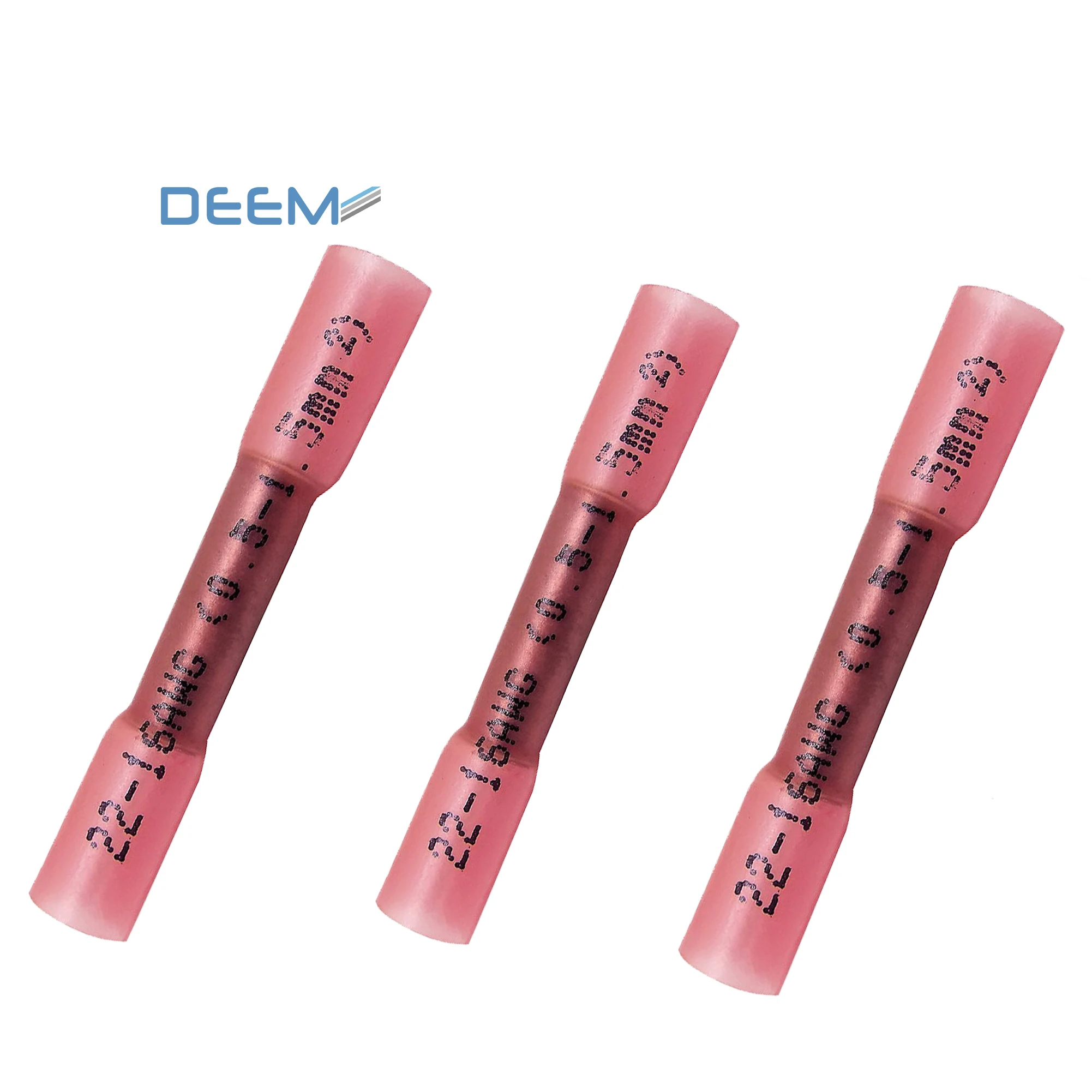

Heat Shrinkable splices provide a permanent environmental seal. The polymer used in the production of the heat shrink tube is specially adapted to be crimped. Ideal for electrical equipment repairs, maintenance and outdoor electrical cabling.
Features
Operating temperature: -55°C to +125°C
Minimum shrink temperature: 110°C
No wire damage thanks to a lower shrink temperature.
100% waterproof, excellent fluid resistance. Very high abrasion resistance.

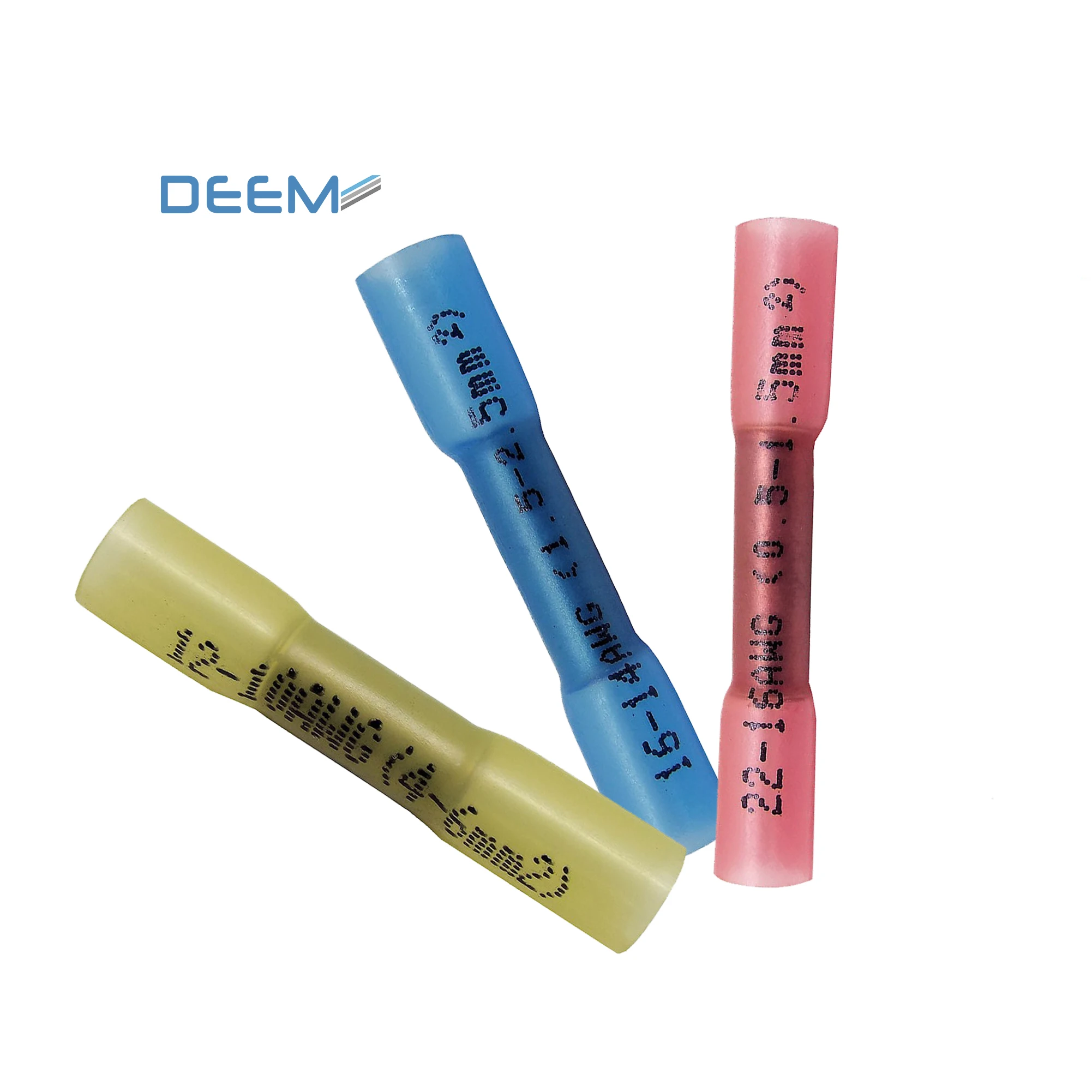

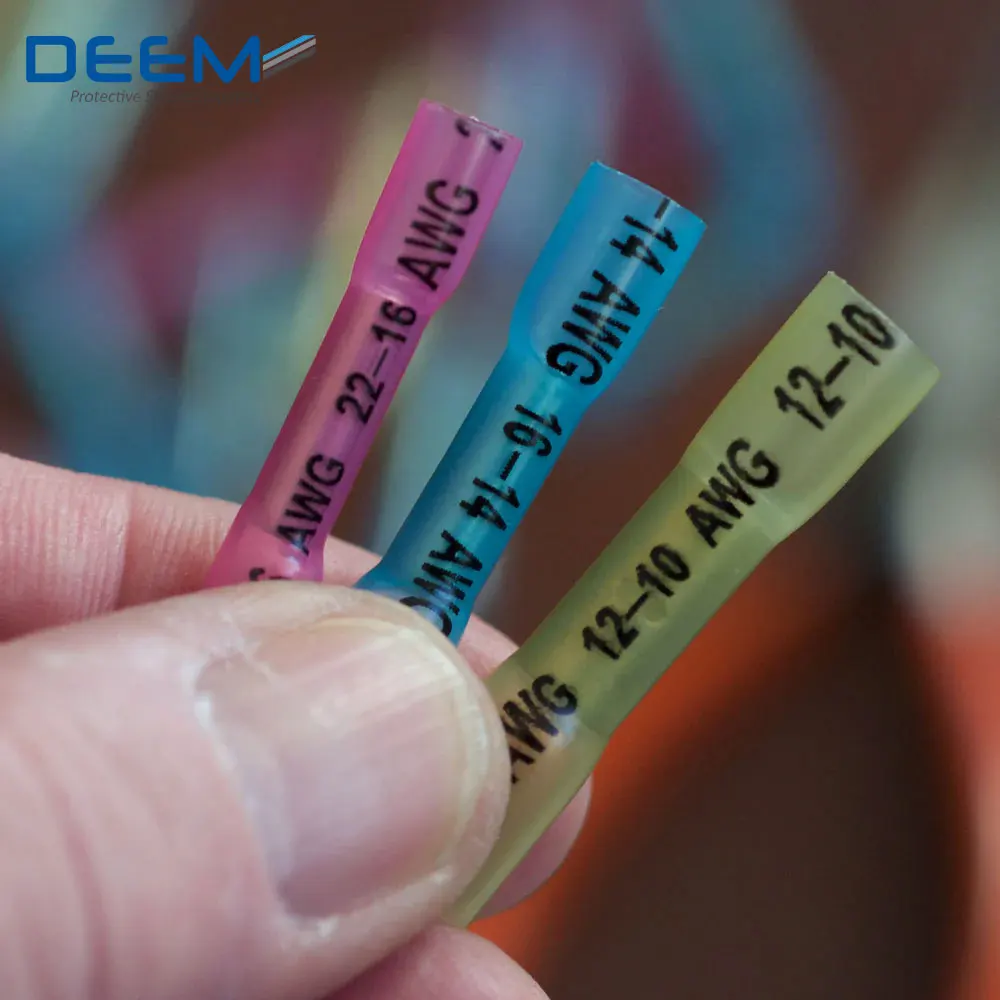

Color: Red, Blue, Yellow
Shrink ratio: 3:1.
Technical Data
| Property | Test Method | Typical Data |
| Tensile Strength | ASTM D 2671 | 28MPA(min) |
| Elongation at back | ASTM D 2671 | 500%(min) |
| Longitudinal Shrinkage | UL 224 | 0 to -10% |
| Heat Shock | 250°C/4hrs | No cracking,Flowing of out wall |
| Heat resistance | 165°C/168hrs | No cracking,Flowing of out wall |
| Cold bend(-40°C/1hr) | ASTM D 2671 | No cracking |
| Voltage withstand(AC 2500V,60 sec.) | ASTM D 2671 | No Breakdown |
| Volume Resistivity | ASTM D 876 | 1014 Ω.cm(min) |
| Copper corrosion | UL 224 | Pass |
| Water absorption | ASTM D570 | ≤0.5% |
| Fluid resistance(23°C/24hrs) | ASTM D 2671 | Good to excellent |
| Specific Gravity | ASTM D 792 | 1.01g/cm3 |
| Tensile Strength | ASTM D 2671 | 28MPA(min) |
Dimensions
| DC-SC | Wire range | As supplied(mm) | After recovery(mm) | |
| Inside diameter | Inside diameter | Cut length | ||
| Red | 0.5-1.5m2 | 4.5 | 1.5 | 38 |
| Blue | 1.5-2.5m2 | 5.5 | 1.8 | 38 |
| Yellow | 4-6mm2 | 6.5 | 2.2 | 42 |
DEEM Electronic&Electric Material Co Ltd is a joint venture manufacturer between Chinese sourcing company with a professional heat shrink backgroud specialist in Europe more than 20 years.We are specialized in research,develop,manufacturer and sales of radiation cross linked heat shrinkable material in worldwide.Such as thin wall,dual wall,medium wall,heavy wall and other specialty products like PTFE,PVDF,silicon rubber,crimp seal connectors,Fiber optic protectors,Braiding Sleeve and other kits in plastic box or small mini box etc related products.Meanwhile OEM and ODM service are available
DEEM is also able to provide any kind of added value jobs.Such as what we already did for the customer packing,cutting,loading,labeling,any kinds of kitting etc.Meanwhile we are also having the capacity to do the trading work as customer request in related fields.
Delivery.Efficiency.Economic.Material.Reliable service and products are servicing the customers more than 20 countries in worldwide.Welcome to join it.
