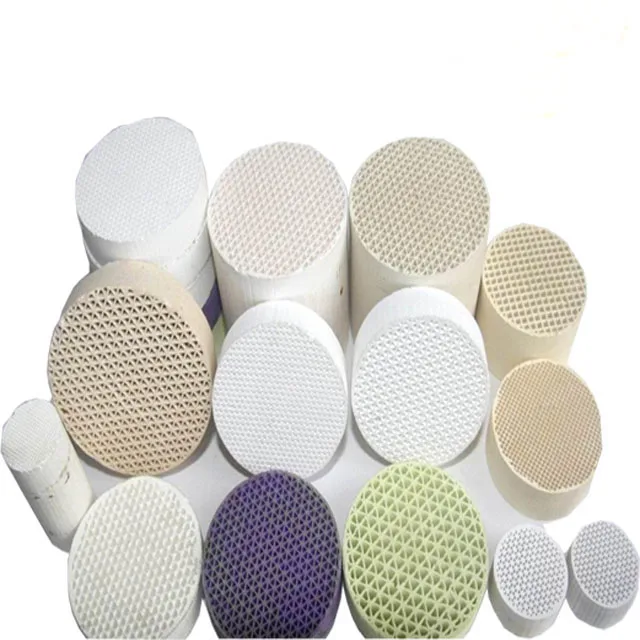

Cordierite Honeycomb Ceramic Monolith Catalyst Support For Automobile Exhaust Honeycomb Ceramic
- Category: >>>
- Supplier: Pingxiang Guangyu Import And Export Trade Co. Ltd.
Share on (1600713639435):
Product Overview
Description
Product Description

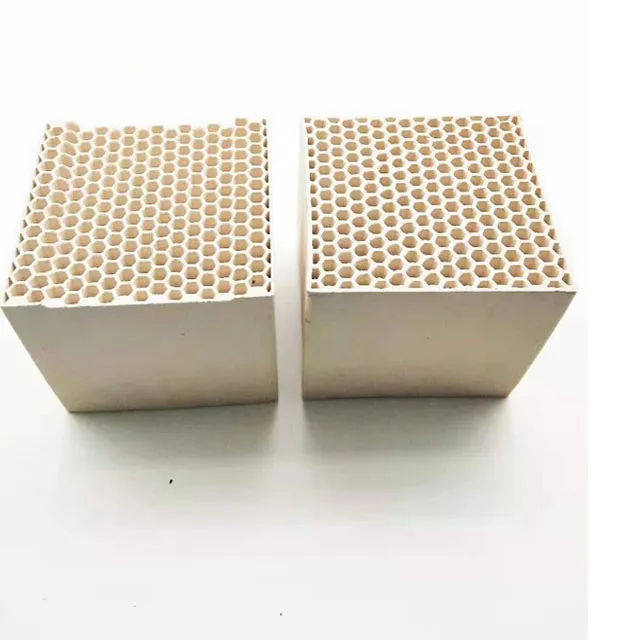

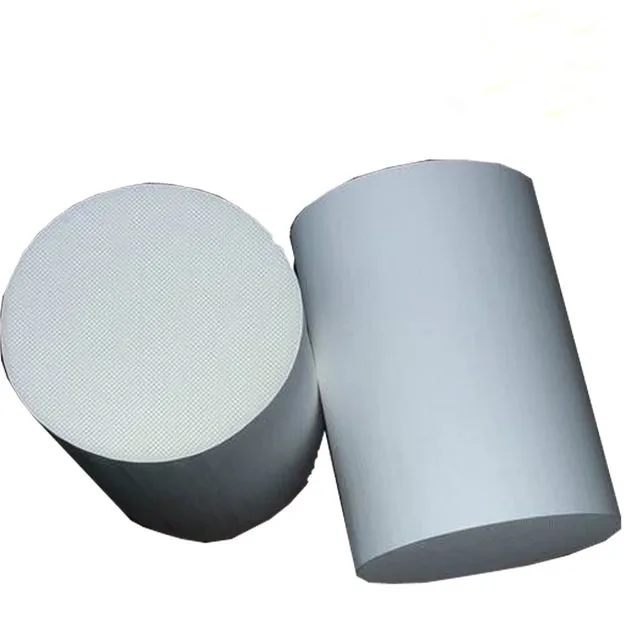

Cordierite Honeycomb Ceramic Monolith Catalyst Support For Automobile Exhaust Honeycomb Ceramic

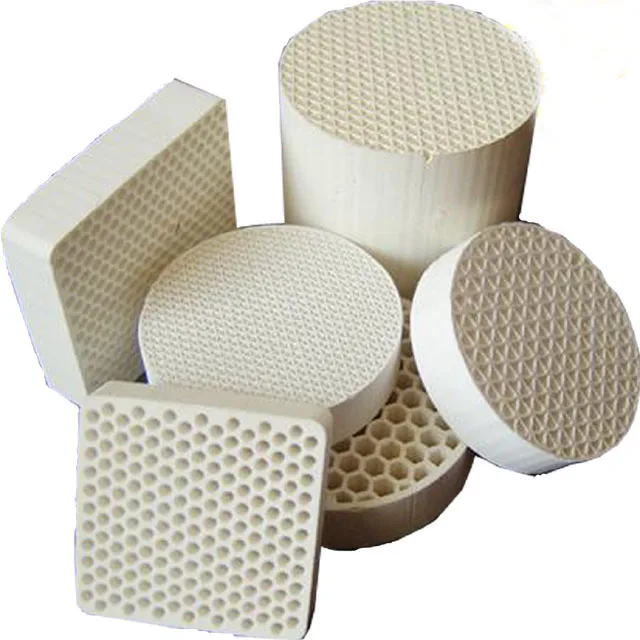

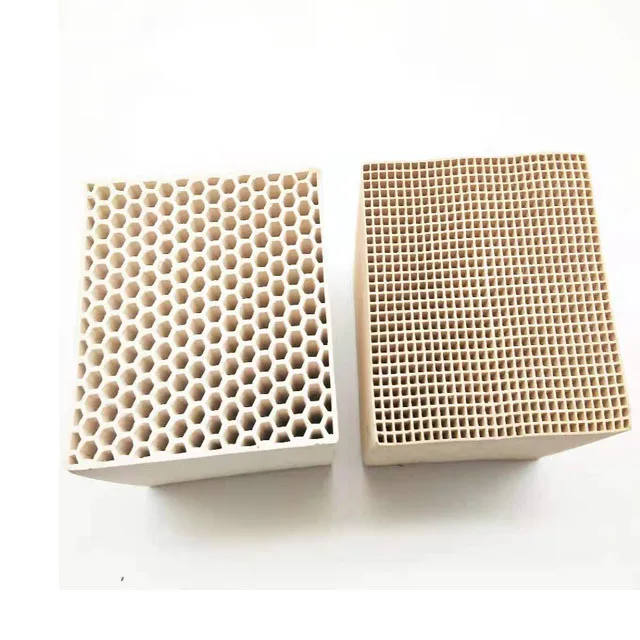

Cordierite-Mullite Ceramic Honeycomb Filter has dual functions of energy saving and environmental protection.Compared with the traditional combustion technology, it can save fuel by 20-50%, reduce oxidative damage by more than 20%, reduce NOx emissions by more than 40%, and greatly improve the production efficiency.As one of its key components, our honeycomb ceramic has the advantages of the unit and volume has large heat exchange area , fast heat transfer, small airflow resistance, shallow depth of heat penetration, and high thermal efficiency.There are various hole types such as square holes, round holes, hexagonal holes, and various wall shapes of flat, inclined, single groove, and double groove.According to the characteristics of China's industrial furnace and the environment of use, our company's technicians have made bold innovations, and we are the first in China to produce synthesize honeycomb heat storage bodies, baffle bricks and heat storage balls by using high temperature chromium fused corundum of 2000 ℃ and other high-purity materials .It has high fire resistance, high load softening temperature, good slag resistance, good thermal shock stability, fast thermal conductivity, good anti-washout , large capacity, large heat capacity, etc by using the smaterial . the service life reaches the level of similar foreign products.In addition, the added catalysts will catalyze the combustion of CO and HC compounds in the flue gas at about 600 ° C, which will further improve the recovery of waste heat and reduce the emission of polluting gas.It is being promoted on a large scale.
Our Datas
Holeshape | Dimensions | PPI | Wall thickness | Heat transfer area | open cell ratio | |
| mm | mm | mm | m³/m2 | (%) | |

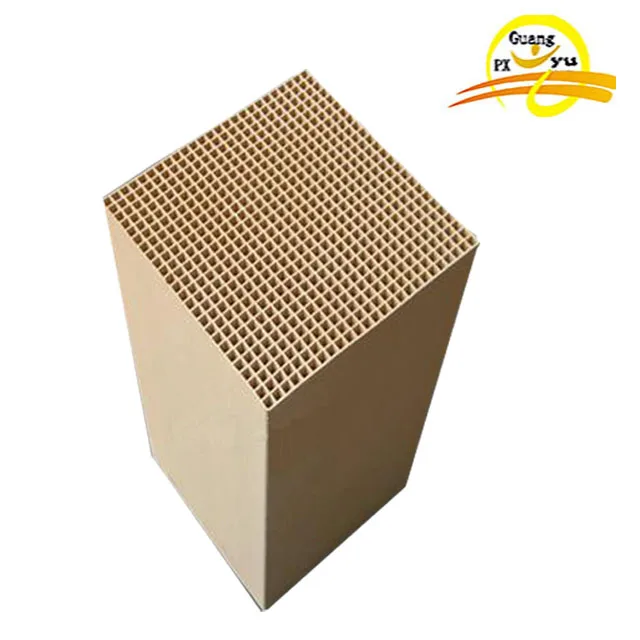

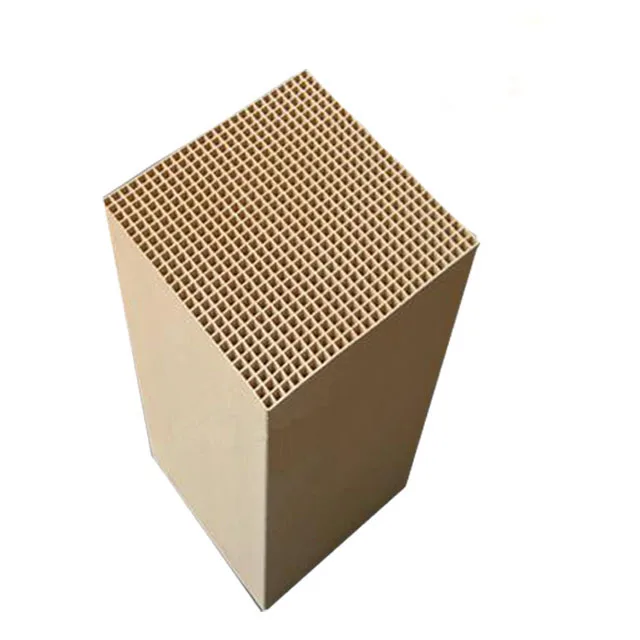

Square hole
| 150×100×100 | 2.5 | 1.0 | 784 | 49 | |
150×100×100 | 3.0 | 1.1 | 691 | 52 | ||
150×100×100 | 5.0 | 1.7 | 392 | 49 | ||
150×150×300 | 25 | 1.0 | 573 | 67 | ||
150×150×300 | 40 | 0.7 | 883 | 65 | ||
150×150×300 | 50 | 0.7 | 1050 | 58 | ||
100×100×100 | 2.5 | 1.0 | 784 | 49 | ||
100×100×100 | 3.0 | 1.1 | 691 | 52 | ||
100×100×100 | 5.0 | 1.7 | 392 | 49 | ||
Round hol
| 150×100×100 | 3.5 | 1.0 | 590 | 52 | |
150×100×100 | 4.0 | 1.2 | 484 | 49 | ||
100×100×100 | 3.5 | 1.0 | 590 | 52 | ||
100×100×100 | 4.0 | 1.2 | 484 | 49 | ||

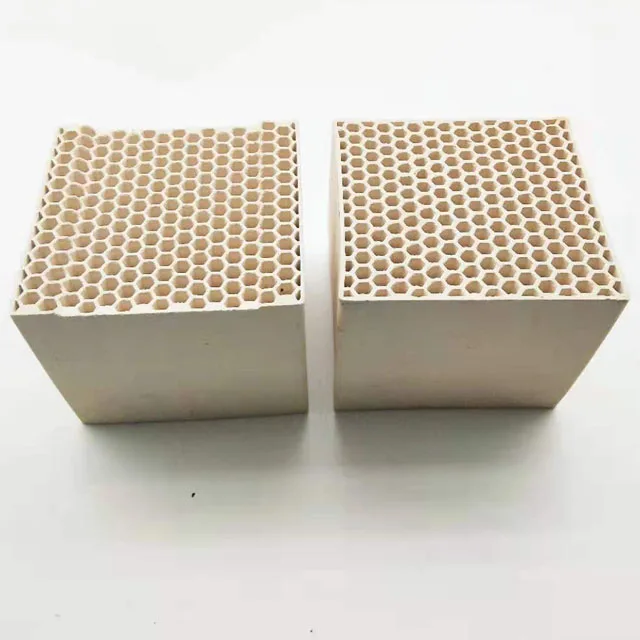

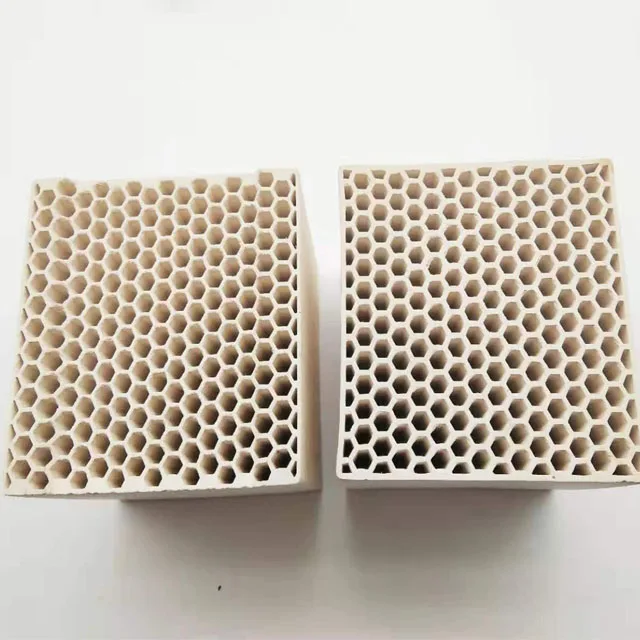

Hexagonal hole
| 150×100×100 | 3.1 | 1.0 | 673 | 53 | |
150×100×100 | 3.1 | 1.5 | 625 | 49 | ||
150×100×100 | 3.5 | 1.0 | 655 | 58 | ||
150×100×100 | 3.8 | 1.1 | 624 | 58 | ||
100×100×100 | 3.1 | 1.0 | 673 | 58 | ||
100×100×100 | 3.5 | 1.0 | 655 | 58 | ||
Fan shape
| 630 | 200 | 3.0 | 1.0 | 691 | 52 |
540 | 200 | 3.0 | 1.0 | 691 | 52 | |
420 | 154 | 3.0 | 1.0 | 691 | 49 | |
152 | 36 | 3.0 | 1.0 | 691 | 49 | |
