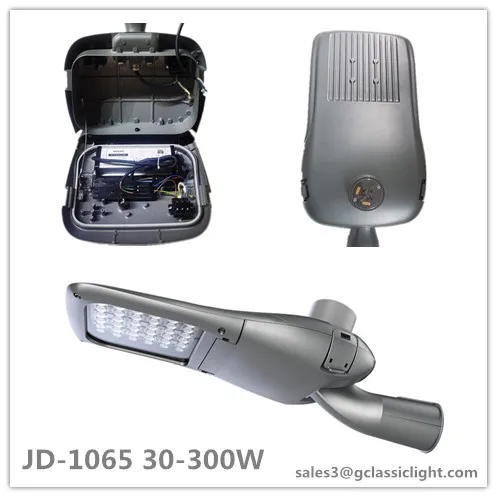

lora street light controller with nema standard photocell switch for street light ev charger
lora street light controller with nema standard photocell switch for street light ev charger
lora street light controller with nema standard photocell switch for street light ev charger
lora street light controller with nema standard photocell switch for street light ev charger
lora street light controller with nema standard photocell switch for street light ev charger
lora street light controller with nema standard photocell switch for street light ev charger
lora street light controller with nema standard photocell switch for street light ev charger

lora street light controller with nema standard photocell switch for street light ev charger

Share on (1600713645694):


Price:$80.00 - $100.00

Quantity:


Product Overview

Description

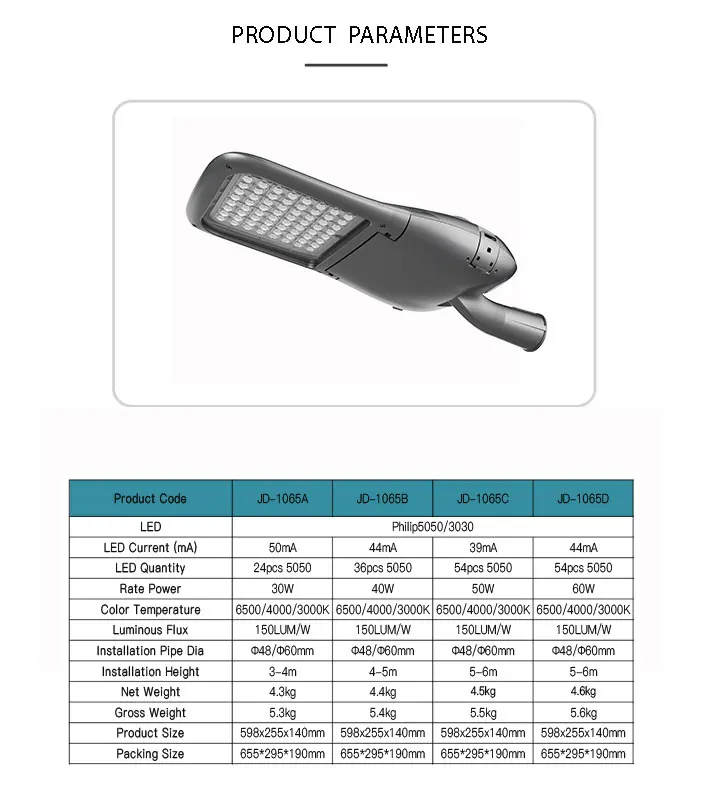

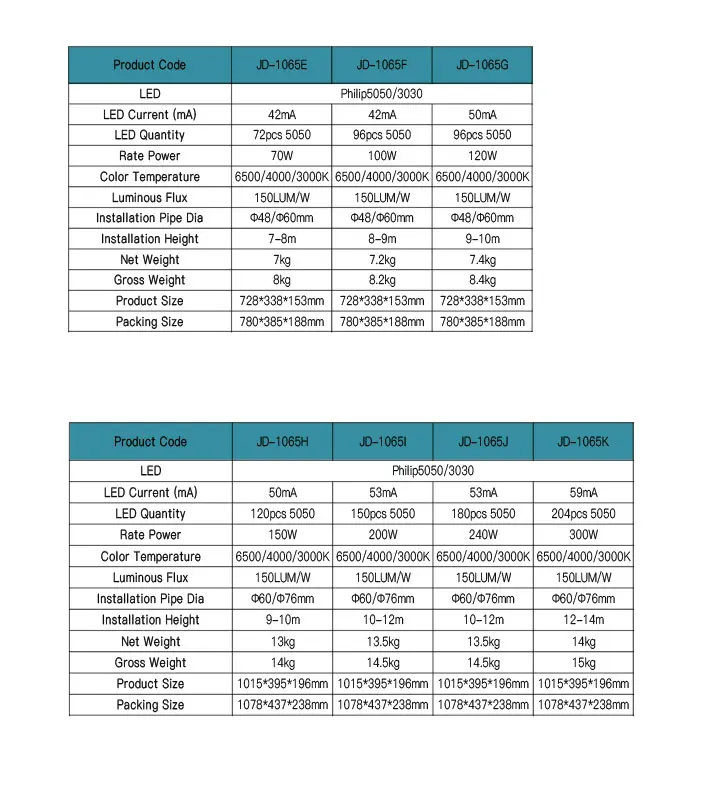

1-10652-1065_013-1065_03













































































































































Product CodeJD-1065EJD-1065FJD-1065GJD-1065H
LED Current (mA)42mA 5050/78mA 303042mA 5050/84mA 303050mA 5050/100mA 303050mA 5050/100mA 3030
LED Quantity72pcs 5050/144pcs 303096pcs 5050/192pcs 303096pcs 5050/192pcs 3030120pcs 5050/240pcs 3030
Rate Power70W100W120W150W
Color Temperature6500/4000/3000K6500/4000/3000K6500/4000/3000K6500/4000/3000K
Luminary EER160lm/w(5050)
145lm/w(3030)		160lm/w(5050)
145lm/w(3030)		160lm/w(5050)
145lm/w(3030)		160lm/w(5050)
145lm/w(3030)
Input VoltageAC100-277VAC100-277VAC100-277VAC100-277V
Frequency Range50/60Hz50/60Hz50/60Hz50/60Hz
Color TemperatureRA75RA75RA75RA75
Temperature of working condition -40℃  -  50℃-40℃  -  50℃-40℃  -  50℃-40℃  -  50℃
humidity of working condition20%-90%20%-90%20%-90%20%-90%
LED life time70000h70000h70000h70000h
Protestion GradeIP66IP66IP66IP66
Installation Pipe DiaΦ48/Φ60mmΦ48/Φ60mmΦ48/Φ60mm Φ60/Φ76mm
Installation Height5-10m5-10m5-10m10-15m
Net Weight7Kg7.2kg7.4kg13KG
Gross Weight8kg8.2kg8.4kg14KG
Product Size728*338*153mm728*338*153mm728*338*153mm1015*395*196
Packing Size780*385*188mm780*385*188mm780*385*188mm1078*437*238

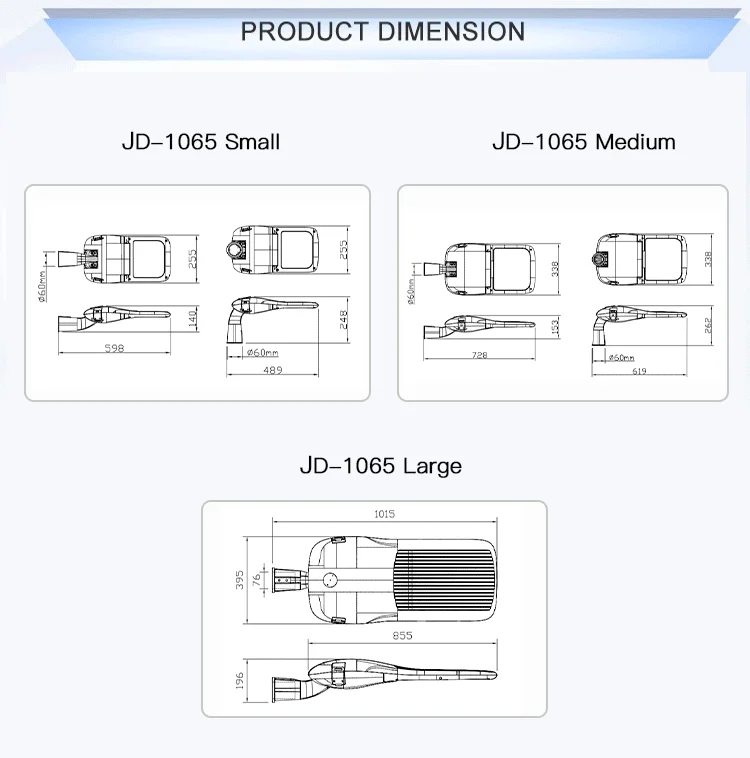

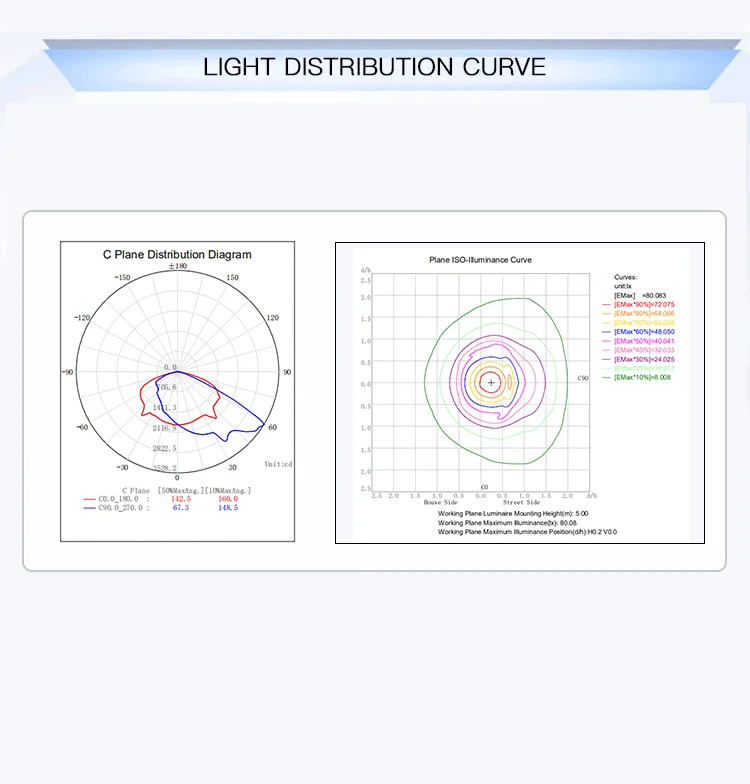

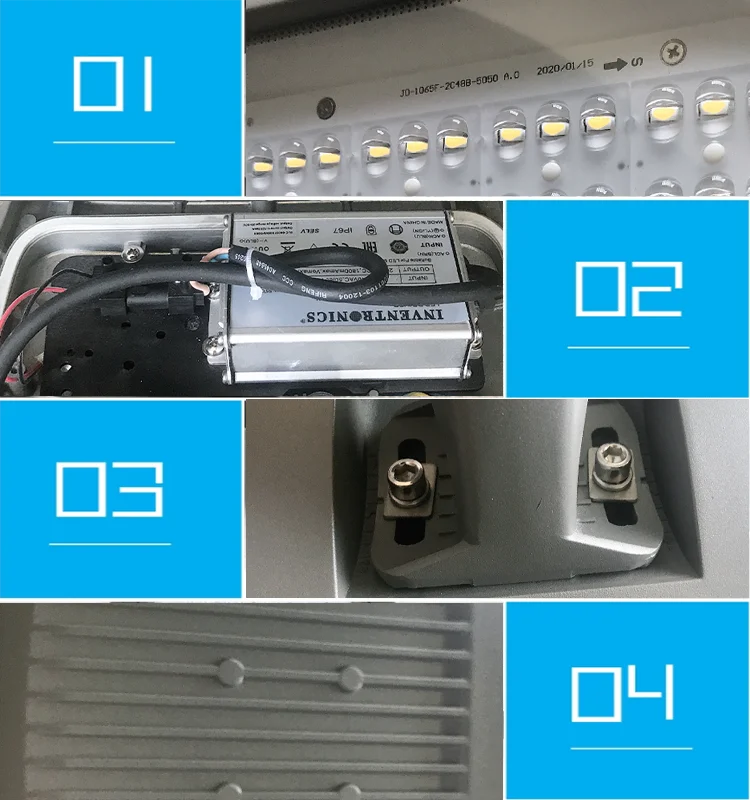

4-1065dimension_015-1065dimension_036-1065detail



Company Information

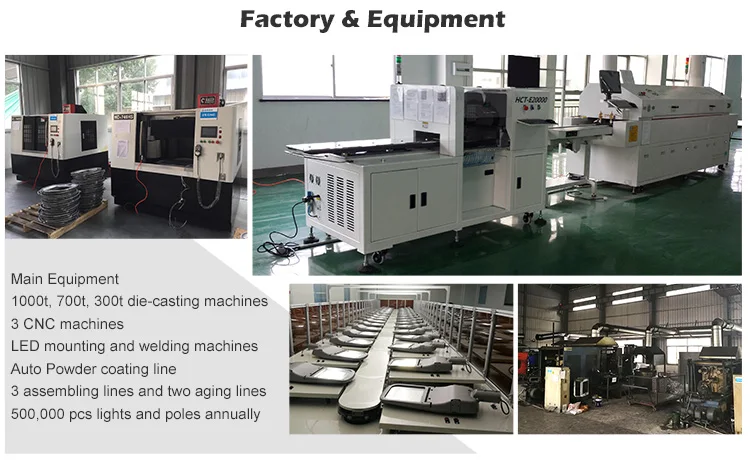

_01_02_03_04_05
