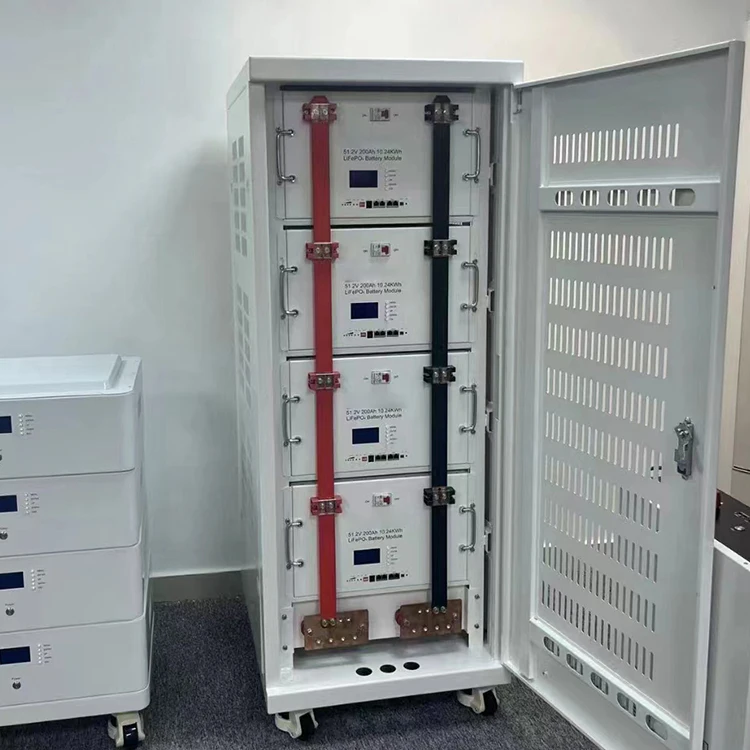

Lithium Battery Rack Mounted Oem 3u 4u 51.2v 100ah 200ah Solar Energy Lifepo4 Battery
- Category: >>>
- Supplier: Anhui Power International Co. LTD.
Share on (1600713655191):
Product Overview
Description
LiFePo4 Battery - Powerwall
5.12KWh/7.68KWh/
10.24KWh/12.8KWh
• Extendibility 5.12kWh to 12.8KWh• Compact and thin module.
• Reduce floor space, wall-mounted installation (PowerWall).
• 10 years life cycle.
• Support parallel, Max 6-8pcs
• Easy to install, plug in and play.

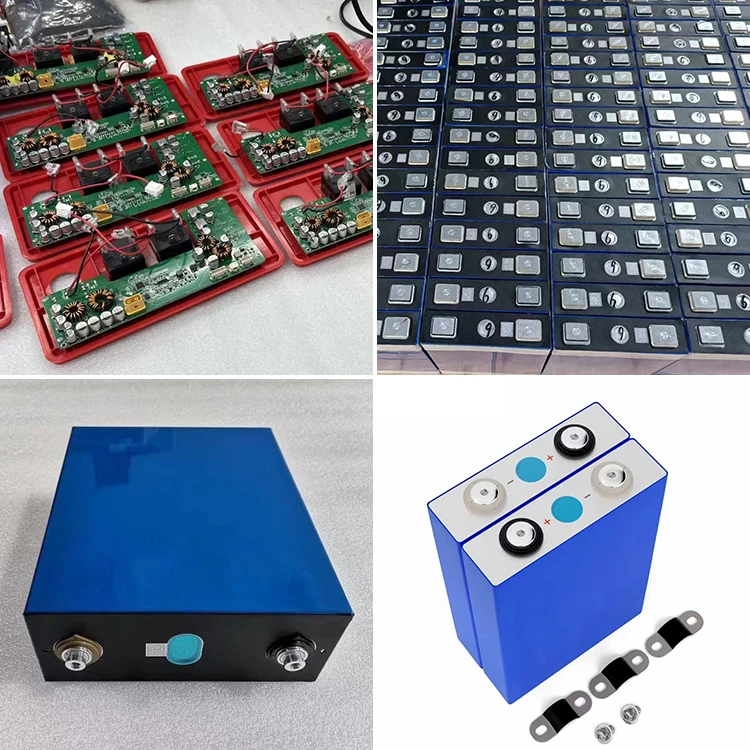

• Use grade A prismatic cells, has longer cycle life which can up to 6000 times.
• Use grade A prismatic cells, has longer cycle life which can up to 6000 times.
2. Compact and thin module.
3. Good extendibility, 5.12kWh each, easy extend to 7.68kWh/10kWh/15kWh etc.
4. Multifunctional accessories like digital LCD screen, built in smart BMS.
5. Easy to install, plug in and play.
6. Extremely long life cycle, more than 6000 times or 10 years.
7. High protection measures, built-in Aerosol active fire protection module, thermal runaway detection and active fire protection.
8. Complete certificates, like CE, ROHS, ISO9001, MSDS, UN38.3......
PowerWall for off-grid solar systems
PowerWall Installation Scenario
Product Paramenters

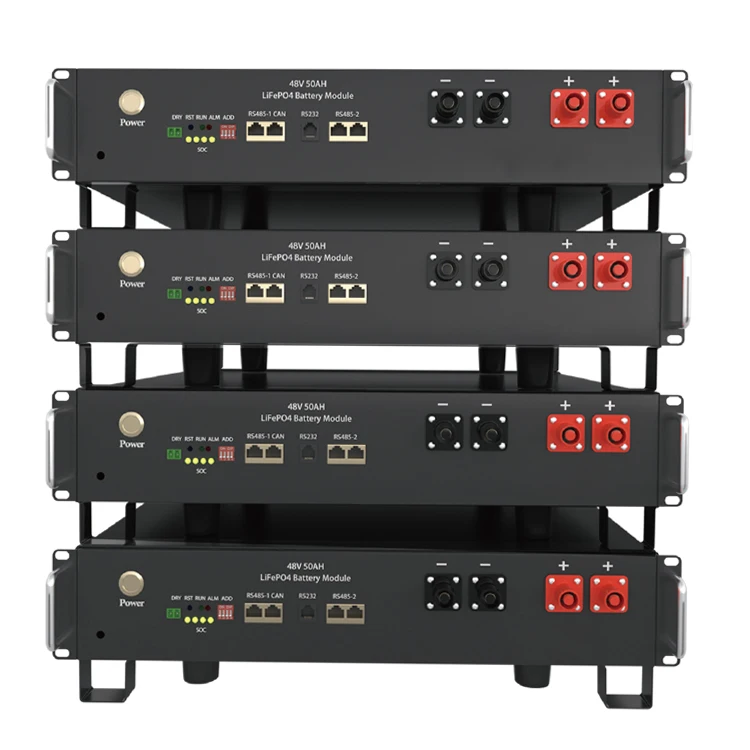

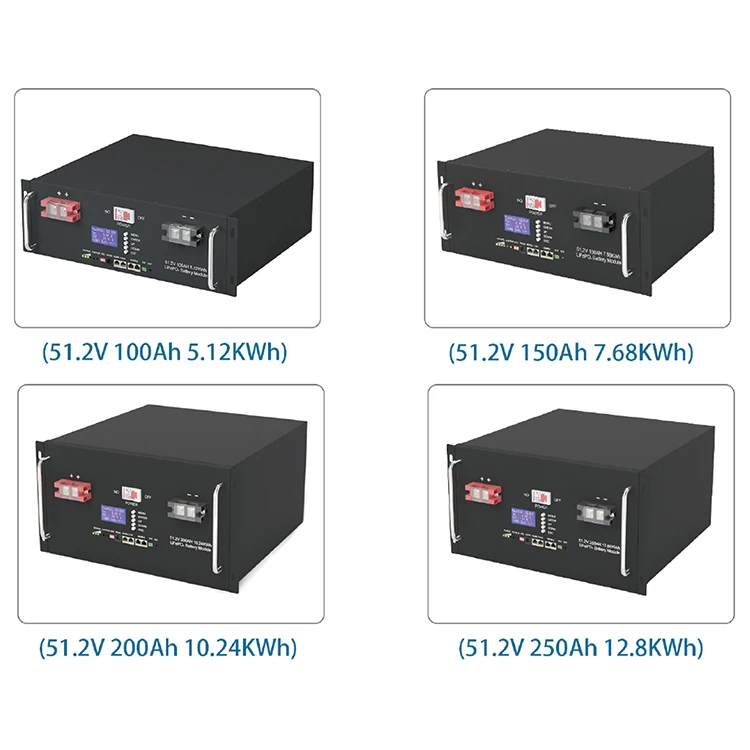

Rack-Mounted Energy Storage LiFePo4 Batteries | ||||||||||
Mode | API2000 | API5000 | API7200 | API9600 | API12000 | |||||
Normal Battery Energy | 2560WH | 5120WH | 7680WH | 10240WH | 12800WH | |||||
Normal Capacity | 50Ah | 100Ah | 100Ah | 100Ah | 100Ah | |||||
Normal Voltage | 51.2V | 51.2V | 51.2V | 51.2V | 51.2V | |||||
Domensions | 3U (mm) 482*350*120 | 4U (mm) 482*400*177 | 5U (mm) 482*430*222 | 6U (mm) 482*500*280 | 6U (mm) 482*500*280 | |||||
Cycle Life | >3000 | >3000 | >3000 | >3000 | >3000 | |||||
Charge Date | ||||||||||
DC Normal Charge Voltage | 58.4±1Vdc | 58.4±1Vdc | 58.4±1Vdc | 58.4±1Vdc | 58.4±1Vdc | |||||
Recommend Charge Current | ≤20A | ≤50A | ≤50A | ≤50A | ≤50A | |||||
Allowed Max. Charge Current | 25A | 100A | 100A | 100A | 100A | |||||
Charge Cut-Off Voltage | 58.4±1Vdc | 58.4±1Vdc | 58.4±1Vdc | 58.4±1Vdc | 58.4±1Vdc | |||||
Dischagrge Date | ||||||||||
Countinuous Discharge Current | 25A | 50A | 75A | 100A | 100A | |||||
Allowed Max. discharge Current | 50A | 100A | 100A | 150A (5S) | 150A (5S) | |||||
Discharge Cut-Off Voltage | 40V | 40V | 40V | 40V | 40V | |||||
Working Condition | ||||||||||
Charge Temperature | 0℃ to 45℃ （32℉ to 113℉） | |||||||||
Discharge Temperature | -20℃ to 60℃ （-4℉ to 140℉） | |||||||||
Storage Temperature | 0℃ to 40℃ （32℉ to 104℉） | |||||||||
Enclosure Protection Level | IP54 | |||||||||
Mechanical Data | ||||||||||
Cell & Capacity | LiFePo4 Battery 25AH&50AH | LiFePo4 Battery 50AH&100AH | LiFePo4 Battery 50AH&150AH | LiFePo4 Battery 50AH&100AH | LiFePo4 Battery 50AH | |||||
Shell Material | Iron Shell | Iron Shell | Iron Shell | Iron Shell | Iron Shell | |||||

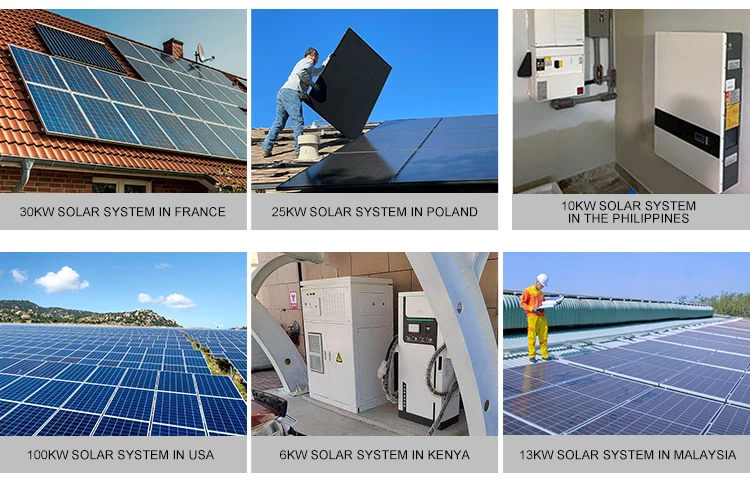

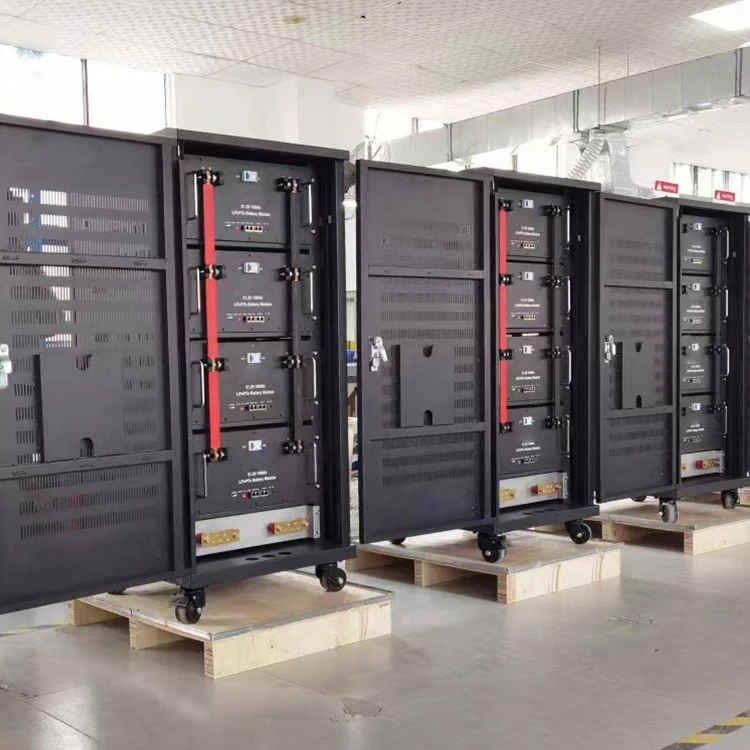

Customer Photos

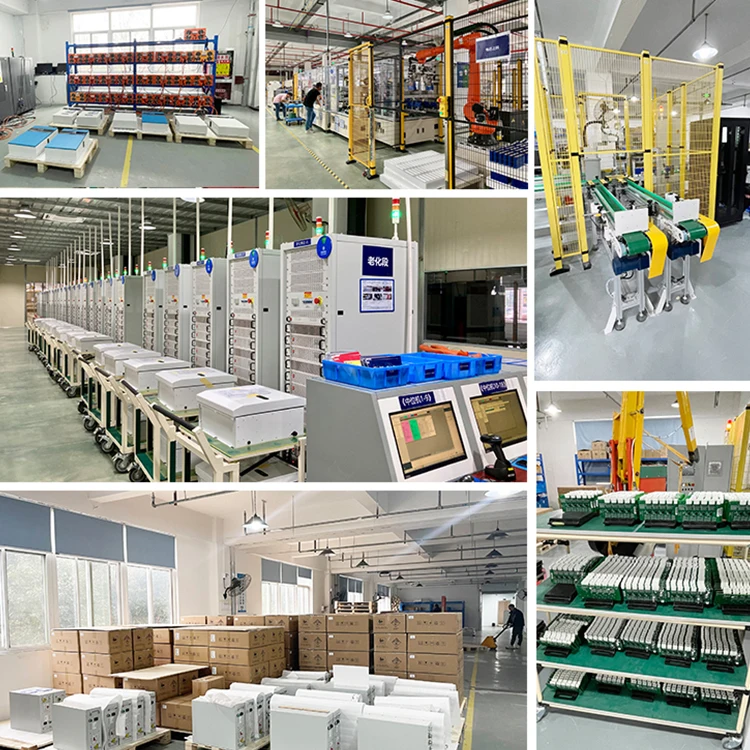

Company Profile

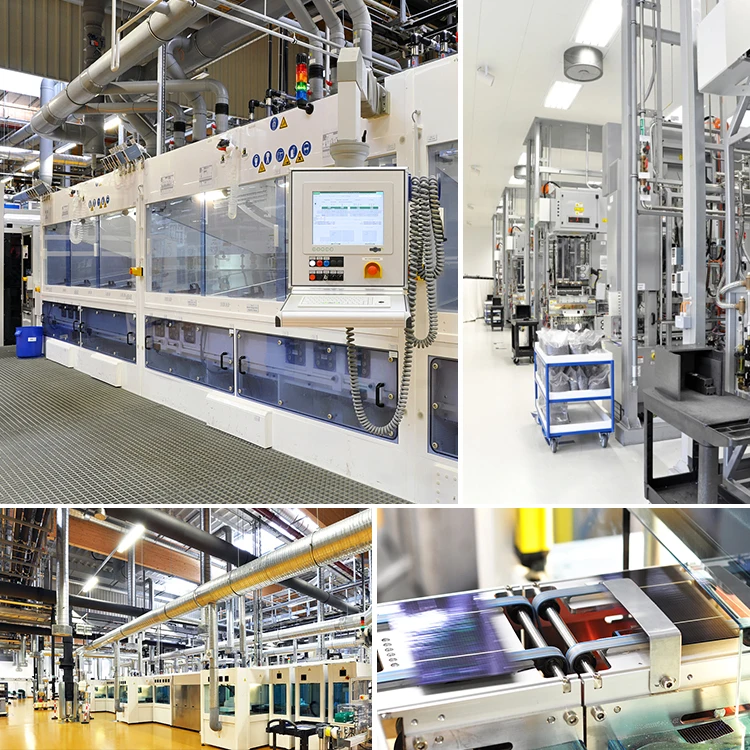

Anhui Power International focuses on management and research and development, and constantly designs cutting-edge products. It integrates first-class manufacturing engineering and management systems, and is committed to providing high-performance solar modules at a competitive cost. Power International solar panel modules range from 5W to 500W and have passed TUV, UL, CE, CSA, CEC and JET certification. Power International batteries include LiFePO4/lithium battery, VRLA AGM, VRLA GEL, OPzS and OPzV, which can be used in solar power plant storage, wind energy storage, telecommunications, UPS, fire alarm system, emergency lighting, etc. The inverter of Power International includes grid connected, off grid and hybrid type, and the controller includes PWM and MPPT type. All types of inverters and controllers are CE and UL approved.
