Moulded Cut Edge Iso Standard Industrial Nylon Conveyor Belt 20 Mpa
- Category: Rubber Belts >>>
- Supplier: Qingdao Global Belting Co. Limited
Share on (1600713694965):
Product Overview
Description
Moulded Cut Edge Iso Standard Industrial Nylon Conveyor Belt 20 Mpa
Products Description

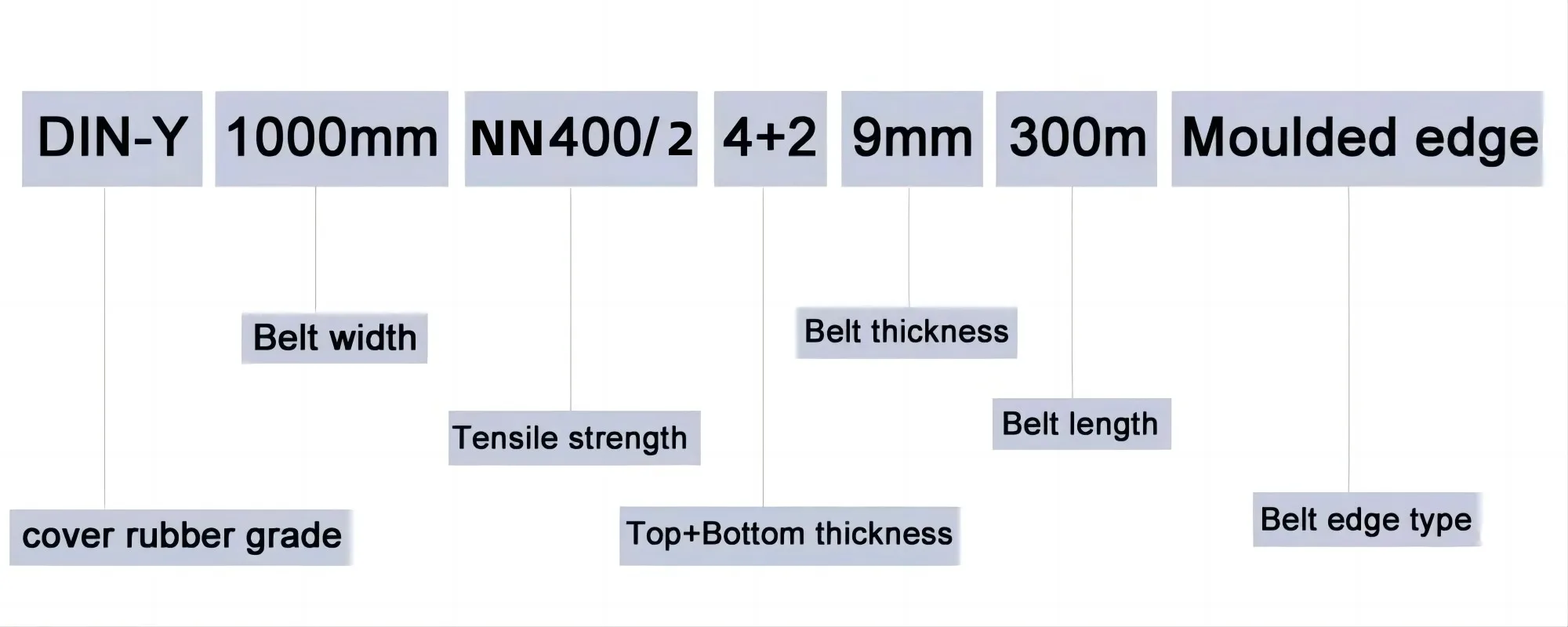

Product Standard
Cover Rubber grade | 6MPA,10MPA,12MPA,14MPA,15MPA,17MPA,16MPA,20MPA,18MPA,24MPA,25MPA, | DIN-X,Y,W RMA-1,RMA-2 N17,M24 | |
Belt width (mm) | 300mm-3200mm | 18",20",24",30",36",40",42" 48",60",72",78",86",94" | |
Tensile strength | NN100-NN400 | 330PIW, 440PIW | |
Top+Bottom thickness | customizable | customizable | |
Belt thickness | customizable | customizable | |
Belt length | customizable | customizable | |

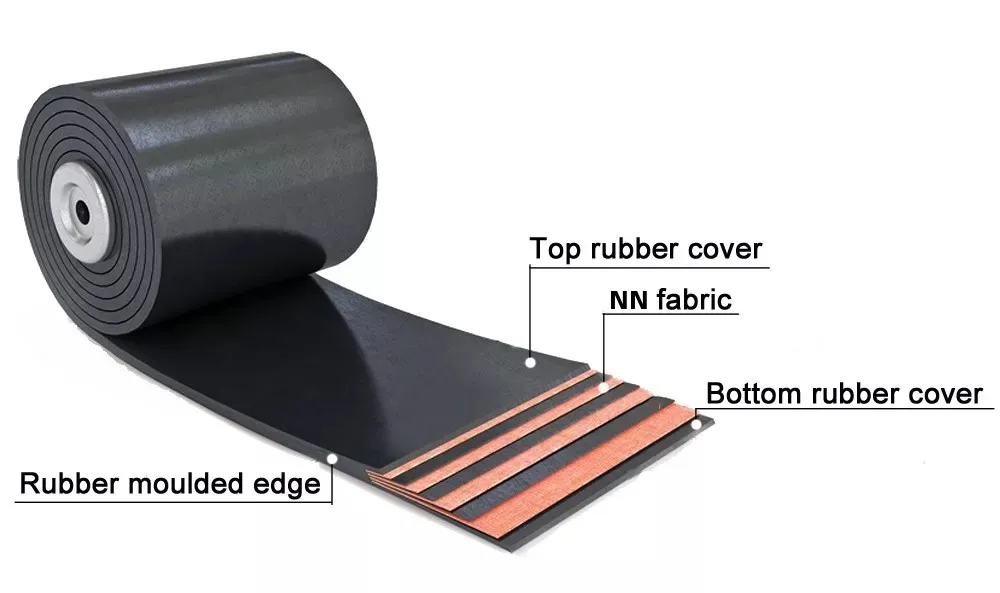

Belt edge type | moulded edge or cut edge | ||
Product Paramenters
Adhesion And Elongation Property | ||||||||||
Belt Core Material | Bonding Strength | elongation | ||||||||
Between Plies(N/mm) | Between Cover and Fabric Ply N/mm | Longitudinal Elongation At Break S ≥ | Longitudinal Reference Force Elongation %≤ | |||||||
Thickness of Cover Layer ≤1.5mm | Thickness of Cover ≥1.5mm | |||||||||
Polyester canvas | ≥5 | ≥4.5 | ≥5 | ≥10% | ≤4% | |||||
Classification Of Cover Rubber As Follows | ||||||||||
Cover Grade | Tensile Strength | Elongation At Break ≥ | Wear Loss ≤ | Tensile Strength Ang Elongation At Break After Aging | ||||||
Mpa | Kgf/c㎡ | % | mm³ | % | ||||||
M | ≥24 | ≥240 | ≥450 | ≤125 | -25 ~ +25 | |||||
W | ≥18 | ≥180 | ≥400 | ≤90 | -25 ~ +25 | |||||
Z | ≥15 | ≥150 | ≥150 | ≤200 | -25 ~ +25 | |||||
Product Feature：
Nylon Canvas Is A Good Variety Of Synthetic Fibers In The Tape Industry, Its Advantages Are Mild High, Impact Resistance, Light Weight, Large Interlayer Adhesion, Resistance To Layer Fatigue, So Long Service Life And So On. Suitable For Medium And Long Distance, High Throughput, High Belt Running Speed Production Occasions, Widely Used In Mining, Construction, Port, Chemical Industry And Other Departments.
Details Images
Product Paramenters
Recommend Products
Company Profile
Product packaging
FAQ
1.Are you a manufacturer or a trading company?
We are a manufacturer.
2. What does your company mainly produce?
The company is committed to the production of various uses of conveyor belt, product performance, long service life, widely used in coal, metallurgy, hydropower, building materials, sand, port, etc.
3.Do you provide samples?
Please contact our customer service for sample details
4.What is MOQ?
It depends on different products. Pls contact us for specific quantity.
5. How to ship?
For samples, International express. For big orders, the cheapest way is by sea.
6.How to place an order?
You could send us an inquiry to any of our sales representative for details order information. We will explain details for you.
We are a manufacturer.
2. What does your company mainly produce?
The company is committed to the production of various uses of conveyor belt, product performance, long service life, widely used in coal, metallurgy, hydropower, building materials, sand, port, etc.
3.Do you provide samples?
Please contact our customer service for sample details
4.What is MOQ?
It depends on different products. Pls contact us for specific quantity.
5. How to ship?
For samples, International express. For big orders, the cheapest way is by sea.
6.How to place an order?
You could send us an inquiry to any of our sales representative for details order information. We will explain details for you.
