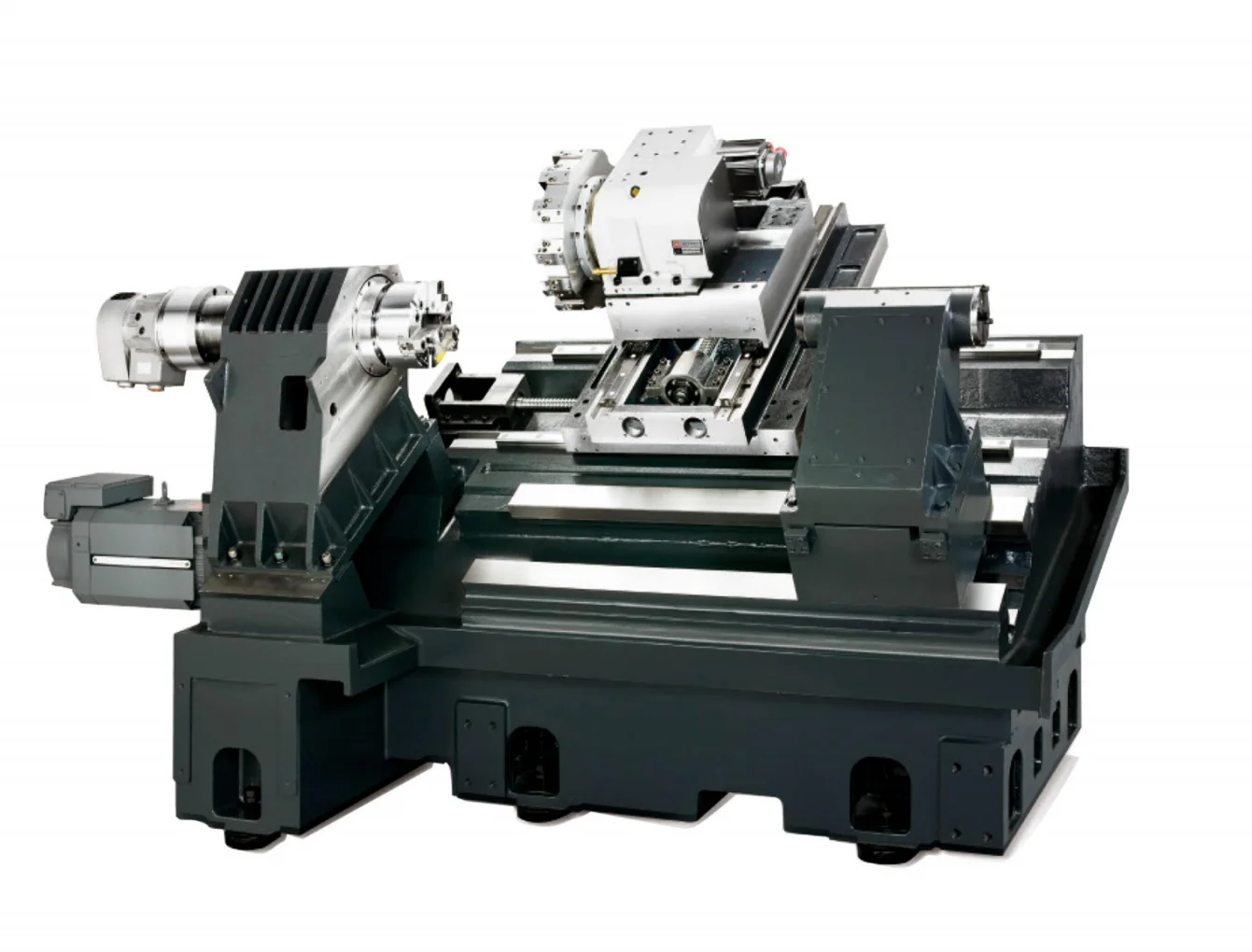

High Performance RL 750Y Cnc Lathe Machine with C axi Slant Bed Lathe China 12 CE Single Horizontal Provided 65 Taiwan 45 FANUC
High Performance RL-750Y Cnc Lathe Machine with C-axi Slant Bed Lathe China 12 CE Single Horizontal Provided 65 Taiwan 45 FANUC
High Performance RL-750Y Cnc Lathe Machine with C-axi Slant Bed Lathe China 12 CE Single Horizontal Provided 65 Taiwan 45 FANUC
High Performance RL-750Y Cnc Lathe Machine with C-axi Slant Bed Lathe China 12 CE Single Horizontal Provided 65 Taiwan 45 FANUC
High Performance RL-750Y Cnc Lathe Machine with C-axi Slant Bed Lathe China 12 CE Single Horizontal Provided 65 Taiwan 45 FANUC
High Performance RL-750Y Cnc Lathe Machine with C-axi Slant Bed Lathe China 12 CE Single Horizontal Provided 65 Taiwan 45 FANUC

High Performance RL 750Y Cnc Lathe Machine with C axi Slant Bed Lathe China 12 CE Single Horizontal Provided 65 Taiwan 45 FANUC

Share on (1600713723218):


Price:$36,000.00 - $40,000.00

Quantity:


Product Overview

Description





Products Description




Content
Item
Unit
RL-750M





Capacity
Max.swing over bed
mm
Φ600
2
Max.turning diameter
mm
Φ400
3
Swing over cross slide
mm
Φ260
4
Max. turning length
mm
700
5
Bar hole
mm
Φ52


        Spindle
Spindle nose
-
A2-6
7
Spindle hole
mm
Φ65
8
Spindle speed
rpm
4200
Chuck size
inch
8''




Axis travel
x/z/y axis travel
mm
270/810
x/y/z  axis rapid traverse
m/min
24/24
x/y/z linear guide size
mm
45
positioning accuracy
mm
±0.008
repeat accuracy
mm
±0.005


Tool Turret
Tool Turret type
-
BMT55-12T
O.D. tool holder
mm
25*25
I.D. tool holder
mm
Φ40
Adjacent tool change time
mm
0.2



Tailstock
Tailstock type
-
Programmable
Tailstock spindle taper
#
MT#5
Quill diameter
mm
Φ80
Quill travel
mm
100

Machine dimensions
L*W*H
mm
2824*1753*1740
weight
kg
4700


Company Profile




Munzer Technology Co.,Ltd.
Munzer focus one design, manufacturer and distribution of advanced metal-cutting machine tool solutions. As manufacturing demands, we bring innovation and expand our CNC machine and workholding options to many demanding applications.




Certifications




Our Advantages


We are Taiwan manufacture of CNC lathe and VMC which focus on this field more than 20 years. Chinese factory was established in 2008. Munzer sends around 95% components from Taiwan to our China factory to assembly the complete machine in order to supply the more competitive price with the same quality as original in Taiwan.






Payment Delivery






FAQ


Q1. Where is your factory?
We are located in Dongguan, Guangdong, 1 hour to Shenzhen city, warmly welcome to visit us.


Q2. Why MUNZER?
MUNZER is Taiwan manufacture of CNC lathe, VMC and quick-change collet system who focus on these fields over 20 years. Chinese factory was established in 2008. MUNZER sends around 95% components from Taiwan to Chinese factory and assemble the complete machine so that supply the more competitive price with the same quality as original in Taiwan.


Q3. What is warranty of products?
All of machines with 1 year guarantee. video teaching , or delegate an engineer or dealer to solve the problem.


Q4. How to purchase?
You can send me your details or ask me for product details by email: laron@munzertec.com WhatsApp/WeChat:+86 17755929857.


Q5. What about after sales service?
Our after-sales staff will reply within 12 hours, if the warranty period, replace accessories is for free. After warranty period, we will charge the accessories.
