Manufacturer Wholesale Multifunctional Industry Press HDPE Geocell For Concrete
- Category: >>>
- Supplier: Feicheng Boyuan Geosynthetics Co. Ltd
Share on (1600713726481):
Product Overview
Description
Product Description
Product Name | Geocell |
Color | Yellow,Black,Green |
Size | 6*10,customized |
Specifications | 50-1000,100-800,200-1000 |
Material | HDPE |
Application | Earthwork Apllication |
Service | 24 Hours Online Service |
Quality | high-quality |

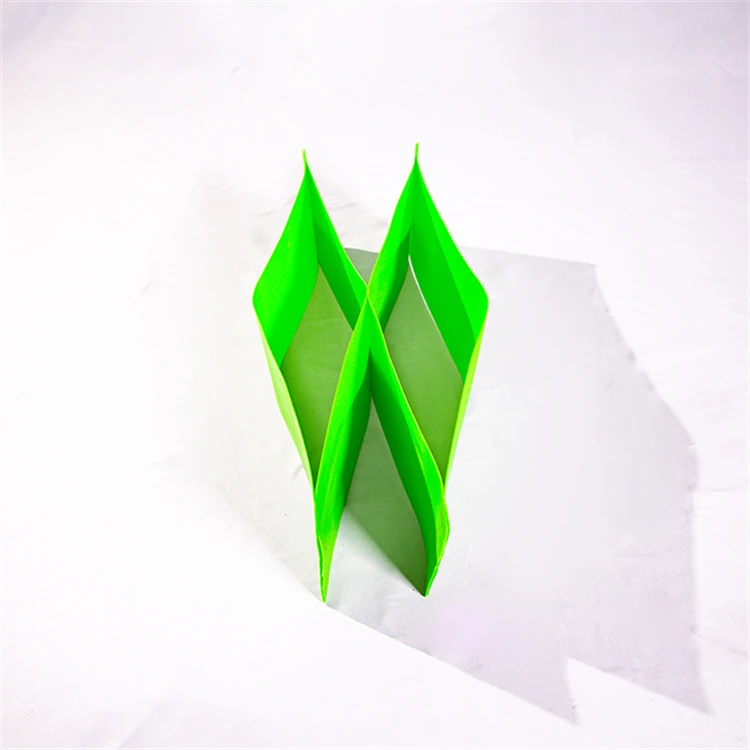

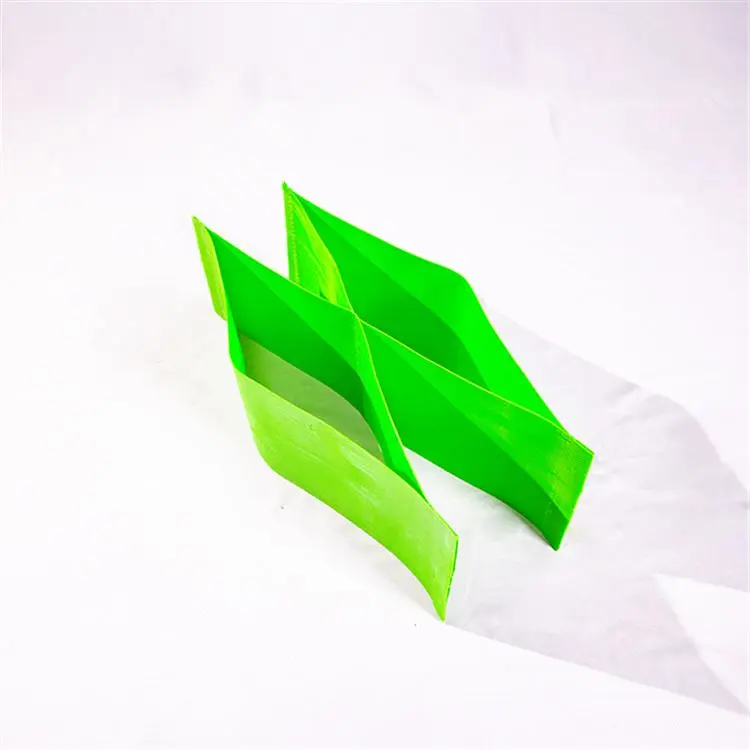

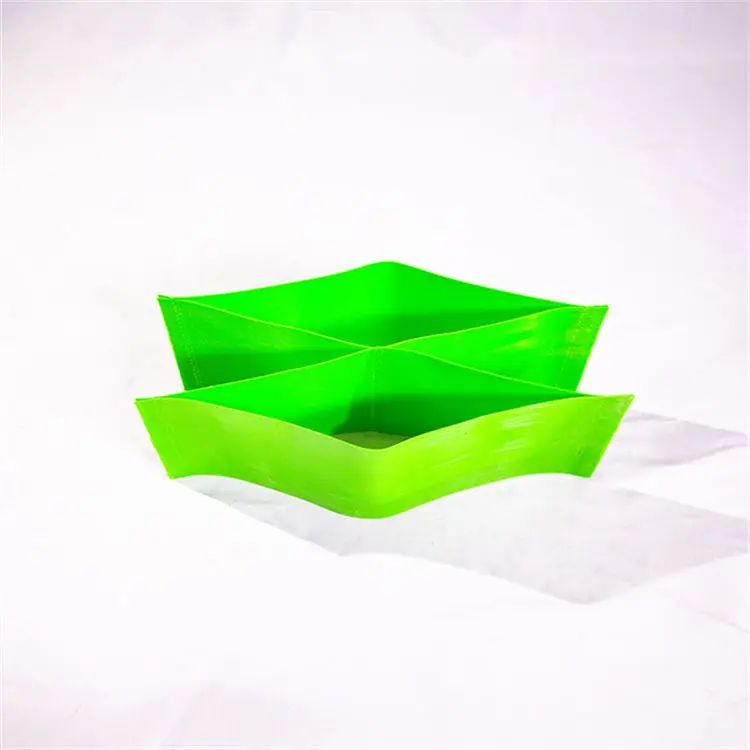

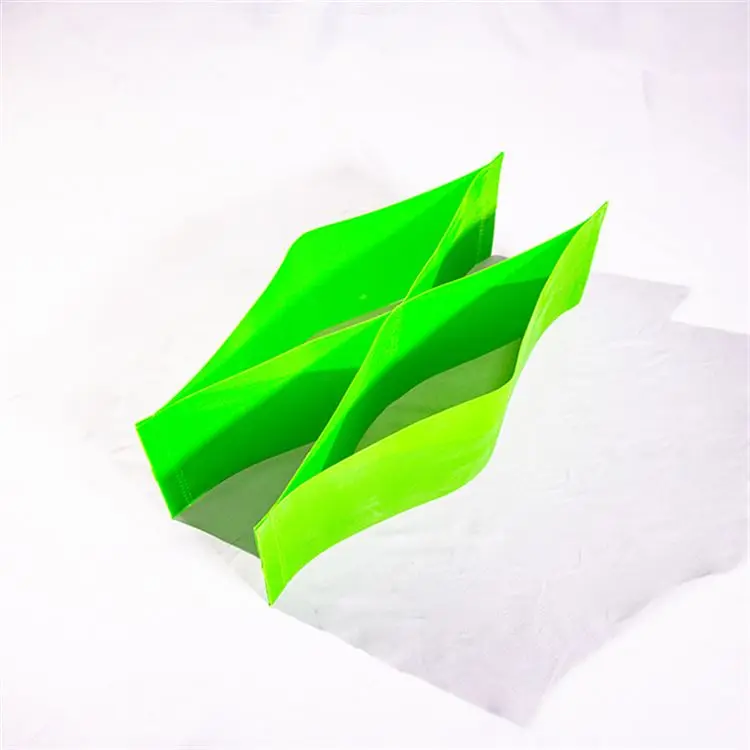

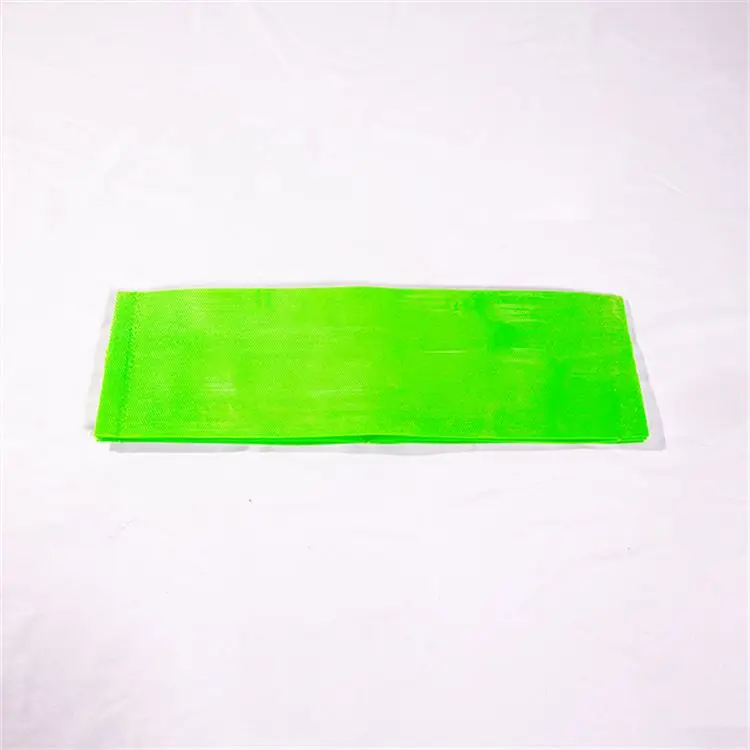

HDPE Geocell Introduction
HDPE Geocell is a wide polymer band produced by advanced polymer technology. It is a honeycomb like three-dimensional mesh formed by ultrasonic welding, with soil and vegetation. The organic combination of sand, stone or concrete and other materials constitutes a structure with strong lateral restrictions and stiffness. It is the most advanced, mature, economic and ecological solution to solve the problem of soil stability and reinforcement.
The fourth revolutionary material
-- New economic, ecological and economic geotechnical technology and materials based on honeycomb bonding technology solving the problem of soil stability and strengthening, and the fourth revolutionary material after wood, steel and concrete.
The fourth revolutionary material
-- New economic, ecological and economic geotechnical technology and materials based on honeycomb bonding technology solving the problem of soil stability and strengthening, and the fourth revolutionary material after wood, steel and concrete.
Construction method
1. Pull out the stacked honeycomb worker cell (some fibrous materials, such as geotextile, can be laid under the cell according to the specific conditions of the foundation).
2. Fix with nails or connect with the stretcher frame.
3. Use the loader to fill the filler until the cell is filled and exceeded, and then carry out vibration or rolling to complete the base course.
4. The cell system can support various construction equipment, which can be directly used for construction, and the surface course can be completed in a conventional way.
2. Fix with nails or connect with the stretcher frame.
3. Use the loader to fill the filler until the cell is filled and exceeded, and then carry out vibration or rolling to complete the base course.
4. The cell system can support various construction equipment, which can be directly used for construction, and the surface course can be completed in a conventional way.
Application
Base Stabilization
GeoCell is a confinement system that performs better than conventional crushed stone sections, and it provides an expedient construction technique for access roads over soft ground without being adversely affected by wet weather conditions. GeoCell can also be used to strengthen paved areas.
Slope Reinforcement
On slope applications, GeoCell can be filled with angular rock, concrete or with vegetated soil. The cells confine the infill material, creating a stable layer protecting the slope from erosion. GeoCell is a flexible system that will contour to the
subgrade of a slope, reducing preparation time. When filled with vegetated soil or rock, the system is permeable - reducing water runoff.
Channel Protection
GeoCell can be installed on slopes as steep as 60 degrees and on channels with flow velocities greater than 25 ft/s (7.6 m/s),depending on infill material. Angular rock is used for velocities up to 10 ft/s (3 m/s), vegetated soil up to 20 ft/s (6 m/s) and
concrete for velocities greater than 20 ft/s (6 m/s).
Retaining Walls
GeoCell can be used for both cut and fill applications on retaining walls. The flexible HDPE panels are custom made to the front to back dimensions required by the project engineer. GeoCell can be easily installed around curves, pipes or other structures. The panels are constructed with the front facing strip colored green or tan to blend in with the surroundings. GeoCell panels can be stacked to create a 90 degree wall, or they can be stair stepped at every layer to create exposed cell for vegetation. GeoCell is the perfect green wall solution.
GeoCell is a confinement system that performs better than conventional crushed stone sections, and it provides an expedient construction technique for access roads over soft ground without being adversely affected by wet weather conditions. GeoCell can also be used to strengthen paved areas.
Slope Reinforcement
On slope applications, GeoCell can be filled with angular rock, concrete or with vegetated soil. The cells confine the infill material, creating a stable layer protecting the slope from erosion. GeoCell is a flexible system that will contour to the
subgrade of a slope, reducing preparation time. When filled with vegetated soil or rock, the system is permeable - reducing water runoff.
Channel Protection
GeoCell can be installed on slopes as steep as 60 degrees and on channels with flow velocities greater than 25 ft/s (7.6 m/s),depending on infill material. Angular rock is used for velocities up to 10 ft/s (3 m/s), vegetated soil up to 20 ft/s (6 m/s) and
concrete for velocities greater than 20 ft/s (6 m/s).
Retaining Walls
GeoCell can be used for both cut and fill applications on retaining walls. The flexible HDPE panels are custom made to the front to back dimensions required by the project engineer. GeoCell can be easily installed around curves, pipes or other structures. The panels are constructed with the front facing strip colored green or tan to blend in with the surroundings. GeoCell panels can be stacked to create a 90 degree wall, or they can be stair stepped at every layer to create exposed cell for vegetation. GeoCell is the perfect green wall solution.
Product Parameters
Item | Property | Units | Value | |
Material | Polymer Density | g/cm3 | 0.94 | |
Carbon Black Content | % | 2.0 | ||
Oxidative Induction Time | Min | 20 | ||
Low Temperature Brittleness | ℃ | ≤-50 | ||
Vicat softening temperature | ℃ | ≧112 | ||
Environment Stress Crack Resistance F50 | hours | ≧800 | ||
Strip Properties | Sheet Thickness | mm | 1.1/1.2/1.5 | |
Sheet Tensile Strength | Mpa | ≧20 | ||
Sheet Surface | / | Smooth/Textured Perforated/ Not perforated | ||
Color | / | Black/Yellow/Green | ||
Cell Depth | mm | 50/75/100/150/200/250 | ||
Seam Properties | Seam Peel Strength | N/10cm | ≧1000 |
Main products
Company Profile
Certifications
Packing&Shipping
FAQ
1.What is your packaging?
Strips packaging or Pallet Packaging
Strips packaging or Pallet Packaging
2.How long is the lead time?
10-15 days after receiving the deposit payment.
10-15 days after receiving the deposit payment.
3.What is your producing capacity?
100000m2 per week.
100000m2 per week.
4.What is the payment?
TT 30% as the deposite and the balance before shipment or L/C.
TT 30% as the deposite and the balance before shipment or L/C.
