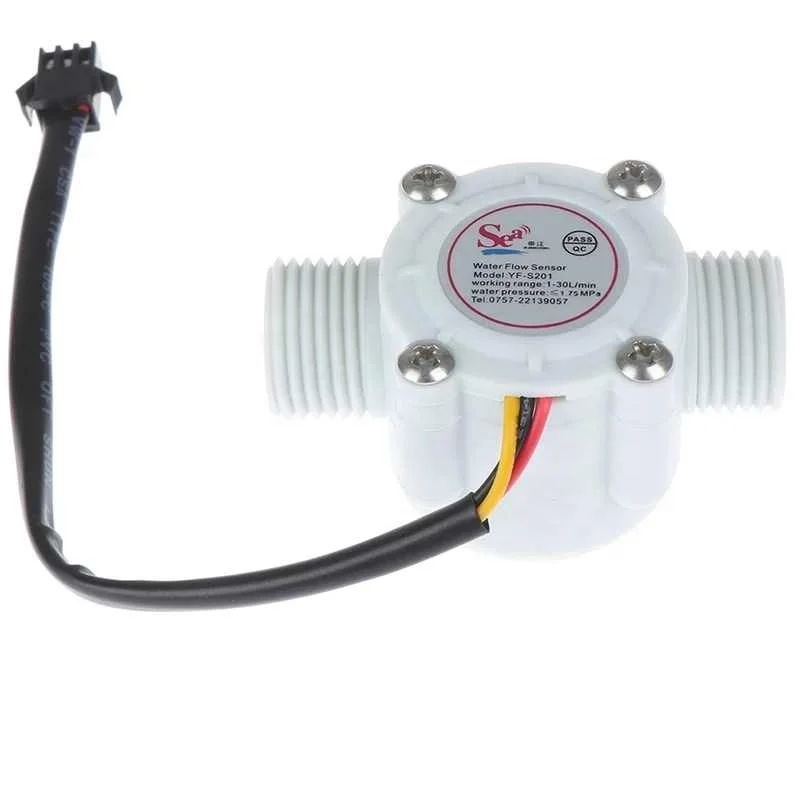

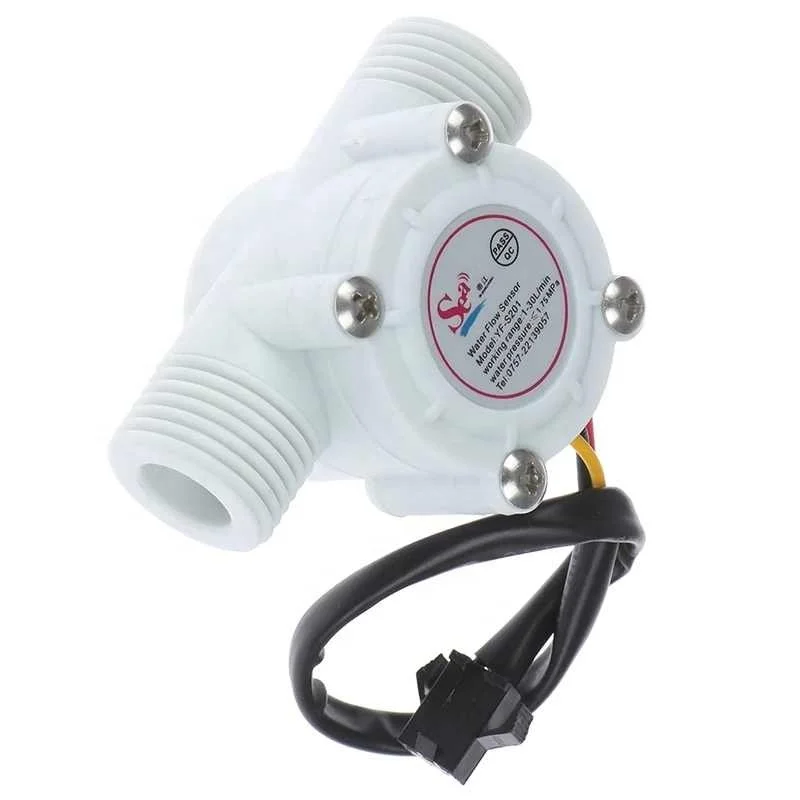

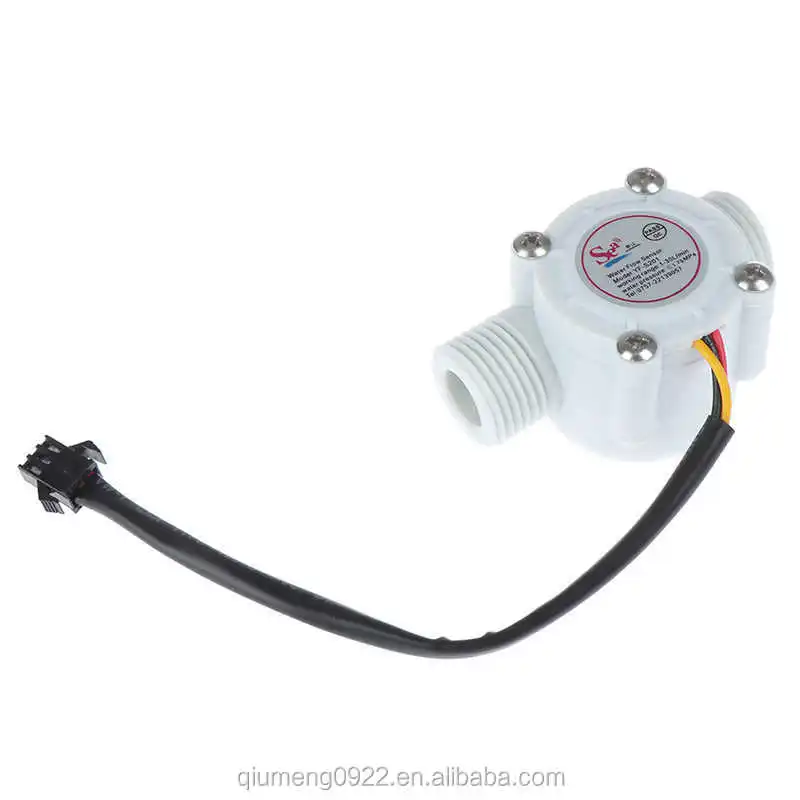

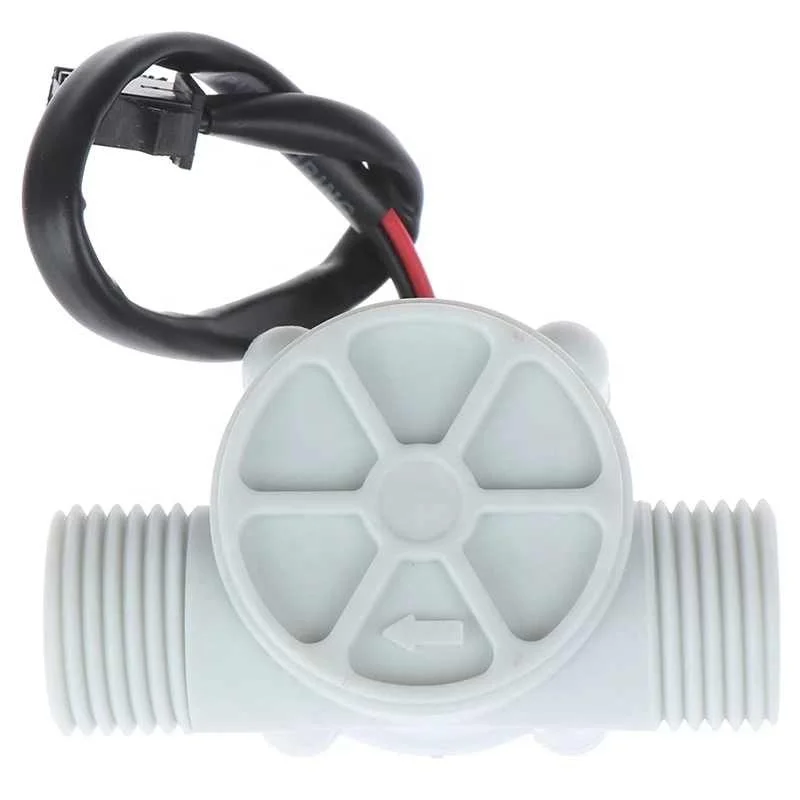

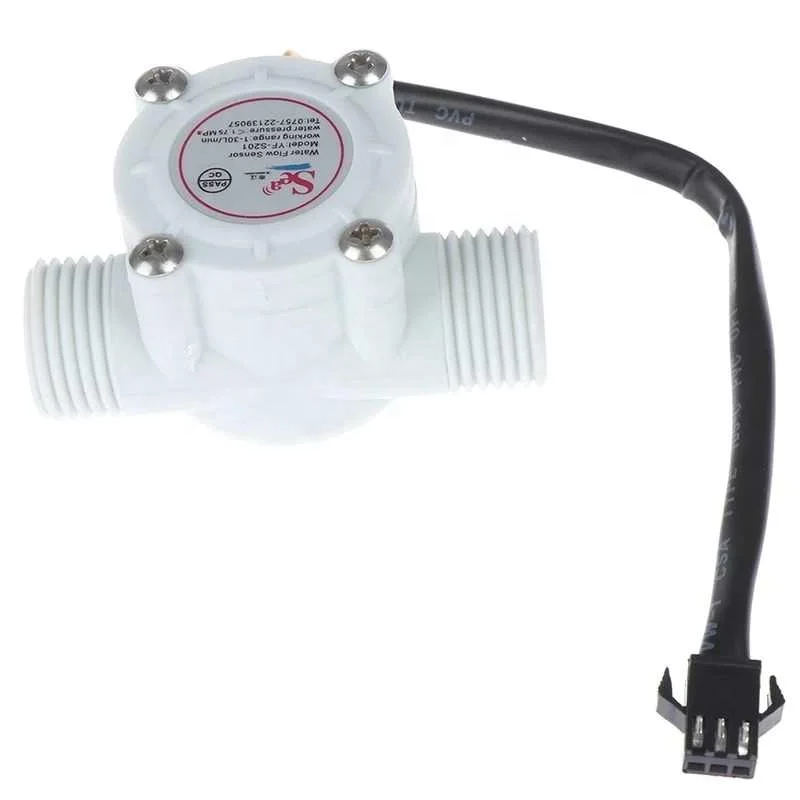

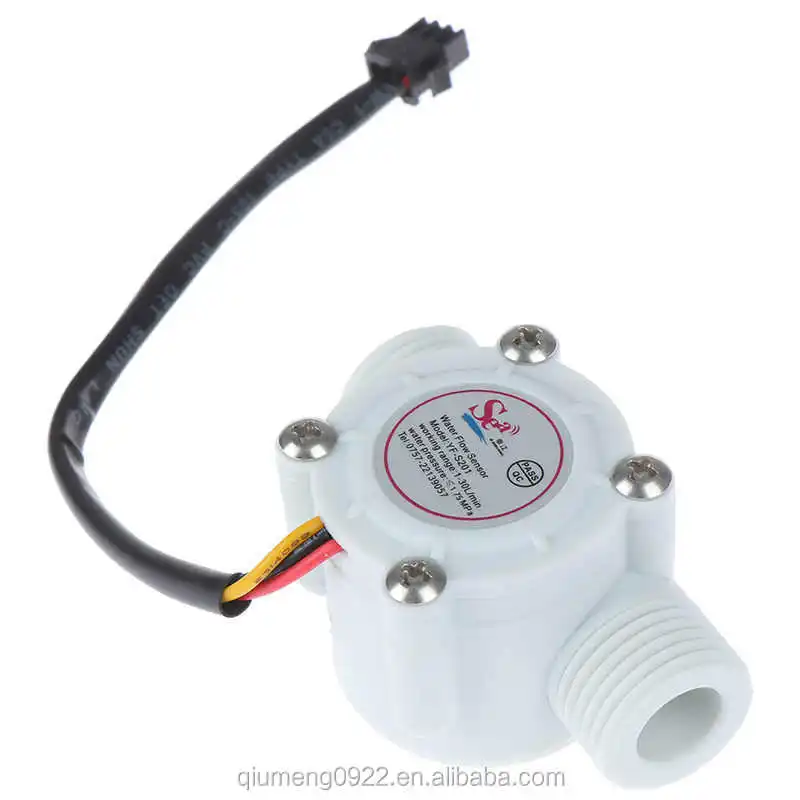

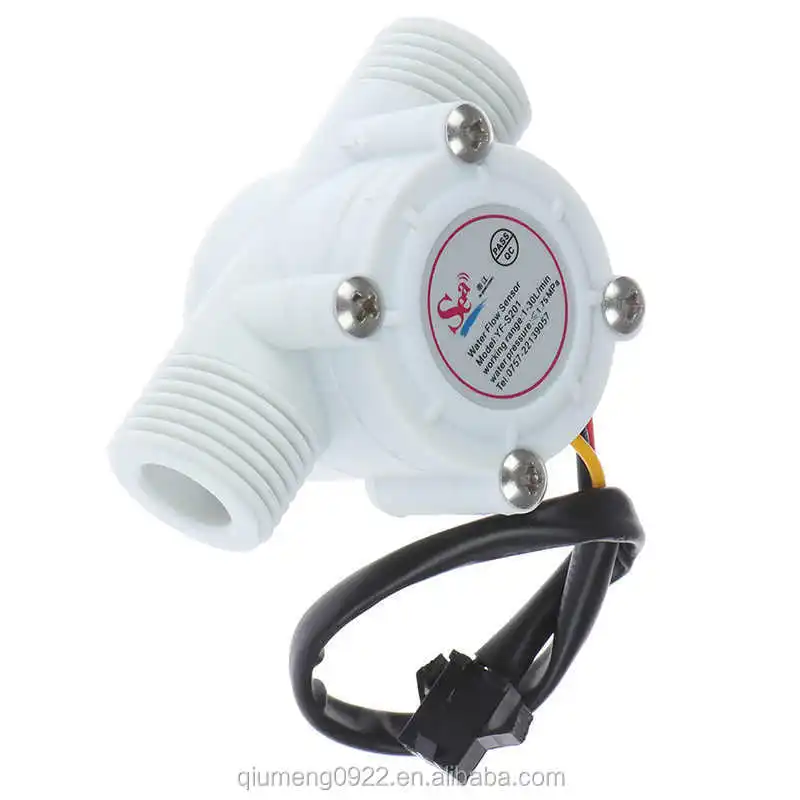

Hall 1 30L/min For Arduino 1/2' Water Flow Sensor Switch Meter Flowmeter Counter Sensor Control Effect Flowmeter
- Category: >>>
- Supplier: Yiwu Hengli Network Technology Co. Ltd.
Share on (1600713735100):
Product Overview
Description
Meter Flowmeter Counter Sensor Control Effect Flowmeter Hall 1-30L/min For Arduino 1/2'' Water Flow Sensor Switch
Features:
Mainly used for water testing, water cooling system
Application: Water heaters, credit card machines, water vending machine, flow measurement device
High amplitude: ≥ 4.6V
Low amplitude: ≤ 0.5V
Electric strength: 1250V/min
Insulation resistance: ≥ 100MΩ
Hydrostatic pressure testing: ≤ 2.0Mpa
Specification:
The lowest rated working voltage: DC4.5 5V-24V
Maximum operating current: 15mA (DC 5V)
Working voltage range: DC 5~18V
Load capacity: ≤ 10mA (DC 5V)
Use temperature: ≤ 80°C
Operating humidity range: 35%~90%RH (no frost)
Allowing pressure: pressure 2.0Mpa
Temperature: -25 ~ +80 °C
External threads: 1/2"
Outer diameter: 20mm
Intake diameter: 9mm
Outlet diameter: 12mm
Lead-out mode:
1. Red Line IN Connects Positive Pole
2. Yellow line OUT signal output line
3. Black line GND cathode
Package included: 1pc x Water Flow Sensor
Note: Please allow 1-5mm difference due to manual measurement.
Mainly used for water testing, water cooling system
Application: Water heaters, credit card machines, water vending machine, flow measurement device
High amplitude: ≥ 4.6V
Low amplitude: ≤ 0.5V
Electric strength: 1250V/min
Insulation resistance: ≥ 100MΩ
Hydrostatic pressure testing: ≤ 2.0Mpa
Specification:
The lowest rated working voltage: DC4.5 5V-24V
Maximum operating current: 15mA (DC 5V)
Working voltage range: DC 5~18V
Load capacity: ≤ 10mA (DC 5V)
Use temperature: ≤ 80°C
Operating humidity range: 35%~90%RH (no frost)
Allowing pressure: pressure 2.0Mpa
Temperature: -25 ~ +80 °C
External threads: 1/2"
Outer diameter: 20mm
Intake diameter: 9mm
Outlet diameter: 12mm
Lead-out mode:
1. Red Line IN Connects Positive Pole
2. Yellow line OUT signal output line
3. Black line GND cathode
Package included: 1pc x Water Flow Sensor
Note: Please allow 1-5mm difference due to manual measurement.
