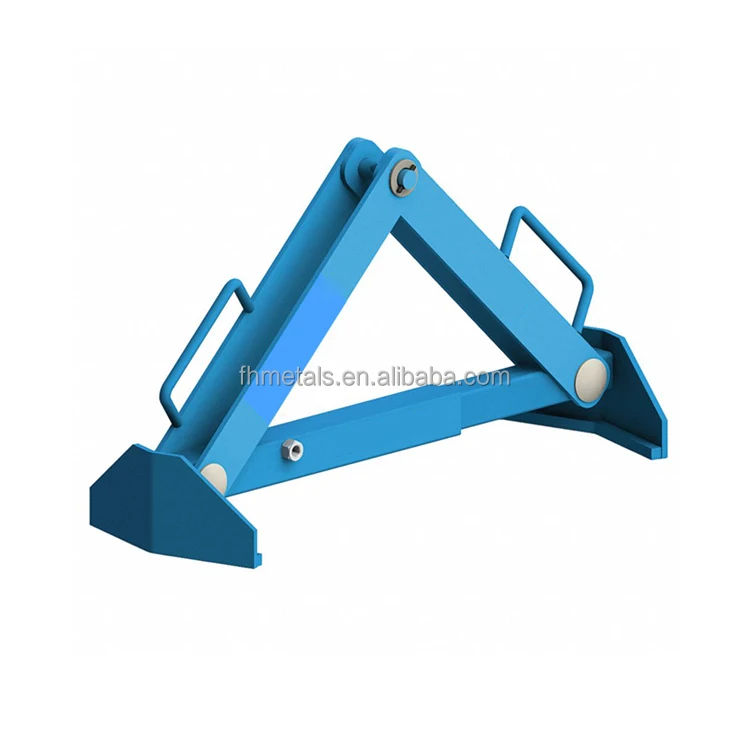

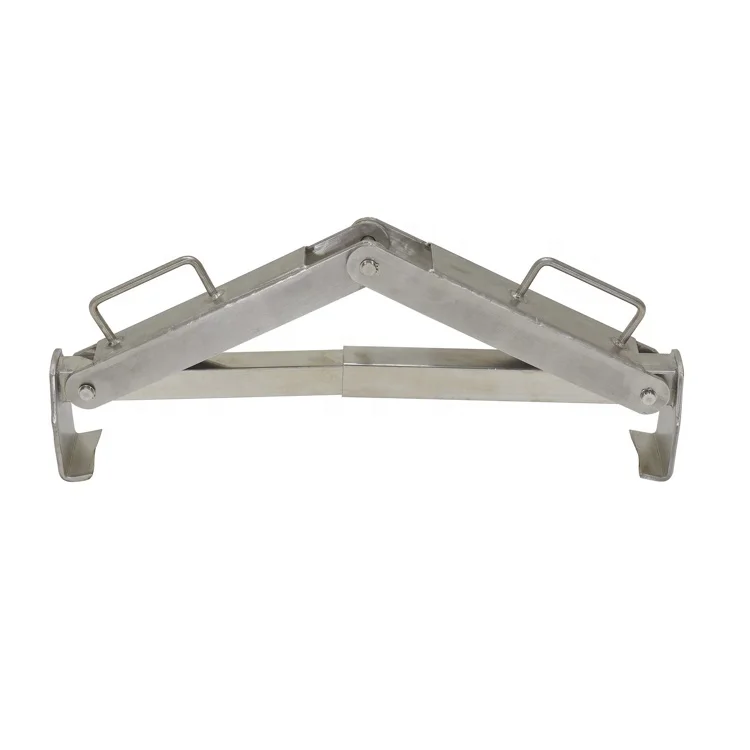

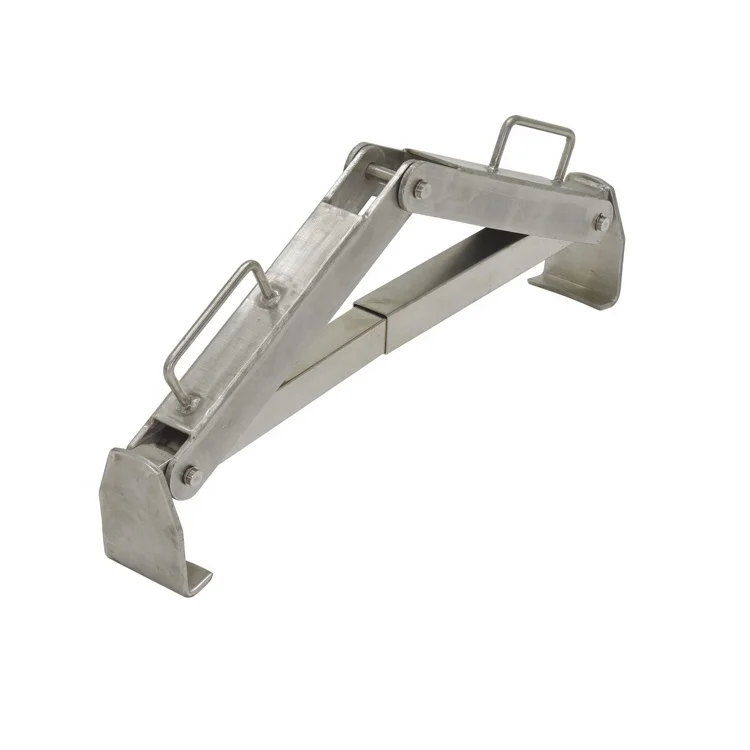

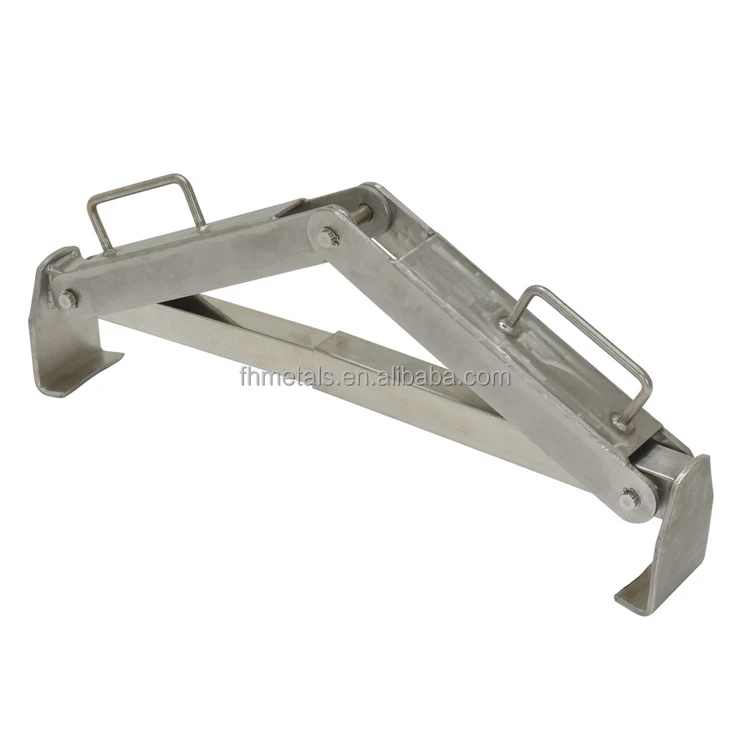

1000 Lbs Drum Lifter for 55 Gallon Steel and Plastic Drums Below Hook Drum Lifter
- Category: >>>
- Supplier: Qingdao Fenghai Metal Products Co. Ltd.
Share on (1600713739552):
Product Overview
Description
Product Description
1000 Lbs Drum Lifter for 55 Gallon Steel and Plastic Drums Below Hook Drum Lifter
Self adjusting tong-like action automatically grips various common types of closed drums. Slim-profile grippers allow you to lower a drum into an overpack or salvage drum. Place 30’s into 55’s, or 55’s into 85’s. Handle steel drum, a rimmed plastic drum, or a lever-lock fiber drum. Drum lid MUST be on and properly secured. NOTE: Rim must be within 1” of the top of drum to be lifted.
Feature
- Suitable for both steel and plastic 210 litre drums
- Works on almost any drum that has a rim to grab onto
- Ideal for picking up a drum in the middle of a cluster without having to move any that are in front
- Capacity: 1000lbs
- Overall Dimensions: 30.5"x10.25"x8.91" (LxWxD)
- Unit Weight: 16kg
- Works on almost any drum that has a rim to grab onto
- Ideal for picking up a drum in the middle of a cluster without having to move any that are in front
- Capacity: 1000lbs
- Overall Dimensions: 30.5"x10.25"x8.91" (LxWxD)
- Unit Weight: 16kg
Detailed Images
Size Information
Size Chart of This Design
Model | Material | Loading Capacity | Drum Available | Drum Diameter | Surface Treatment |
DL01 | Q235 Steel | 1100lbs | 55 Gallon | 572mm | Powder Coated |
DL02 | Q235 Steel | 750lbs | 55 Gallon | 572mm | Powder Coated |
DL03 | Q235 Steel | 1000lbs | 55 Gallon | 572mm | Powder Coated |
DL04 | Q235 Steel | 1000lbs | 55 Gallon | 572mm | Powder Coated |
DL05 | Q235 Steel | 1100lbs | 30&55 Gallon | 398 - 569mm | Powder Coated |
DL06 | Q235 Steel | 1100lbs | 30&55 Gallon | 398 - 569mm | Powder Coated |
Manufacture Specification
1.Start with Drum Lifter on the floor resting on its gripping shoes.
2. Lower hoist hook to reach the lifting eye. Engage hoist hook to lifting eye.
3. Raise hoist to lift Drum Lifter off the floor.
4. Move hoist with Drum Lifter over the drum and lower it. Hoist should be guided so that Drum Lifter settles across the center of the drum top. Use link handles to slide gripping shoes to an
open position.

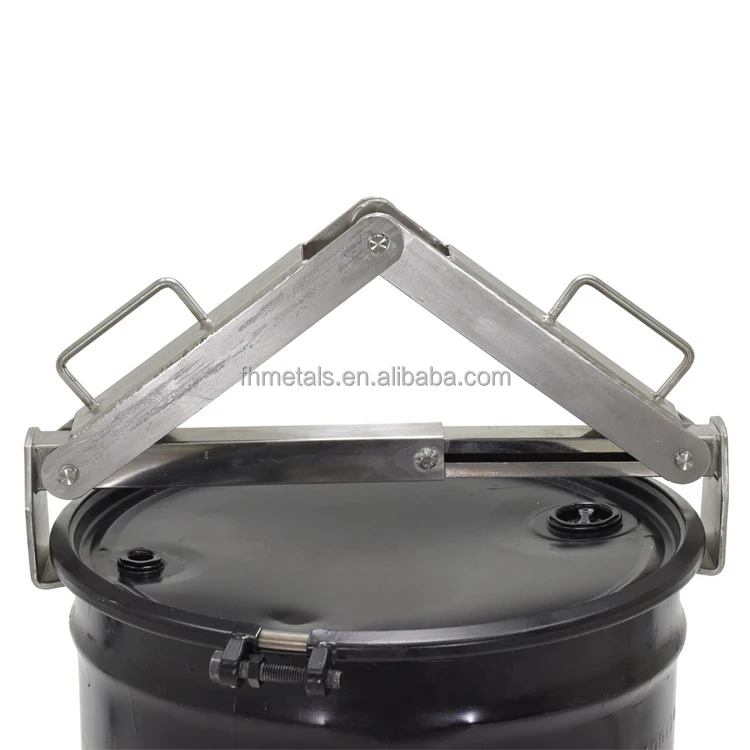

5. Place a gripping shoe below the drum rim. Slide other gripping shoe toward the drum until it engages below the drum rim.

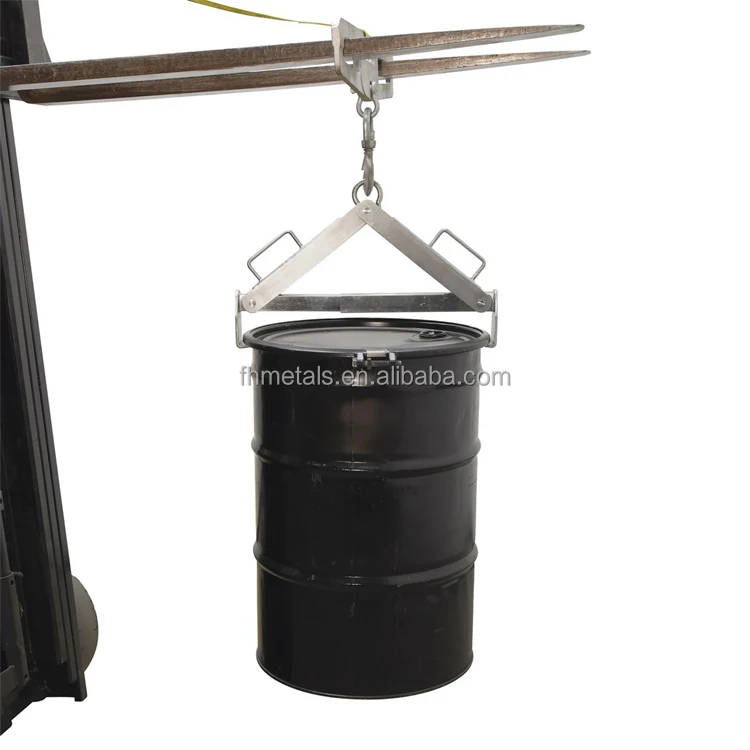

6. Raise hoist to lift the drum. You may move the drum as necessary by moving the hoist.
7. To place the drum, simply lower the hoist. Continue to lower hoist so that Drum Lifter may be removed. Slide gripping shoes to an open position.
8. Raise the hoist to lift the Drum Lifter clear of the drum.
2. Lower hoist hook to reach the lifting eye. Engage hoist hook to lifting eye.
3. Raise hoist to lift Drum Lifter off the floor.
4. Move hoist with Drum Lifter over the drum and lower it. Hoist should be guided so that Drum Lifter settles across the center of the drum top. Use link handles to slide gripping shoes to an
open position.
5. Place a gripping shoe below the drum rim. Slide other gripping shoe toward the drum until it engages below the drum rim.
6. Raise hoist to lift the drum. You may move the drum as necessary by moving the hoist.
7. To place the drum, simply lower the hoist. Continue to lower hoist so that Drum Lifter may be removed. Slide gripping shoes to an open position.
8. Raise the hoist to lift the Drum Lifter clear of the drum.
Best Selling
Recommending Styles
Company Introduction
Qingdao Fenghai Metal Products Co,.Ltd is established in May 4, 2009 and we are a professional large-scale manufacturer of different types of metal products, integrating development and production together.

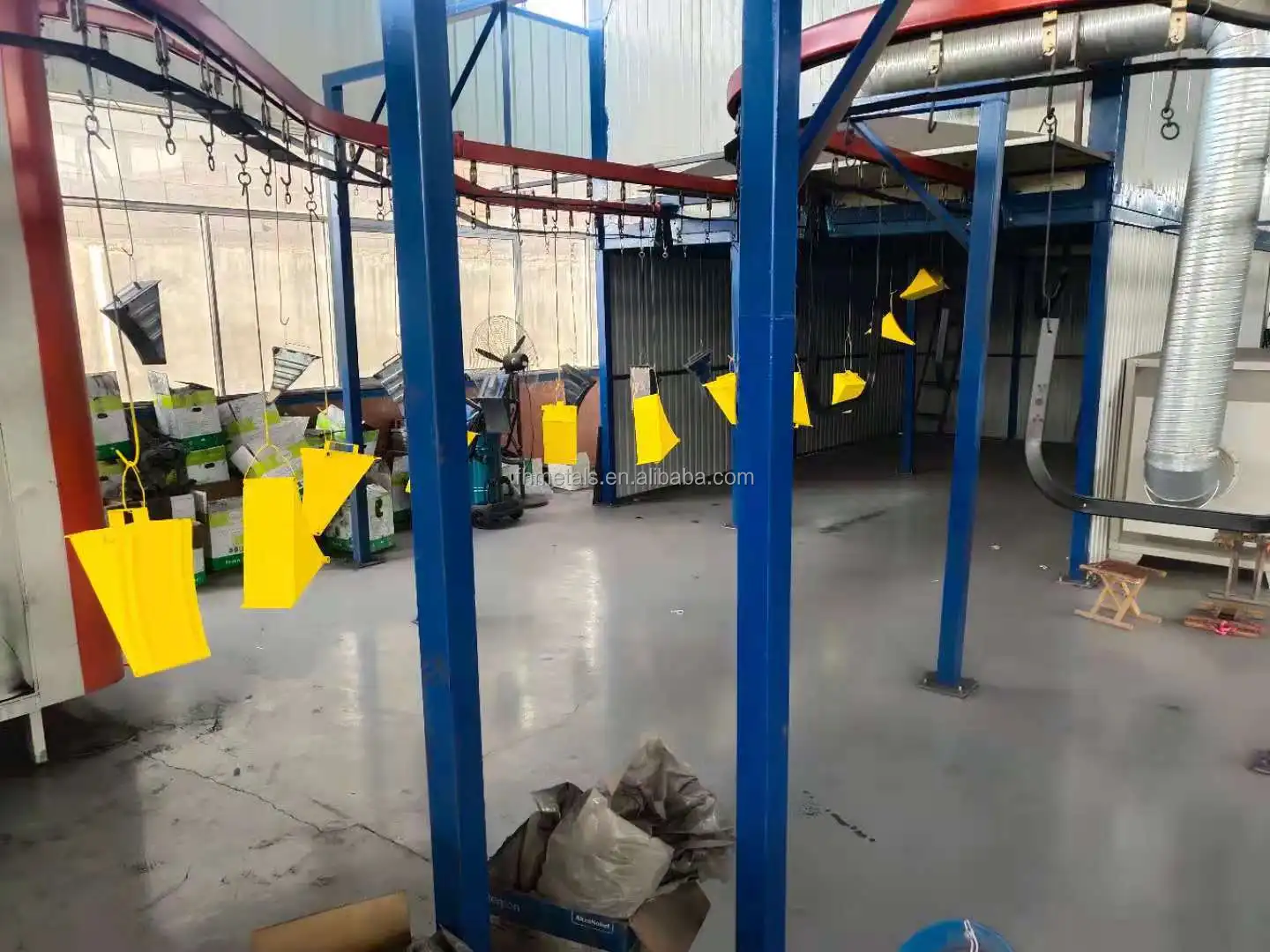

We have our own factory, located in Jimo District, Qingdao's back garden, which has more than 12 years experience in production; and it has the manufacturing base of raw materials. Our factory covers an area of 1800 square meters and has more than 20 employees. Among them, 3 senior technicians and 1 quality inspector have more than 10 years of research and development capabilities.
