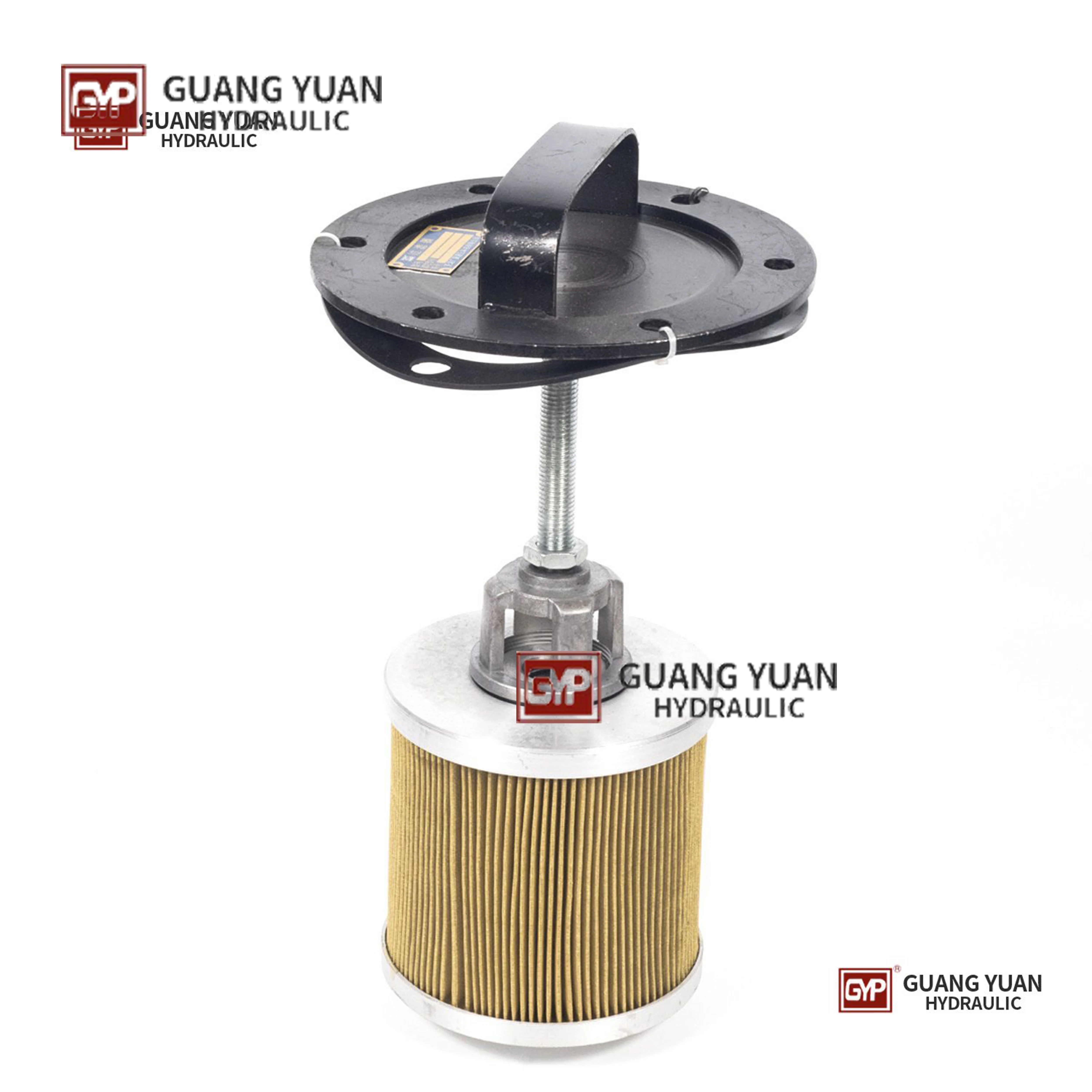

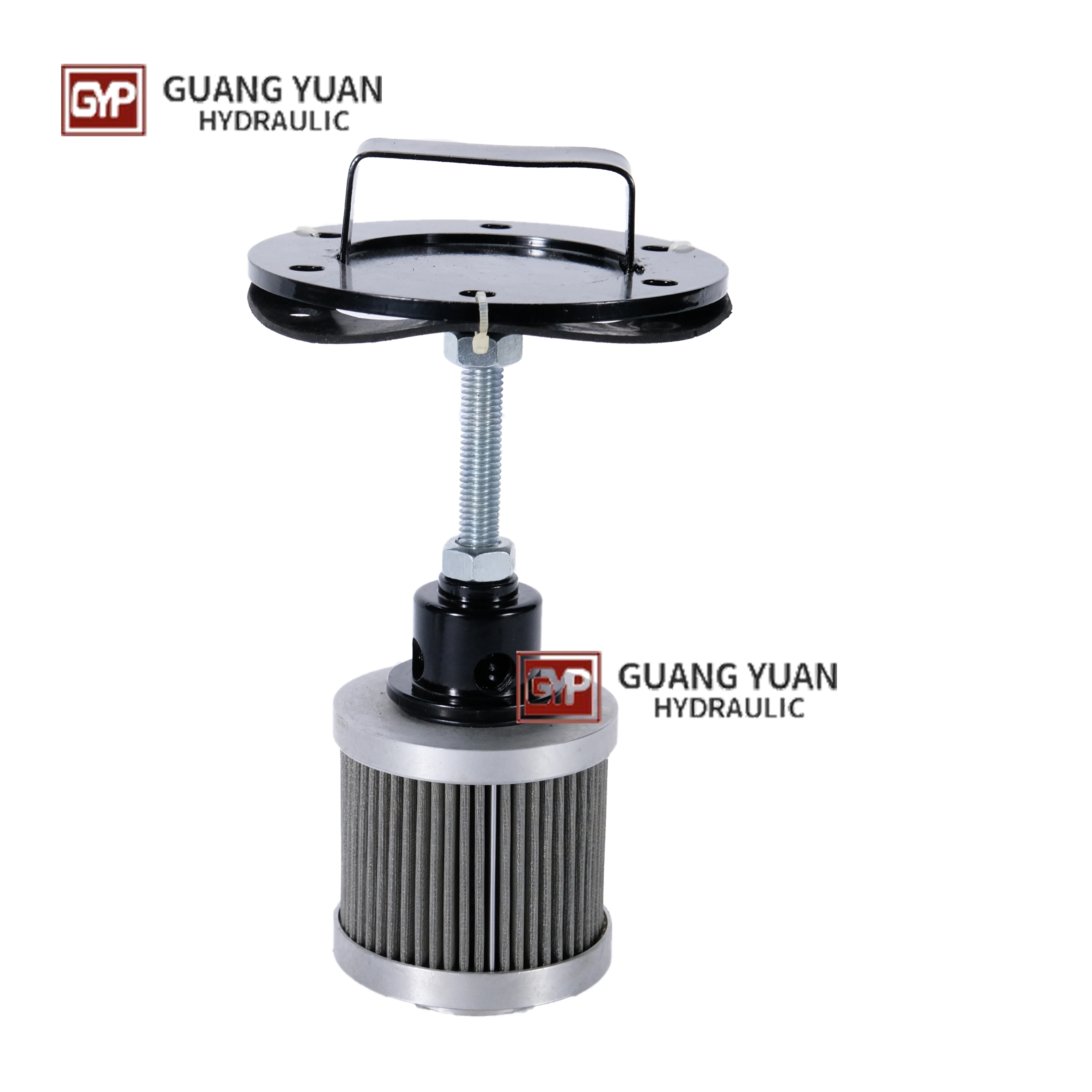

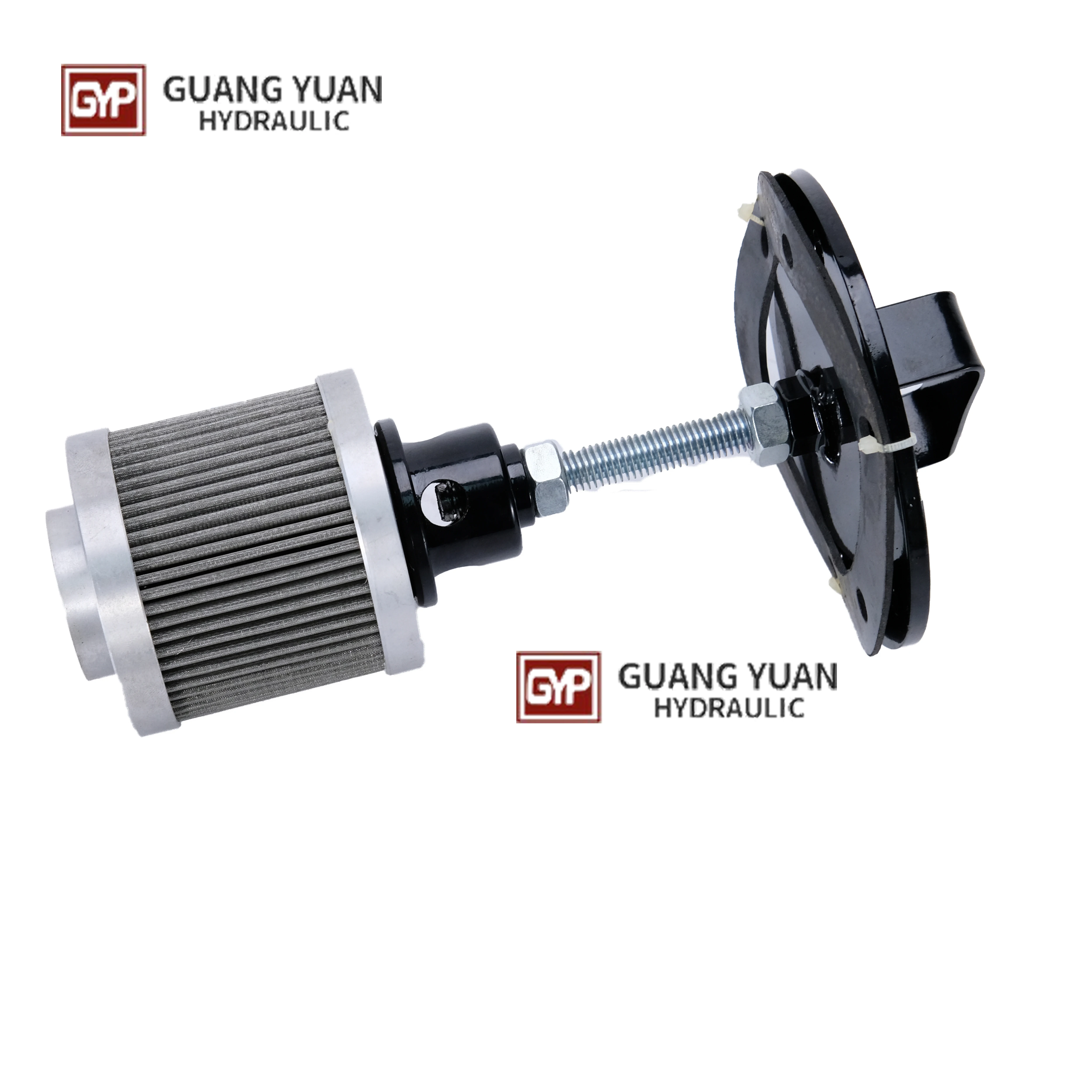

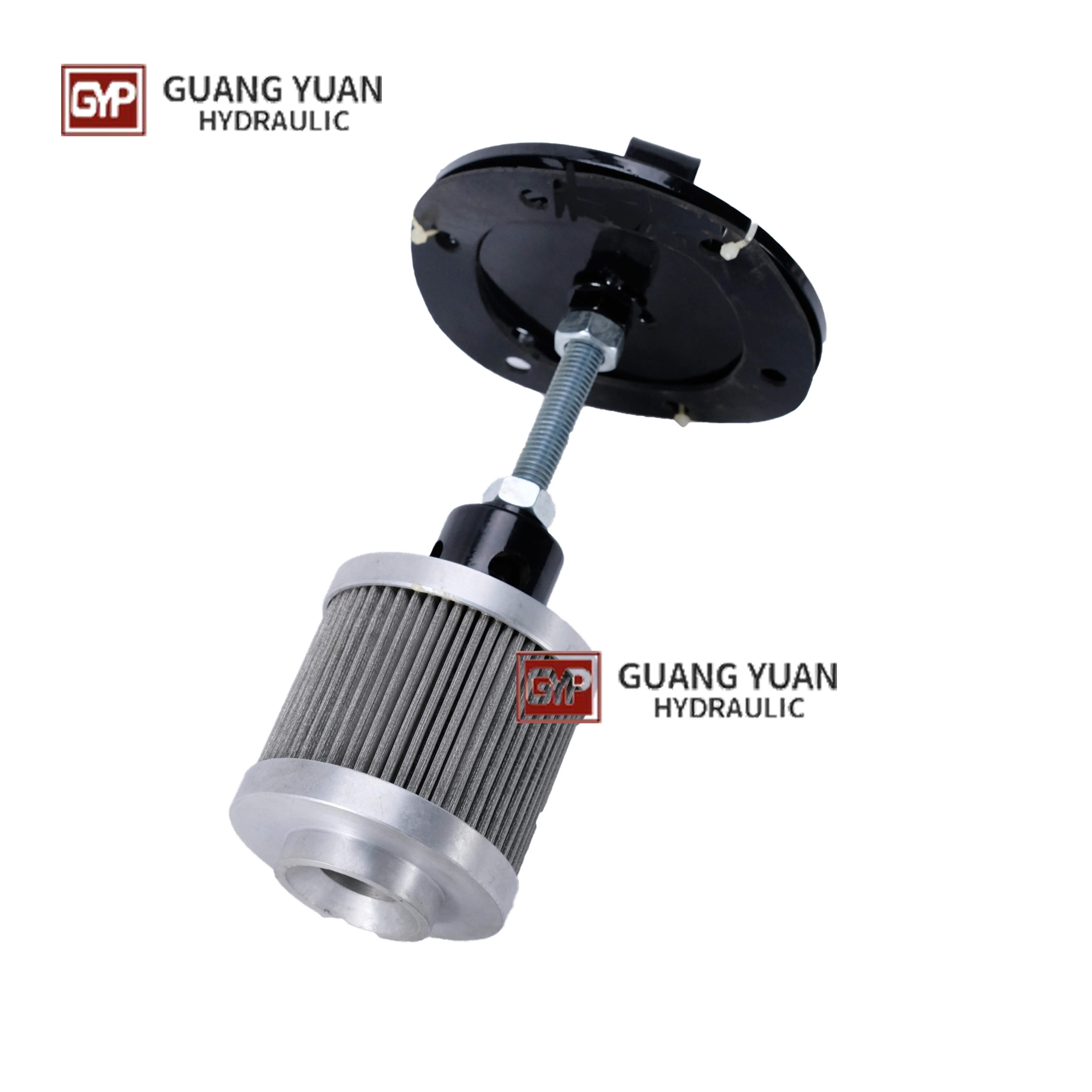

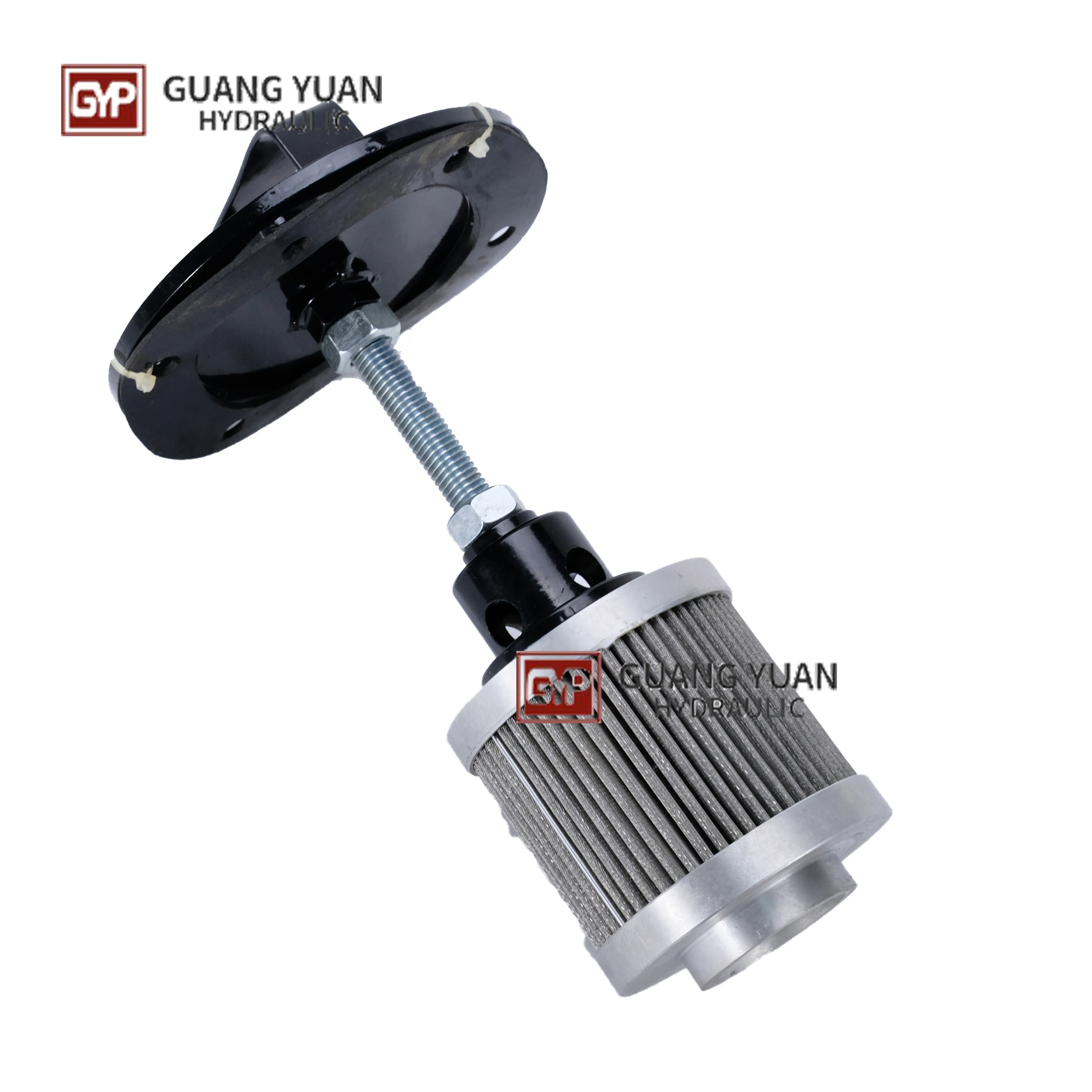

XNJ 25X80Y ,Tank suction filter with bypass
- Category: >>>
- Supplier: Wuhu Guangyuan Hydraulic Technology Co. Ltd.
Share on (1600713748306):
Product Overview
Description

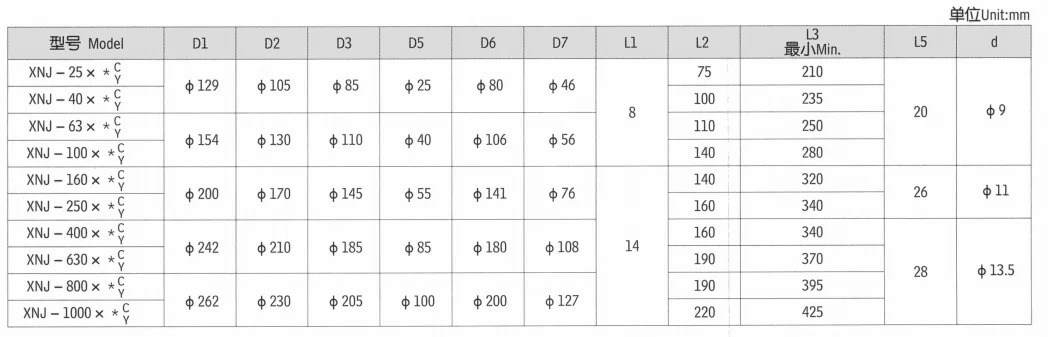

PRODUCT PARAMETERS | ||||||
Type of construcion | tank filter | Mounting method | threaded connection | |||
From outside to insideFlow direction | outside-in/inside-out | |||||
Operating pressure | 0.2Bar | Operating temperature | -10 °C ~ +100 °C | |||
Connection ports | threaded connection | Seal material | no Seal material | |||
Filtration media | mesh : 80,100,180μm | |||||
Opening pressure | 0.2 bar ±10% | Bypass setting | With bypass valve | |||
Indicator setting | 0.2bar±10% other setting on request | |||||
Filter housing | Aluminium | |||||
Fluid compatibility | Suitable for mineral oils , synthetic for use with water , please contact our company | |||||
New product!
Excellent performance!
Excellent performance!
Suction Filters and strainers protect pumps from contamination, while also providing additional flow diffusion in the suction line. They can be equipped with a magnetic column for retaining ferrous particles smaller than the pleated wire mesh, and with or without a bypass valve. Available versions:
- Suction Strainer , a simple filter element screwed onto the suction pipe.
- Tank wall-mounted suction filters incorporate an anti-drain shut-off valve to allow element changes without draining the tank.
Q:What products do you have?
We are a company specializing in the production of hydraulic accessories, we specialize in the production of hydraulic filters, liquid level and temperature gauges, and pipe clamps. Our company's products include but are not limited to: oil return filter, pressure filter, rotary filter, fuel tank filter, respirator, particulate moisture absorber, visual level gauge, electronically controlled level gauge, pipe clamps , the liquid level relay.
Our company's products can be used interchangeably with those of most international companies
Modern high-pressure hydraulic systems are demanding. For better control and longer component life, clean hydraulic fluid is required. To provide a high standard of performance, hydraulic components are manufactured to tighter tolerances, which increases their susceptibility to contamination. This is where the wide source filter comes into play. They filter out incoming contaminants before they clog the valve or scratch the cylinder. They stop pump debris before it enters the servo or proportional valve. Wide source filters are a key element in meeting the demands of today's systems. Leave your hydraulic system to Guangyuan Hydraulic Filter. We are committed to designing and manufacturing the best filters available.
