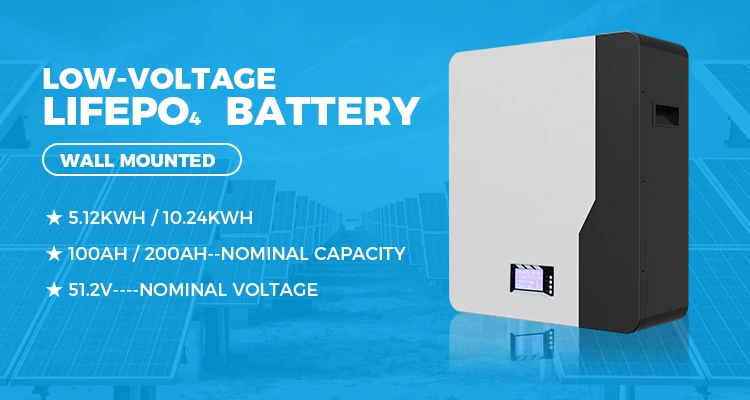

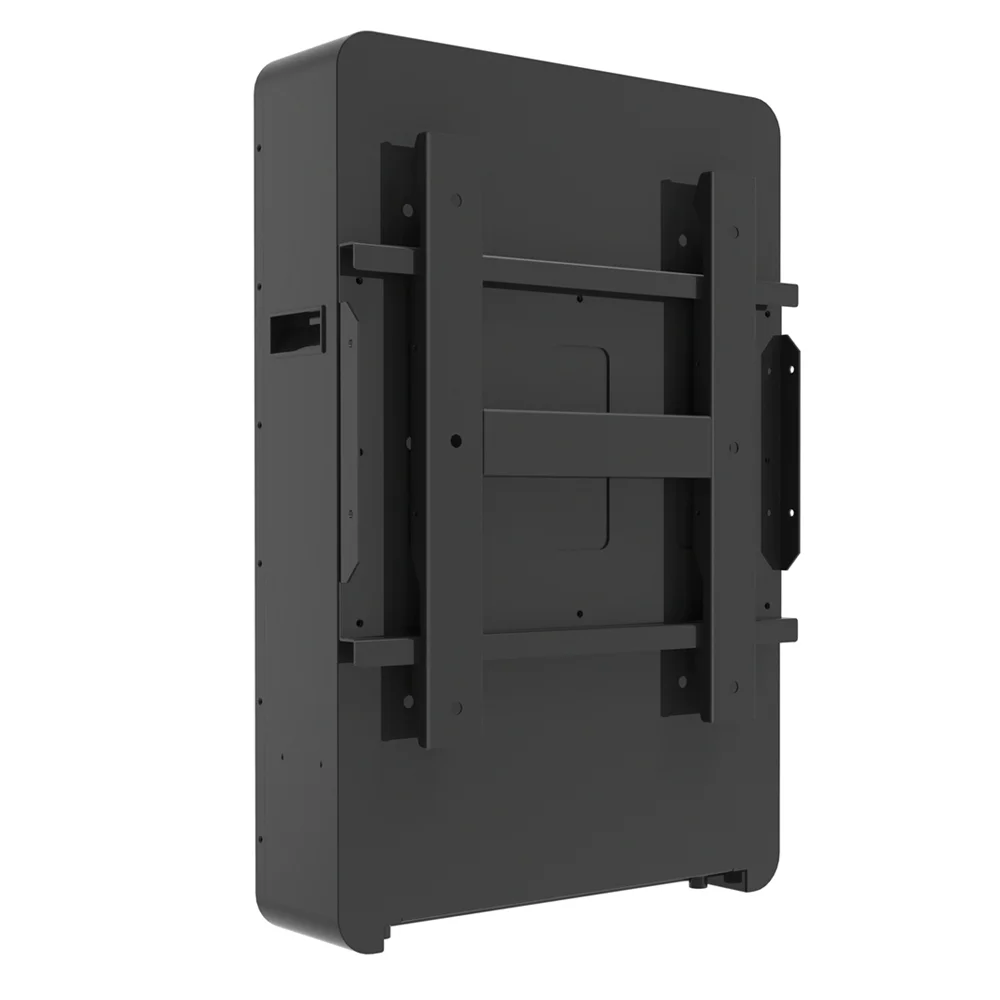

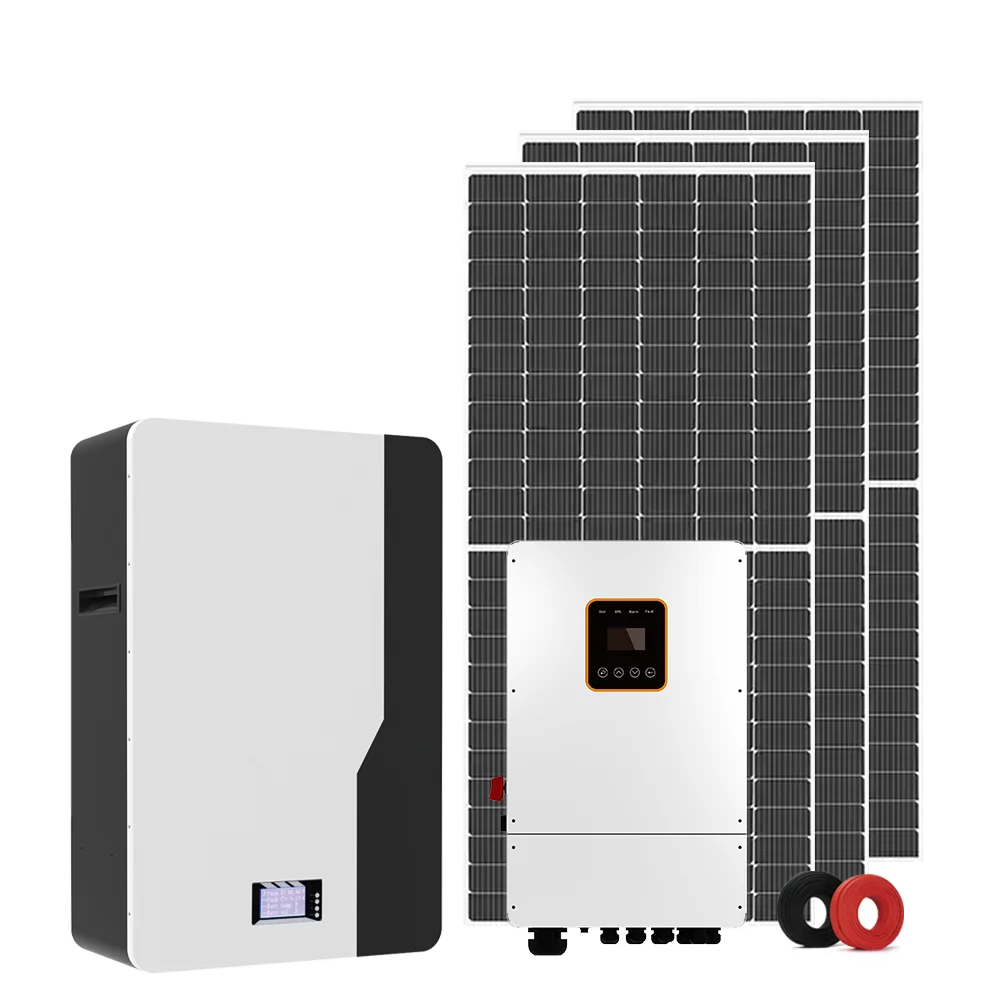

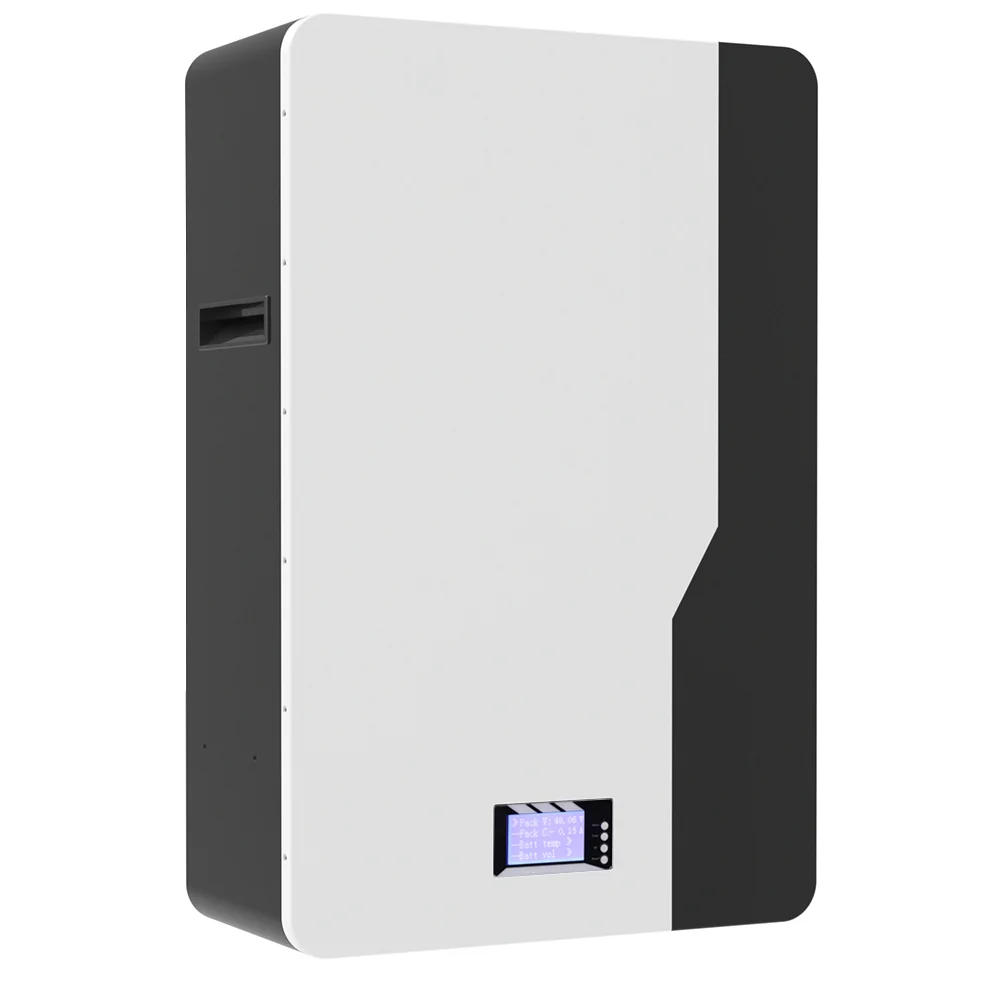

Power wall home LiFePO4 lithium battery 5Kwh 10Kwh solar charging battery pack 48V 51.2V 50Ah 100Ah 200Ah
- Category: >>>
- Supplier: Zhejiang Quinntek Co. Ltd.
Share on (1600713768460):
Product Overview
Description

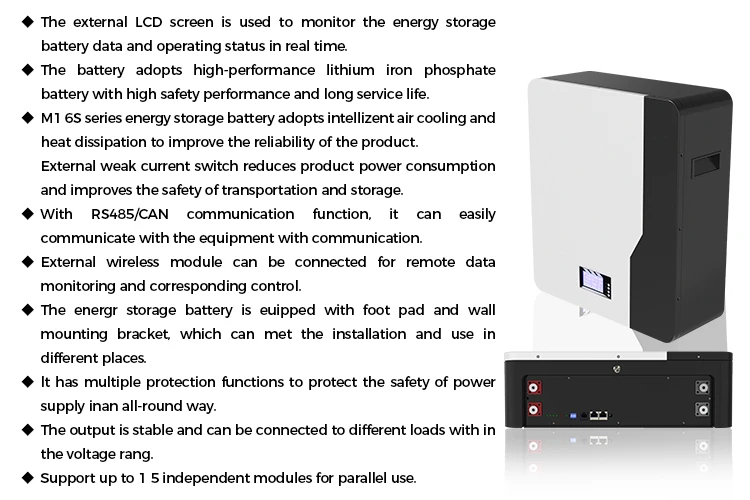

Products Description
Product Paramenters
Model | M16S100BL-V | M16S200BL-V | ||
Basic Characteristics | ||||
Nominal Voltage | 51.2V | |||
Nominal Capacity | 100Ah | 200Ah | ||
Effciency | ≥96% | |||
lnner Resistance | 10mΩ | 7mΩ | ||
Cell Type | LiFePO4 | |||
Charging Characteristics | ||||
Charge Voltage | 58.4V | |||
Standard Charging Current | 20A | 40A | ||
Max.Continuous Charging Current | 100A | |||
Discharge Characteristics | ||||
Standard Discharge Current | 20A | 40A | ||
Continuous Discharge Current | 100A | |||
Peak Discharge Current | 200A(3S) | |||
Discharge Cut-off Voltage | 42V | |||
Environmental Requirements | ||||
Charge Temperature Range | 0~60°C | |||
Discharge Temperature Range | -10°C~65°C | |||
Storage Temperature Range | -5~40°C | |||
Storaqe Humidity | 65±20％HR | |||
Mechanical Characteristics | ||||
Size(L×W×H) | 445×170×510mm | 445×206×675mm | ||
Package Size (L×W×H) | 575×520×335mm | 750×520×385mm | ||
Shell Material | SPCC | |||
Net Weight | 47kg | 85kg | ||
Gross Weight | 68kg | 110kg | ||
Package Method | 1pcs per carton | |||
Others Characteristics | ||||

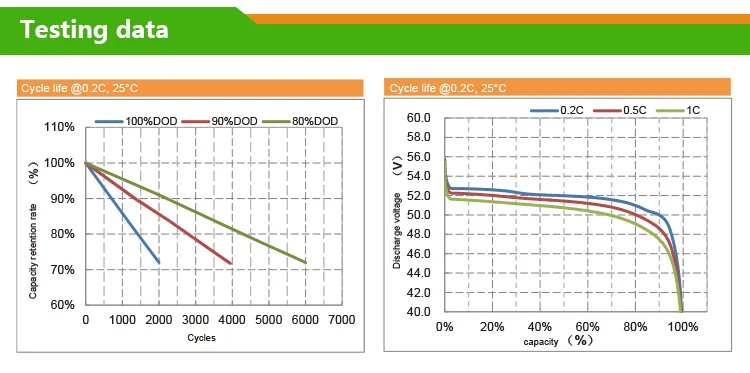

Cycle Life | ≥6000 times | |||
Self Discharge | 2% per month | |||
SOC Indication | LED Light& LCD Screen | |||
Communication Protocol | RS485/CAN | |||
Matching Inverter | Growatt, Goodwe, Deye, Luxpower, SRNE etc | |||

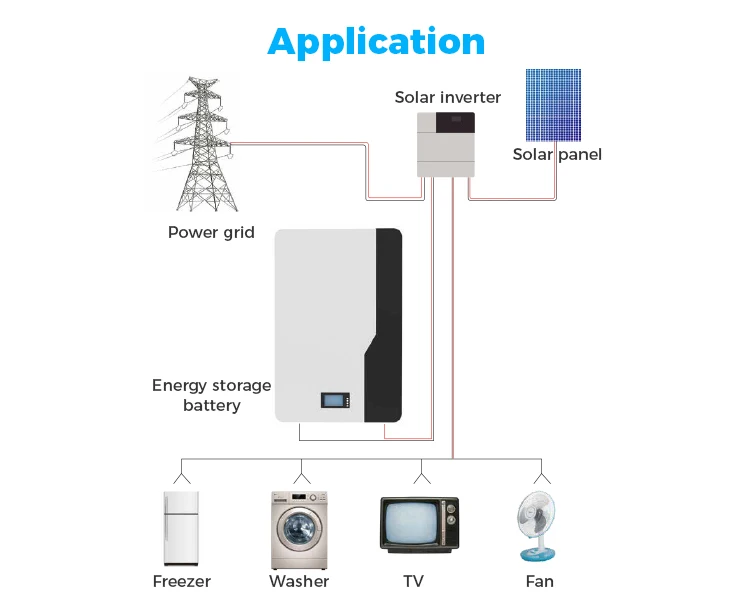

Application
Company Profile
Certifications
FAQ
Q1: Can I get one for sample?
A1:Yes, we accept sample order or trial order for testing first.
Q2: What's the price and MOQ?
A2:Please just send me inquiry, your inquiry will be replied within 24 hours, we will let you know the latest price and MOQ.
Q3:What's you delivery time?
A3:It depends on your quantity, but usually, 7 days for sample order, 30-45days for batch order
Q4: How about your payment and shipment?
A4:Payment: We accept T/T, Western Union,Paypal etc. terms of payment. Shipment: For sample order, we use DHL, TNT, FEDEX, EMS
etc.,for batch order, by sea or by air( through our forward)
Q5:How about your warranty?
A5:Normally,we provide1 year warranty,and whole life technical support.
Q6.Do you have you own factory?
A6:Yes,we are leading manufacturer mainly in off grid solar power inverter,solar charge controller and systems ect.for about 12
years.
