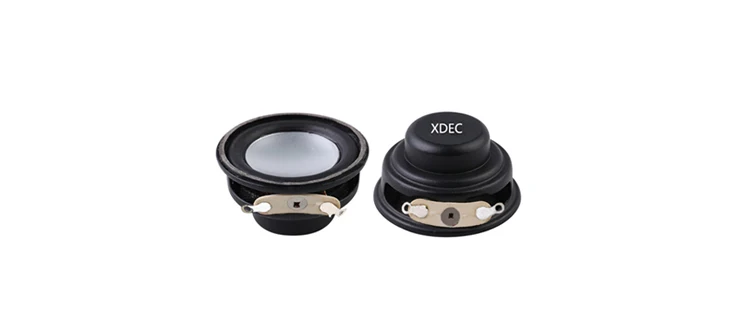

Trade assurance 27*15mm 4Ohm 2W subwoofer Multimedia Speaker Driver for smart audio home theatre MP3 player
- Category: >>>
- Supplier: Shenzhen Xuanda Electronics Co. Ltd.
Share on (1600713776956):
Product Overview
Description
Product Specification
NO. | Item | Specification | Condition | |
1 | Dimensions | 27*15H mm | ||
2 | Nomial Impedance | 4±15% OHM | At 1.0KHz / 0.63V | |
3 | Input power | Rated：2.0W/ Max：3.0W | At 2.83V /3.46V | |
4 | Resonance Frequency | 375±20%Hz | At 0.63V | |
5 | S．P．L． | 88±3 dB(0.1W/0.1M) | At0.8K/1.0K/1.2K/1.5KHz (Average) | |

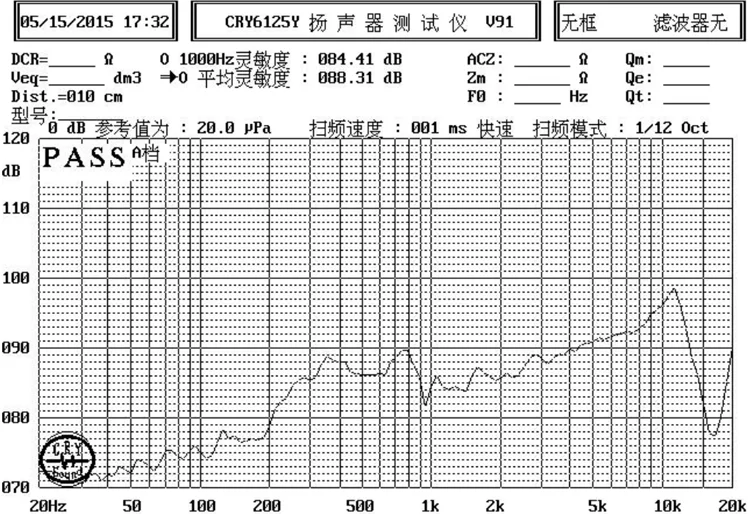

6 | Frepuency Range | F0~20K | Output S.P.L. -10dB | |
7 | Distortion | 5%Max | At 1.0KHz 0.1W/0.1M | |
8 | Buzze & Rattle | Not be audible sine wave between at 2.83V /150~3KHz | ||
9 | Polarity | Diaphragm shall move forward. | ||
10 | Load test | Must be normal after load test:white noise 24 hours. | ||
11 | High TEMP test | After having been in a test chamber for 48 hours at the condition of +60 ℃ 20~25% R.H and keep 2 hours. | ||
12 | Cold TEMP test | After having been in a test chamber for 48 hours at the condition of －25℃ ±3℃ and keep 2 hours. | ||
13 | Humidity test | After having been in a test chamber for 48 hours at the condition of +40 ℃ 90~95%R.H and keep 4 hours. | ||
14 | Drop test | The speaker shall be dropped 2 times, clause 8 shall be satisfied. | ||
15 | Weld | terminal weld: 350℃/≤3~5sec*2bit. | ||
16 | Store temp | －25℃ To +60℃ | ||
All the above parameters can be adjusted or customized according to customer requirements.

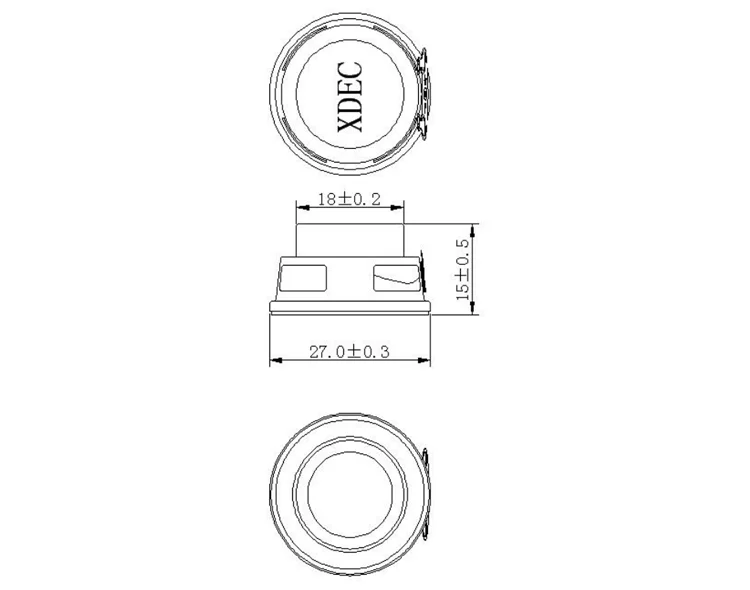

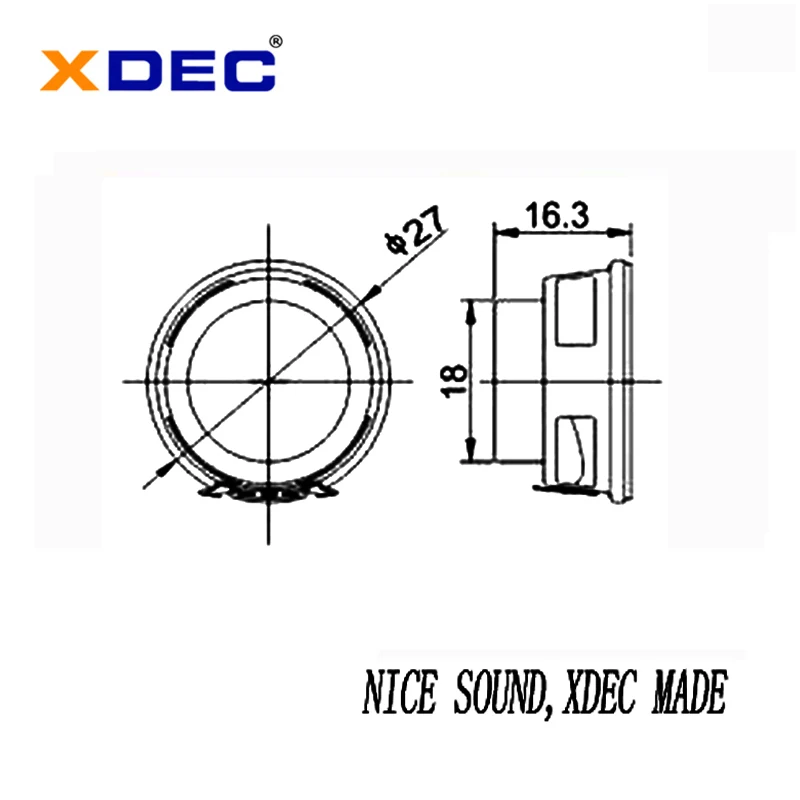

Product Anatomy
Product Application
Mini stereo,LED advertising machine，Smart projector，Early education machine，Headphone，Interphone，Cordless phone,Notebook,Portable DVD,TV,GPS Navigation,Building Security,Incar Multimedia System,Mini audio,etc
