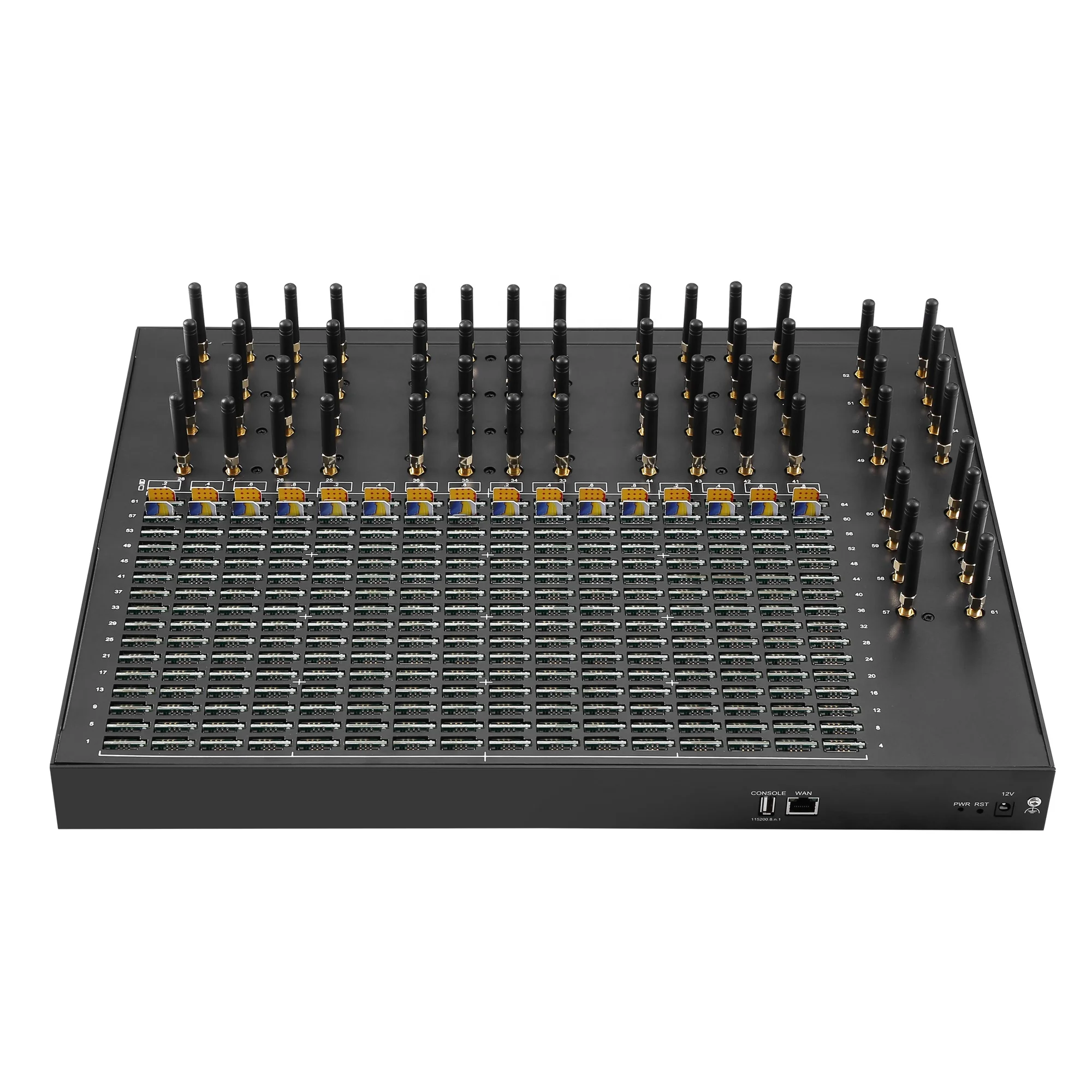

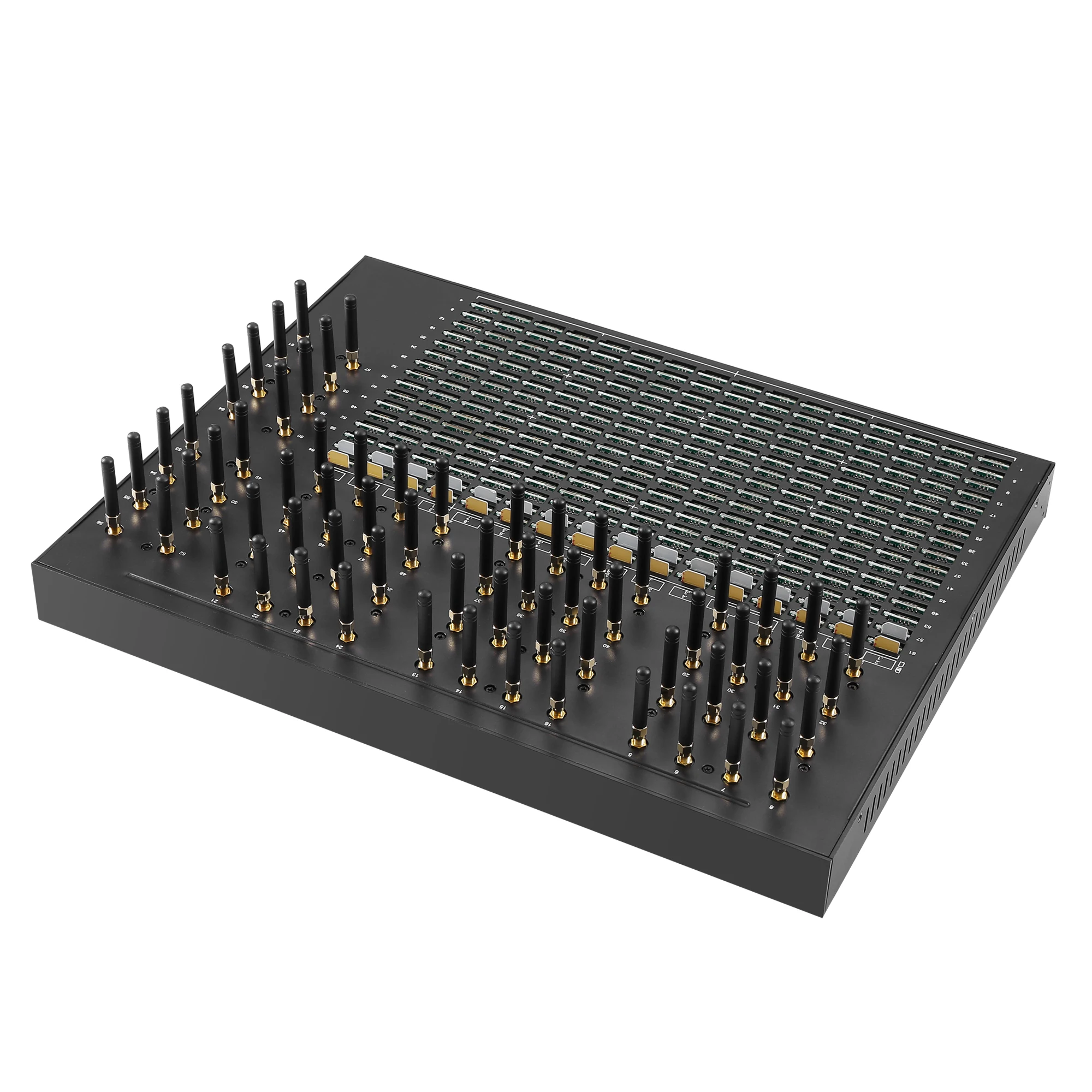

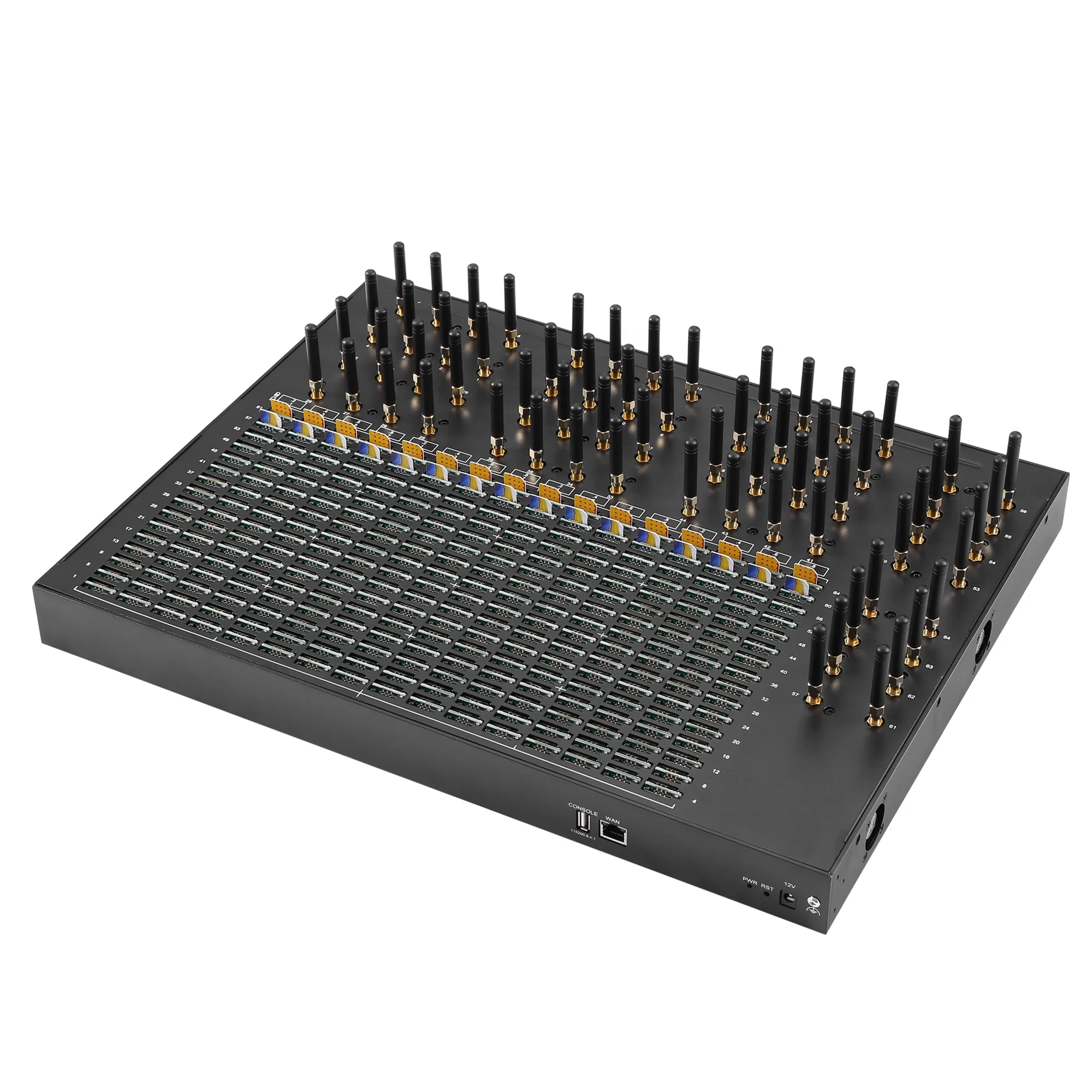

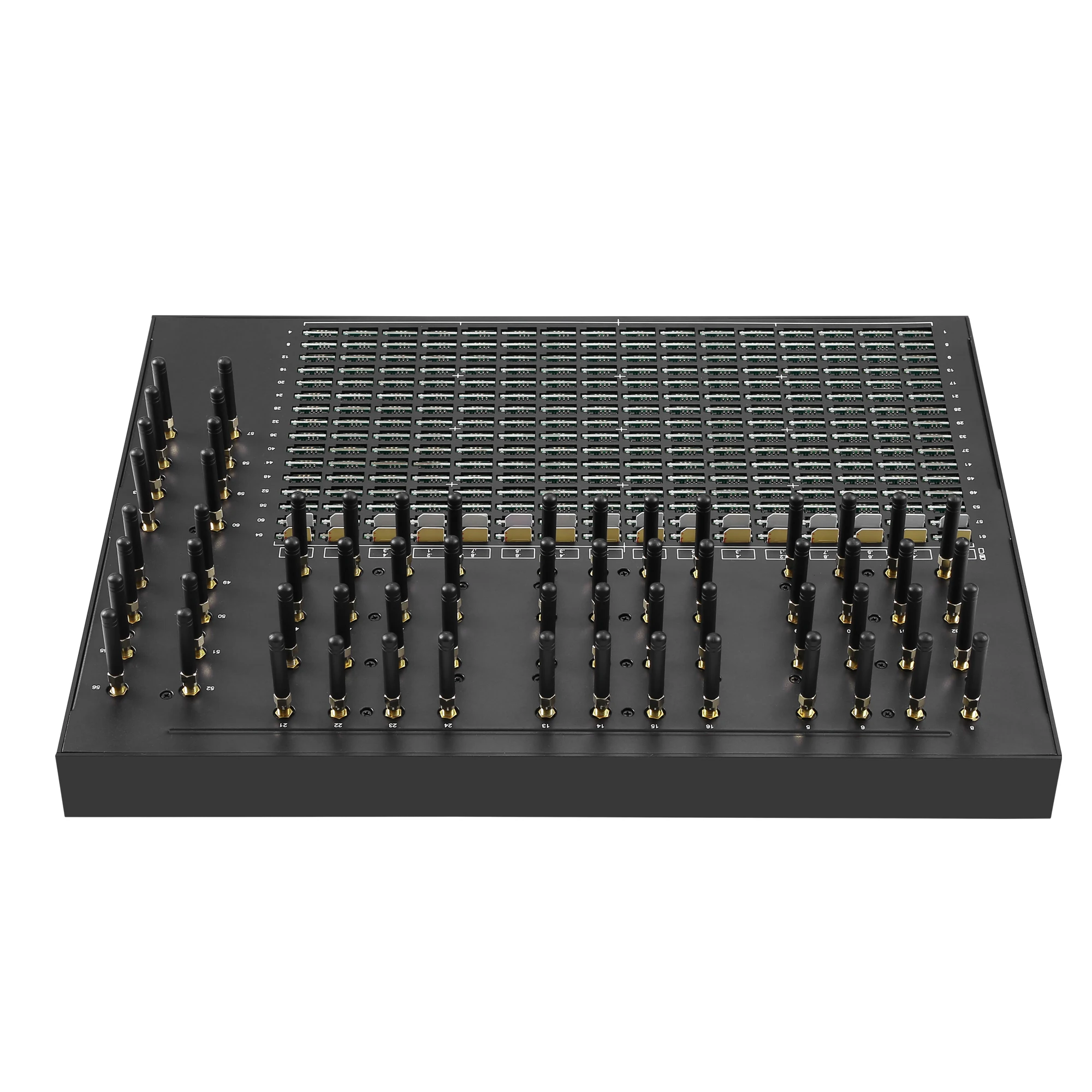

512 Sim Receive SMS USA Carrier LTE Modem 64 Ports Bulk SMS Modem 4G Support AT T,T mobile,Verizon,US Mobile Sim Cards Gateway
- Category: >>>
- Supplier: Skyline (Shenzhen) Technology Co. Ltd.
Share on (1600714023980):
Product Overview
Description
512 Sim Receive SMS USA Carrier LTE Modem 64 Ports Bulk SMS Modem 4G Support AT-T,Tmobile,Verizon,US Mobile Sim Cards Gateway
Product Description
4G SK64-512 SMS Gateway
4G SK 64-512 SMS Gateway is a multi-functional and high performance product, which supports SMS sending, receiving and group sending. It’s different from traditional modem, it’s based on IP network, with the SMPP/HTTP API, customers can develop SMS server easily. It is widely used in mobile marketing, verify code, bulk of SMS and corporate SMS.SK 4G 64-512 SMS Gateway, 64 channels 512 sim cards
1) Show SIM Card Status, Signal
2) IMEI Change
3) Auto Get Sim Number
4) SMS to Email/Phone, Email to SMS
5) Support AT/ USSD Command balance enquiry, billing
6) Direct to monitor Status of Sending SMS/ Instantly SMS Receive
7) Support to do sms route
8) Auto suffer the internet to use Internet traffic
9) Support SIMs hot-swap
10) Support SMPP server/client
11) Support HTTP/API SMS
12) Direct to open web software in webpage
13）Remote Login and Remote Control Devices Management System
2) IMEI Change
3) Auto Get Sim Number
4) SMS to Email/Phone, Email to SMS
5) Support AT/ USSD Command balance enquiry, billing
6) Direct to monitor Status of Sending SMS/ Instantly SMS Receive
7) Support to do sms route
8) Auto suffer the internet to use Internet traffic
9) Support SIMs hot-swap
10) Support SMPP server/client
11) Support HTTP/API SMS
12) Direct to open web software in webpage
13）Remote Login and Remote Control Devices Management System
Specification:
Model | 4G SK 64-512 SMS Gateway |
Number of Channels | 64 channels 512 Slots ( one port with 8 sim cards rotate) |
SMS Sending Speed | 4G 64 Port: 153600 SMS one hour 76800 MMS one hour 3G 64 Port: 115200 SMS one hour 57600 MMS one hour 2G 64 Port: 76800 SMS one hour 38400MMS one hour |

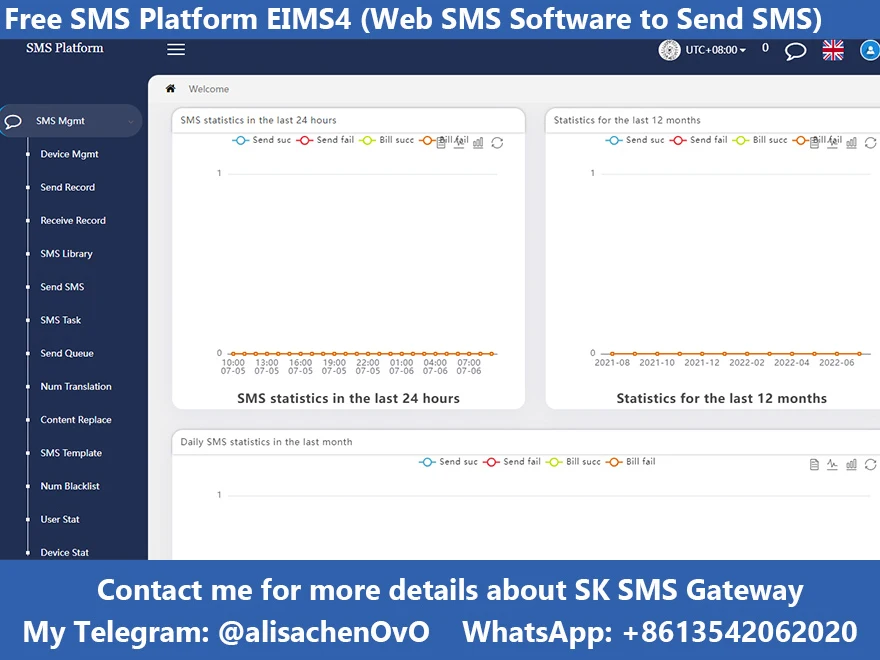

SMS Software | Provide bulk SMS sending software for free (EIMS4) |
Server Specification Require for EIMS4 Installation: Centos6.5-7.9, 64bit, 4CPU, 4g RAM, 100g hdd, high linkspeed | |
Frequency | 2G GSM: 850/900/1800/1900MHz 3G WCDMA: 850/900/1800/1900/2100Mhz 4G LTE: TDD and FDD LTE |
SMS Control Protocols | EIMS (Skyline Private SMS Internet Protocol) |
Network Protocols | IPv4, TCP, UDP, PPPoE, DHCP, DNS, NAT, Telnet, HTTP, FTP, TFTP |
Configuration and Maintenance | Web-based GUI |
Console, Telnet command line | |
Remote Management Center | |
Firmware Update | Local file, FTP, TFTP and HTTP |
Phone book | |
LCR | |
White list | |

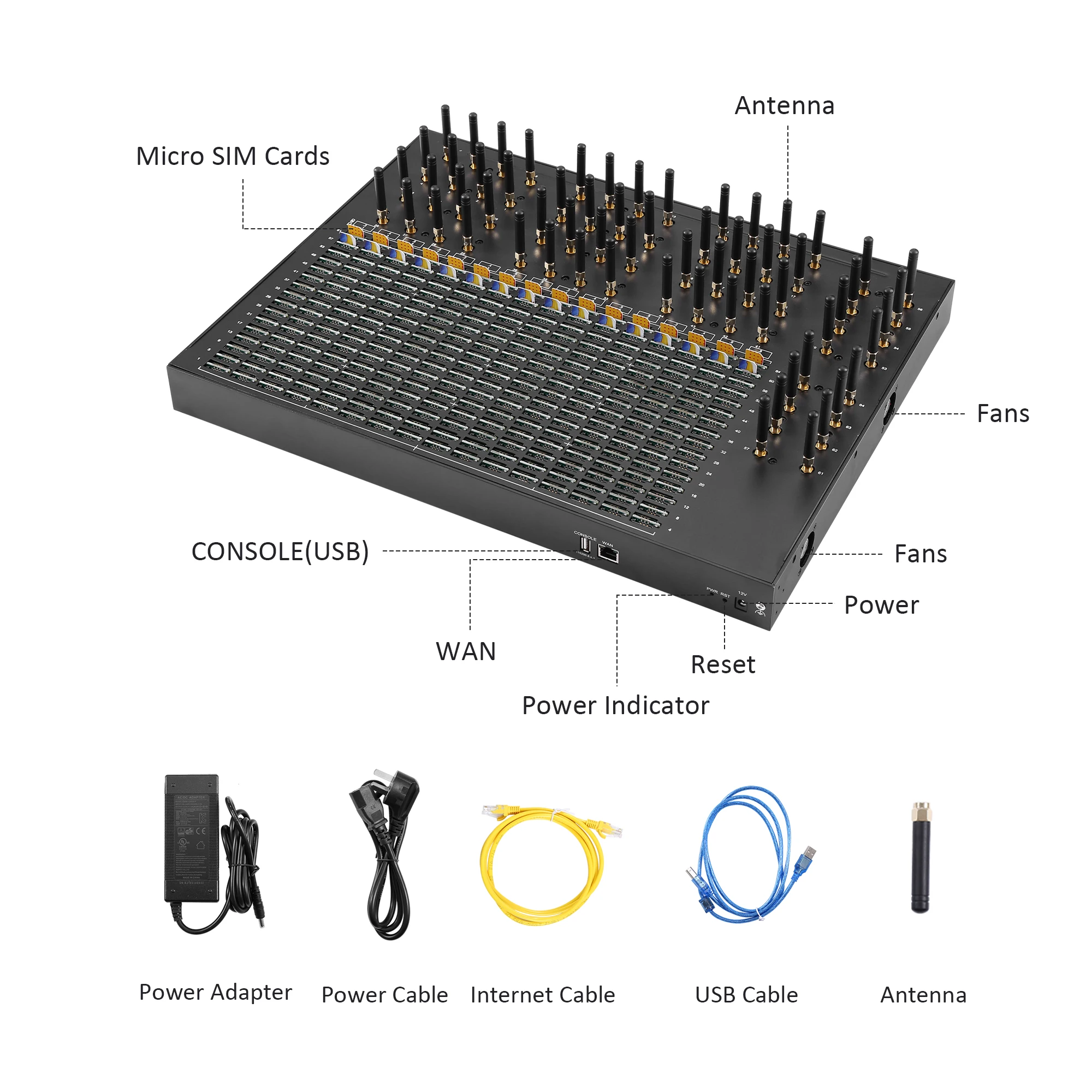

1 WAN 10/100Base-T Ethernet(RJ-45 connector) | |
1 console(USB connector) | |
LEDs | 1 power and 64 groups of signal strength and running indicator(defining...) |
Power Supply | 100-240VAC, 50 - 60 Hz IN, 12V/12.5A OUT |

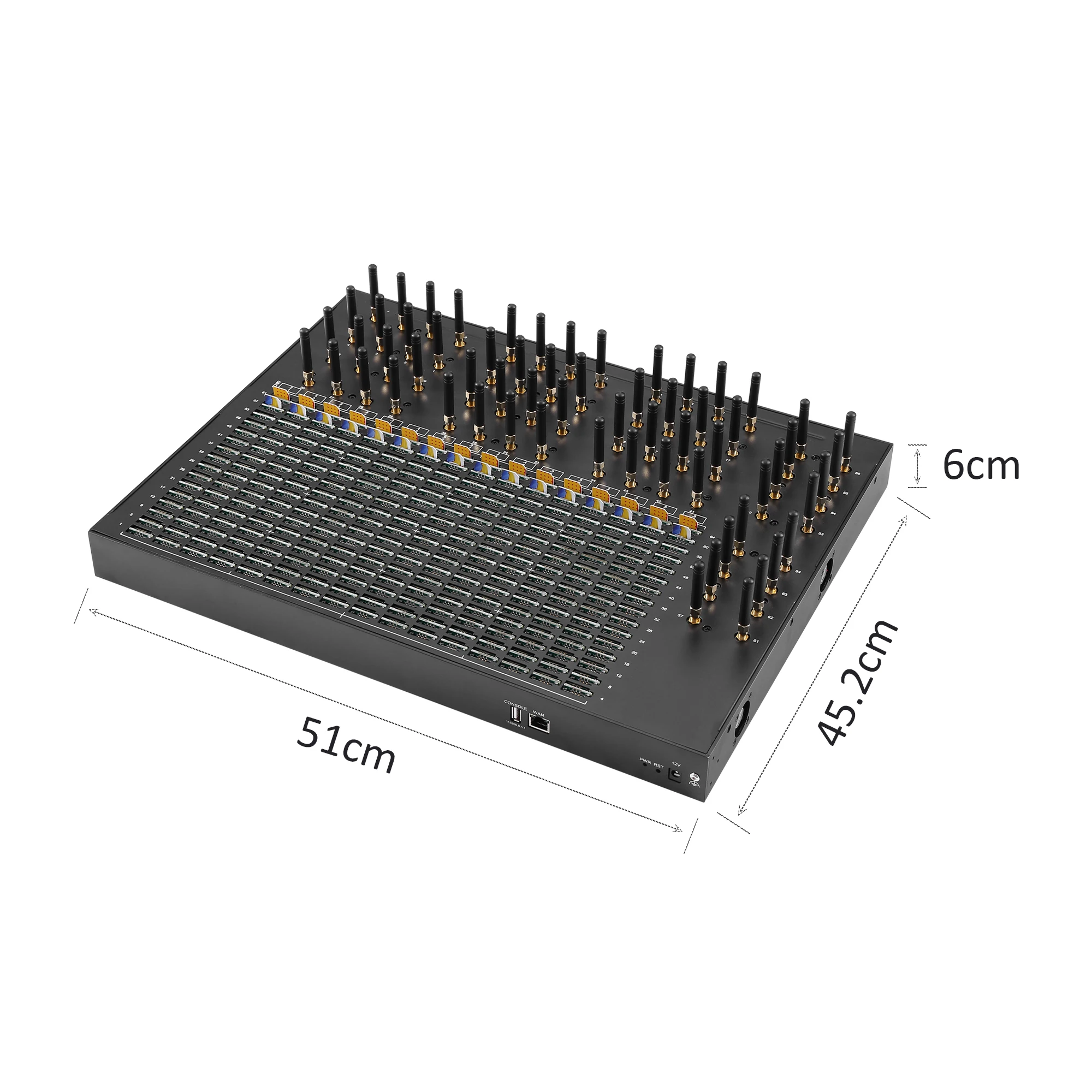

Dimensions | Rack mountable 1U chassis(compatible with 19" Rack) |
Width: 510mm | |
Height: 80mm | |
Depth: 420mm | |
Weight: 10KG | |
Operating Environment | Operating temperature: - 20ºC~50ºC |
Operating humidity: 10 – 90% | |
Warranty | 12 Months |
- Functions:
• SMS receiving/bulk sending, AT command compatible
• Support Skyline registration and peer-to-peer
• Support encryption: EIMS private.
• Support Phone book, 153600 SMS and 76800 MMS per hour
• Update firmware by local or Internet
• Support Skyline registration and peer-to-peer
• Support encryption: EIMS private.
• Support Phone book, 153600 SMS and 76800 MMS per hour
• Update firmware by local or Internet
- Features:
• 8 SIM cards per channel for rotation
(SIM Switch version optional)
(SIM Switch version optional)
• LCR automatically route
• Remote Management and Control via Internet
• Receiving and sending bulk SMS
• AT command directly
• Support USSD balance enquiry, billing
• AT command directly
• Support USSD balance enquiry, billing
• Automatically lock/switch SIM card according to its balance, balance alarm
• Master and slave EIMS server SIM card hot plug
• Master and slave EIMS server SIM card hot plug
• IMEI Change
- Mobile Features:
• SMS Send, Receive and Forward (GSM/SIP/HTTP)
• SMS Inbox
• AT Command, USSD
• SMS Format: PDU/TXT
• PIN Code Management
• Carrier Selection
- Maintenance and Management:
• Multi-language Interface
• USB Serial COM
• Configuration Backup and Restore
• Support HTTP/TFTP Upgrade
• ETMS: For central management of all your SK gateways in one page, with auto-recharge system embedded in
• EIMS4.0: For SMS termination
• ESPS: For manage gateway and simpool, and set your own SIM assignation strategy
• USB Serial COM
• Configuration Backup and Restore
• Support HTTP/TFTP Upgrade
• ETMS: For central management of all your SK gateways in one page, with auto-recharge system embedded in
• EIMS4.0: For SMS termination
• ESPS: For manage gateway and simpool, and set your own SIM assignation strategy
Application:
1) Ideal for telecom distributors, resellers, service providers2) SMS Verification & ONE time passwords
3) Marketing campaigns (promotion, sale)
4) Bulk SMS Compagin, SMS termination
5) Information services
6) SMS- Newsletters
7) Notification- SMS (appointment, birthday)
8) Surveys & Feedback request
9) Sims Business
10) Store SMS Content in device page
• Remote Management Center
The remote management center could be an Internet SMS Modem Pool, a gateway, even an usual computer as the service computer. Users can access to the service computer by any personal network device like personal computer or smart phone installed the relative software application. Users make use of the GSM,wifi or USB cable to visit the service computer and manage other Internet SMS
Modem Pools in different areas and countries.
• Mobility Extension
Most of mobile carriers offer zero or almost zero tariff for calls within a group of SIMs. Mobile phones can be considered as “mobile extensions” of the telephone system. Additionally, “Least Cost Router” permits to select the cheapest route for any SMS.

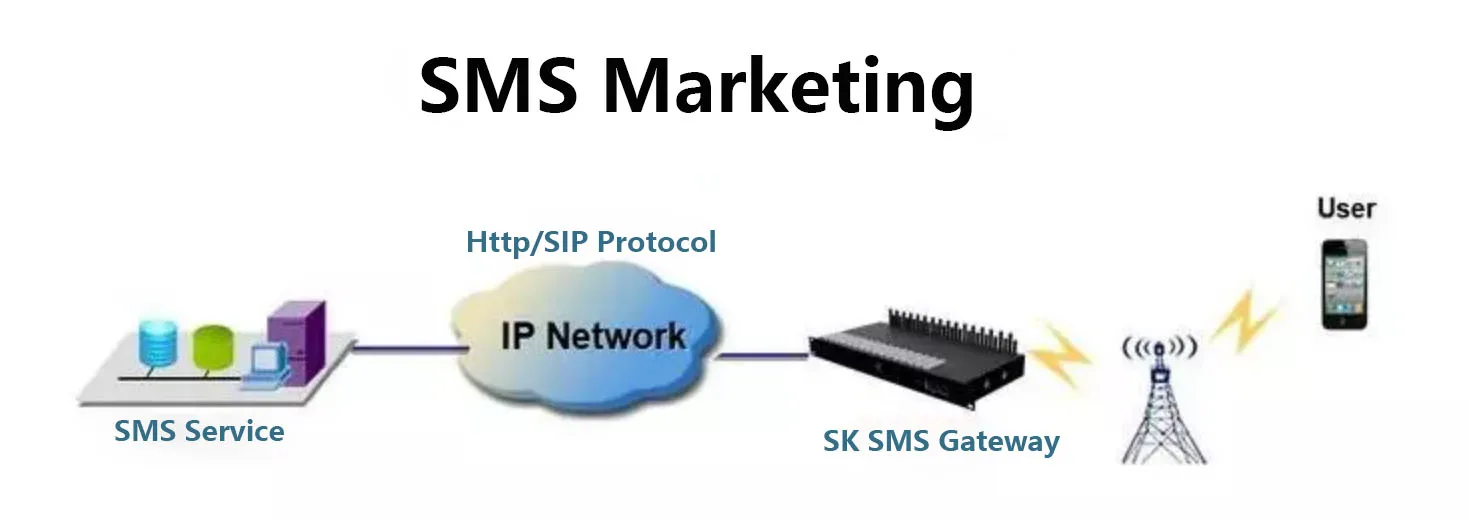

• Bulk SMS Sending
The device supports EIMS SMS sending and receiving, used with the SIP server as a SMS gateway.
The remote management center could be an Internet SMS Modem Pool, a gateway, even an usual computer as the service computer. Users can access to the service computer by any personal network device like personal computer or smart phone installed the relative software application. Users make use of the GSM,wifi or USB cable to visit the service computer and manage other Internet SMS
Modem Pools in different areas and countries.
• Mobility Extension
Most of mobile carriers offer zero or almost zero tariff for calls within a group of SIMs. Mobile phones can be considered as “mobile extensions” of the telephone system. Additionally, “Least Cost Router” permits to select the cheapest route for any SMS.
• Bulk SMS Sending
The device supports EIMS SMS sending and receiving, used with the SIP server as a SMS gateway.
Frequency:
2G model: 850/900/1800/1900Mhz
3G model: 850/900/1800/1900/2100Mhz
4G model:
3G model: 850/900/1800/1900/2100Mhz
4G model:
Module | Frequency | Suitable for Countries or Regions |
EC25-EUX (EC25-EC) | LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 | Europe, Africa, Asia, Middle East, United Arab Emirates, Turkey Philippines |
EG91 | LTE-FDD:B2/B4/B5/B12/B13 WCDMA:B2/B4/B5 | USA( T-mobile/ Simple/ Verizon/ AT&T/ /U.S.Cellular), Canada |
LTE-FDD:B2/B4/B5/B12/B13/B14/ B66/B71 WCDMA:B2/B4/B5 | USA( T-Mobile/ Simple/ Verizon/ AT&T/ /U.S.Cellular), Canada | |
LTE-FDD:B1/B2/B3/B4/B5/B7/B8 /B28 LTE TDD:B40 WCDMA:B1/B2/B5/B8 GSM:B2/B3/B5/B8 | Australia, New Zealand, South America, Colombia, Mexico, America(T-Mobile) | |
EC25-V | LTE FDD:B4/B13 | USA Verizon |
EC25-J | LTE FDD:B1/B3/B8/B18/B19/B26 LTE TDD:B41 WCDMA:B1/B6/B8/B19 | Japan |
EC25-E | LTE FDD:B1/B3/B5/B7/B8/B20 LTE TDD:B38/B40/B41 WCDMA:B1/B5/B8 GSM:B3/B8 | All Europe, Africa, Asia Middle East, Pakistan, Southeast Asia |
Gateway Web Management
How to log in Web Management?
Open the web browser and type the IP address. If it is the first time you login the gateway, please use the default settings below:
IP Address: 192.168.1.10
Account: root
Password: root
IP Address: 192.168.1.10
Account: root
Password: root

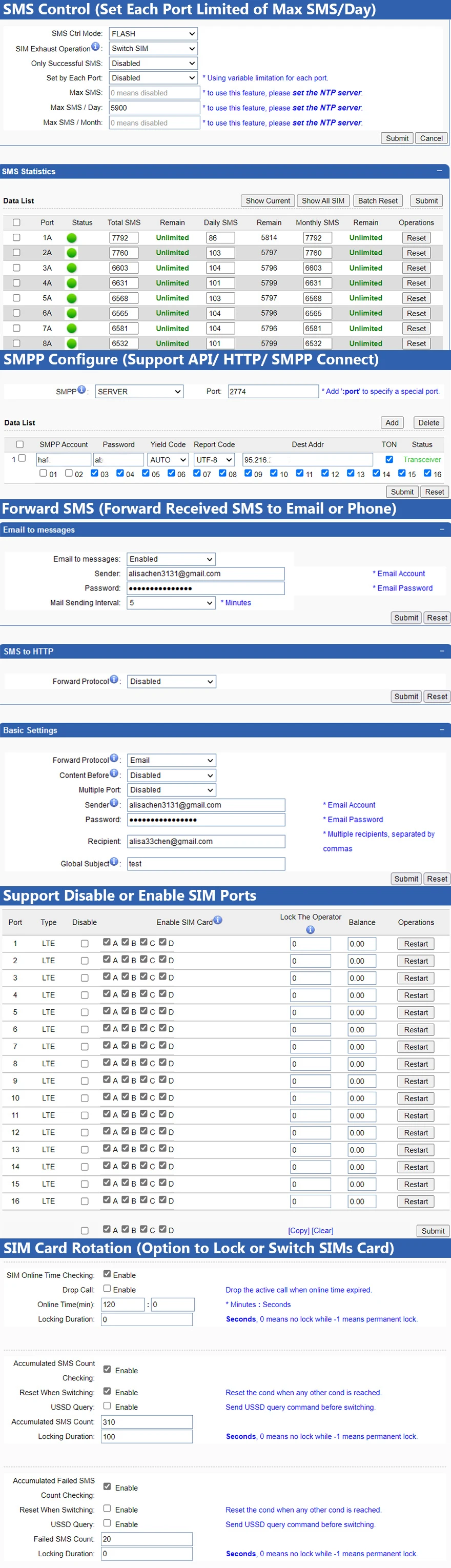

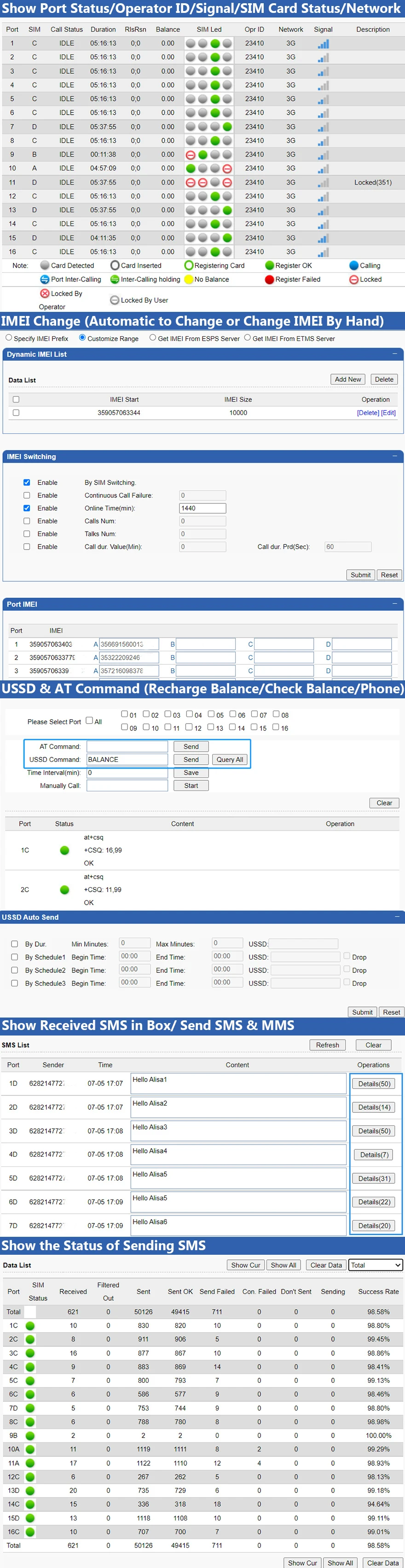

Following are the pages of gateway web management:
Packing&Shipping

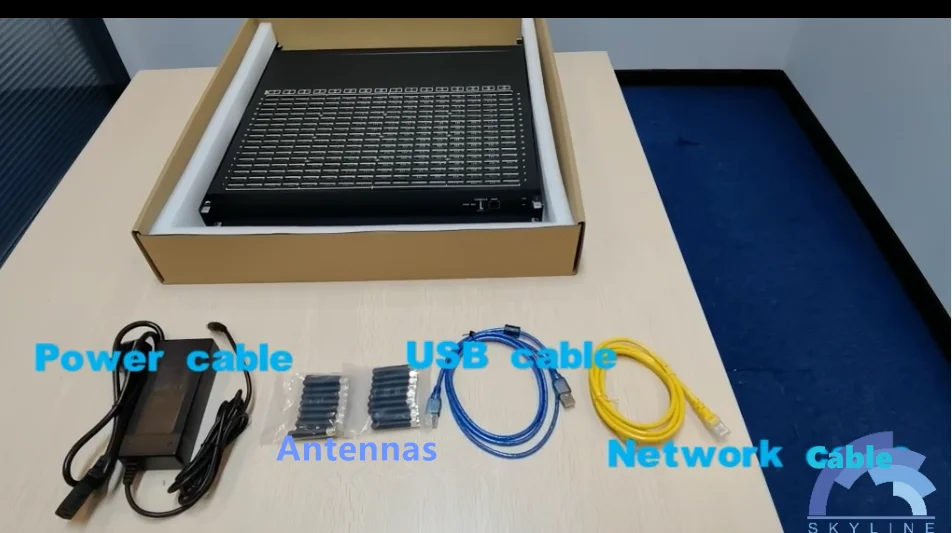

Packing List:
(1) SK SMS Gateway x 1
(2) USB Cable x 1
(1) SK SMS Gateway x 1
(2) USB Cable x 1
(3) Network Cable x 1
(4) Power Supply Adapter x 1
(5) Antennas x 64
(5) Antennas x 64
Trade Terms | FOB, CFR, EXW, DAP |
Payment Terms | Alibaba via Credit Card/Paypal, Bank Wire, T/T, Webmoney, Skrill, Western Union, Cash, USDT |
Payment Condition | 100% deposit in adavance |
Delivery Time | 1-3 days after full payment |
Packing | Strong Carton Box with Water Proof |
Shipping | DHL, UPS, EMS, FEDEX, ARAMEX, TNT or Other Way As You Require |

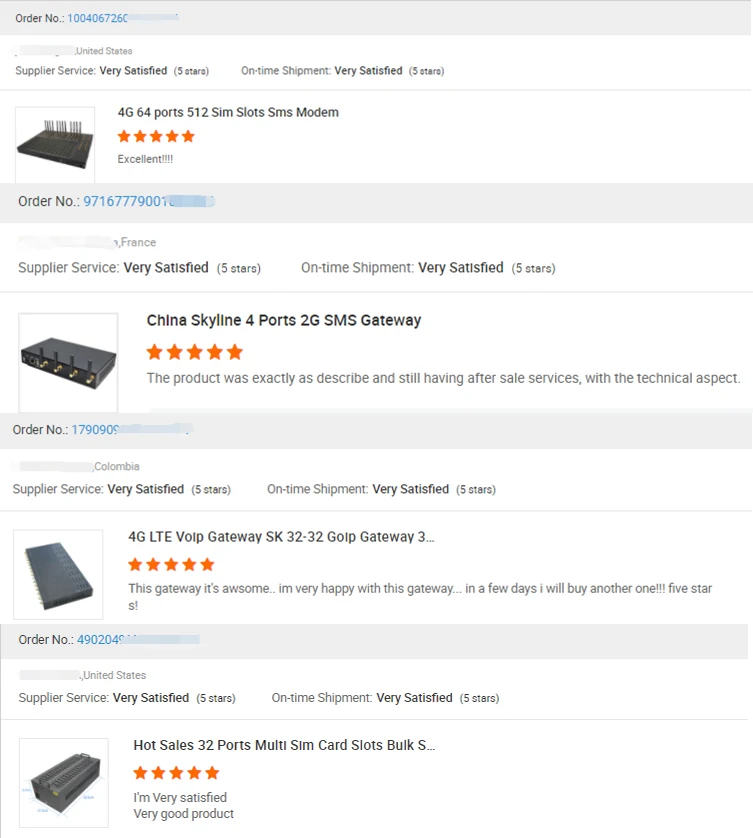

Feedback From Customer
FAQ
Q: 1 . How can I start sms business?
A: For sms business, you need devices , server , sms platform, sim cards and internet. our company can provide devices, sms platform, like EIMSII server. Our tech team will help to set up your system to get test with your sms routes.
A: For sms business, you need devices , server , sms platform, sim cards and internet. our company can provide devices, sms platform, like EIMSII server. Our tech team will help to set up your system to get test with your sms routes.
And we have Live SMS Traffic to Vietnam, India, USA, Indonesia, Nigeria, Spain, Germany, France, Phillipines, Australia, New Zealand, Canada, UK, UAE, Bangladesh, Thailand, and European regions. If you have sim cards and interested in sms business for huge profit, please contact me!!
Q : 2. If I face some issues about the devices , how can i solve it ?
A: All device has one year warrantly and we will provide you with tech support all time to fix your problems.
Q :3. If i use it for sms terminal , but how can i find the traffic provider?
A: We have sms traffic department to push traffic for you.
Q: 4.If my routes face the issue for quality not good , any solution?
A: Firstly, you can check your internet, gsm signal, sim cards balance, sim blocking. Secondly, if everything is good, we will guide our engineer to help you check your configurations.
Q:5.I need more ports , any device?
A: If your ports are less than traffic, you should increase more ports to accpet more traffic. We have 4-4,8-8, 8-32, 16-16, 16-64, 16-128, 32-32, 32-128, 32-256, 32-512, 64-64, 64-256, 64-512 for you to expand your business.
Q : 2. If I face some issues about the devices , how can i solve it ?
A: All device has one year warrantly and we will provide you with tech support all time to fix your problems.
Q :3. If i use it for sms terminal , but how can i find the traffic provider?
A: We have sms traffic department to push traffic for you.
Q: 4.If my routes face the issue for quality not good , any solution?
A: Firstly, you can check your internet, gsm signal, sim cards balance, sim blocking. Secondly, if everything is good, we will guide our engineer to help you check your configurations.
Q:5.I need more ports , any device?
A: If your ports are less than traffic, you should increase more ports to accpet more traffic. We have 4-4,8-8, 8-32, 16-16, 16-64, 16-128, 32-32, 32-128, 32-256, 32-512, 64-64, 64-256, 64-512 for you to expand your business.
Q:8 Quickly contact way?
A: My skype ID: live:alisa_1657 WhatsApp: +8613542062020 Telegram: @alisachenOvO
A: My skype ID: live:alisa_1657 WhatsApp: +8613542062020 Telegram: @alisachenOvO
Company Introduction
CHINA SKYLINE TELECOM CO.,LIMITED was founded in 2002.We have over 200 employees ,20 departments and more than 10 production
lines.More than 200 companies have established business with us,and they are from 40 different countries.
Our company is a manufacturer of SMS Gateway, SMS Modem, VoIP Gateways,GSM VoIP gateways, with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in communication industry and other industries. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
lines.More than 200 companies have established business with us,and they are from 40 different countries.
Our company is a manufacturer of SMS Gateway, SMS Modem, VoIP Gateways,GSM VoIP gateways, with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in communication industry and other industries. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
