G30 G30-770 turbocharger Standard Rotation Ball Bearing cast iron turbine Turbo








Welcome to contact us :


November Gao.


Mob/Wechat/WhatsApp: 8618912476630





produtct description









G30-770
The G-Series G30-770 turbocharger is compatible with 2.0L - 3.5L engine displacements and capable of producing up to 770 horsepower. G Series 30 turbochargers are highly efficient and will outflow all comparable products on the market.



  • G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP

  • 58mm TURBOCHARGER COMPRESSOR WHEEL

  • 76% MAXIMUM COMPRESSOR EFFICIENCY

  • MAR-M ALLOY TURBINE WHEEL RATED UP TO 1050° C

  • NEW TURBINE AERO PROVIDES HIGHER FLOW AND EFFICIENCY

  • STAINLESS STEEL TURBINE HOUSINGS RATED UP TO 1050° C

  • OIL RESTRICTOR AND WATER FITTINGS INCLUDED

  • FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS

  • STANDARD ROTATION SUPERCORE 880693-5002S

  • REVERSE ROTATION SUPERCORE 880694-5002S


Horsepower: 475 - 770HP
Displacement: 2.0 - 3.5L



  • Garrett® G Series Compressor Aerodynamics for maximum HP.

  • Fully machined Speed Sensor and pressure ports.

  • New Turbine Wheel Aero constructed of MAR-M alloy rated 1055ºC

  • Stainless Steel wastegated and non wastegated turbine housing option capable of 1050°C.

  • Oil restrictor and water fittings included.

  • Reverse rotation.

  • Compressor side: TRIM 65 A/R 0.72

  • Compressor Air Inlet: Hose 4.00" (101.60mm)

  • Compressor Air Outlet: Hose 2.00" (51.15mm)

  • Bearing housing: Water and Oil cooled system.









Product show

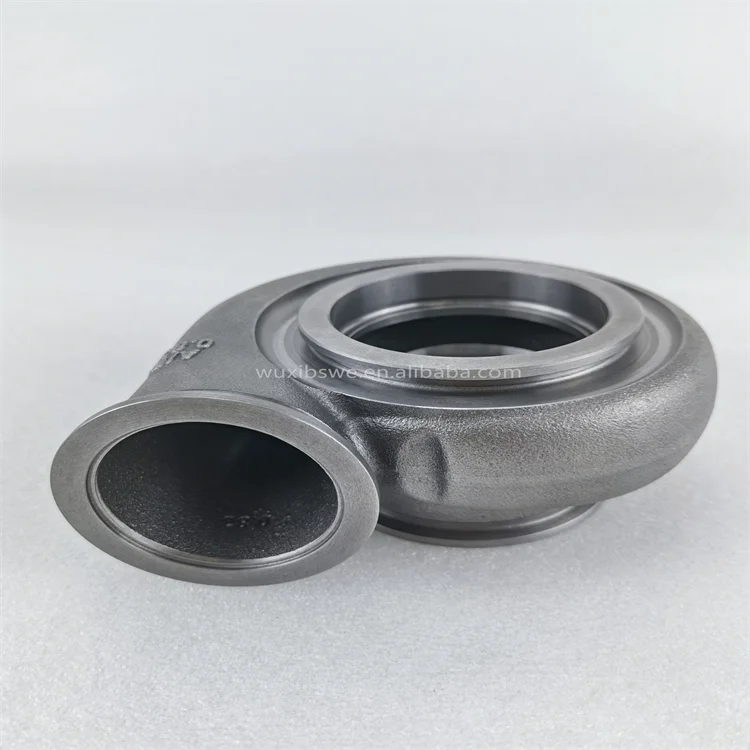

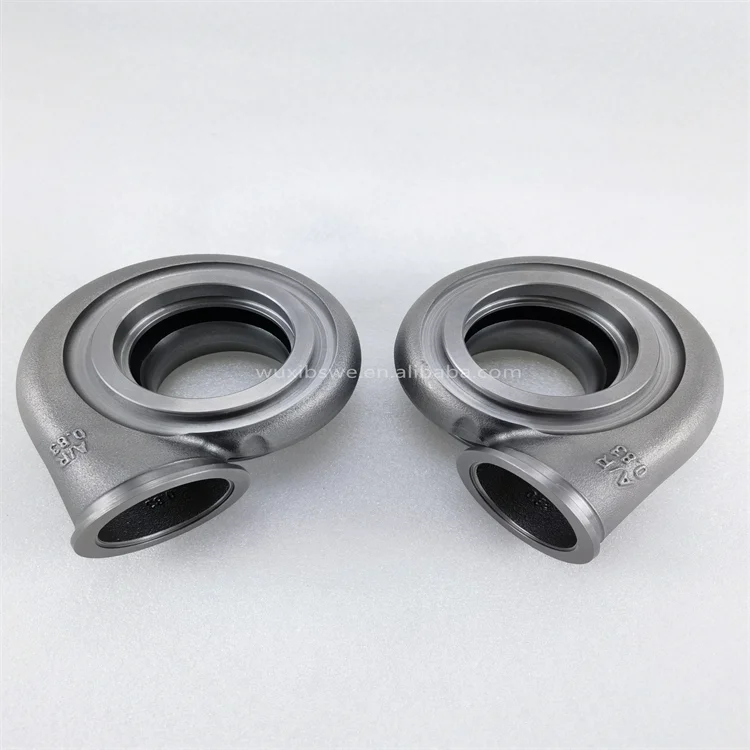

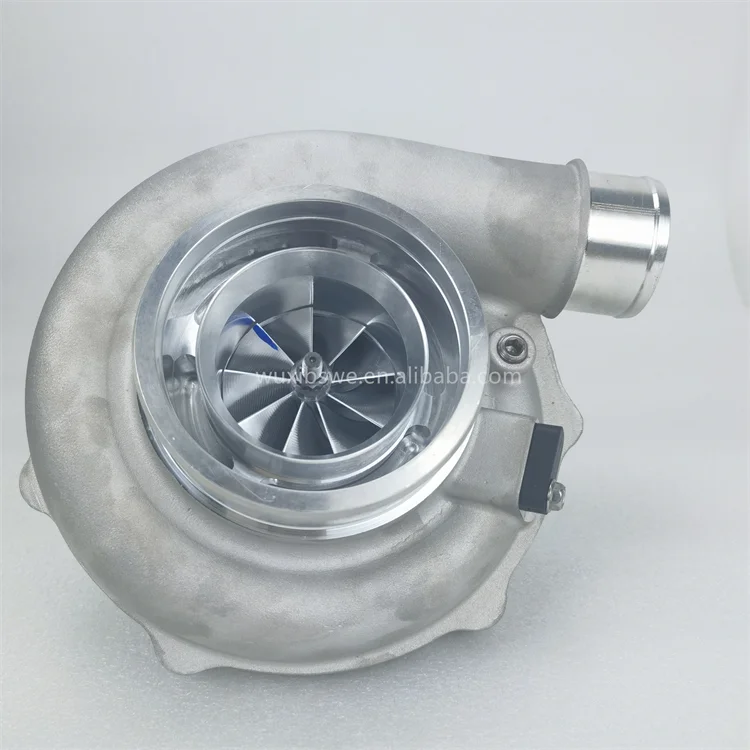

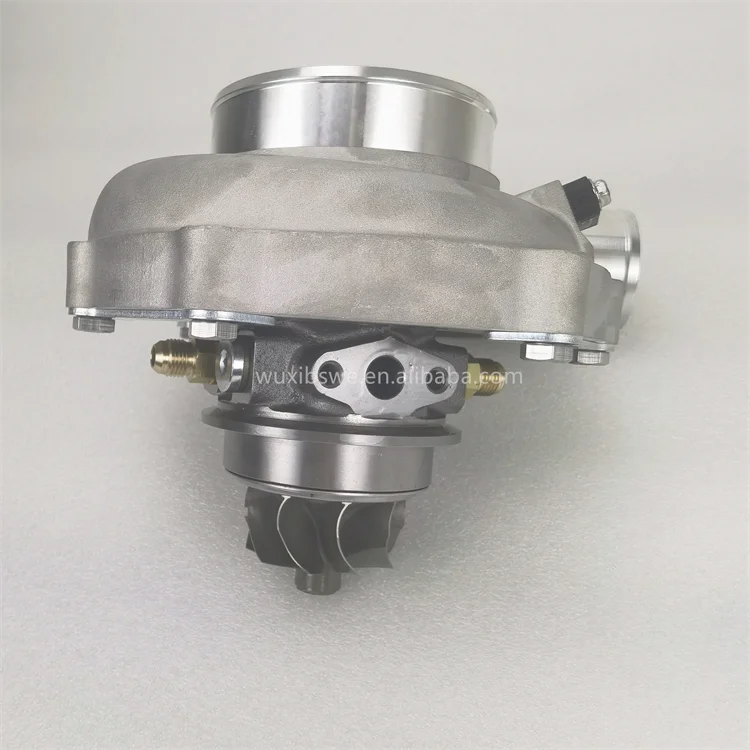

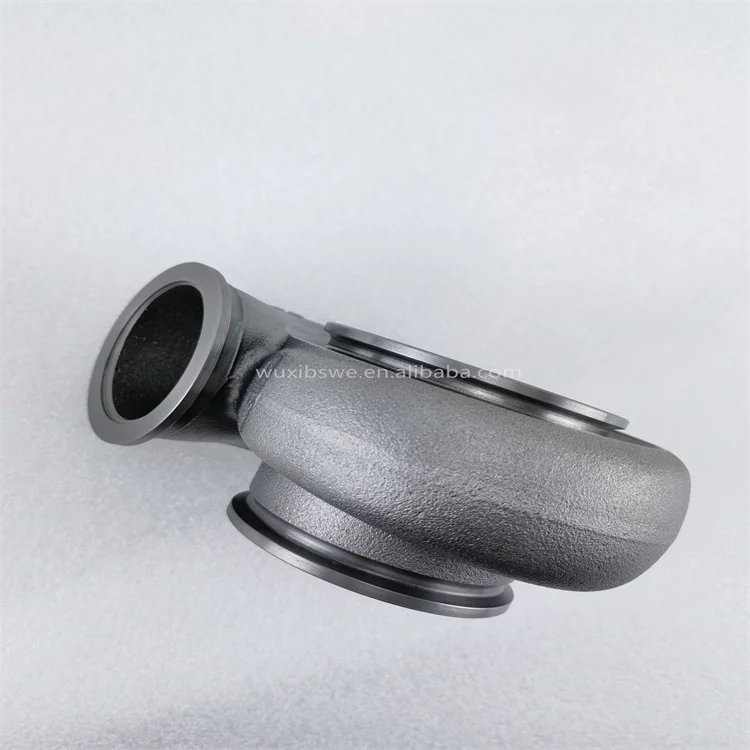

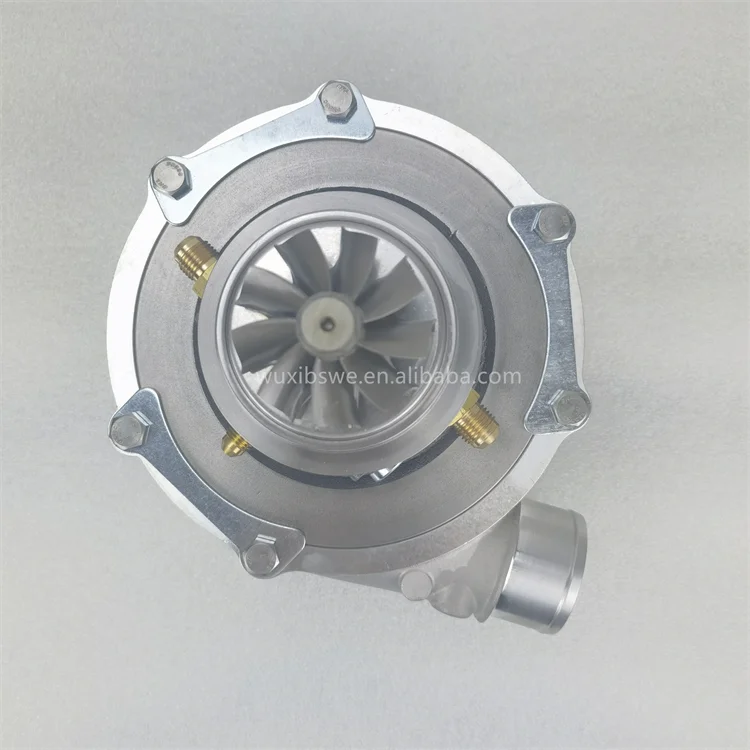

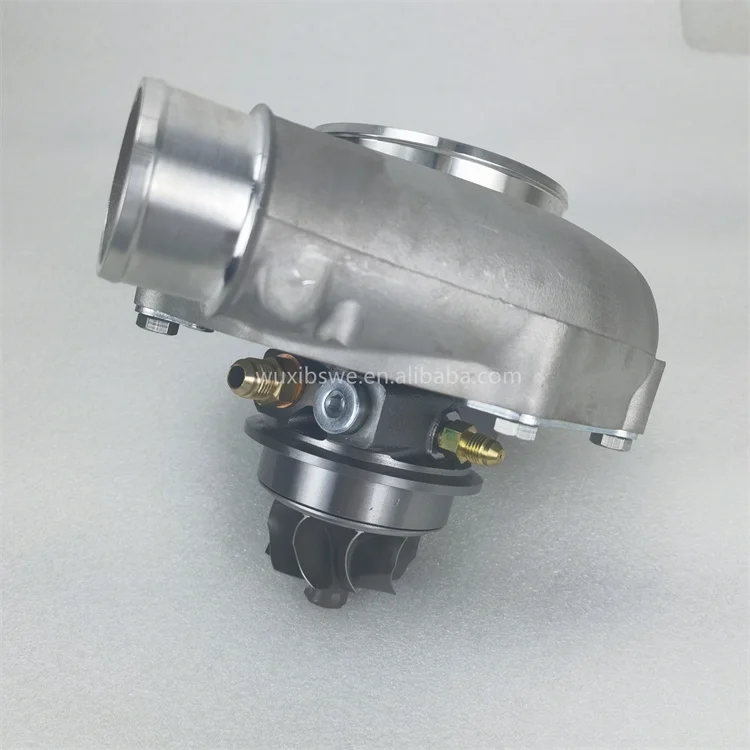

 IMG_20220729_140130.pngIMG_20220729_140236.pngIMG_20220729_140244.pngIMG_20220729_140302.pngIMG_20211027_154241.pngIMG_20211027_154531.png
