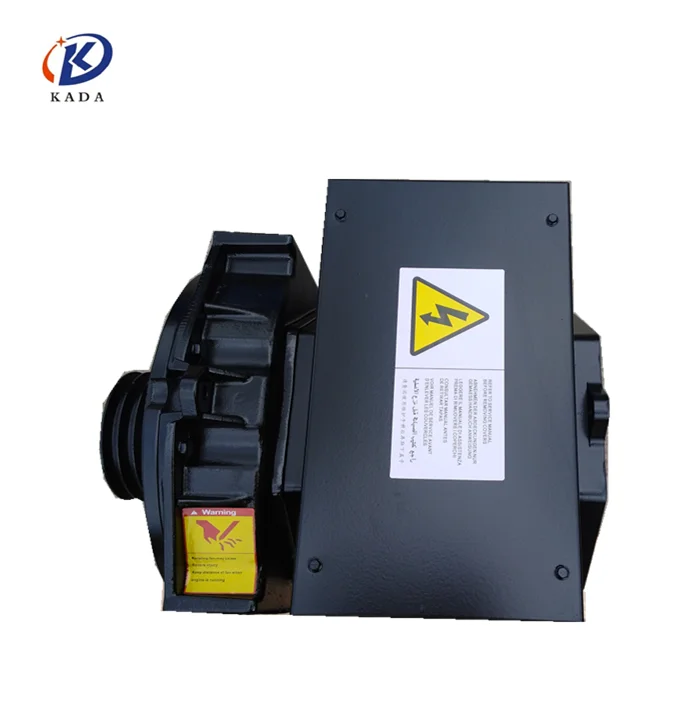

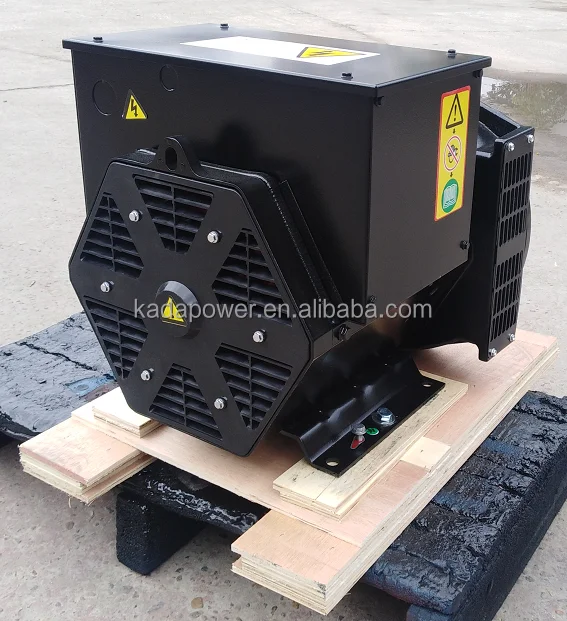

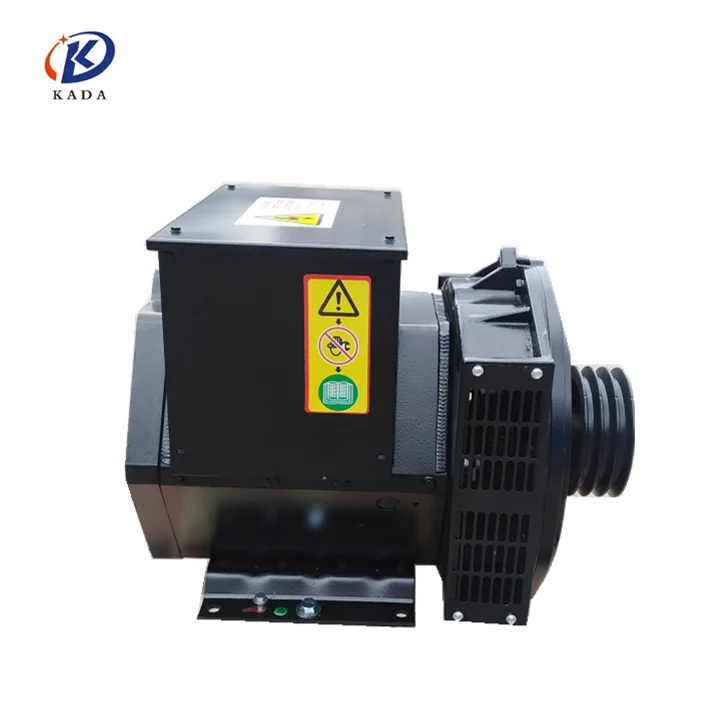

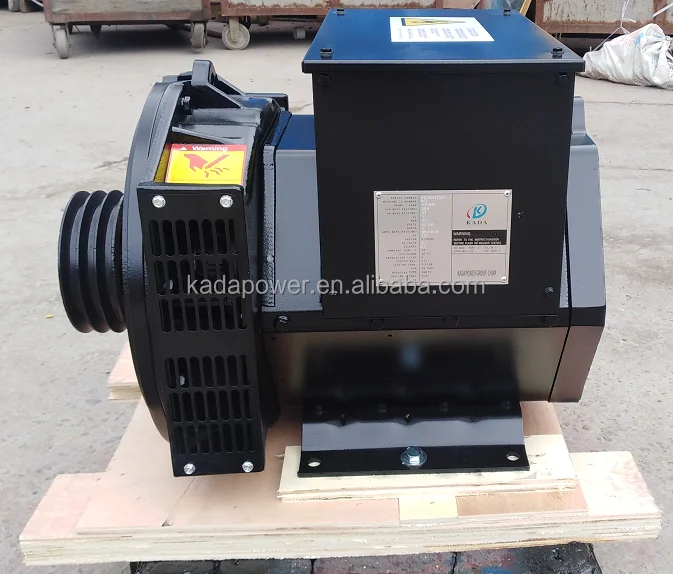

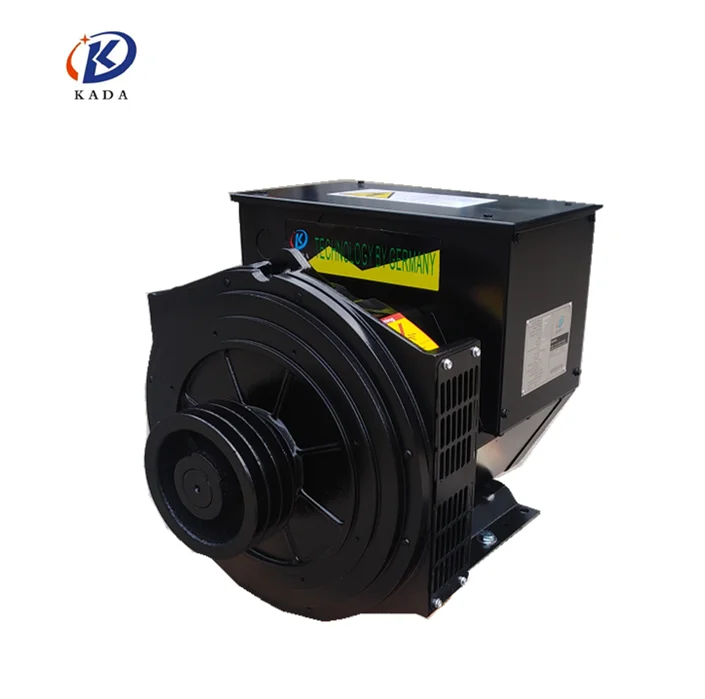

Kada alternator generator without engine brushless dynamo
- Category: >>>
- Supplier: Ningde Kada Co. Ltd.
Share on (1600714281979):
Product Overview
Description
Product Description
Specification
Voltage regulation
Voltage regulation refers to the change of voltage from no-load to full-load with power factor ranging from 0.5 to 1 and 2.8%s fluctuation of the speed of engine. Voltage is adjusted via potentiometer of AVR, model: SX460, SX440
Axis and Key
All of alternator rotors should pass balance test, whose vibrations are lower than the minimum of BS6861 P.1,G 2.5 two bearing alternator has a half-key testing balance
Terminal and terminal box
The three-field alternator had 12 leads brought out to the terminals in the terminal box. The terminals are put on the non drive end . The box is equipped with removable panels.
Packing & Delivery
Company Profile
FAQ
1.Q: Classification of generator:
(1).Single phase or three phase is optional.
(2).Single bearing or double bearing is optional.
(3).PMG is optional: Alternators with PMG,Models:KD224-KD314,KD354-KD404,
(4).Droop Kit and Anti-condensation heater are optional according to the operation environment.
(5).4 pole alternators are available.
2.Q:How to choose AVR?
KD164,KD184,KD224,KD274, series SX460, KD314 series SX440, KD354,KD404 series AS440
3.Q:How to select generator?
(1). Working environment(less than 1000m above sea level & less then 40℃ ambient temperature).
(2). Different country with different rated frequency(50Hz or 60Hz).
(3). For sea side operating environment,anti-condensation heater and droop CT.
(4). Generator insulation class H.(Inccopper wire,rotor,stator,)
(5). Generator stators are wound to 2/3 pitch.The 2/3 pitch design avoids excessive neutral currents sometimes seen with higher
winding pitches,when in parallel with the mains.
4.Q:What is your MOQ of this item?
A: Above 1pcs
5.Q: What is the lead time?
A: 25-30 days after receiving your L/C or T/T deposit.
6. Q: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
7. Q: Where is your Loading Port?
A: Fuzhou Port, China.
8. Q: What are your payment terms?
A: 30% deposit and balance T/T before shipment or L/C at sight.
9.Q: What certificates do you have?
We have CE,ISO and we can apply for specific certificate for different country, such as SONCAP for Nigeria, SASO for Saudi
Arabic,ect
