STONKAM truck hd 3d bird eye camera 360 degree surround panoramic view camera monitoring system no control box for construction
- Category: >>>
- Supplier: Stonkam Co. Ltd.
Share on (1600714527191):
Product Overview
Description
Product Description
7 inch 360 Degree Bird View Monitor 3D AVM Panoramic System support radar detection integrates AVM algorithm and could achieve surround driving image without control box, no blind spot around 360°. It take only one minute for automatic calibration and supports automatic plane correction, saving time and effort. Able to work with pedestrian detection camera and radar, it strengthens safe security for the driving of trucks, public transports and emergency vehicles.

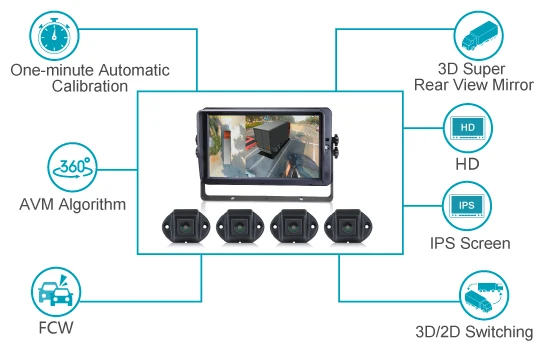

►Integrated AVM Algorithm - No additional control box; Monitor integrates 360AVM algorithm for panoramic images; No blind spots around 360°
►Integrated AVM Algorithm - No additional control box; Monitor integrates 360AVM algorithm for panoramic images; No blind spots around 360°
►HD Video - 1080P high definition fish eye camera input with good real-time display, offering HD and stable images
►HB IPS Screen - HB and HD IPS screen, large viewing angles
►One-minute Calibration - Automatic calibration can be finished in 1 minute, and it supports automatic plane correction, saving time and effort
►3D/2D Switching - Multiple viewing models, 3D/2D view switching freely
►Super Rear View Mirror - 3D effect supports super rearview mirror, fully covering lane, making safer when merging in the high speed
►Built-in FCW Function - Additional camera and extra installation are not required, built-in FCW(Front Collision Warning) saving time and effort
►Resource Integration - Additionally, radar access is supported, and the vehicle is fully protected
►Other Functions - Optional capacitive touch screen; trigger wire and GPS access are both supported
Dimension | 7 inch |
Resolution | 1024 x 3 (RGB) x 600 |
Contrast | 700:1 |
Brightness | 600 cd/m2 |
Aspect Ratio | 16:9 |
Display Model | 3D/2D views switching freely |
Camera Input | Max.4CH×1080P （25FPS/30FPS） and 4CH * 720P （25FPS/30FPS） |
Power Supply | 10-32V |
Power Consumption | Max. 25W |
Loudspeaker | 1W/8Ω |
Operating Temperature | -20~+70°C, RH 90% |
Storage Temperature | -30~+80°C, RH 90% |
Why do you need 7 inch 360 Degree Bird View Monitor 3D AVM Panoramic System 4 Car Camera?
Potential dangers hidden among blind areas.
Possibility of scratching in narrow roads while no one shares the cost.
Situation of racketeer for car accident keeps increasing.
Indeterminate responsibility for rear-end collision.
Intelligent vehicle monitoring need control box and display, with high cost time and money.
……

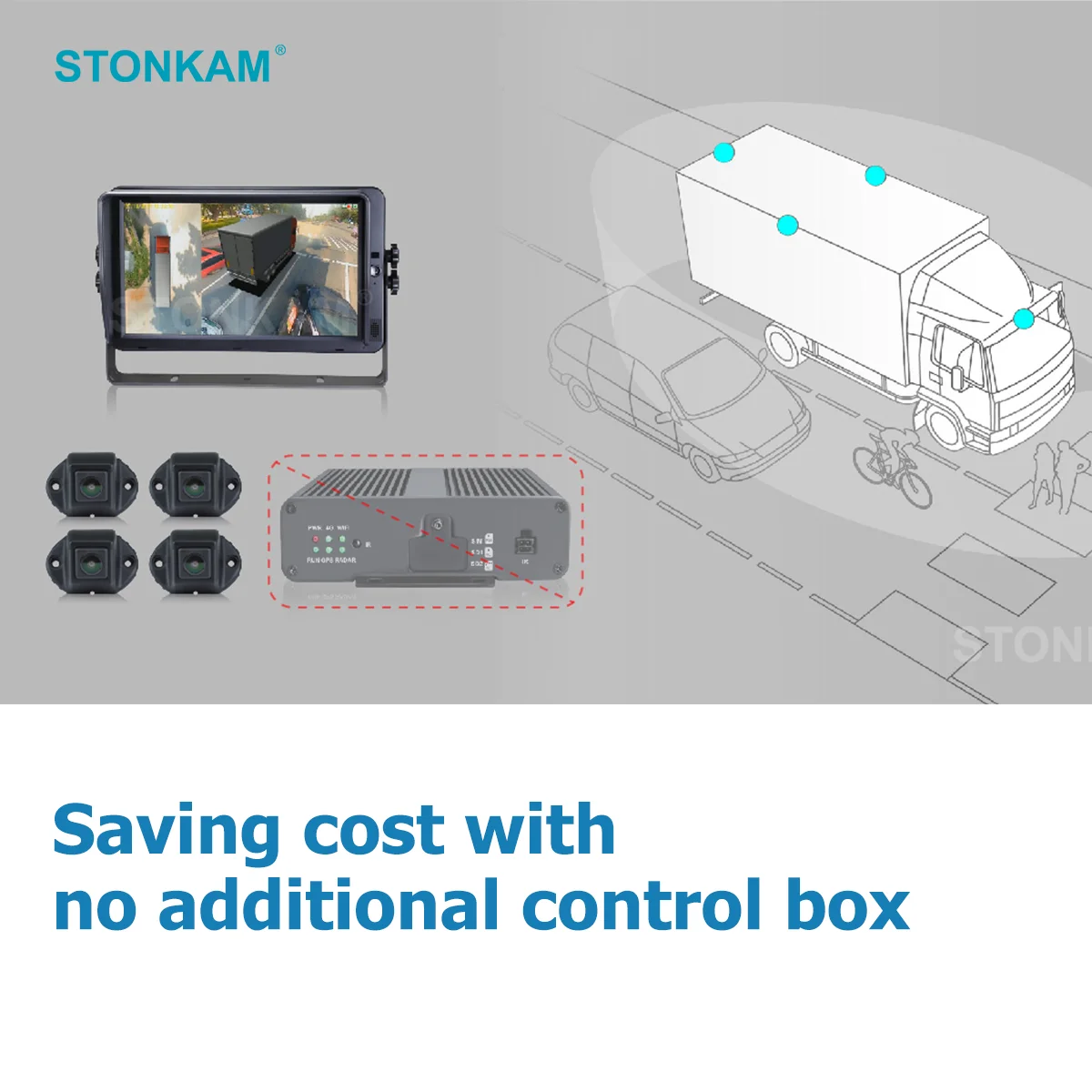

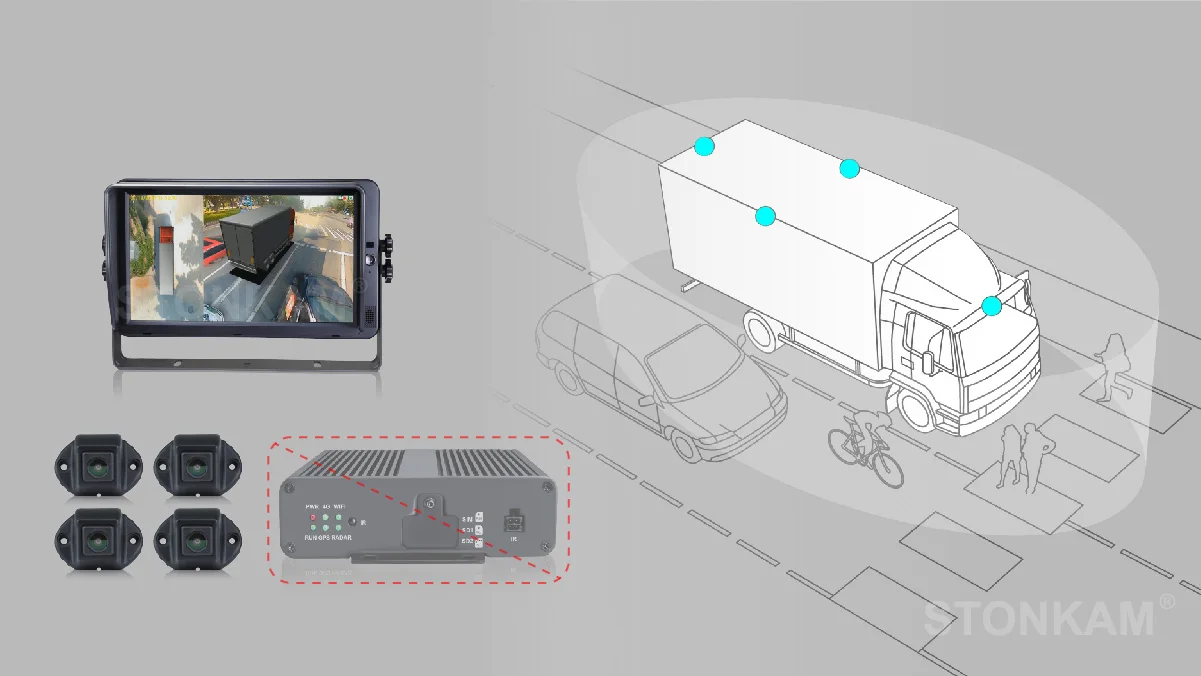

Control box is not required since monitor integrates AVM algorithm
Say goodbye to monitor+ panoramic control box and choose truck hd 3d bird eye monitor. The monitor is directly equipped with AVM algorithm to realize 360° bird view and seamless monitoring to ensure safe driving.

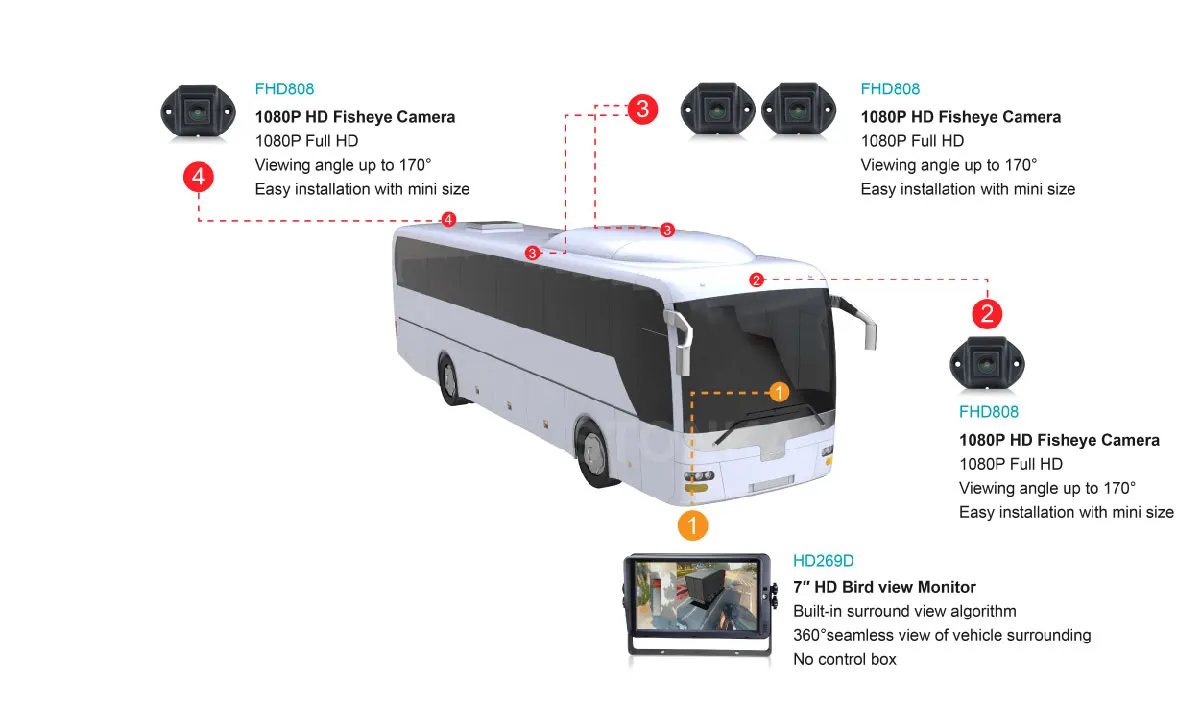

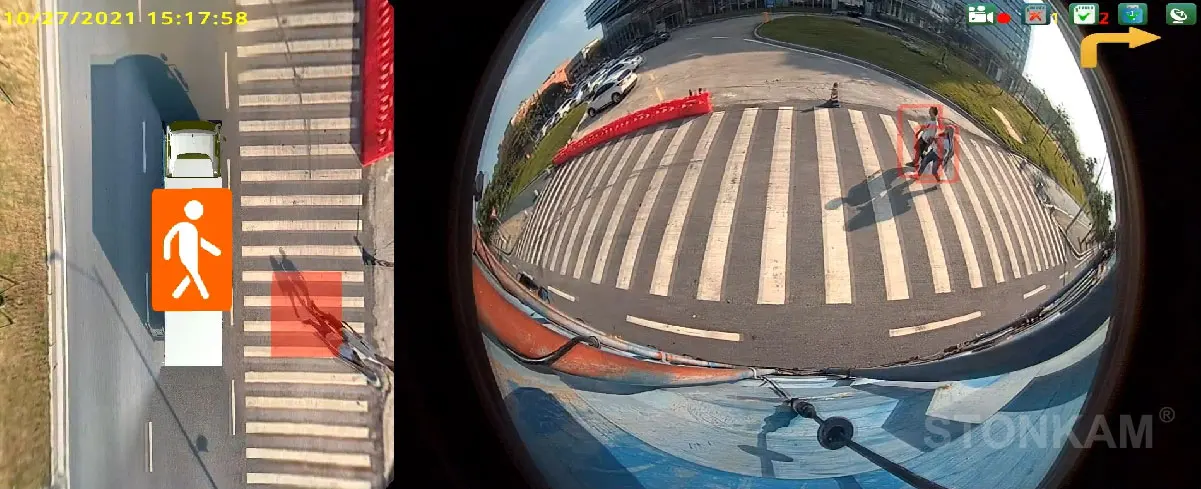

4CH 1080P fisheye camera input creates HD real driving scene, meanwhile, achieving good real-time display and low delay!

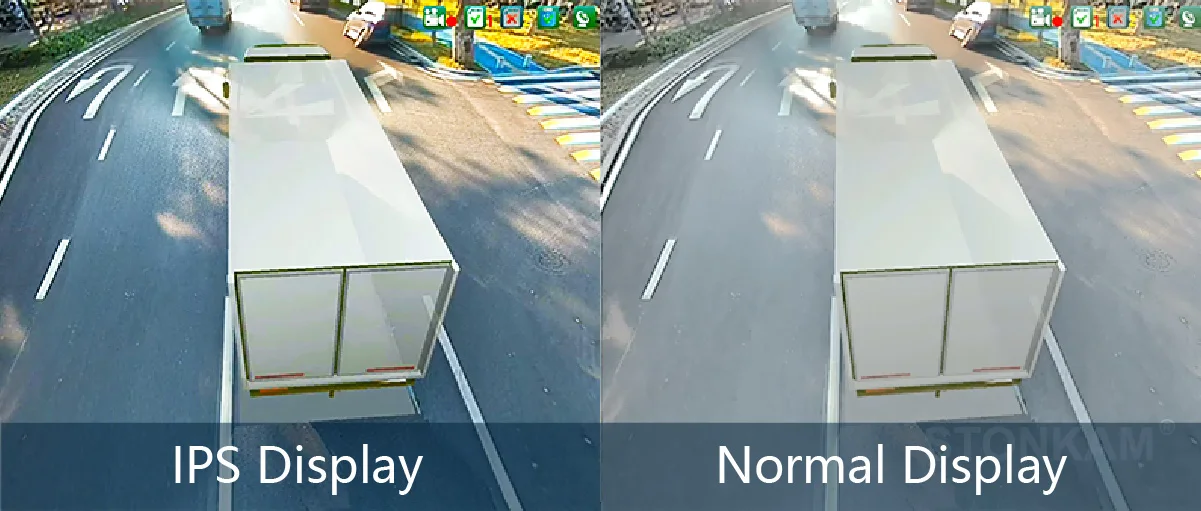

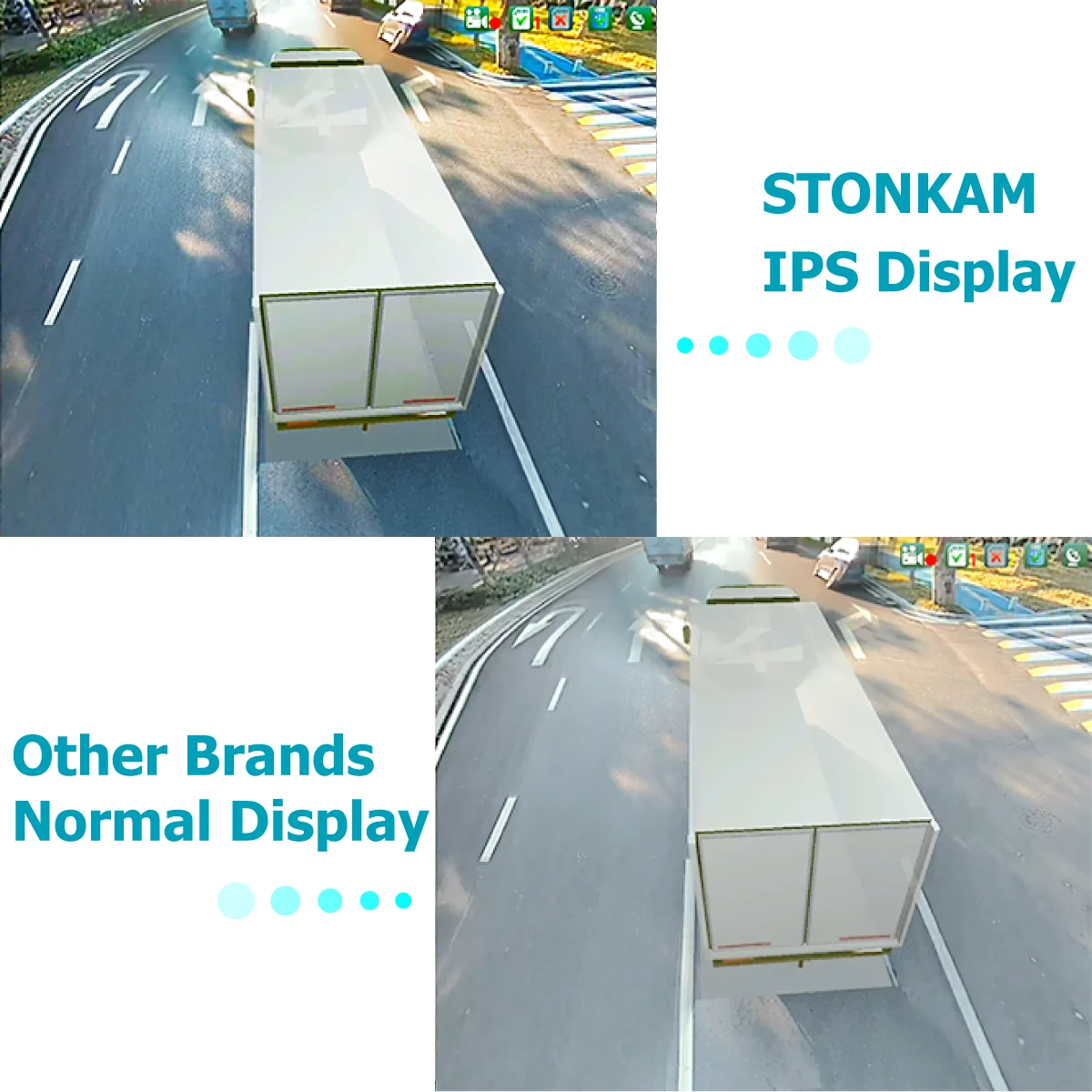

7 inch 360 Degree Bird View Monitor 3D AVM Panoramic System employs HD IPS screen with large viewing angle and high brightness!

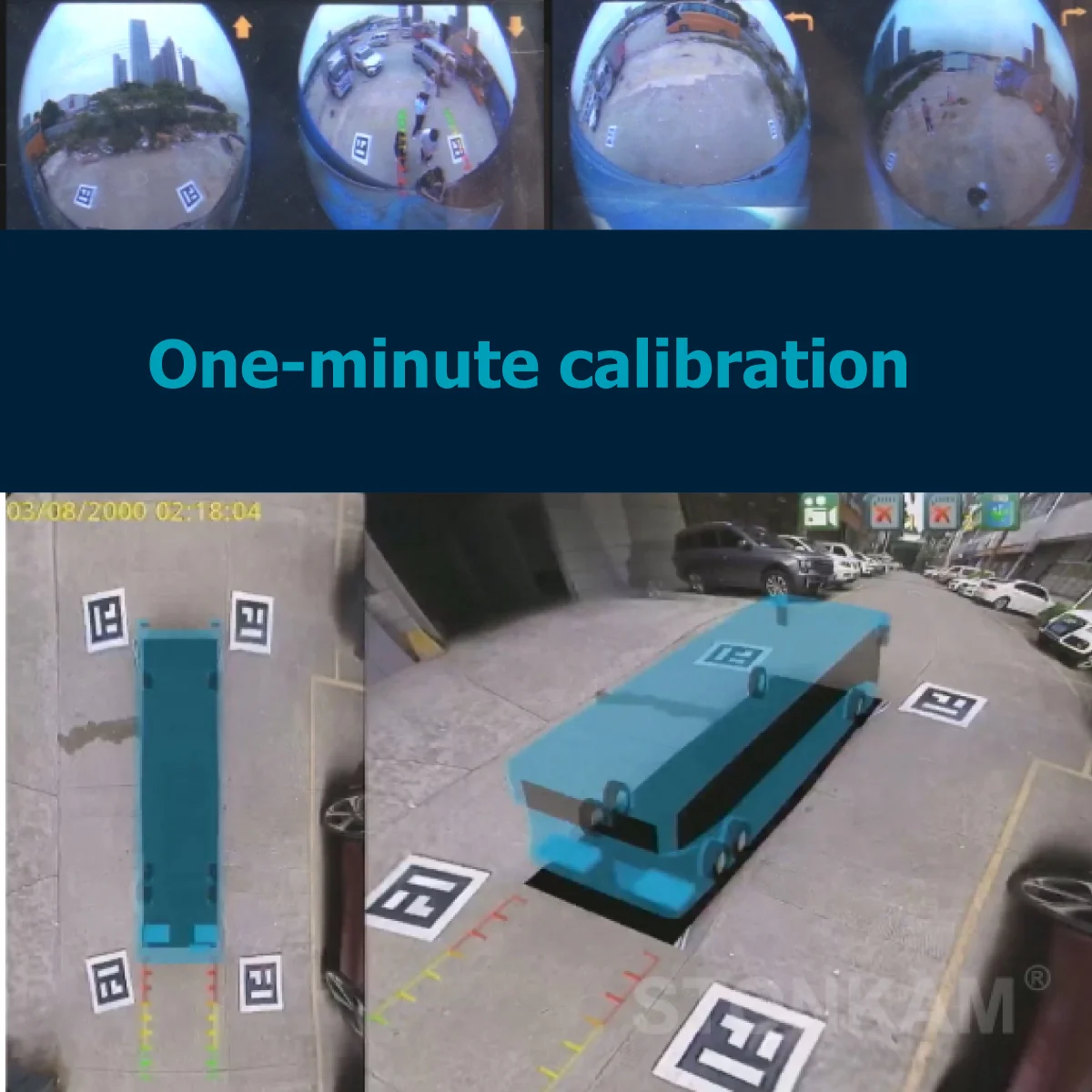

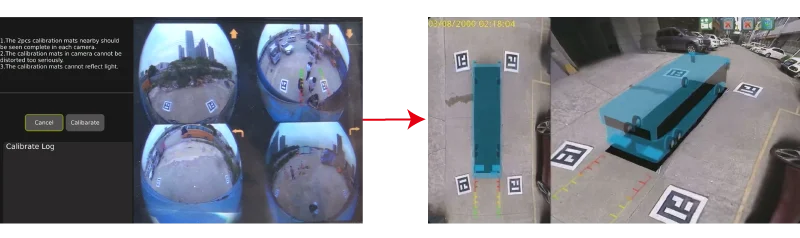

One-minute calibration
7 inch 360 Degree Bird View Monitor 3D AVM Panoramic System comes with automatic calibration, which can be done in 1 minute through the touch screen or remote control. Only four calibration mats are needed, and they can be placed randomly to achieve accurate calibration.

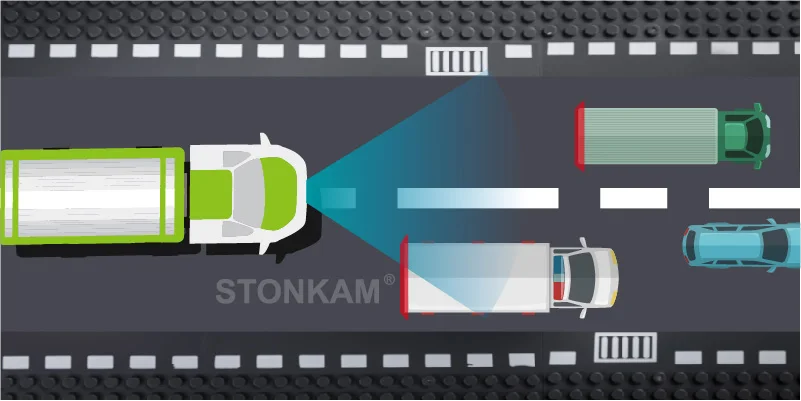

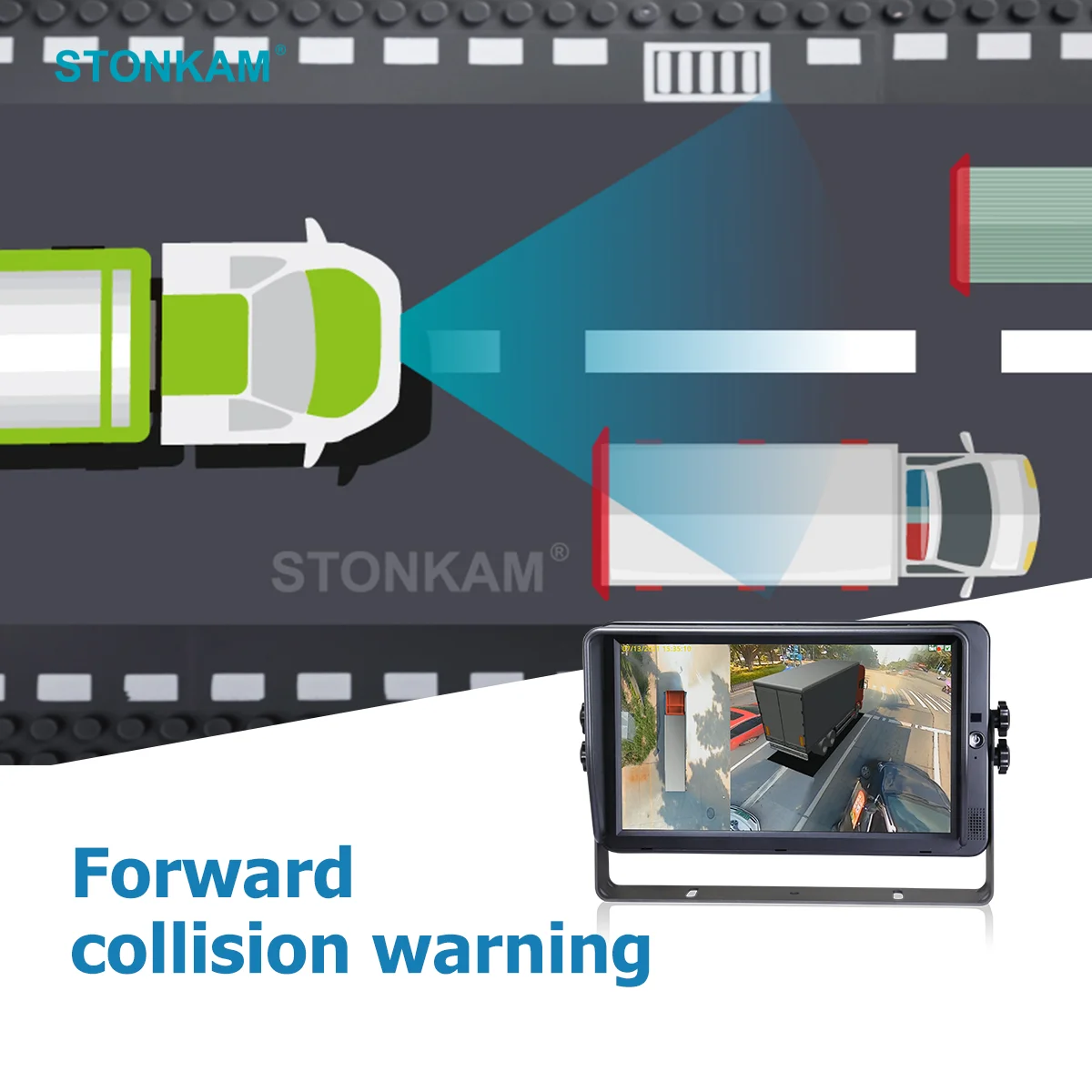

Support Forward Collision Warning without extra camera, saving money and time. With forward collision warning technology, the system can intelligent and accurate analyse the distance and relative speed between the vehicle and the preceding vehicle, estimate the potential risk ofrear-end collision, and send warnings to the driver to avoid accidents.

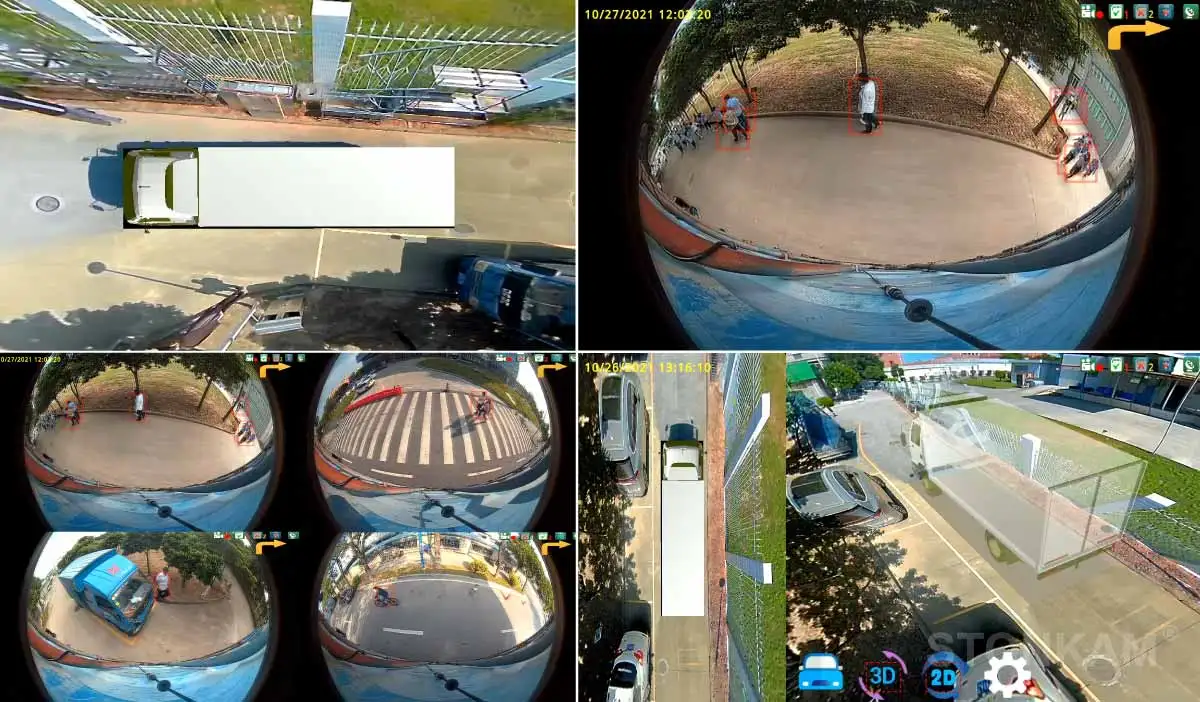

Multiple viewing models, 3D and 2D Switchable
7 inch 360 Degree Bird View Monitor 3D AVM Panoramic System, in which user can switch 3D/2D view freely, meets the needs of all kinds of viewing modes.

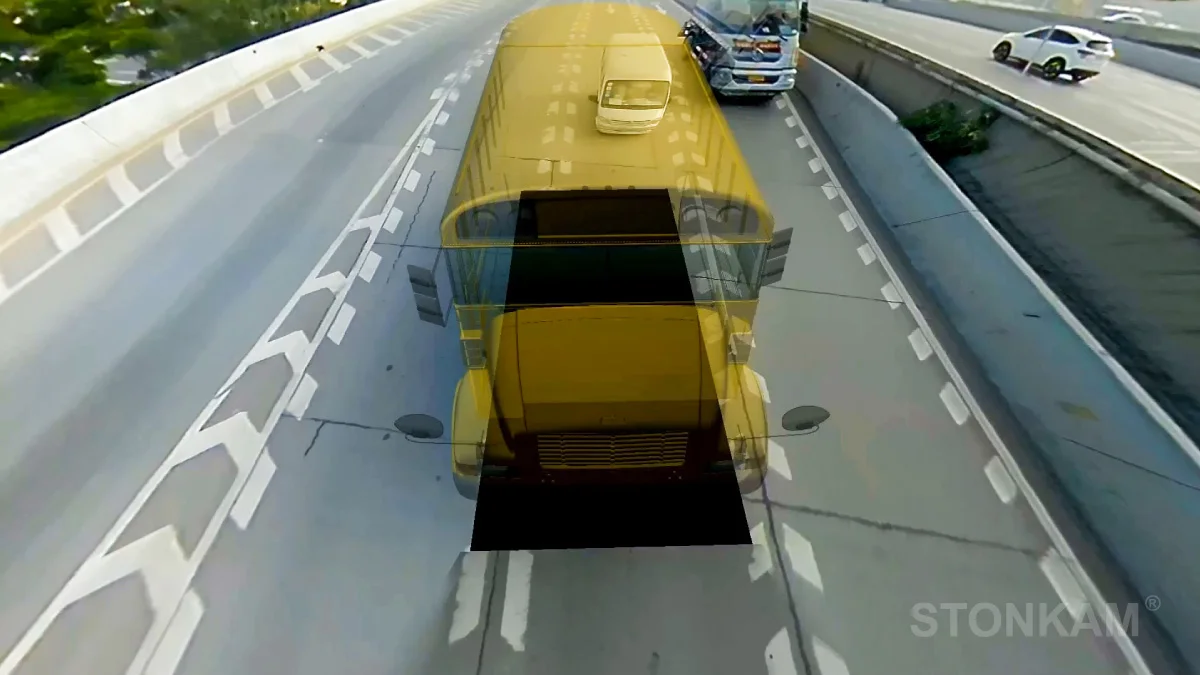

Most 3D around view driving assistance products would present the driving scene with a vehicle of solid image where the traffic view behind is blocked out and not clearly showed.Forklift 360 around view monitor camera system can use transparent vehicle model to provide a full view of the road condition, totally clearing off the blind spot behind the vehicle. Meanwhile, the bird view can show a larger field of view on both left and right of the vehicle, providing one more driveway scene than the similar products in the market, which greatly enhances the driving safety.

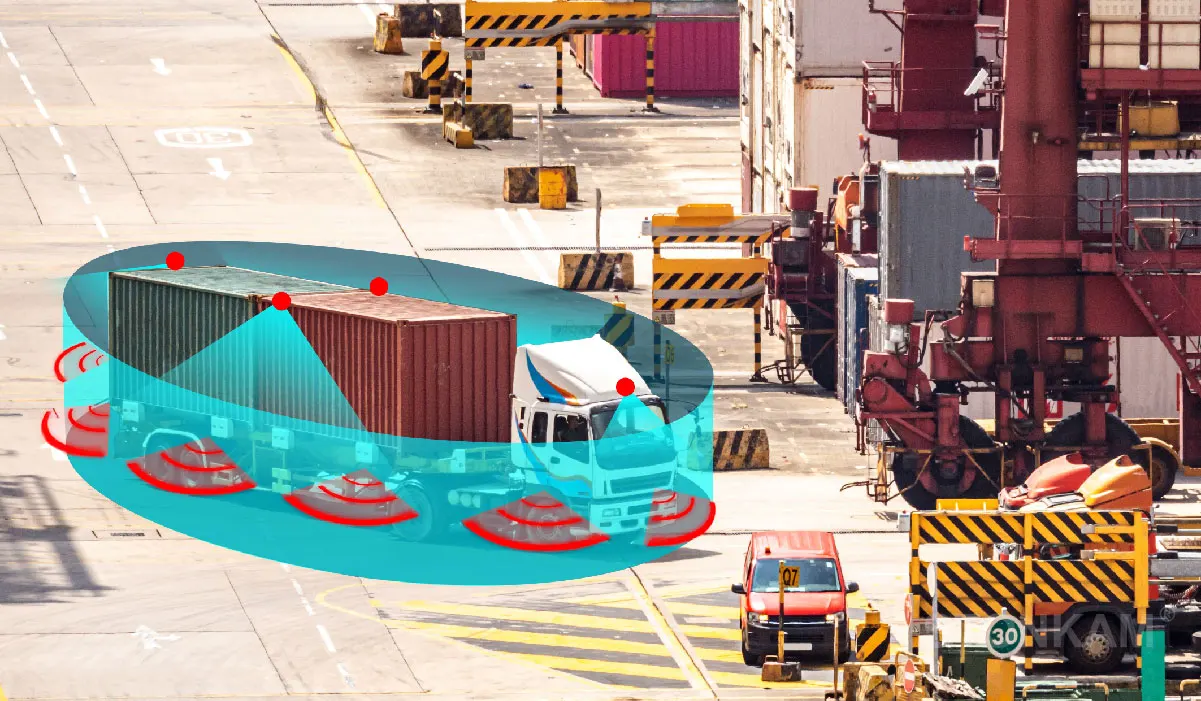

Support radar access, and protect vehicle whole body
Able to work with radar and support the overlay of real-time video and audio, it could actively warn the driver to avoid obstacles and other potential hazards.

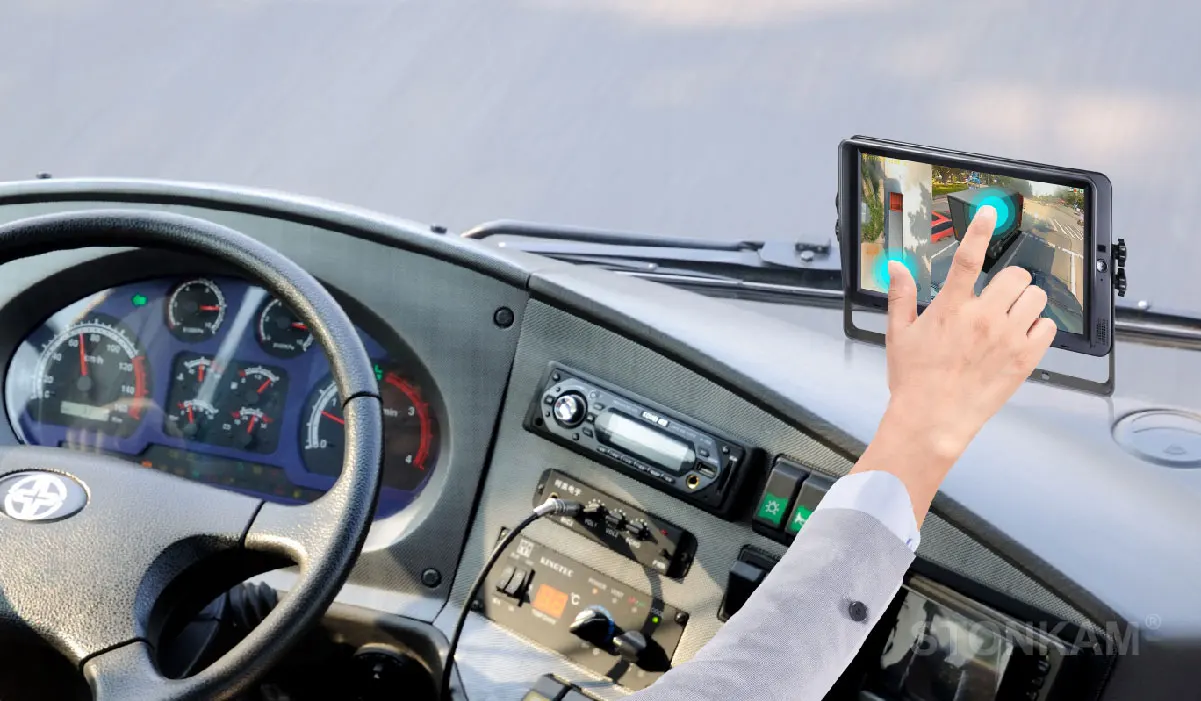

Optional capacitive touch screen
Application
7 inch 360 Degree Bird View Monitor 3D AVM Panoramic System is widely applied in trucks, public tansports, emergency vehicles and other large vehicles, fully covering the blind spot around the vehicle body, ensuring the safety of drivers, away from dangerous accidents.
