Description

210L 1.4MPa Cryogenic Liquid Nitrogen Dewar Bottle From China Factory

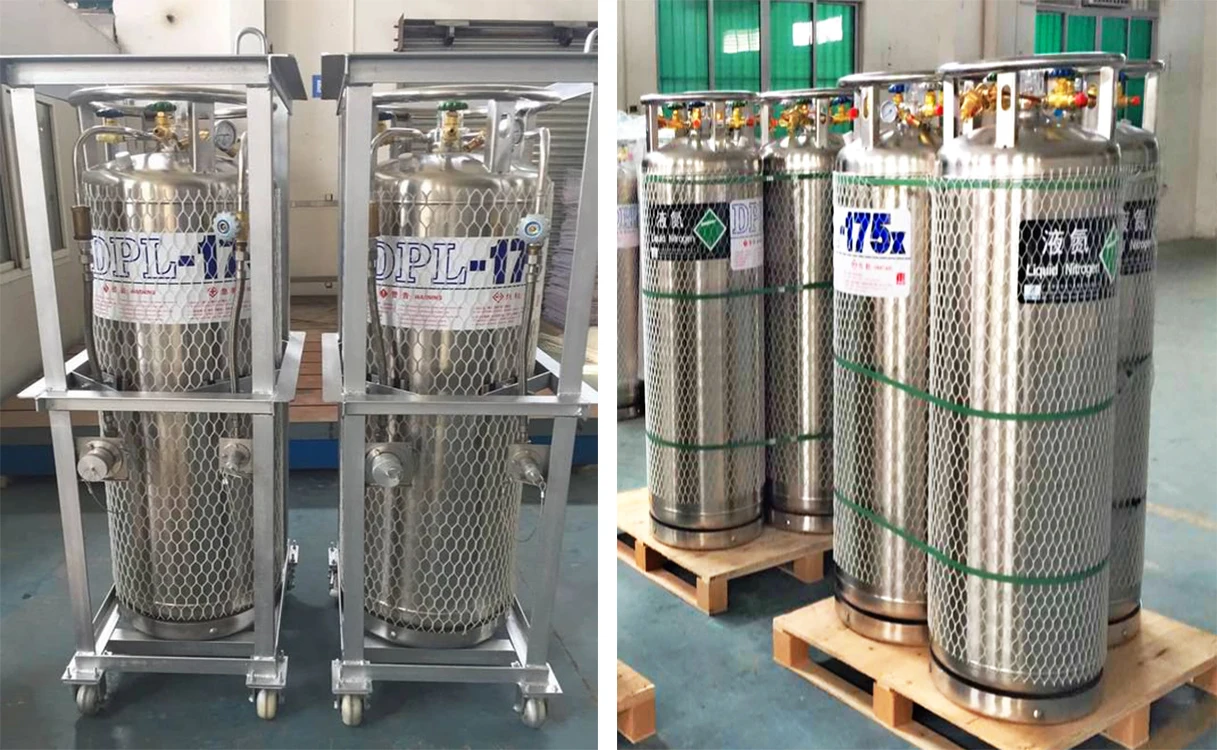

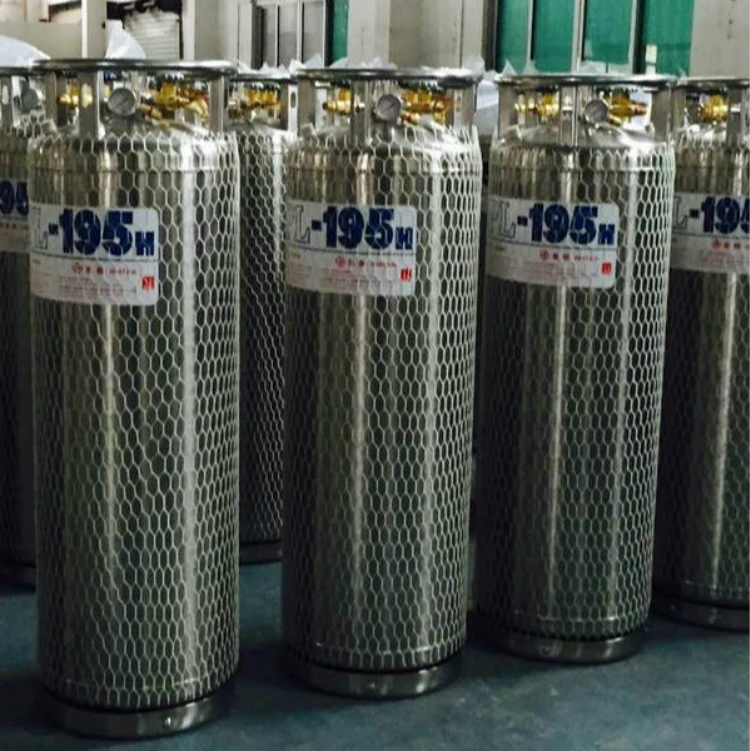

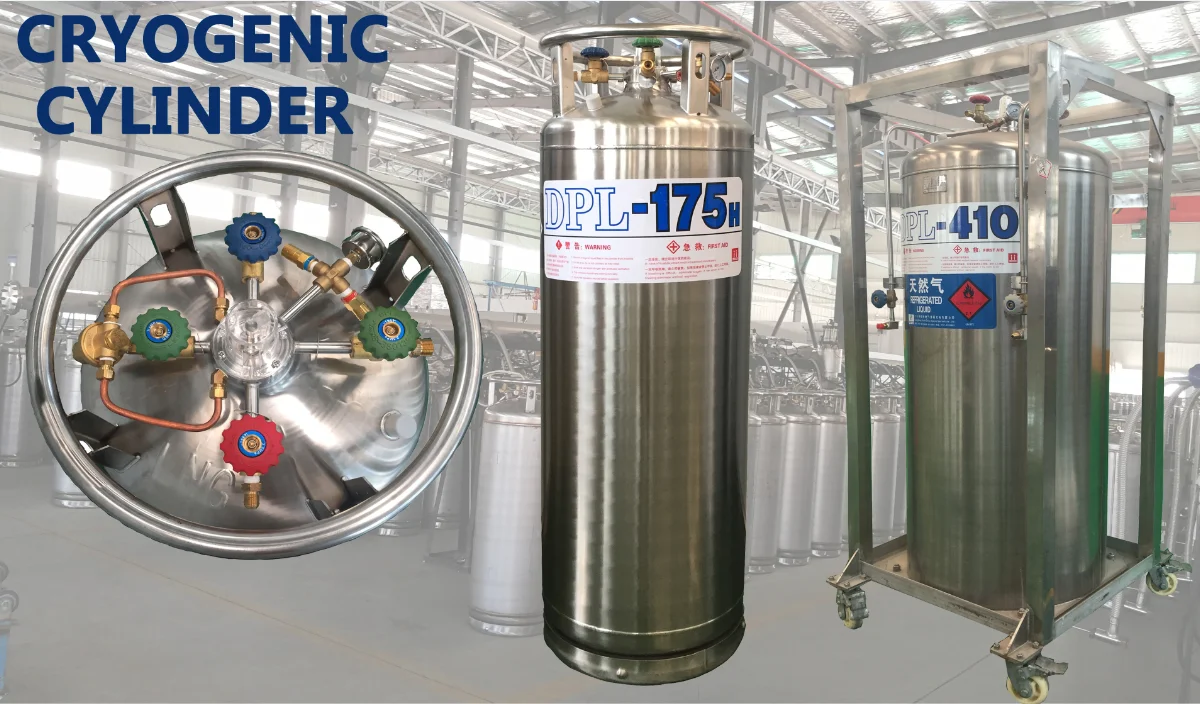

DPL series dewar cylinder is a kind of high-performance vacuum insulated cylinder which is used to store and transport cryogenic liquid oxygen,nitrogen,argon,carbon dioxide,liquefied natural gas,etc. It can be used for road transportation of cryogenic liquid,and also can be used for on-site storage and supply.Long storage time,wide range of applications.



Technical Parameter:

Model	Geometric Volume(L)	Working Pressure(MPa)	Size(D*H)mm	Weight(Kg)
DPL450-175-1.4	175	1.4	508*1496	117
DPL450-175-2.0	175	2.0	508*1500	135
DPL450-175-2.88	175	2.88	508*1500	156
DPL450-195-1.4	195	1.4	508*1623	124
DPL450-195-2.0	195	2.0	508*1626	144
DPL450-195-2.88	195	2.88	508*1626	160
DPL450-210-1.4	210	1.4	508*1716	131
DPL450-210-2.0	210	2.0	508*1720	148
DPL450-210-2.88	210	2.88	508*1720	173
Model	Geometric Volume(L)	Working Pressure(MPa)	Size(L*W*H)mm	Weight(Kg)
DPW650-499-1.44	499	1.44	2045*770*1030	338
DPW650-499-2.5	499	2.5	2045*770*1030	402

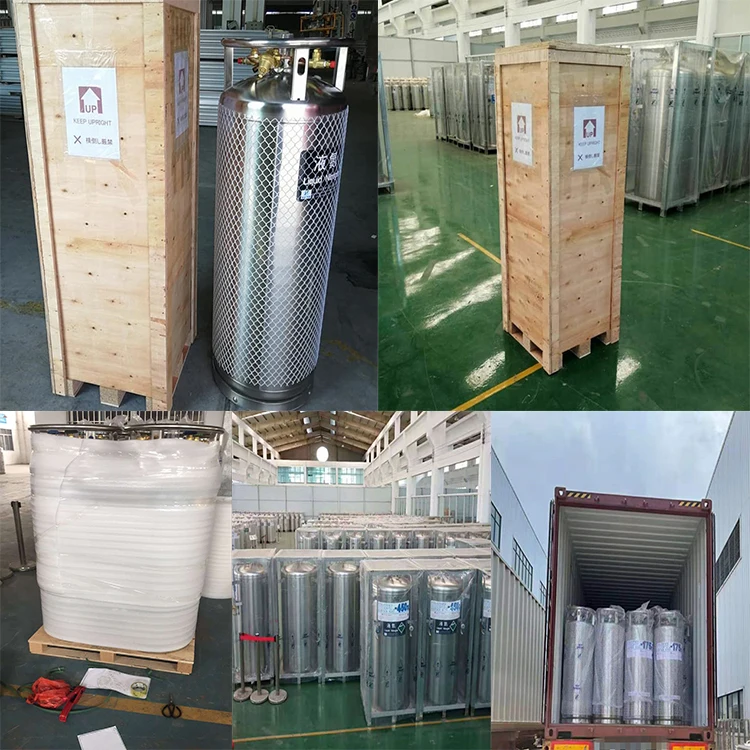

1.packaging with nude

2.packaging with wooden pallets

3.packaging as you required

 Xinxiang Chengde Energy Technology Equipment Co.Ltd(original Chengde Gas Equipment Co. Ltd.) was founded in 2002,company is located in Industrial Park,Fengquan district,Xinxiang city, Henan province.with its south to the yellow river and north to Taihang Mountain, with beautiful scenery and convenient transportation.The company has been committed to the pressure vessels.Low-temperature cryogenic equipment and gas equipment in the field of research and development design manufacture and installation.

Our main products have cryogenic liquid storage tank,LNG storage tank,cryogenic liquid pump,ambient vaporizer, water bath vaporizer, LPG electric vaporizer,cryogenic liquid cylinders(VGL),cryogenic nitrogen dewar container,cryogenic liquid micro tank,ISO tank container,LPG storage tank,semi-trailer tank,air separation plant etc.Liquid oxygen,nitrogen,argon,carbon dioxide and other industrial gases complete equipment engineering;LNG refueling station,LNG vaporizing station,Storage station, peak regulating station complete sets of equipment engineering.

The company more than 30000 square meter for workshop.Our company have exported products to foreign countries more than 20 years have rich experience in production and exported,products have exported to more than 68 countries also have branch office in the Vietnam.

1,Solid and durable stainless steel structure.

2,Simple operation and convenient use.

3,More economical, less use loss.

Xinxiang Chengde is in according with “Be honest and trustworthy, mo orality first” of enterprise value, stick to “Professional,Focus,Win-win,and Share“of business philosophy,Keep the spirit of “Optimism,Inclusiveness,Innovation,and progress”,Realize the common promotion of enterprise value and customer value.To serve the global cryogenic field as its own responsibility,deepen the global market, use the spirit of craftsmen to forge the power of a big country, and achieve the good vision of "a hundred years of honesty and service for the world" in continuous development and innovation.
