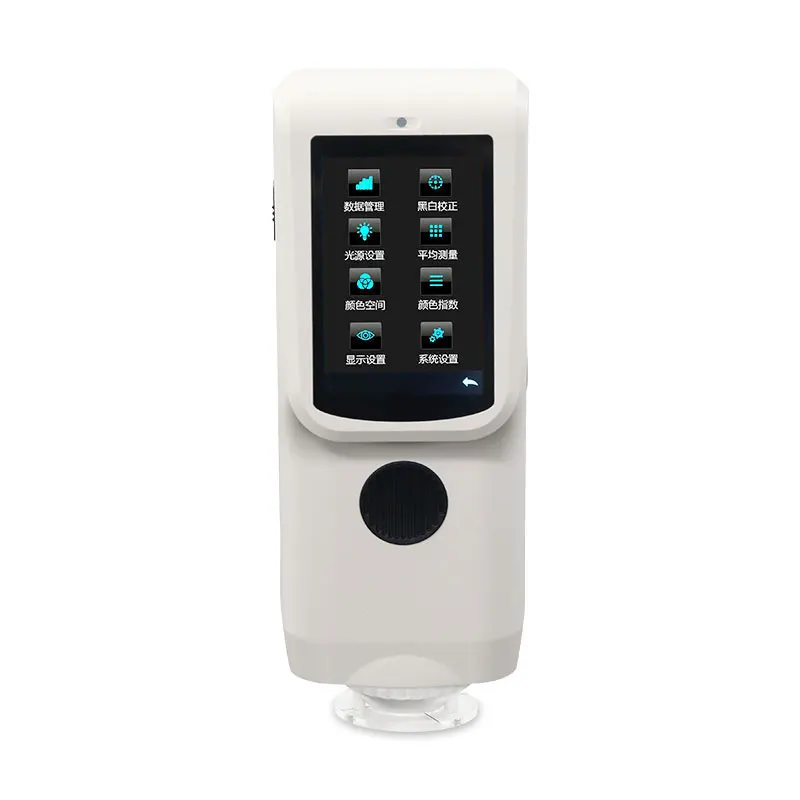

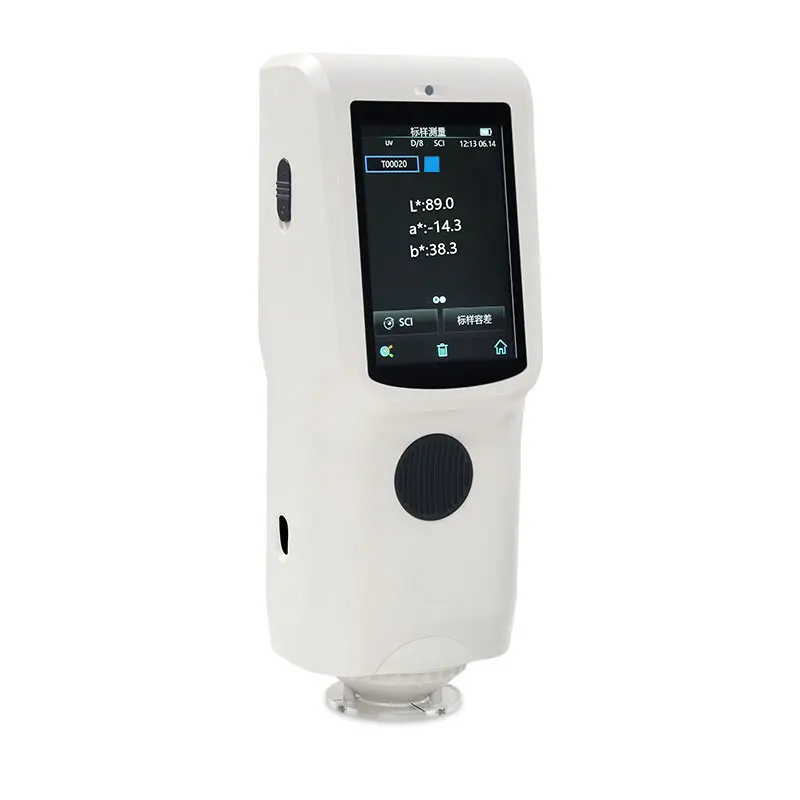

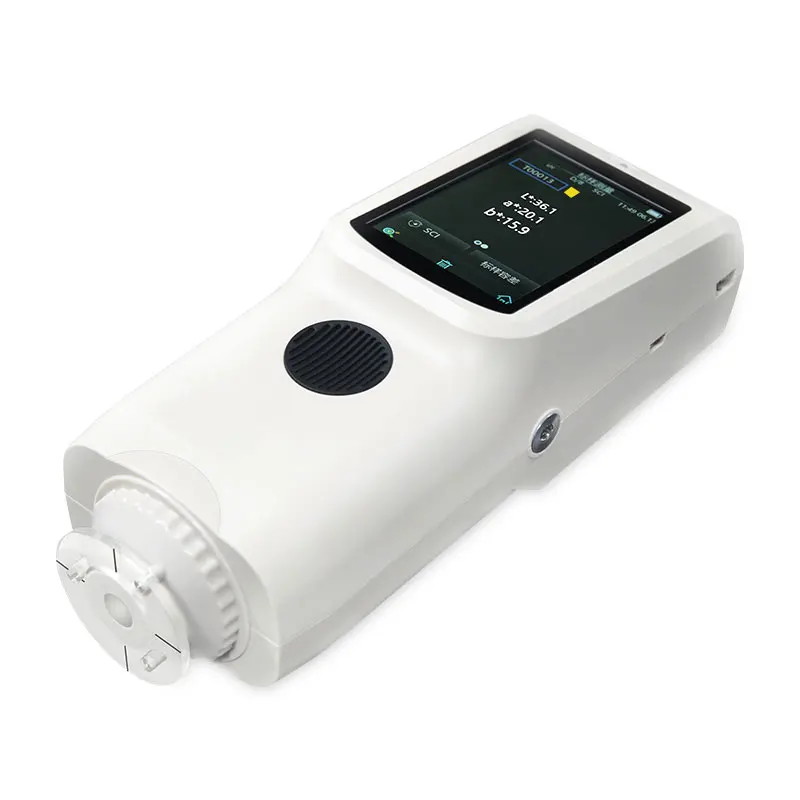

TS7010 CIE LAB Portable Color Analyzer Colorimeter For Paper
- Category: >>>
- Supplier: LIAONING HUIQI OPTICS TECHNOLOGY CO. LTD.
Share on (1600714615253):
Product Overview
Description
Product Description

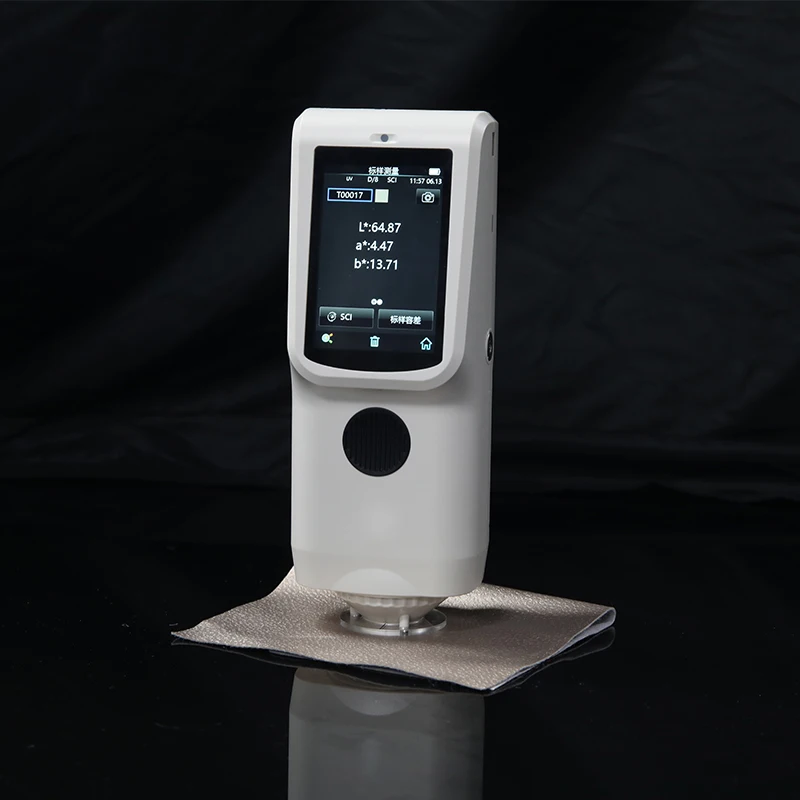

TS7010 CIE LAB Color Inspection Machine Camera Viewing Colorimeter For Paper
TS7010 is a new portable spectrocolorimeter with 3nh own core research and development technology. It is the high level
colorimeter in spectral architecture. In addition to ensure accurate relative ΔE at the same time, it is also to ensure the
accuracy of the absolute value of L, A and B for a long time. And it can pass the international standards and national standards of calibration any time any where. Using built-in silicon photodiode array (double row group 24) sensors, imported whiteboard, repeatability ΔE * ab is easily controlled within 0.1. The measurement speed and convenience of the operation makes it easy to use. TS7010 spectrocolorimeter can all quickly judge color difference measurement when connecting to PC software or not. With powerful functions and 8 mm aperture, it meets the industry production and quality inspection of accurate color difference control like plastic electronics, paint and ink, textile printing and dyeing, printing, ceramic industry etc.
Features
1. Φ 8 mm diameter measurement, 10 ° angle observer can meet most of the industry customer requirements;
2. Combination of full-spectrum LED light source, flat grating and true color capacitive touch screen, with a high starting point;
3. Silicon photodiode array (24 groups with double rows) sensor, display precision 0.1, good repeatability;
4. The light source life is more than 3 million measurements in 5 years, and the lithium battery takes 6,000 measurements within 8 hours, which can be recharged repeatedly and has a long battery life;
5. Quick data search, analysis and comparison with 500 data storage samples and 10,000 samples.
2. Combination of full-spectrum LED light source, flat grating and true color capacitive touch screen, with a high starting point;
3. Silicon photodiode array (24 groups with double rows) sensor, display precision 0.1, good repeatability;
4. The light source life is more than 3 million measurements in 5 years, and the lithium battery takes 6,000 measurements within 8 hours, which can be recharged repeatedly and has a long battery life;
5. Quick data search, analysis and comparison with 500 data storage samples and 10,000 samples.
Application:

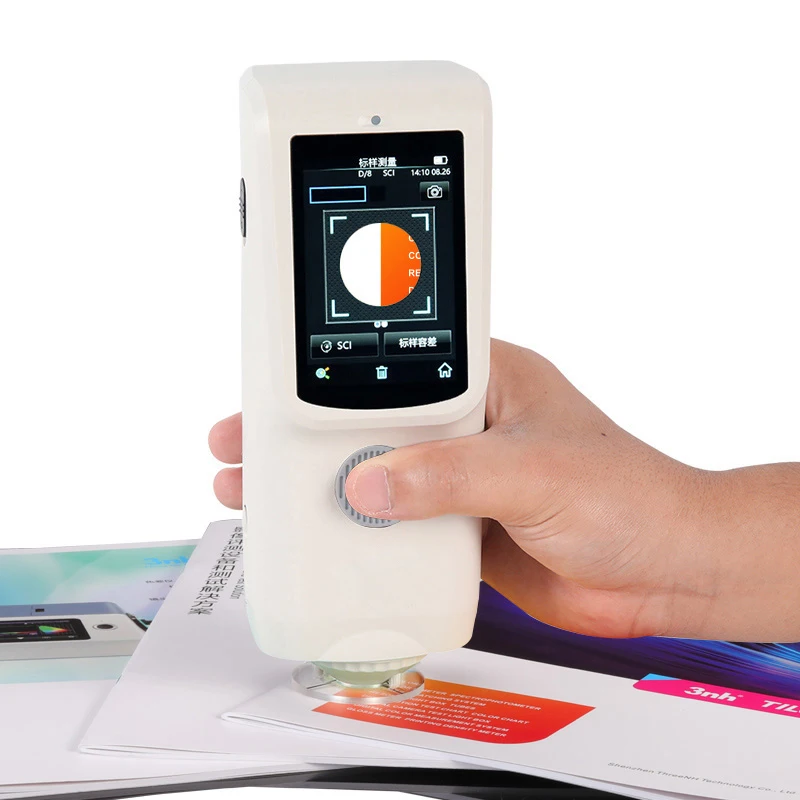

With 8mm aperture, TS7010 spectroclorimeter is widely suitable for the industry production and quality inspection of accurate color difference control like plastic electronics, paint and ink, textile printing and dyeing, printing, ceramic industry etc.
Technical Advantages:
1. Ergonomic design and easy measuring device
TS7010 spectrocolorimeter has a beautiful, smooth shape and comfortable grip, in line with the structure design of human
mechanics, fit the palm for continuous testing, so that you can use it quickly and easily. An automatic measuring device is added, which is portable, quick and easy to measure.
2. Adopt full waveband balanced LED light source
The full waveband balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the
spectral loss of white LED in specific waveband, and ensures the measurement speed and accuracy of the measurement results.
3. Silicon photodiode array sensor (24 groups with double rows)
The dual-24 array sensor with larger area has strong light but not saturate, higher sensitivity of low light and wider spectral
response range, which ensures the measurement speed, accuracy, stability and consistency of the instrument.
4. Calirbation Certificate
Each TS7010 spectrocolorimeter has been verified and tested. After leaving the factory, each instrument is verified according to the measurement standards of authoritative verification departments, and the measurement data are traceable to the National Metrotechnical Institute to ensure the authority of the instrument test data.
5. ETC real-time calibration technology
TS7010 spectrophotometer adopts imported standard white board, which is resistant to yelloping and dirt infiltration and can be wiped, ensuring the long-term accuracy of the instrument. An innovative ETC real-time Calibration technique is also used, with a built-in standard white board into the optical system, which is reliably accurate and repeatable for each Test.
Technical Advantages:
1. Ergonomic design and easy measuring device
TS7010 spectrocolorimeter has a beautiful, smooth shape and comfortable grip, in line with the structure design of human
mechanics, fit the palm for continuous testing, so that you can use it quickly and easily. An automatic measuring device is added, which is portable, quick and easy to measure.
2. Adopt full waveband balanced LED light source
The full waveband balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the
spectral loss of white LED in specific waveband, and ensures the measurement speed and accuracy of the measurement results.
3. Silicon photodiode array sensor (24 groups with double rows)
The dual-24 array sensor with larger area has strong light but not saturate, higher sensitivity of low light and wider spectral
response range, which ensures the measurement speed, accuracy, stability and consistency of the instrument.
4. Calirbation Certificate
Each TS7010 spectrocolorimeter has been verified and tested. After leaving the factory, each instrument is verified according to the measurement standards of authoritative verification departments, and the measurement data are traceable to the National Metrotechnical Institute to ensure the authority of the instrument test data.
5. ETC real-time calibration technology
TS7010 spectrophotometer adopts imported standard white board, which is resistant to yelloping and dirt infiltration and can be wiped, ensuring the long-term accuracy of the instrument. An innovative ETC real-time Calibration technique is also used, with a built-in standard white board into the optical system, which is reliably accurate and repeatable for each Test.
Product Paramenters
Model | TS7010 |
Optical Geometry | D/8(diffused illumination, 8-degree viewing angle) |
SCI Mode | |
Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | |
Characteristic | Φ8mm apertures, Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries |
Integrating Sphere Size | Φ40mm |
Light Source | Combined full spectrum LED light source |
Spectrophotometric Mode | Flat Grating |
Senso | Silicon photodiode array (double row 24 groups) |
Wavelength Range | 400~700nm |
Wavelength Interval | / |
Semiband Width | 10nm |
Measured Reflectance Range | L:0~100; reflectivity:The reflectivity can be measured at 1 specific wavelength specified by the user (default: 550nm) |
Measuring Aperture | Φ8mm |
Specular Component | SCI |
Color Space | CIE LAB,XYZ,Yxy,LCh |
Color Difference Formula | ΔE*ab,ΔE*00 |
Other Colorimetric Index | / |
Observer Angle | 10° |
Illuminant | D65,A,F2(CWF) |
Displayed Data | Reflectivity (the user specifies the reflectivity at 1 specific wavelength), Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset |
Displayed Accuracy | 0.1 |
Measuring Time | About 1.5s |
Repeatability | Chromaticity value: MAV/SCI, within ΔE*ab 0.1 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.4 (Average for 12 BCRA Series II color tiles) |
Measurement Mode | Single Measurement, Average Measurement(2-99times) |
Locating Method | Stabilizer cross position |
Dimension | L*W*H=81X71X214mm |
Weight | About 460g |
Battery | Li-ion battery, 6000 measurements within 8 hours |
Illuminant Life Span | 5 years, more than 3 million times measurements |
Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
Data Port | USB |
Data Storage | Standard 500 Pcs, Sample 10000 Pcs |
Language | Simplified Chinese, English, Traditional Chinese |
Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
Storage Environment | -20~50℃, 0~85%RH (no condensing) |
Standard Accessory | Power Adapter, USB Cable, User Guide, White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture |
Optional Accessory | USB Micro Printer, Powder Test Box |
Notes | Technical parameters are only for reference, subject to the actual sale of the product |

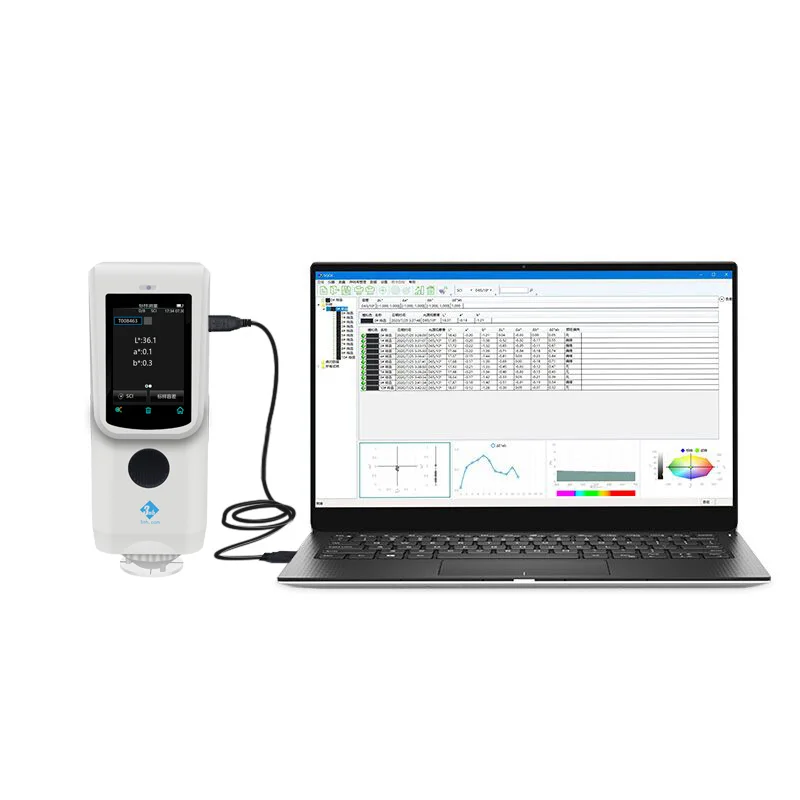

Software
Packing List:
Packing Material: Bag with carton box
Packing Size: 37*17*31cm
Packing Weight:3kgs
Delivery time:3-7 days after payment received.
Packing Size: 37*17*31cm
Packing Weight:3kgs
Delivery time:3-7 days after payment received.
Qty. | Name | Qty. | Name |
1 | Main Instrument | 1 | Power Adapter |
1 | Operating Manual | 1 | USB Cable |
1 | Warranty Card | 1 | Black/White Calibration Tiles |
1 | Color QC Software download from our website | 1 | Packing List |
