Data transmission Flexible Printed Circuit Overlength Fpc Manufacturer Flexible Pcb Manufacturer
Data transmission Flexible Printed Circuit Overlength Fpc Manufacturer Flexible Pcb Manufacturer
Data transmission Flexible Printed Circuit Overlength Fpc Manufacturer Flexible Pcb Manufacturer
Data transmission Flexible Printed Circuit Overlength Fpc Manufacturer Flexible Pcb Manufacturer
Data transmission Flexible Printed Circuit Overlength Fpc Manufacturer Flexible Pcb Manufacturer
Data transmission Flexible Printed Circuit Overlength Fpc Manufacturer Flexible Pcb Manufacturer
Data transmission Flexible Printed Circuit Overlength Fpc Manufacturer Flexible Pcb Manufacturer

Data transmission Flexible Printed Circuit Overlength Fpc Manufacturer Flexible Pcb Manufacturer

Share on (1600714620574):


Price:

Quantity:


Product Overview

Description



Specification


Model Number
TWS-FPC03
Type
FPC
Brand Name
TWS
Base Material
PI
Copper Thickness
1 OZ
Board Thickness
0.6mm
Min. Hole Size
0.1mm(4mil)for HDI / 0.15mm(6mil)
Min. Line Width
0.075mm/0.075mm(3mil/3mil)
Product Name
Ultra long flexible circuit board
Size
11.2m
Plate thickness
0.6mm
Layer
2




Soft board process capability parameter table
Project Name
Process capability
Product structure
Structure type
Symmetrical structure, layered structure, hollow structure
Material Type
Flexible Materials
PI, PET, LCP
Insulation materials
Covering film, soft board ink
Layers
Number of large Layers
12 Layers
Plate thickness
Small plate thickness
0.1±0.03mm
Drill hole diameter
Small drilling diameter
0.05mm
Hole ring
Small hole ring
One side ≥3mil


Large copper thick
Inner layer large copper thickness
2 OZ
Outer layer finished copper thickness
3 OZ

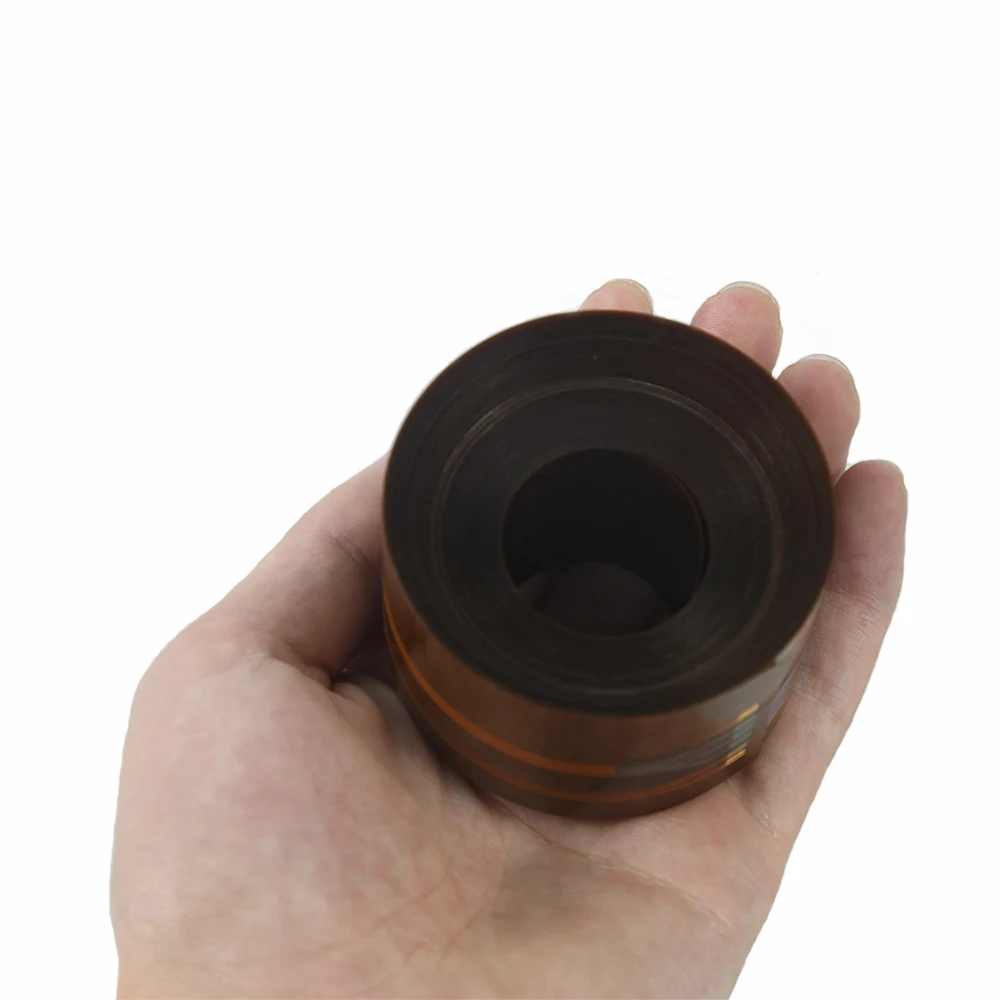

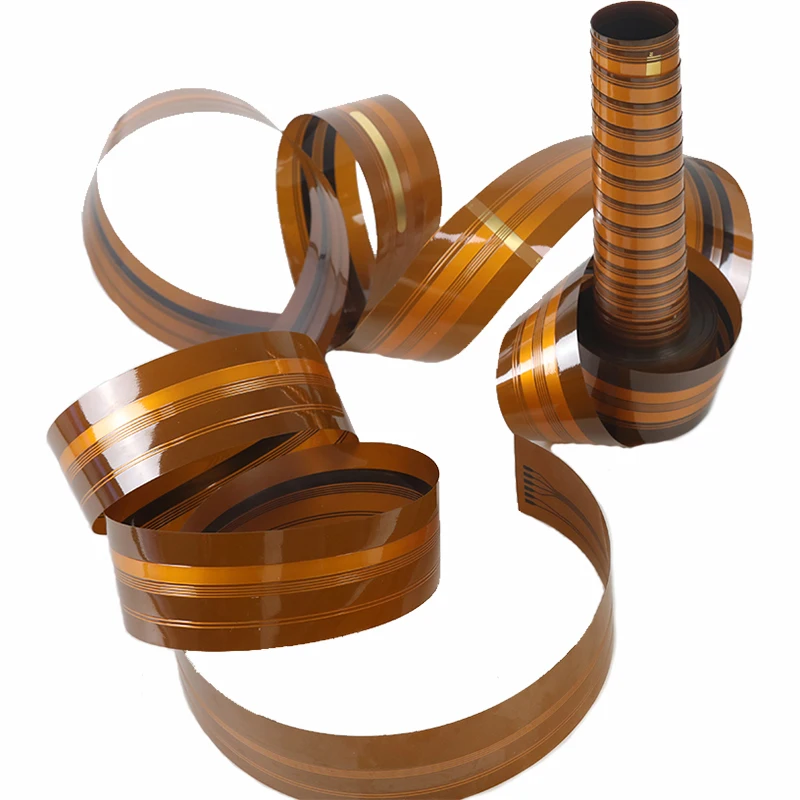

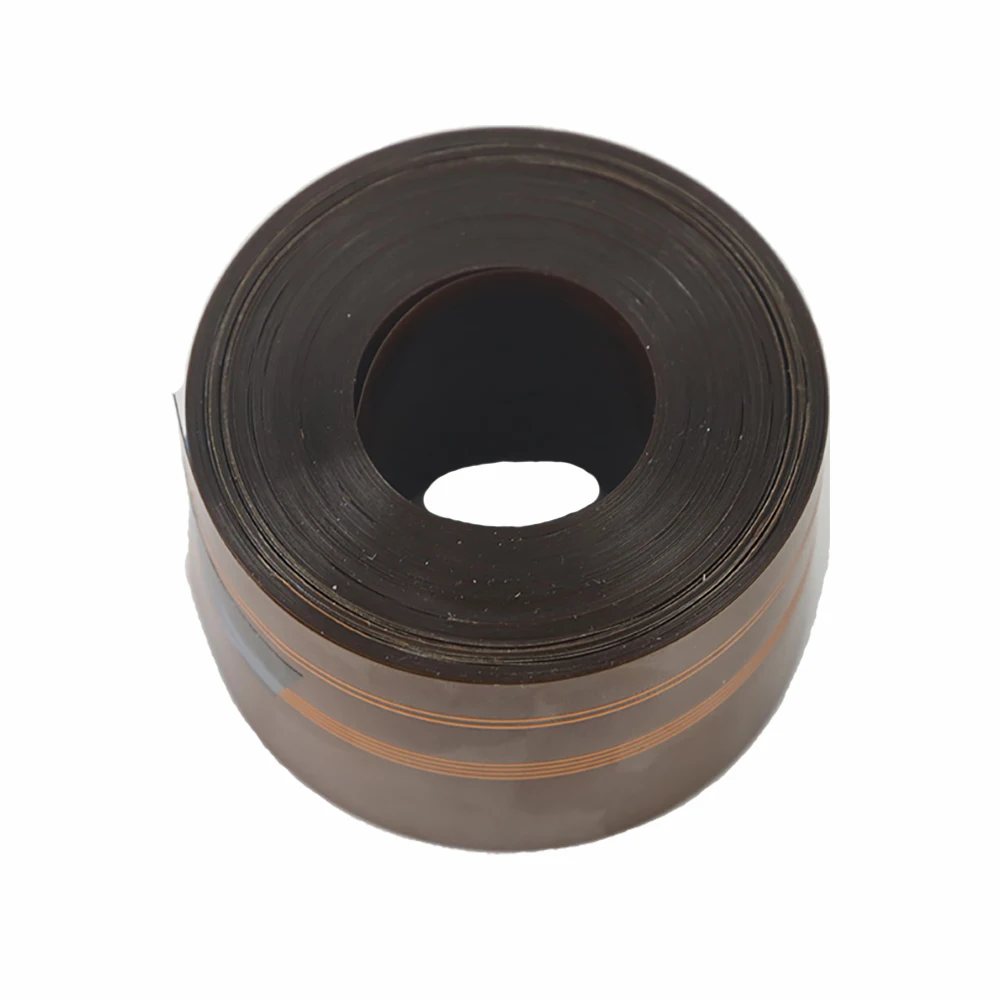

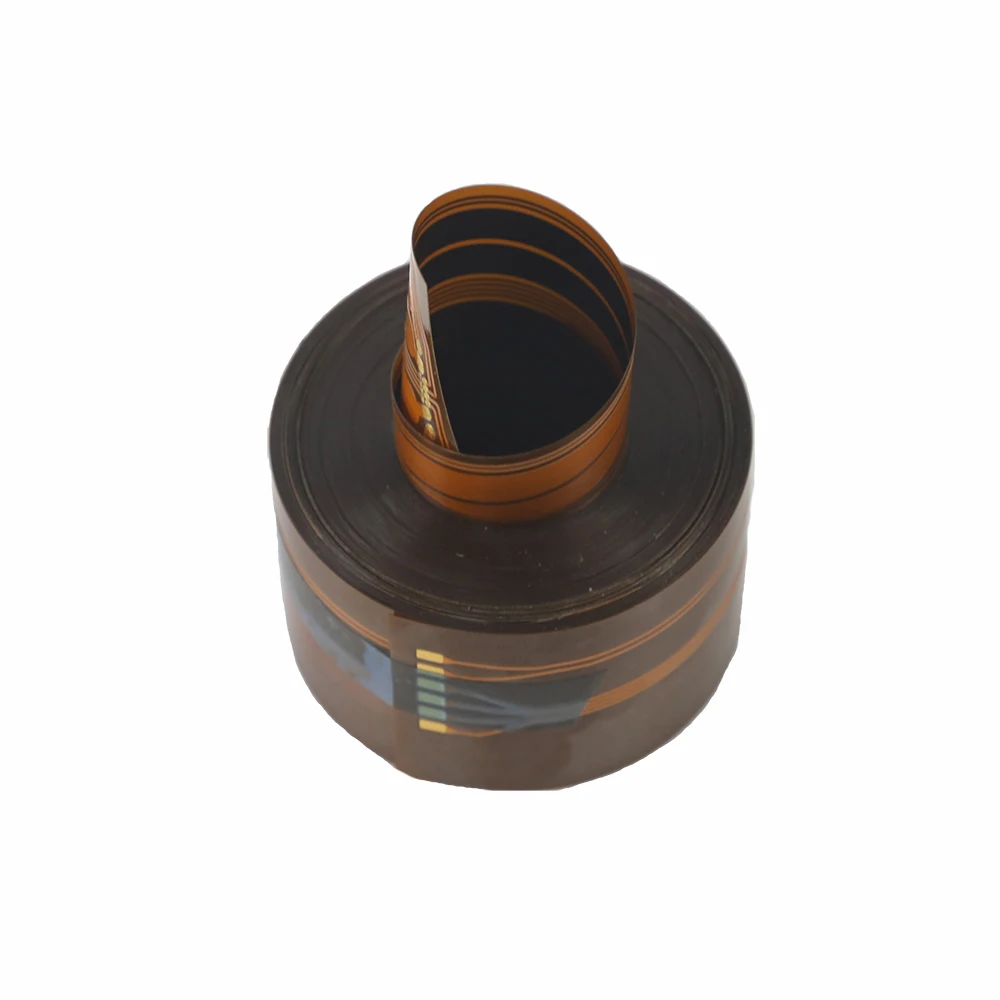

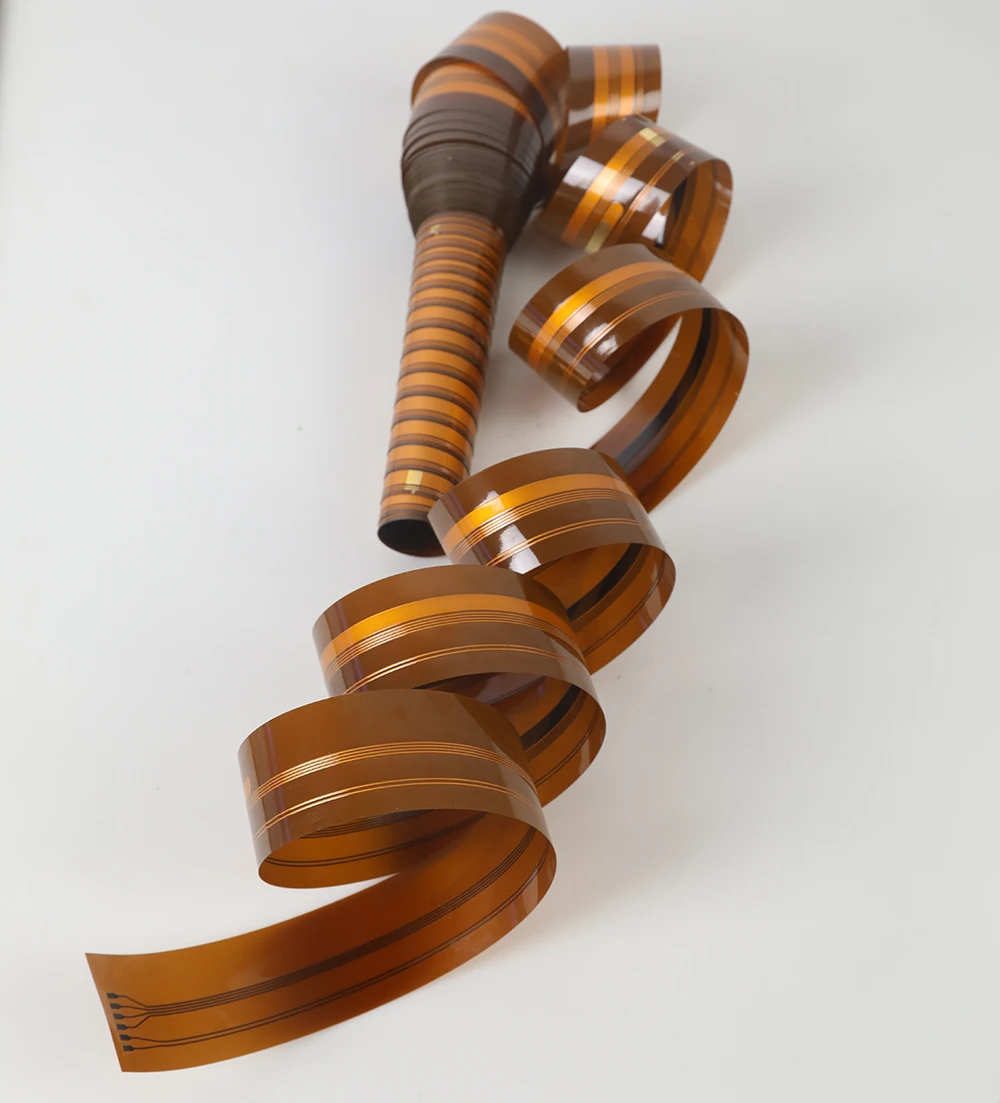

Applications:connector
Number of layers: 2
Plate thickness: 0.18mm
Copper thickness: 1 OZ
Material: PI

Technical difficulties.
1. Extra long size
2.Length 11.2M

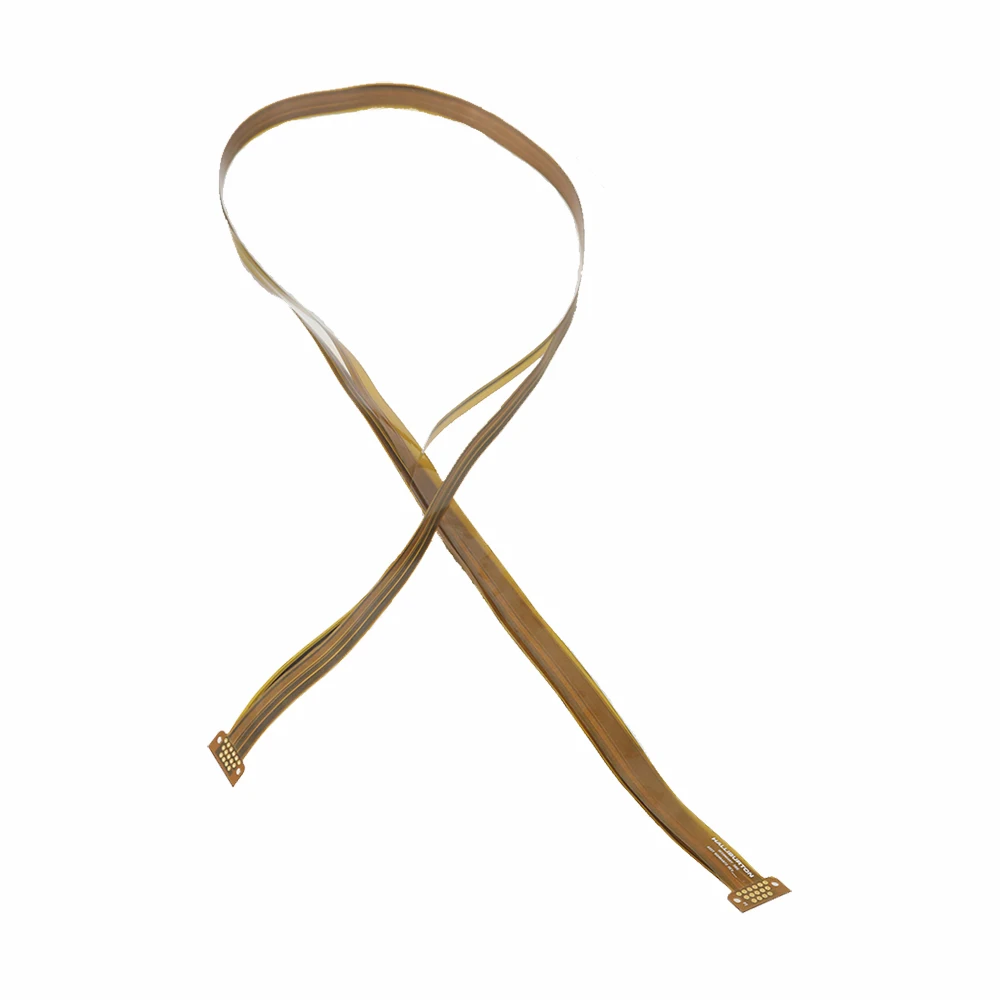

Applications:connector
Number of layers: 6
Plate thickness: 0.6mm
Copper thickness:0.5 OZ inner, 1 OZ outer
Material: PI+ high tgFR4

Technical difficulties.
1. The length is 965mm
2. AIR GAP structure
3. Memory impedance control
4. Plug-in hole tolerance +/-0.025mm

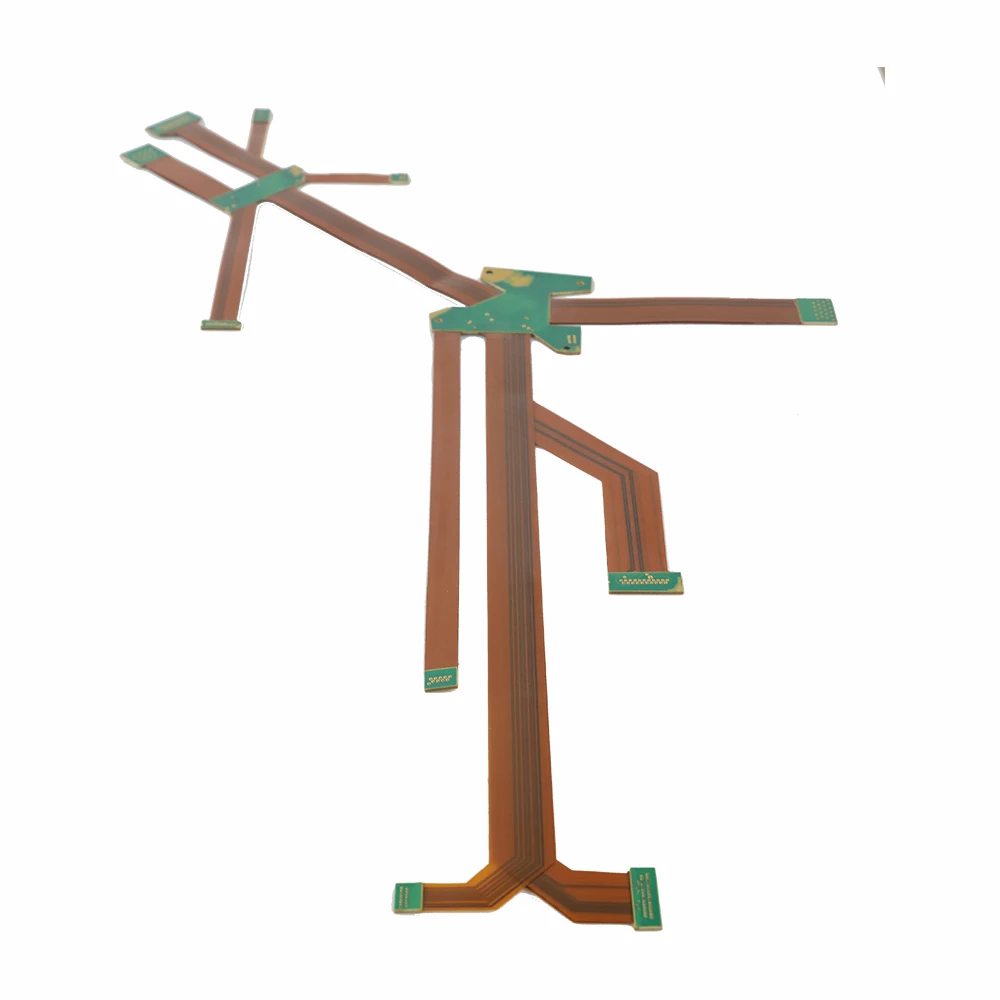

Applications ：Drones
Number of layers: 18
Plate thickness: 2.2mm
Copper thickness:0.5 OZ inner, 1 OZ outer
Material: PI+ high tgFR4

Technical difficulties.
1. Multi-connection soft board
2. AIR GAP structure
3. Impedance control
4. A variety of hard boards with different thicknesses
