ZAY7532 ZAY7540 ZAY7545 ZAY7550 series multipurpose taladro fresador milling drilling machine price SP2229
- Category: >>>
- Supplier: Shanghai Sumore Industrial Co. Ltd.
Share on (1600714714042):
Product Overview
Description
Product Description

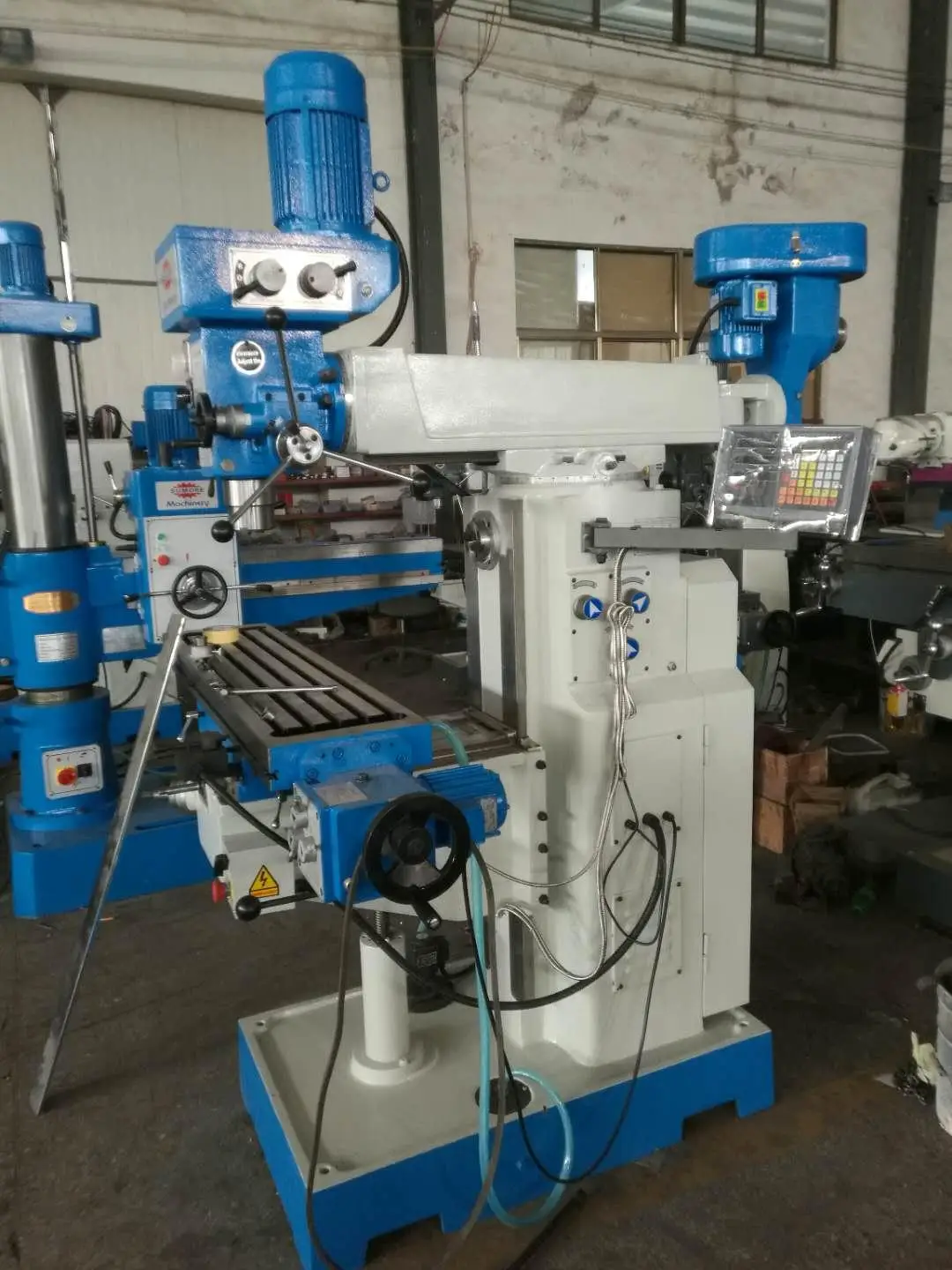

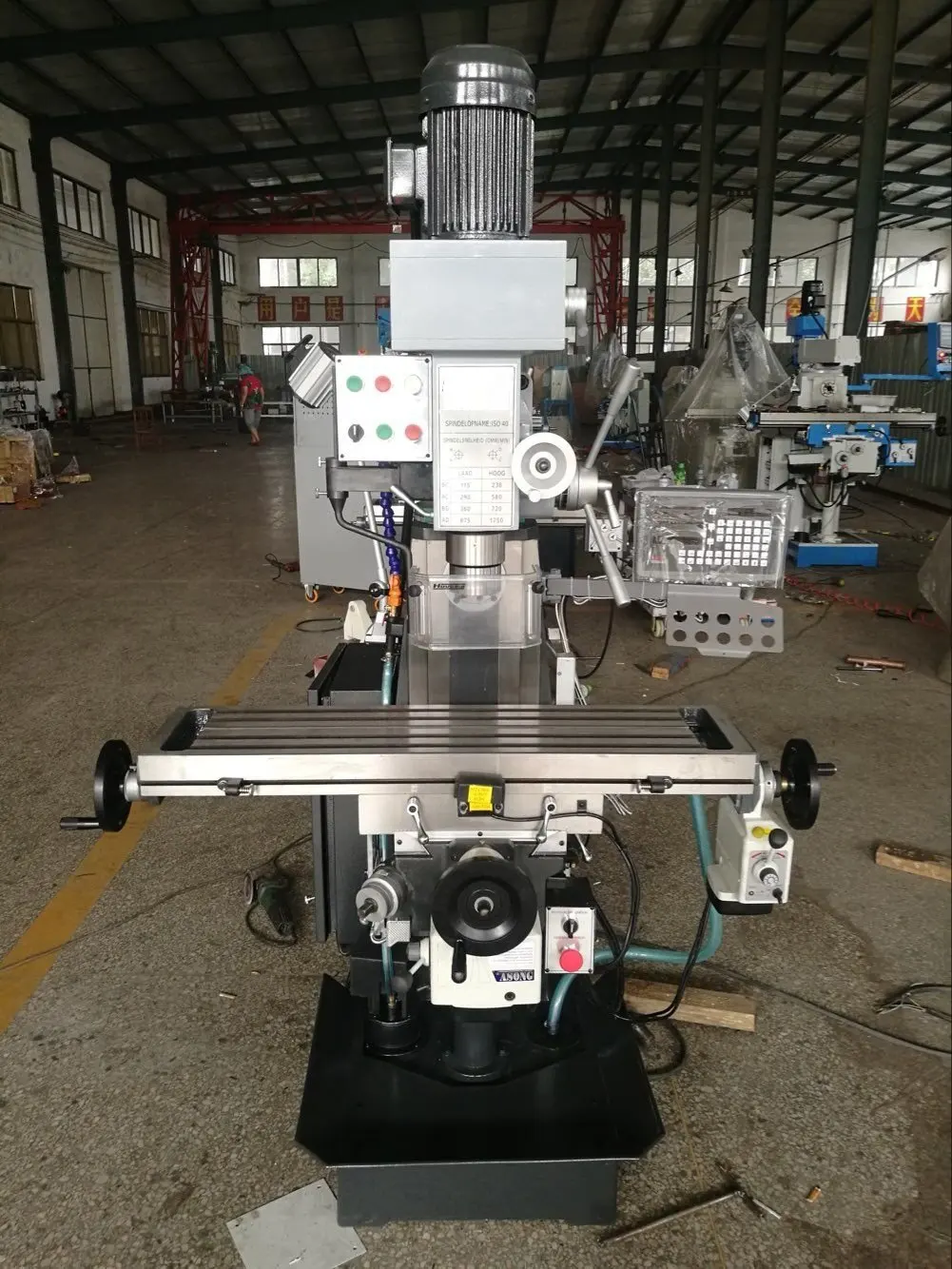

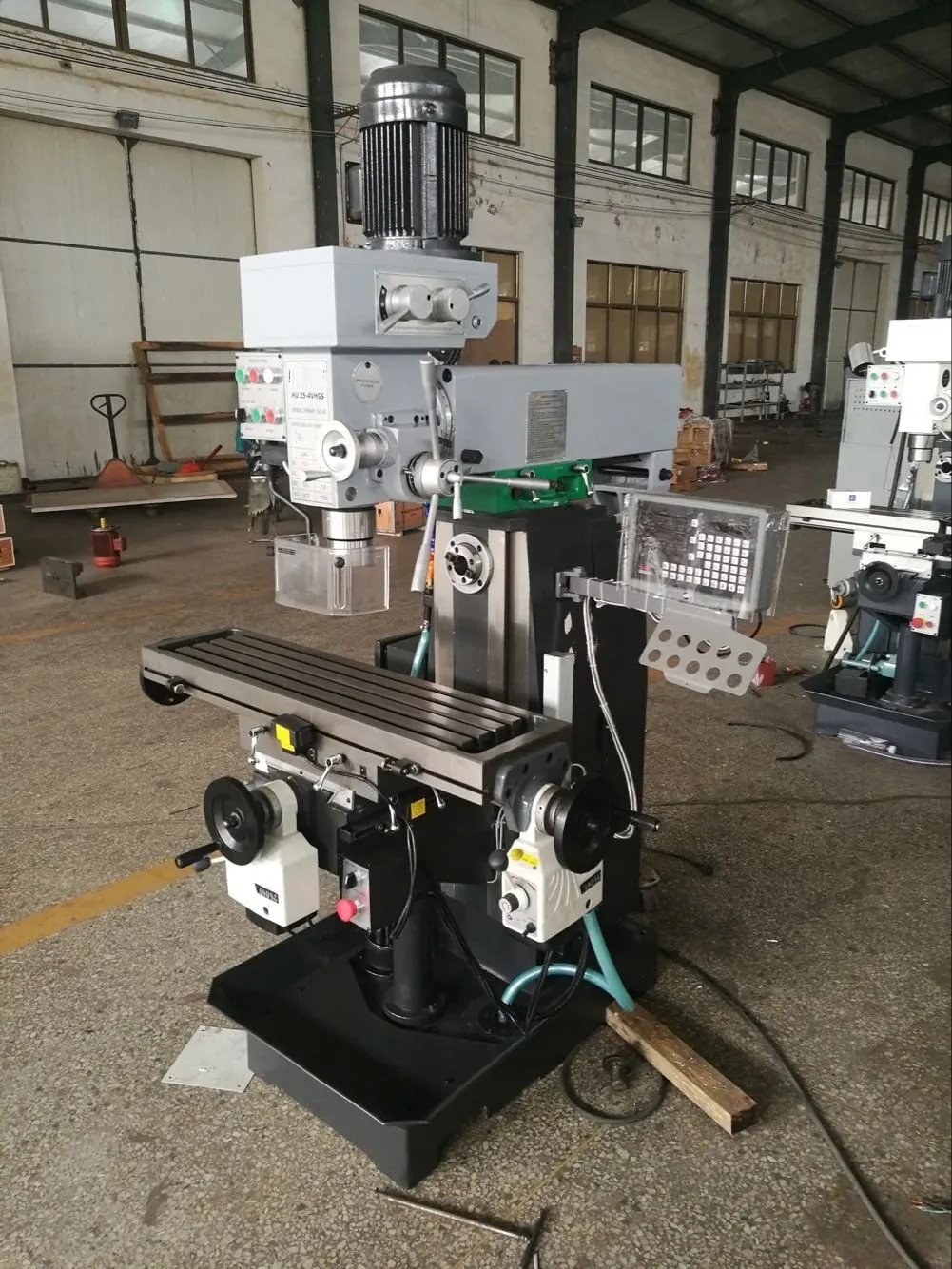

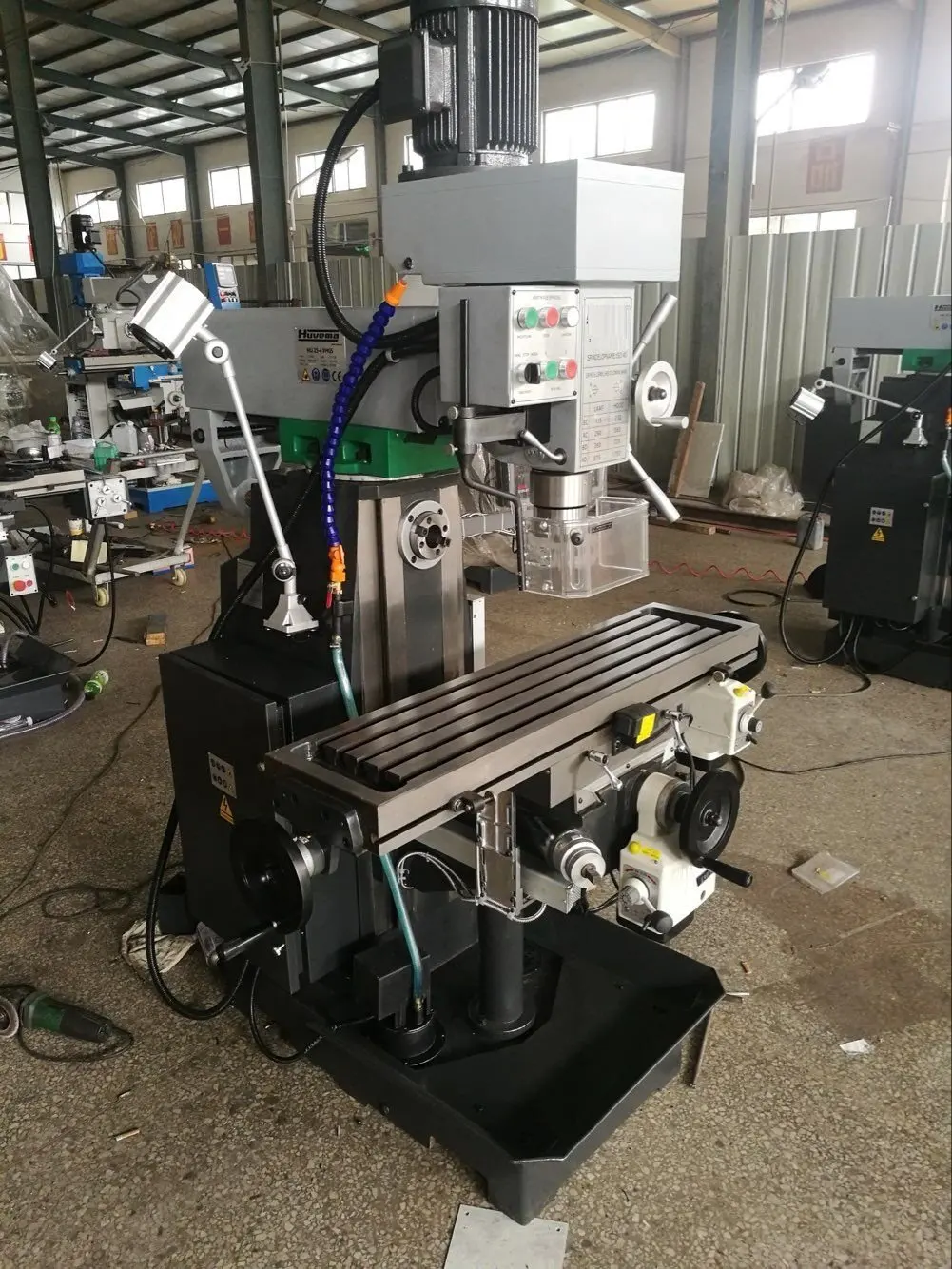

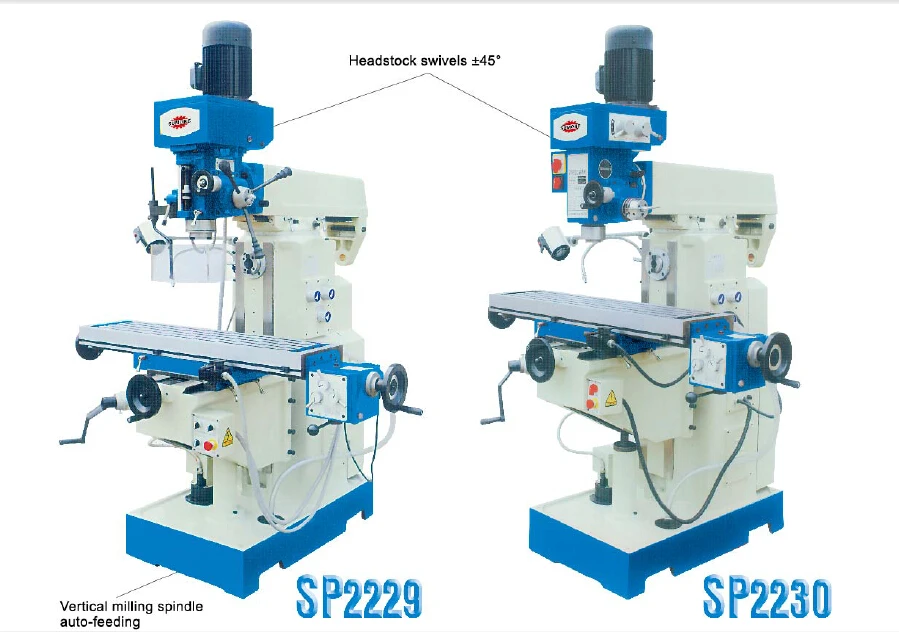

ZAY7532 ZAY7540 ZAY7545 ZAY7550 series multipurpose milling drilling machine price SP2229,SP2230
Drill capacity: 50mm
Table size: 800*240mm
Max. Vertical milling dia: 25mm
Spindle taper: MT4/R8/ISO30
Description:
SP2237 universal drilling and milling machine, can be both horizontal milling and vertical milling, features are as below,
1. milling machine（H/V）
2. Vertical milling spindle manual feed
3. X axis mechanical feed
4. Vertical milling head rotate 45 °for right side and left side
5. Uses standardized assemblies from the VH milling machine universal use as milling machines and drill press
6. Easily shift able gear drive ensures power transmission without losses
7. With V-belt spindle drive and gear spindle drive
8. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the
spindle quill
Specification
Model | SP2229 |
Drilling Capacity | 30 / 50 mm |
Boring Capacity | 120 mm |
Longitudinal Axis Travel (X) | 600 mm |
Cross Axis Travel (Y) | 260 mm |
Headstock Axis Travel (Z) | 120 mm |
Effective Table Size | 1,120 x 280 mm |
Spindle Taper | MT4 / R8 / ISO30 / ISO40 |
Spindle Speed Range | 90 - 2,000 / 38 - 1,130 rpm |
Distance Between Spindle to Table | 140-490 mm |
T-slot Amount | 3 |
Head Tilt Angle (Left / Right) | 45° / 45° |
Motor Power | 850 / 1,500 / 2,200 w |
Voltage and Frequency | Customrized |
Overall Dimension (LxWxH) | 1,400 x 1,630 x 2,350 mm |
Net Weight/Gross weight | 1,200 kg/1350kg |
Packing & Delivery
Related
Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , CSA ,UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
We have got the certificates of CE, GS ,Rohs , CSA ,UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
Exhibition
Packaging & Shipping
FAQ
1.Q: What is your payment terms?
A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.
2.Q: What is your delivery time?
A:Usually, one machine takes 20-40 days. If we have in stock, we can arrange
shipment as soon as we receive the payment.
3.Q:Where is your factory?Can we go to your factory and learn how to use the machine?
A:Our factory is loacted in yancheng,jiangsu Province.
We sincerely welcome you come to our factory.
4.Q: Do you have CE certification?
A:yes, we have CE certification, machine quality is guaranteed.
5.Q:Can you accept OEM order?
A:Sure,we accept OEM with your logo print on the machine and package with your design.
A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.
2.Q: What is your delivery time?
A:Usually, one machine takes 20-40 days. If we have in stock, we can arrange
shipment as soon as we receive the payment.
3.Q:Where is your factory?Can we go to your factory and learn how to use the machine?
A:Our factory is loacted in yancheng,jiangsu Province.
We sincerely welcome you come to our factory.
4.Q: Do you have CE certification?
A:yes, we have CE certification, machine quality is guaranteed.
5.Q:Can you accept OEM order?
A:Sure,we accept OEM with your logo print on the machine and package with your design.
