SYNCOTEK Card Reading Plastic Card Dispenser Bill Acceptor Manufactures
US $250.00-$278.00
QSR система Windows Android безналичный платеж онлайн наличный заказ бесплатное программное обеспечение для заказа еды и киоски оплаты самообслуживания
- Category: Payment Kiosks >>>
- Supplier: Shenzhen,Diversity,Kiosk,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Built-in Software,You do not need another pos system for it!!!!
QSR Windows Android System Cashless Payment Online Cash Free Food Ordering Software Include and Self Service Payment Kiosks
Ready to USE/PLUG & PLAY/POS Terminal for bank card payment included/
Details Images
Self-service ordering process
1.Order Through kiosk/order dishes or drinks
2.Chooses to eat in.take away, or eat in and take away
3.Confirms an order and make payment(Cash/credit card)
4.Get receipts&wait for your calls
5.collect foods & enjoy your meals
2.Chooses to eat in.take away, or eat in and take away
3.Confirms an order and make payment(Cash/credit card)
4.Get receipts&wait for your calls
5.collect foods & enjoy your meals
Software:

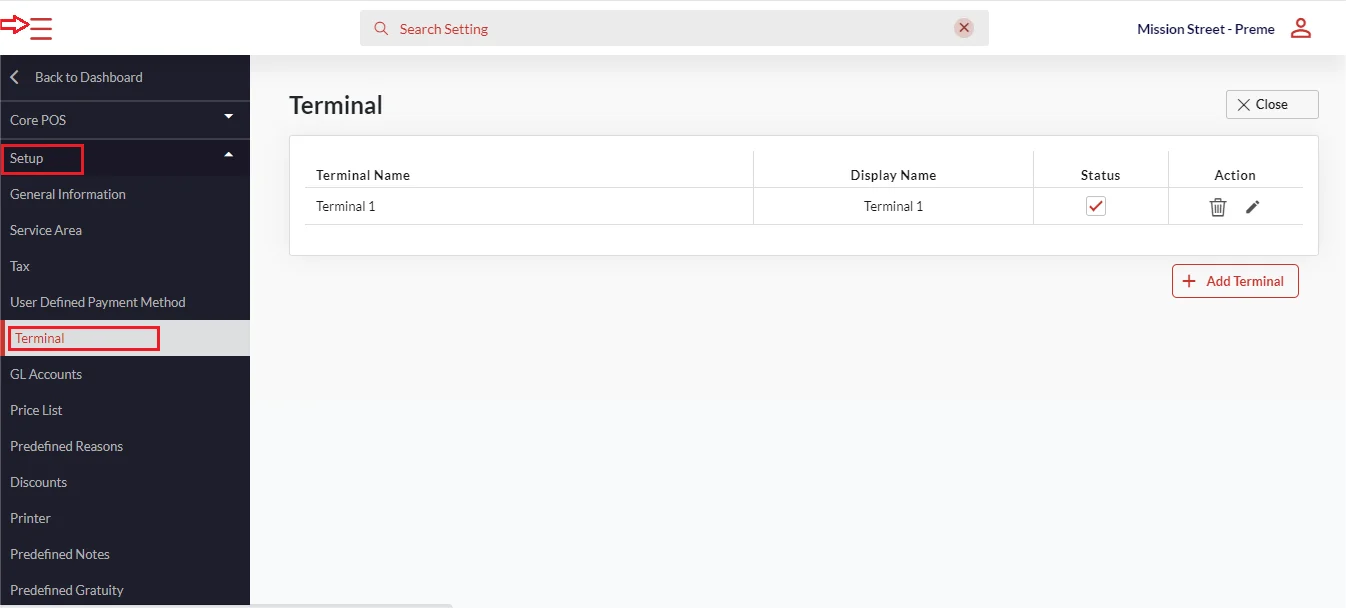

Creating a new Self Ordering Terminal
1. Login to the backend portal.
2. Click the Left Navigation button.
3. Click the Configuration button on the left panel.
4. Tap on the Setup and click Terminal from the dropdown menu.
5. The above screen appears, click the Edit button on the top right.
6. Click the + Add Terminal button
2. Click the Left Navigation button.
3. Click the Configuration button on the left panel.
4. Tap on the Setup and click Terminal from the dropdown menu.
5. The above screen appears, click the Edit button on the top right.
6. Click the + Add Terminal button
Adding items to the Self Ordering Kiosk

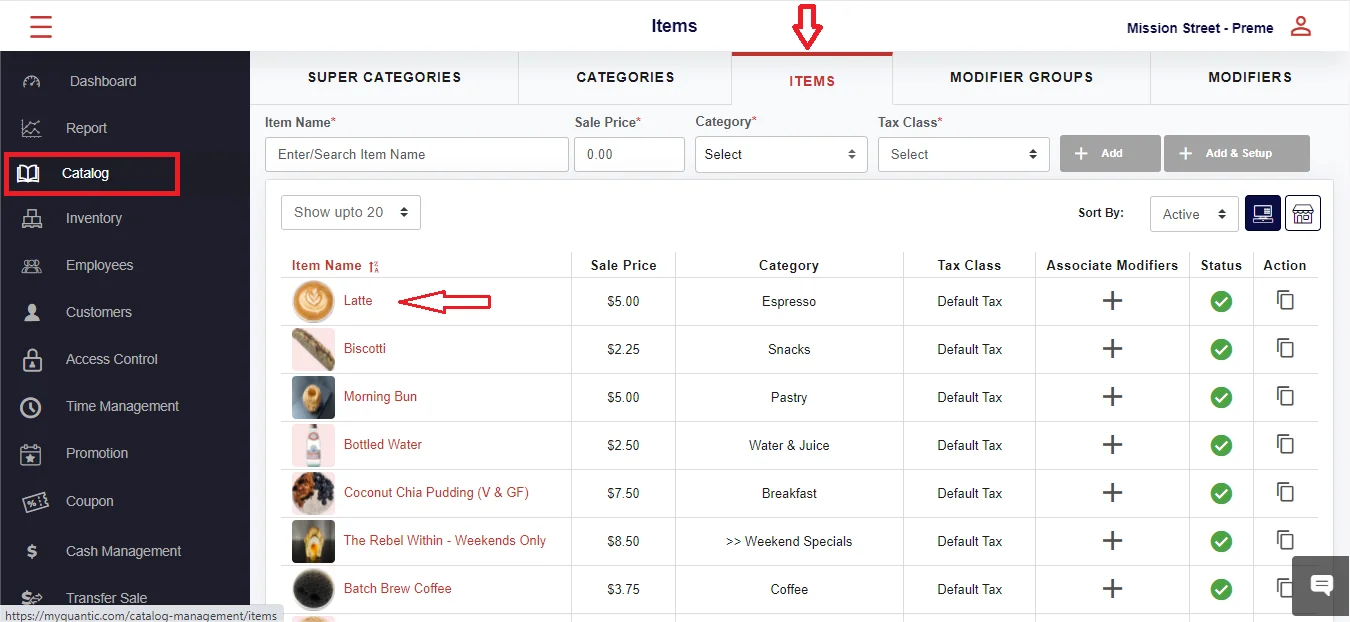

1. On the backend terminal, click the Left Navigation button.
2. Tap the Catalog icon on the left.
3. Click the Items tab on top of the screen.
4. Now click the Item on the list which you want to add to theself-ordering kiosk.
2. Tap the Catalog icon on the left.
3. Click the Items tab on top of the screen.
4. Now click the Item on the list which you want to add to theself-ordering kiosk.

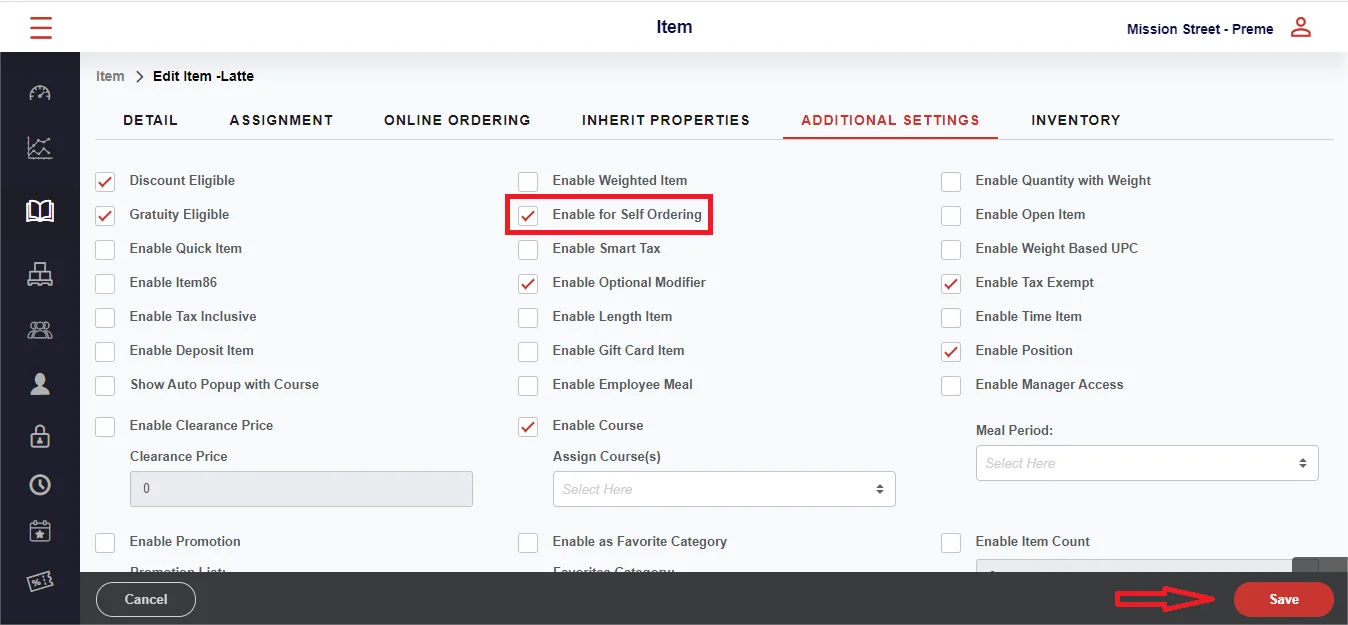

5. Click the Additional Settings tab.
6. Mark the Enable for Self Ordering checkbox.
7. Finally, click the Save button at the bottom right.
8. Go to the Detail tab to add or change an item image.
6. Mark the Enable for Self Ordering checkbox.
7. Finally, click the Save button at the bottom right.
8. Go to the Detail tab to add or change an item image.
Placing an order
This is the menu screen which displays the item category. This makes it easy for your customers to choose items. They can tap
on any category and it further displays the items it consists of.
on any category and it further displays the items it consists of.
Application scenario:
Can be used by all types of restaurants including; bakeries, bars, cafes, cafeterias, clubs, coffee shops, fast-casual, fine dining, food trucks, pizzerias, and table service from independent to regional chains
Benefits of The Self-Ordering Kiosk
1.Integrates with POS
2.Decreased Wait Times3.Enhance Order Accuracy
4.Save Money on Labor
5.Keep Staff and Customers Confortable
Specification
NO. | Items | Parameters |
1 | Input Voltage | AC220V/110V,50~60HZ |
2 | Master PC | Support Windows/Andriod System |
3 | Touch Screen Size | Optional |
4 | Resolution | 1920*1080 |
5 | QR Scanne | Symbol decoding capability 1D、2D |
6 | Receipt Printer | USB connection、Thermal Printing |
7 | Maintenance oF The Bill Printer | External Maintenance Of Replace The Printer Paper |
8 | Kitchen Printer | Connection Method:WIFI/Blueteeth /Local Area Network Connection |
9 | Credit Card Payment With POS | Visa、MasterCard and Discover |
10 | Payment Method | Cash,Credit Card,Deposit Card,e Wallet (Wechat, Alipay, SWISH Payment) |
11 | Installation | Wall Mount /Floor Mount |
12 | Dimension | 40(W)x 25(T)x 175 (H) CM |
13 | Weight | 50 KG |
