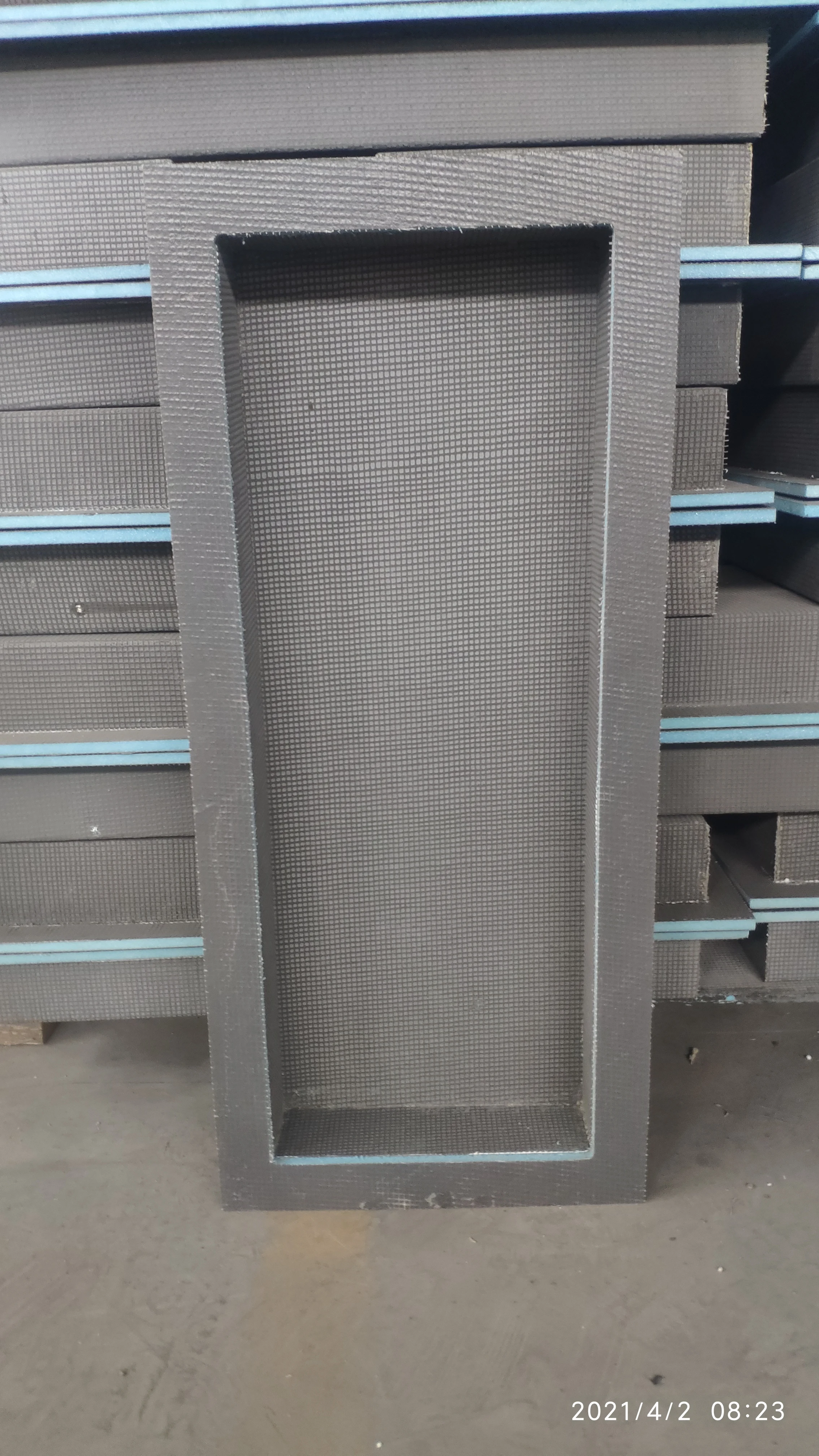

CFC HCFC Free Bathroom recessed XPS Shower Niche with cement mortar and fiberglass 16*16 inch with flange without shelf
- Category: >>>
- Supplier: Weifang Berry Waterproof Material Co. Ltd.
Share on (1600714845836):
Product Overview
Description
Product Description

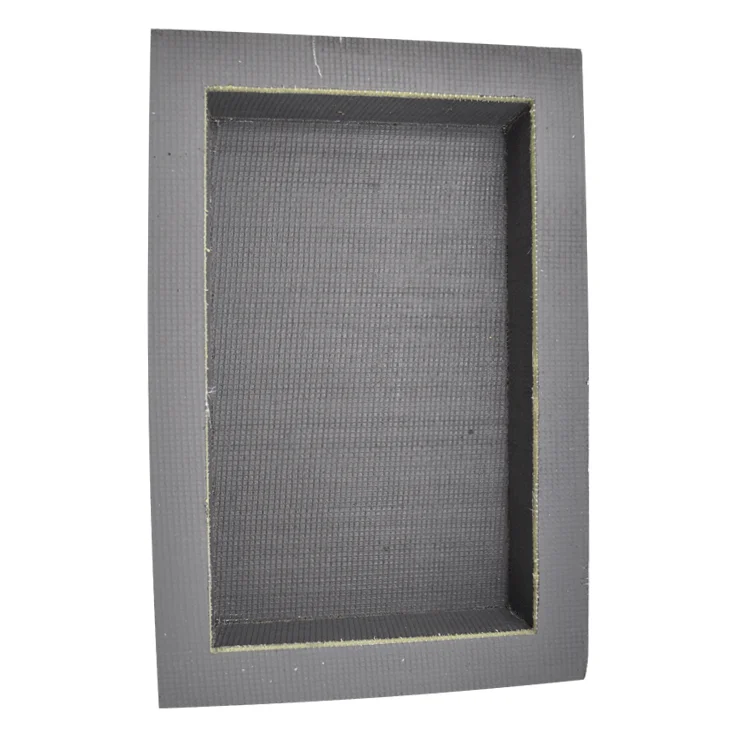

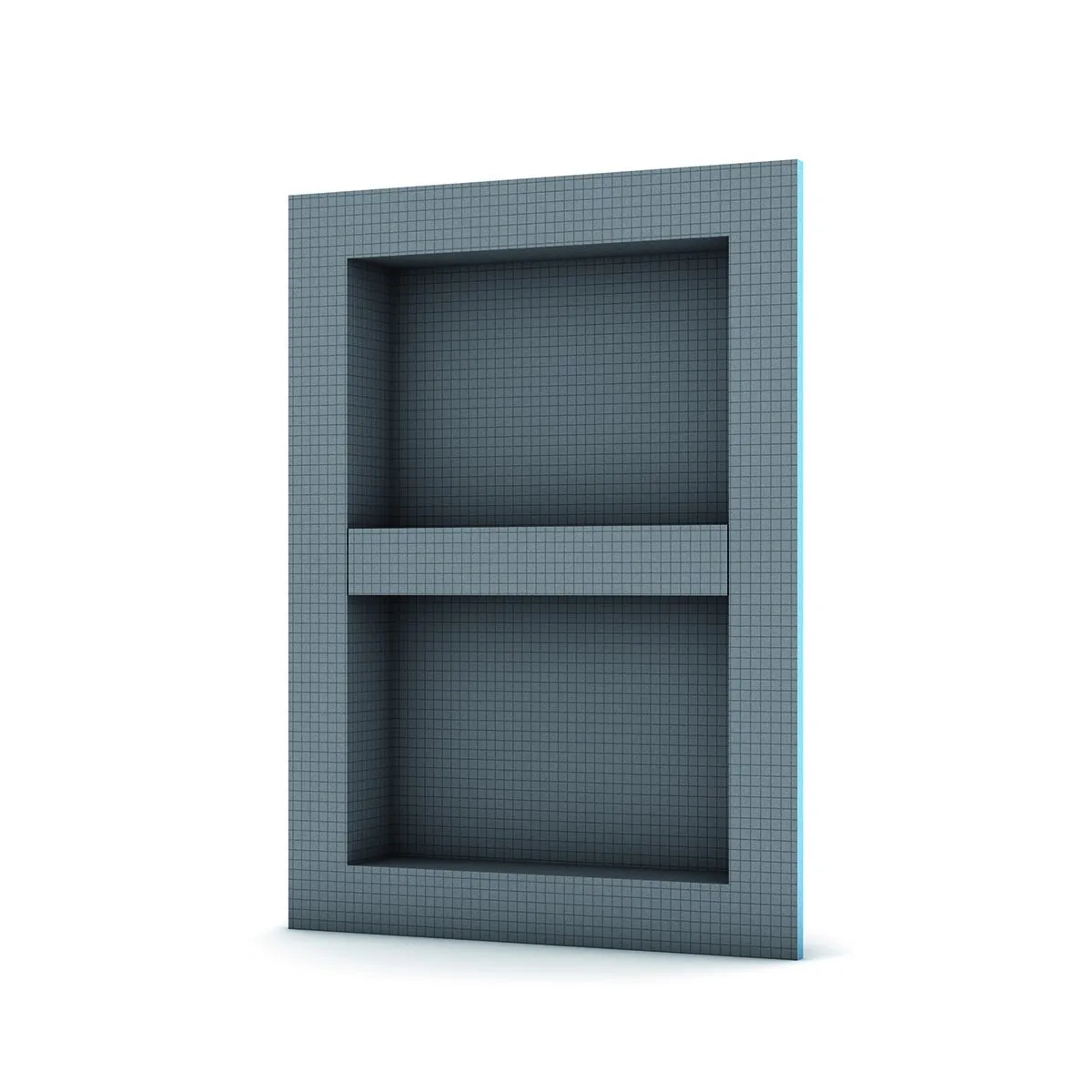

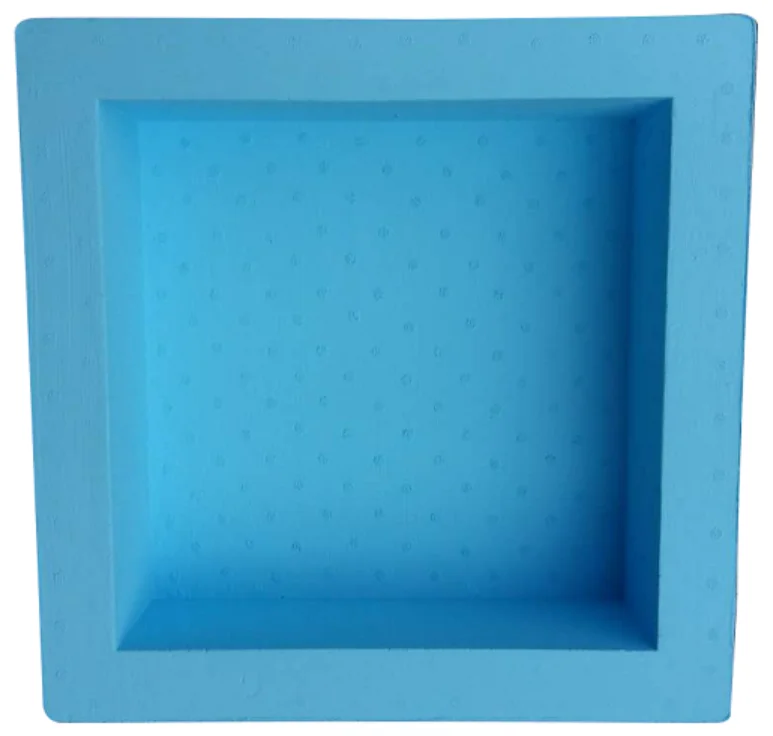

Shower Niche
Descrption:
Blosam building boards have a blue core made from CFC-free extruded polystyrene rigid foam.
This makes the building board an ideal basis for any type of plaster and tile.Blosam building boards can be applied to practically any substrate, are waterproof, insulating, versatile, light and robust.
Blosam Construct building board, offers many possibilities when it comes to designing customised forms. Whether you are looking for small radii or semicircular solutions, thanks to the pre-cut profiles the Construct building board gives you the freedom to be creative.
- The blue XPS core is 100% waterproof and remains fully functional even after possible damage.
- abP*: building board butt joints can be sealed 100% simply by using our special adhesive.. As no other seal is necessary, craftsmen benefit from increased security accompanied by a shorter tiling time.
- The cemented surface is a good adhesive under-surface. The fibre fabric also absorbs tensile forces.
- All building board systems have great heat insulation properties,
Technical data of building board Construct
Fire behaviour DIN 4102-1 (from 4 mm board thickness) | B2 |
Sound insulation DIN EN ISO 140-3 (at board thickness of 12.5 mm) | Rw, P 23 dB |
Fire behaviour EN 13501 | E |
Bending stress based on DIN 53293 | 3900 kPa (mean value) |
Adhesive tensile strength | 0,28 N/mm2 |
Weight: wedi building board (1250 x 600 x 4 mm) | 2,7 Kg |
Building board XXL (2500 x 1200 x 50 mm) | 13,8 Kg |
Linear coefficient of thermal expansion | 0,017 mm/(mk) |
Technical properties – Rigid foam
Long-term compressive strength (50 years) ≤ 2% compression EN 1606 | 0,08 N/mm2 |
Compressive resistance or compressive strength at 10% compression EN 826 | 0,25 N/mm2 |
Associated modulus of elasticity EN 826 | 10 –18 N/mm2 |
Thermal conductivity EN 13164 | 0,036 W/mK |
Tensile strength EN 1607 | 0,45 N/mm2 |
Shearing resistance EN 12090 | 0,2 N/mm2 |
Shear modulus EN 12090 | 7 N/mm2 |
Bulk density EN 1602 | 32 kg/m3 |
Resistance to water vapour diffusion(μ) EN 12086 | 100 |
Water absorption under long-term immersion EN 12087 | ≤ 1,5 Vol.-% |
Capillar action | 0 |
Linear coefficient of thermal expansion | 0,07 mm/mK |
Temperature limits | -50°C / +75°C |
Fire behaviour DIN 4102 | B1 |
Propellant gas, carbon dioxide, GWP value | 1 |

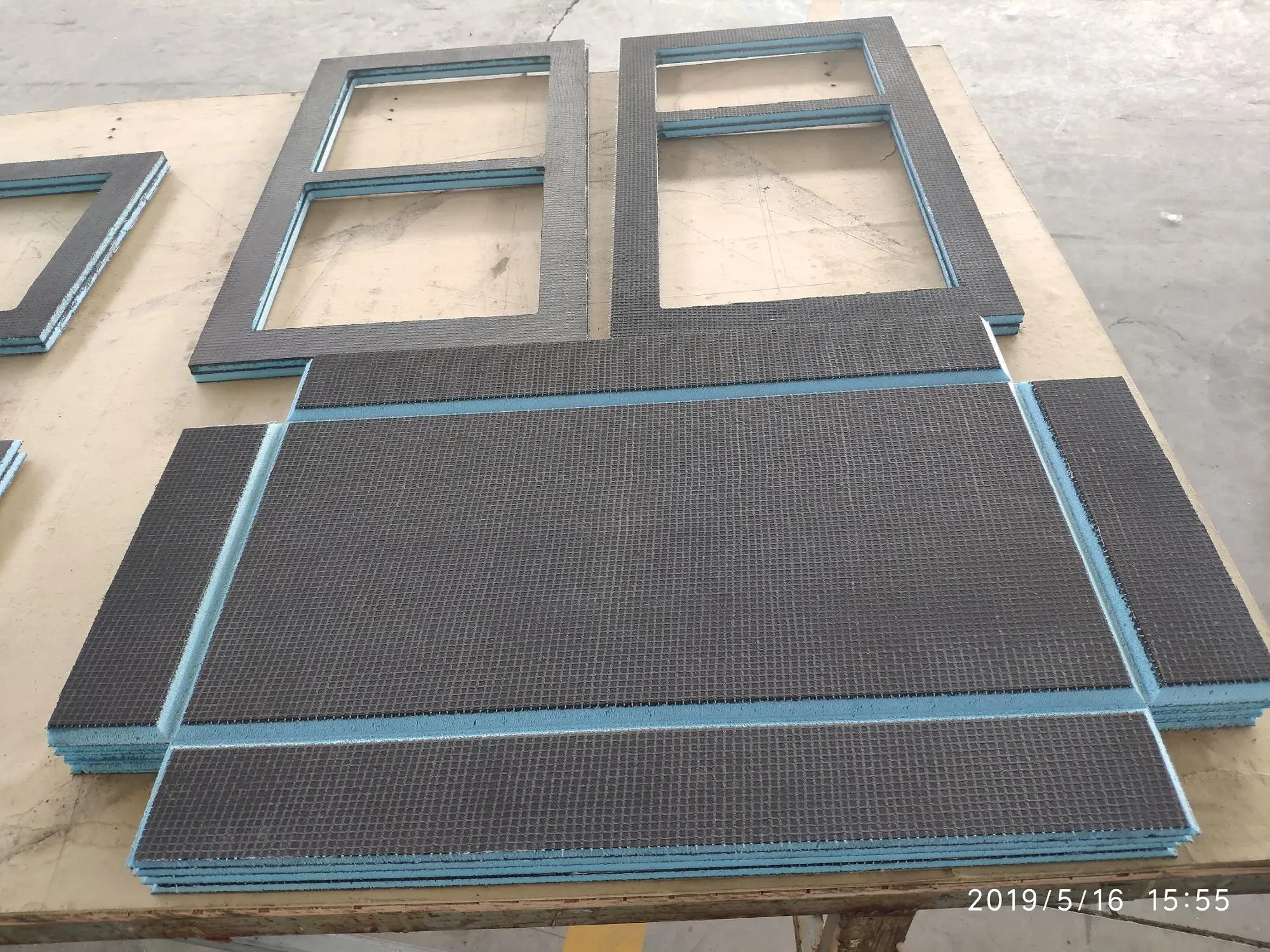

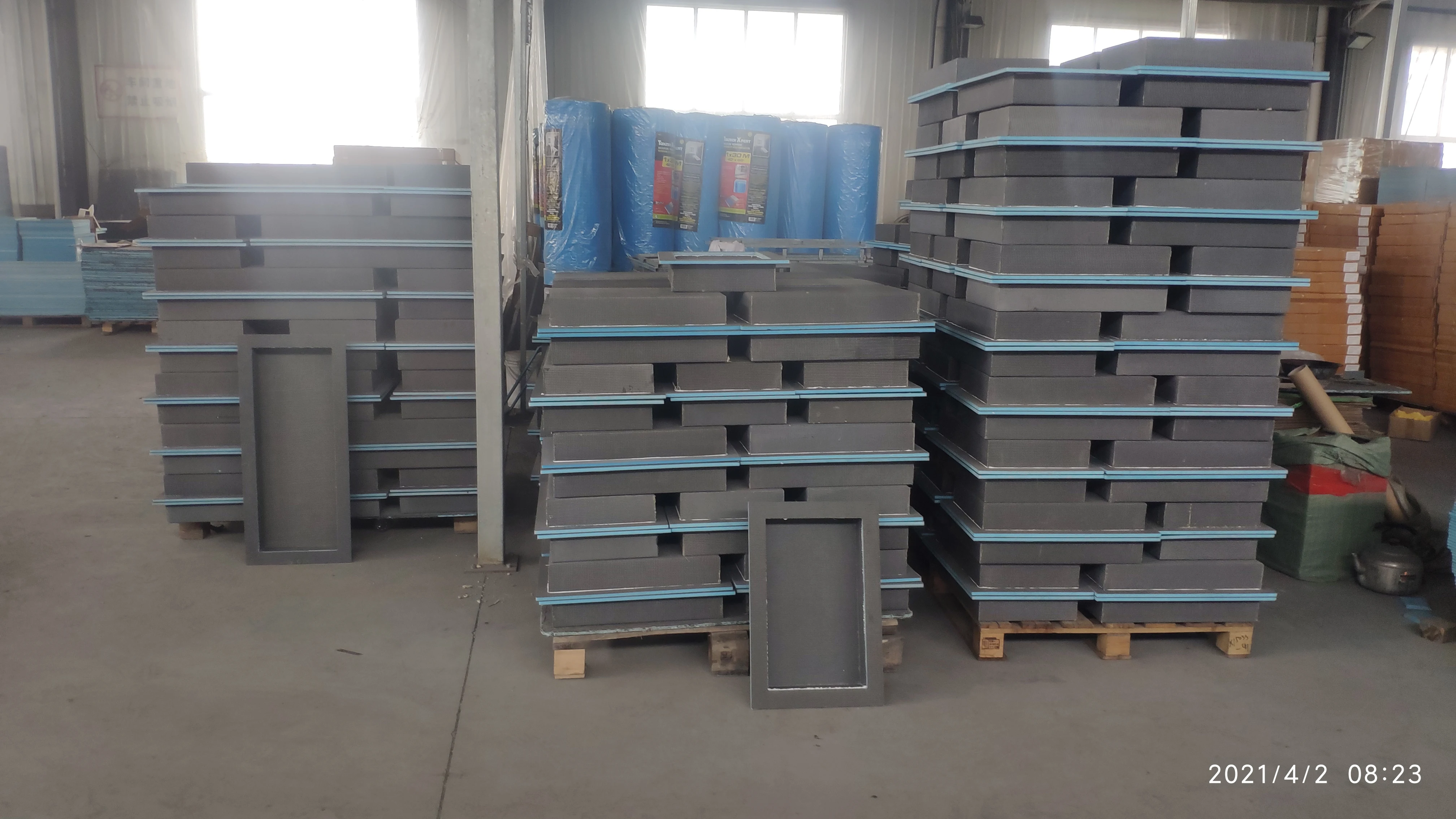

Production Pictures:
Installation Instructions
Contact Us
Demi Yao
Wechat/Whatsapp/Mobile:+86 15733258474
www.sanyibuilding.cn ; www.tilebacker.cn
//sunway-china.en.alibaba.com
//facebook.com/backerboard
https://twitter.com/tilebackerboard
We do OEM as well. Welcome to make an enquiry and we will give you quick response in 12 hours!
