Black 50 1.5 RG174 50Ohm RF Coaxial Cable
- Category: >>>
- Supplier: Shenzhen Lincho Communication Co. Ltd.
Share on (1600714875554):
Product Overview
Description
Specification
NAME | RG174 coaxial cable | STANDARD | GB/T14864-1993 | PRODUCT NO. | ||||
SPECIFICATION | ||||||||
STRUCTURE | SIZE | MATERIAL | COLOR | |||||
1 | CONDUCTOR | 7*0.16mm 0.46mm | BC | yellow | ||||
2 | INSULATION | 1.52mm | Solid PE | white | ||||
3 | WIRE BRAID | 64*0.12mm1.95mm | BC | yellow | ||||
4 | JACKET | 2.8mm | PVC | black | ||||
ELECTRICAL & PHYSICAL PROPERTIES | ||||||||
ITEM | UNIT | VALUE | ||||||
CAPACITANCE | Pf/m | 96.45 | ||||||
IMPEDANCE | Ω | 50 | ||||||
VELOCITY RATIO | % | 66 | ||||||
BENT RADIUS | mm | 28 | ||||||
PEAK POWER | KW | 3.5 | ||||||
MAX FREQUENCY | MHz | 3000 | ||||||
TEMPERATURE SCOPE | °C | -40 -- +85 | ||||||
ATTENUATION | 100MHz | DB/100m | 7.38 | |||||
400MHz | DB/100m | 36.02 | ||||||
900MHz | DB/100m | 71.88 | ||||||
1500MHz | DB/100m | 106.7 | ||||||
1800MHz | DB/100m | 120.8 | ||||||
2500MHz | DB/100m | 147.4 | ||||||
3000MHz | DB/100m | 162.04 | ||||||
Products Description
RG174 is an extremely common Coaxial cable type, typically used in GPS, WLAN, and cellular communications as its 2.5mm outer diameter allows for the attachment of most micro-coaxial connectors (such as MMCX, MCX, TS9, SMB, etc.).

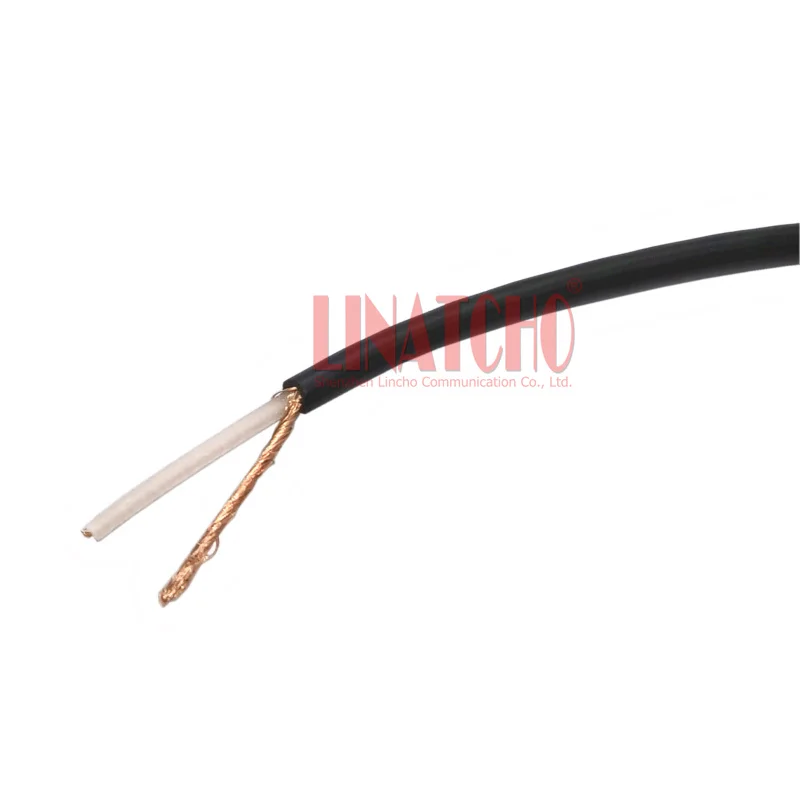

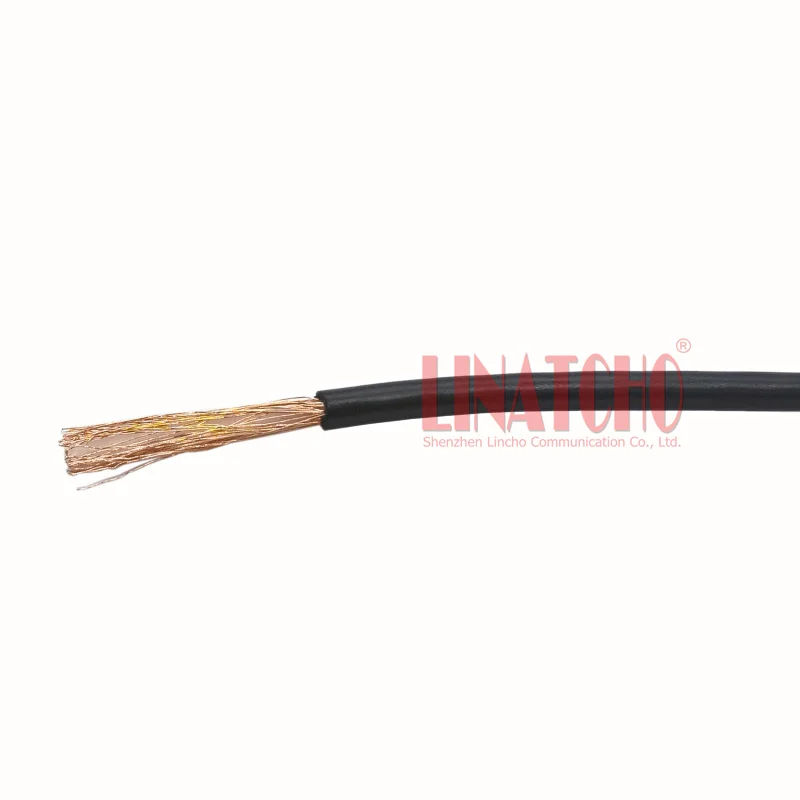

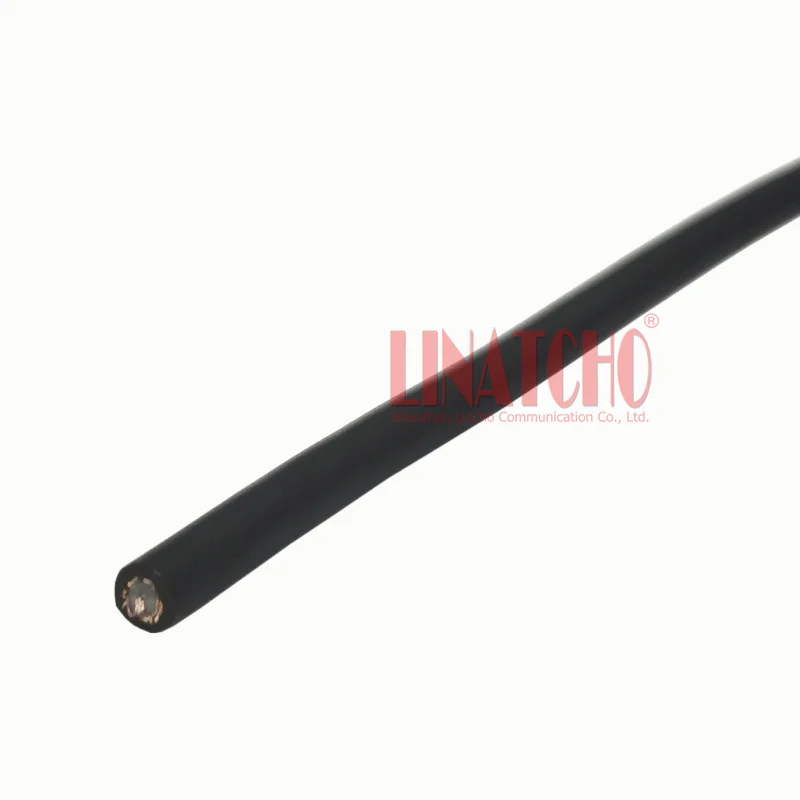

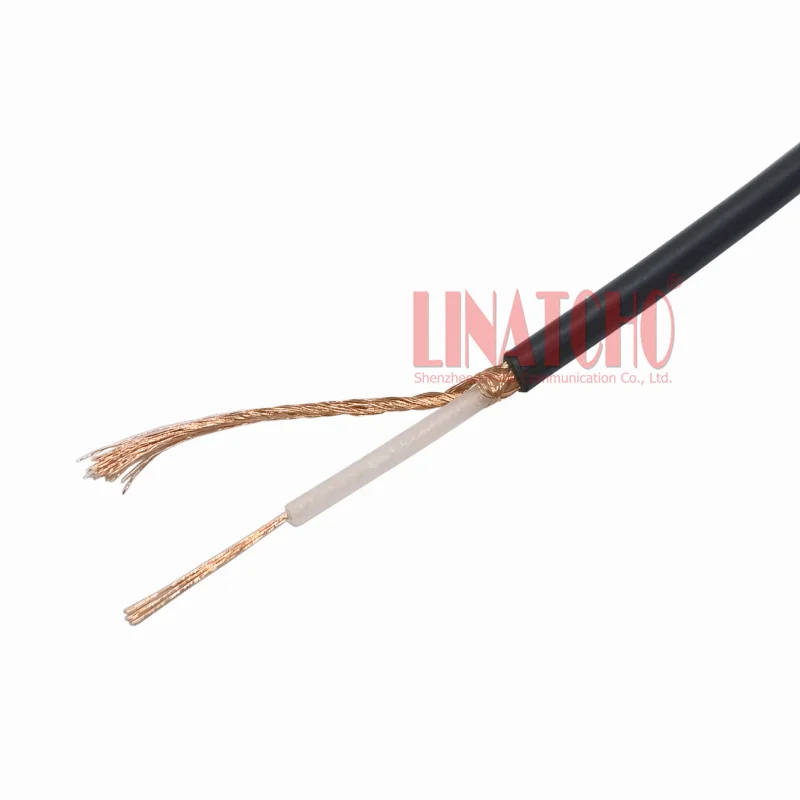

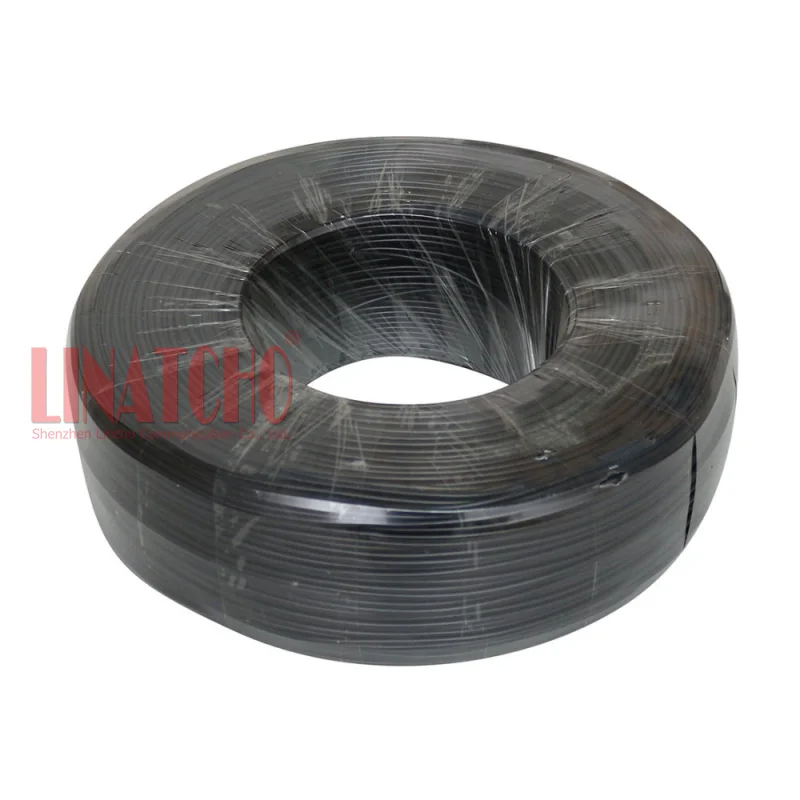

Details Images
Packing & Delivery
1.PACKAGE: Natural carton package or OEM service.
2.LEADTIME: 3-5days for samples, order depand on the quantity.
3.SHIPPING METHOD: DHL, EMS, UPS etc as you want
2.LEADTIME: 3-5days for samples, order depand on the quantity.
3.SHIPPING METHOD: DHL, EMS, UPS etc as you want
4.RETURN and WARRANTY: 100% QC inspection before shipment. Accept exchange within 7 working days after you received. Pls contact us before you return. Our service representitive will help you.
5.MINIMUM ORDER: 2 pcs, Sample order and trial order are welcome.
