MPPT 12V 24V 48V Wind Solar Hybrid Controllers LCD Screen for Max 600W Wind Turbine and Wind Generator Home Use with CE

Share on (1600714890769):


Price:

Quantity:


Product Overview

Description


REAL POWER MPPT Wind Solar Controller 100W to 600W


.png

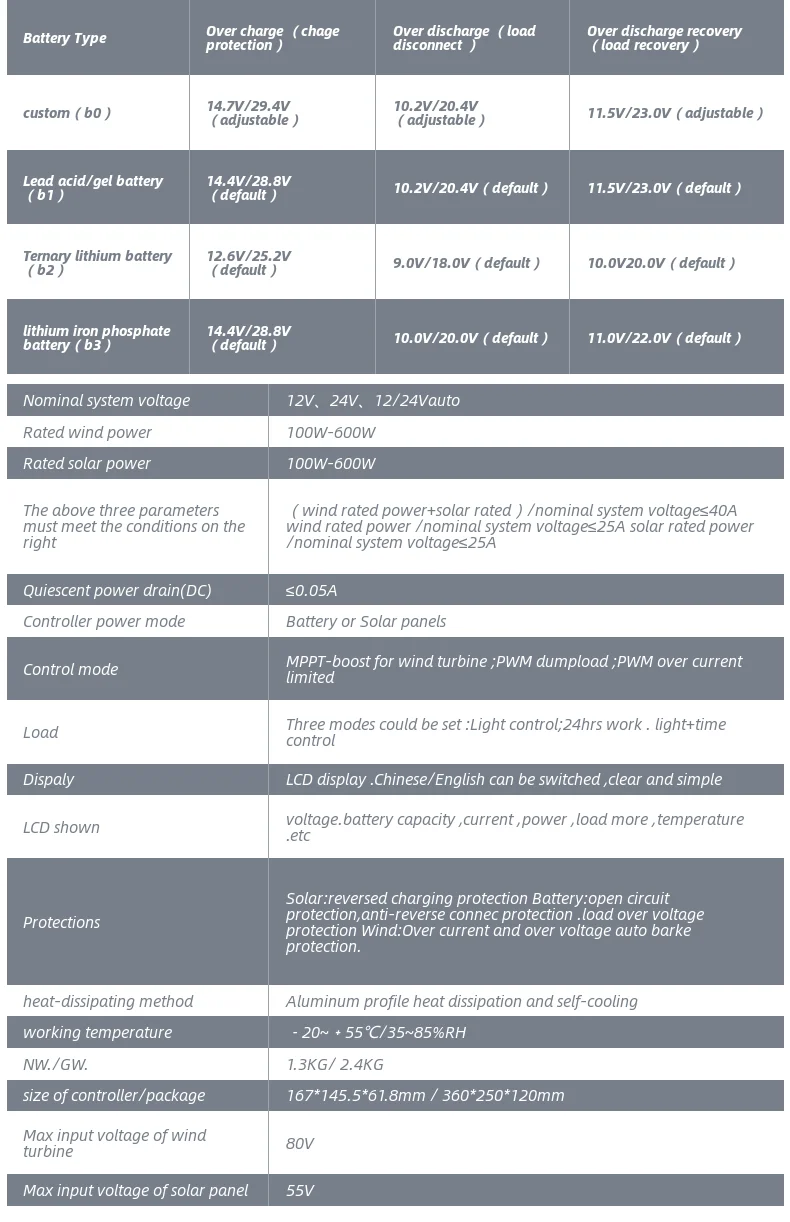

Datasheet of Wind solar hybrid controller









































12V Battery System



24V Battery System



48V Battery System



Max Wind Power



400W



Max Wind Power



600W



Max Wind Power



600W



Max Solar Power



200W



Max Solar Power



200W



Max Solar Power



200W



Dimension



167x145x62mm



Weight



1.3kgs

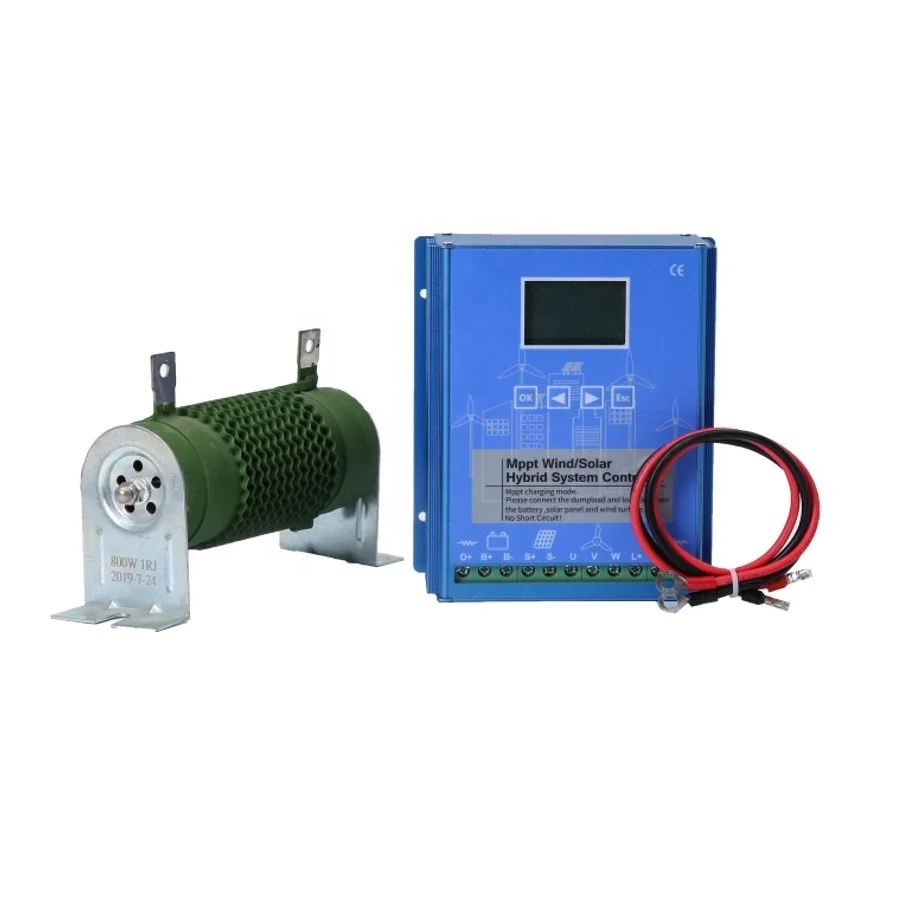

Picture of Wind solar hybrid controller


ls 600w.JPG











Friendly reminder: If you need a controller that are suitable for both lead-acid batteries and lithium batteries, this controller is recommended, you can revise the brake voltage according to your battery. If you want our factory to adjust the volts before delivery, please show us battery data after you pay the order.



Applications
1.Independent wind power plant, solar system
2.Independent household wind power generation system
3.Power supply for those unmanned regions like mobile communication station, high way, the coastal islands, remote mountainous regions and border posts.

Features
1.Can be applied to wind&solar hybrid off-grid system
2.Several functions are optional, such as wind speed measure function, rotational speed control function and temperature compensation function.




If you need 1.6 KW MPPT Wind Solar Controller, Please click below link to check price.



https://www.alibaba.com/product-detail/1-6KW-MPPT-Wind-Solar-Hybrid_1600711502198.html?spm=a2747.manage.0.0.21d271d2jj54Wu

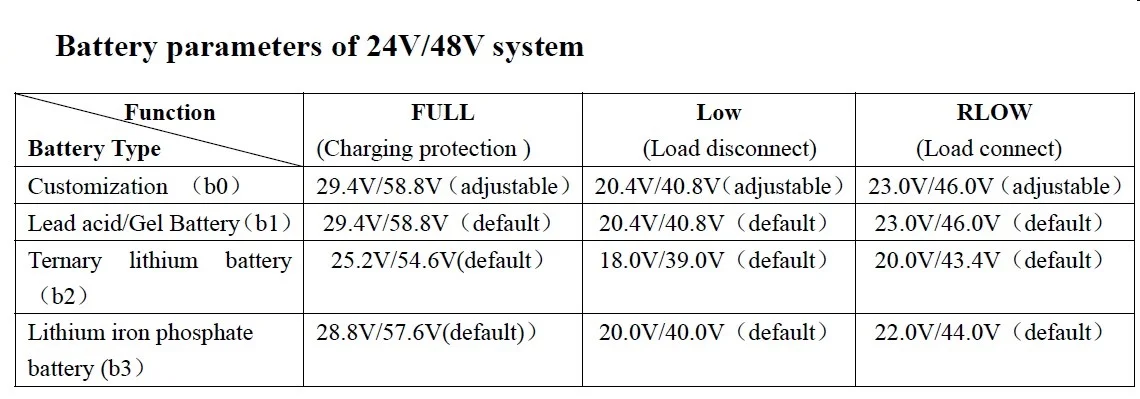

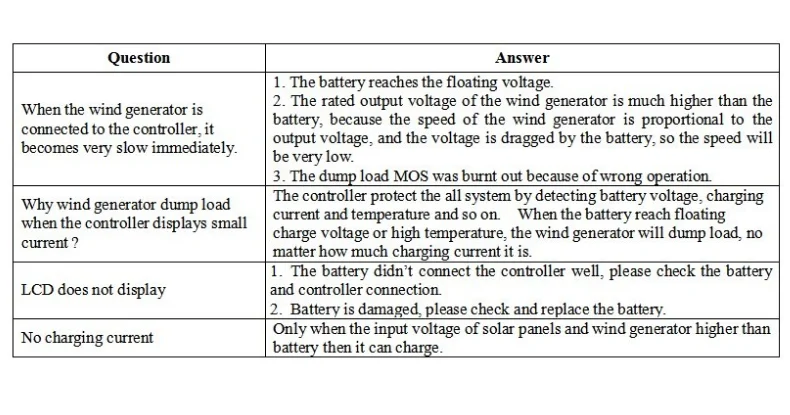

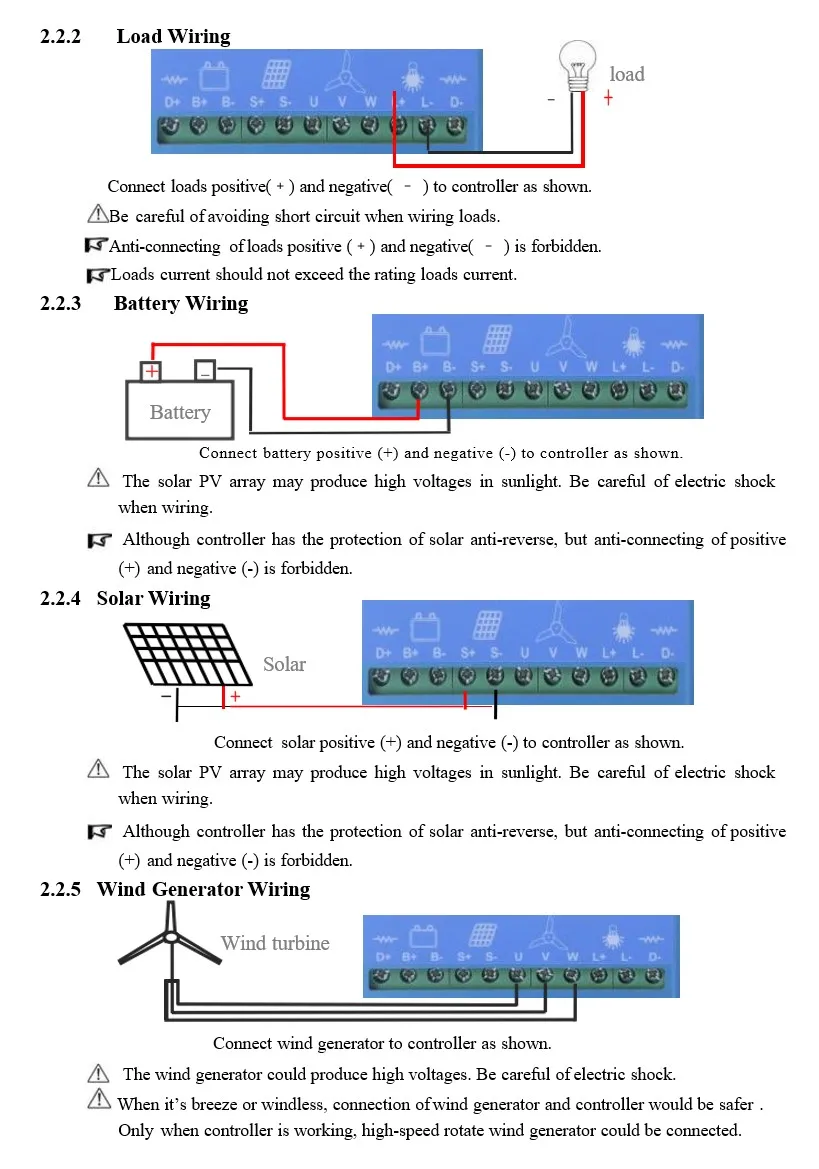

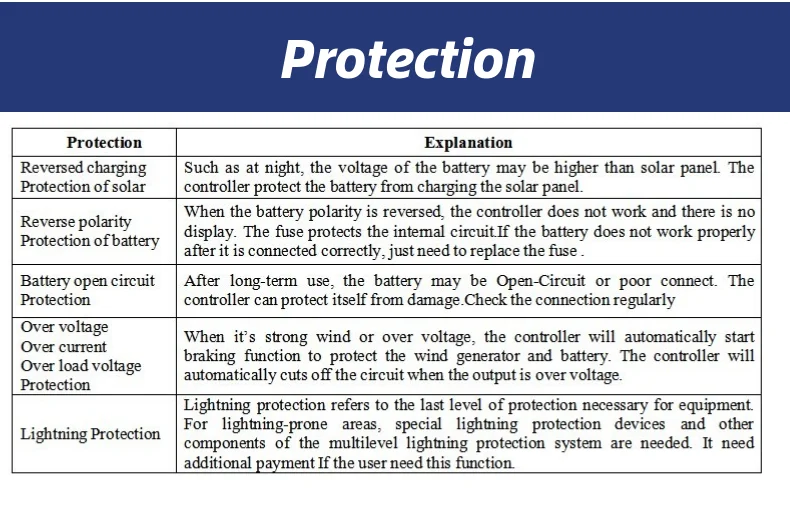

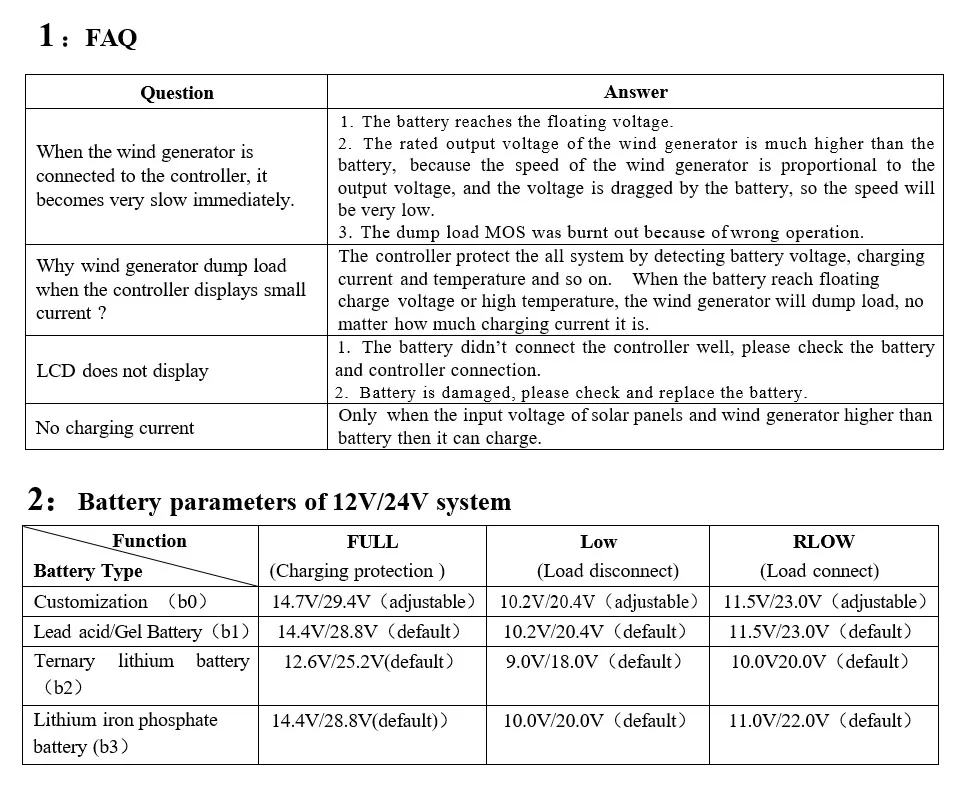

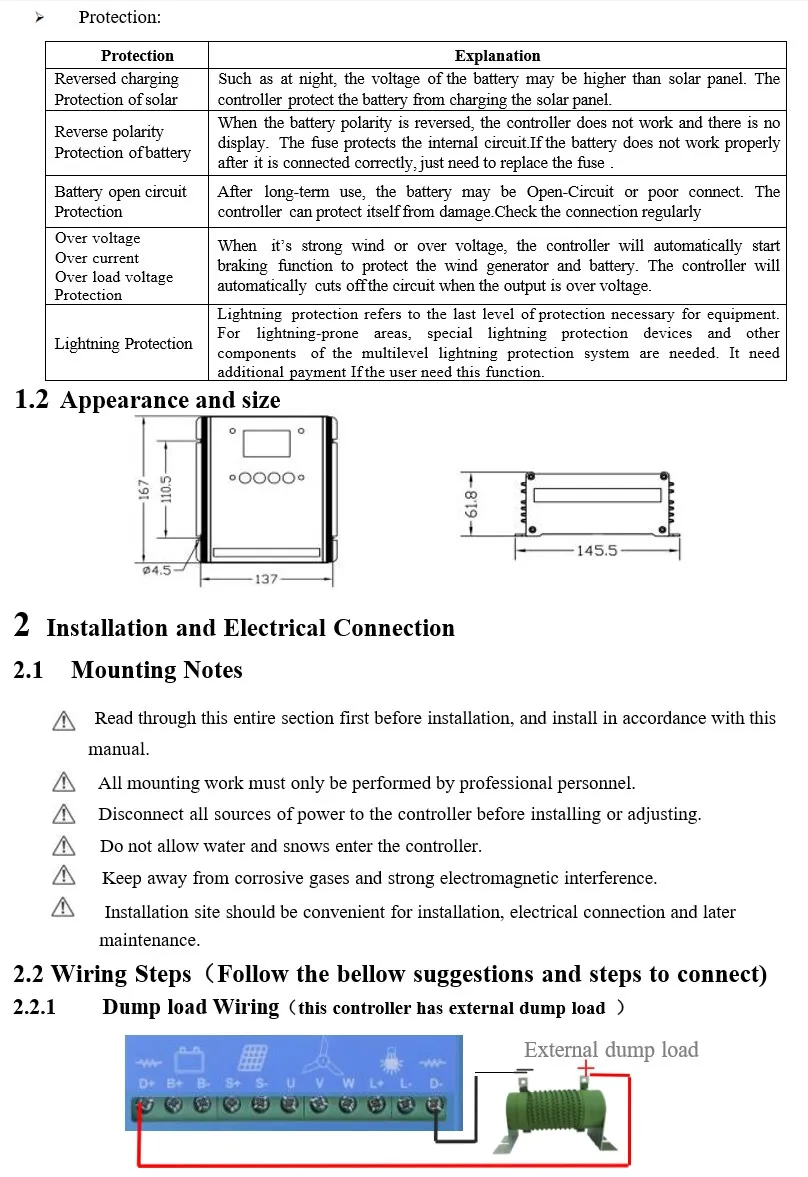

9.png10.png11.JPG12.JPG13.JPG24 48v.JPG

















Our Services


We can design different systems for customers according to their requirements.


All lifelong technical support and part cost supply.


24 hours on-line---Your enquiries will be replied within 24 hours.
