1000W 110/220V home solar system inverter computer uninterrupted power supply ups




1. Accurate pure sine wave output, strong capacity of different load .


2. Smart RS232 communication port .Advanced performance due to the CPU control.


3. Wide range of power input and accurate output AVR.


4. Perfect protection .

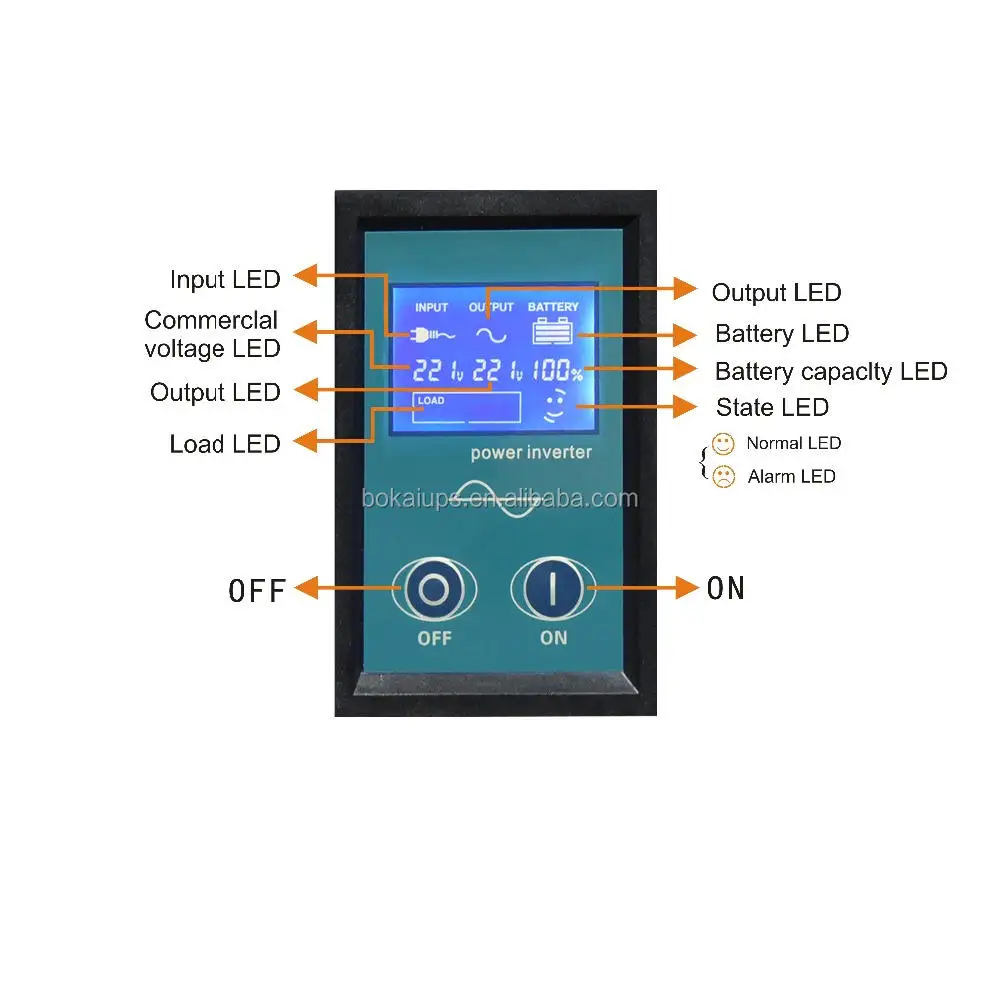

5. LED/LCD display.


6. UPS start automatically when the main power recover .


7. Intelligent battery management .








Product Introduction

Product Introduction














1000W 110/220V home solar system inverter computer uninterrupted power supply ups characters:

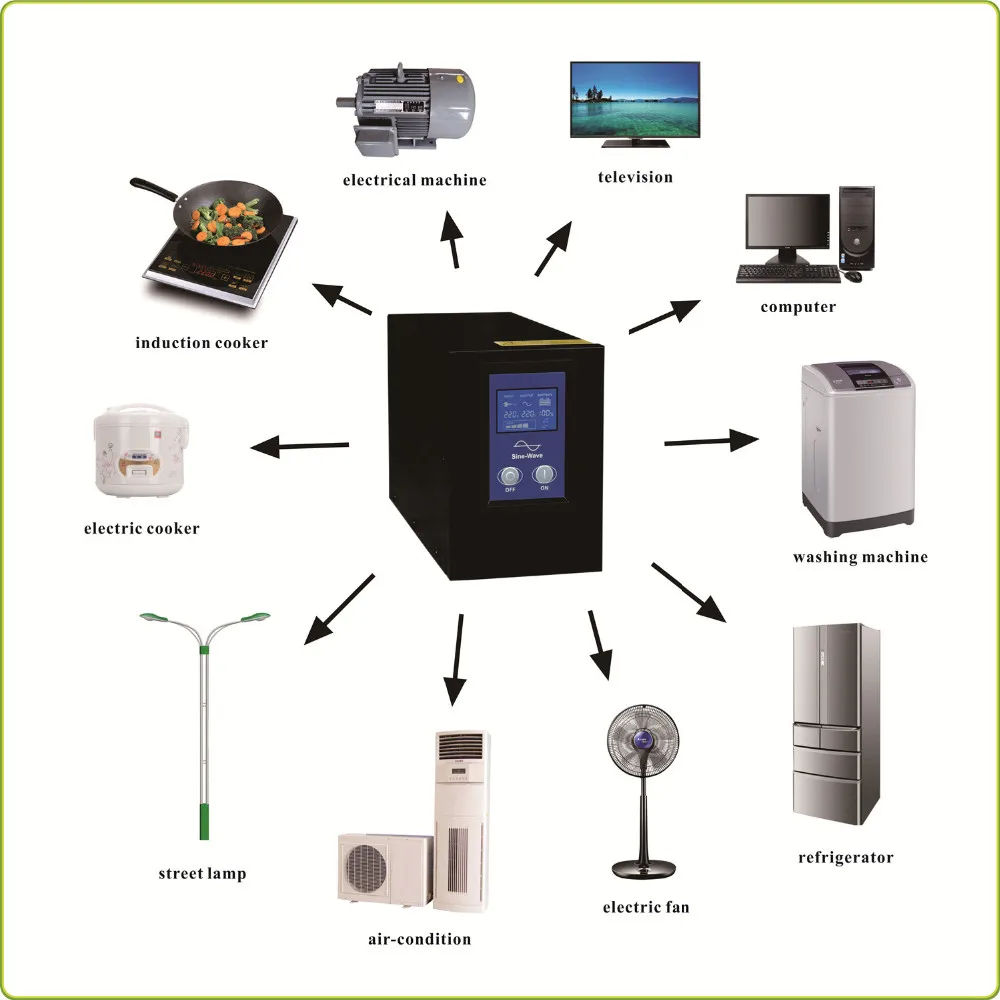

* Pure sine wave output, can be used with different appliance TV ,refrigerator, fan ,air conditioner ,induction cooker,


   micro- wave over etc .
* Superaor performance from CPU control technology.


* Wide range of input voltage, accurate output ,AVR function .


* Inner-equipped protection for over-load,short -circuit, over-voltage, low-voltage ,over-heating etc.

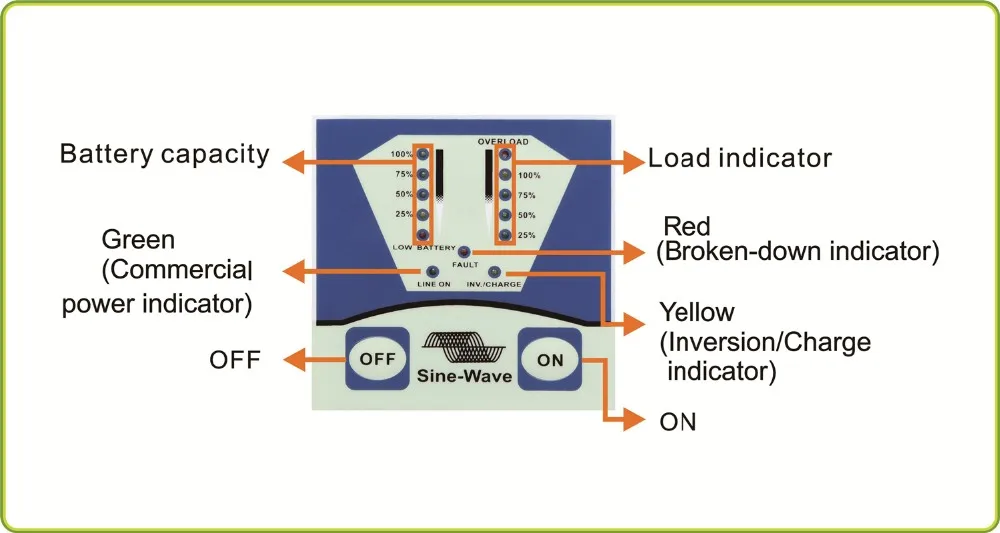

* Easy to check with inverter condition with consice LED indication that can be upgraded to LCD.


* Generator compatibly and extemal battery connection achievable .


*  Intelligent battery management with protection against over-charged and over-discharged etc.








Product Parameters

Product Parameters







































































































































Models




NB300W



NB500W



NB600W




NB800W



NB1000W


NB1200W



Rated power



300W


500W


600W


800W


1000W


1200W



Battery voltage




12V/24V




24V



Product size L*W*H



320X130X190MM



Net Weight


6KGS


7KGS


8KGS


9KGS


10KGS


12KGS


Package size L*W*H/ 2PCS



480X430X315MM



Gross Weight


14KGS


16KGS


18KGS


20KGS


22KGS


26KGS


Input voltage range(VAC)



100/110/120/127/220/230/240(+2.5%,-4.5%)



Input frequency( HZ)



45HZ-65HZ



Output voltage range(VAC)


Inverter mode 100/110/120/127/220/230/240 ± 5%


Output frequency (HZ)


50/60  ± 0.5HZ  Output frequency auto detective


Output waveform



Pure sine wave



Efficiency


85%


THD


<5%


Noise


<50


Battery charge voltage (V)


12V(13.8V ± 0.5V)    24V (27.5V ± 0.5V)


Battery charge current (A)


5-15A (Non-charger available )


Transfer time (ms)


< 4ms


Cold start Power


Rated power 100% ( resistive load )


Low battery voltage trip(V)


12V (10.0V ±  0.5V )                     24V (20V ±   0.5V)


Protection functions


Over-load, battery over-charge/discharge, Over-temperature, Output voltage abnormal protection


Power on/off mode


A. Turning on/off by manual , IPS will be started/closed when pressing on/off button

B. IPS is connected with battery, it will start automatically ,when AC comes in(no need to press ON button ).



Beeper alarm


A. When AC works normally,no alarm with IPS .
B. When battery in low voltage, beeper alarms one time by second .

C. When at over-load, beeper alarms one by second.

D. When IPS failed at battery mode, beeper alarms continuously .



Cooling method


Auto detective cooling fan


Display


LED/LCD


Standard/ optional


Working mode


AC/Battery priority


Standard/optional/additional switch







Product Details Show

Product Details Show
































Why Choose Us

Why Choose Us

















About us




1, ten years factory production experience ; strong production R & D  capability ;50-100 skilled workers ; nice & clean production line .






Operation & management




2, Meet customer different custom requirement ; a professional technology,management &marketing talents .






Service




3, Profect  pre-sale, on-sale  & after-sale service , one year's warranty ,  OEM & ODM service , free accessories replacement  in warranty period and etc.













Certificate




Our UPS and inverter products have been tested and got CE certificate.








Product Processing

Product Processing












Product Packing

Product Packing















Main Products

Main Products

















300W pure sine line interactive ups inverter




Mid. Order: One piece ,


More quantities ,more cheaper


Unit Price: US $ 75-85/piece






1KVA line interactive ups




Mid. Order: one piece ,


More quatities, more cheaper


Unit  price: US $ 80-95/piece






8KW online power frequency inverter




Mid. Order: one piece ,


More quantities ,More cheaper


Unit price: US $ 720-780/PC























off grid powersolar inverter 1KW




Mid. Order: One piece ,


Controller  current : 40A


 Unit price :US$168-178/PC






10KW inverter solar power system




Mid. Order: One piece ,


Controller current : 80A


Unit price : US$990-1050/PC






30KW pure sine wave power ups inverter




Mid. Order: one piece ,


 more quatities, more cheaper


 Unit Price: US $ 2470-2550/PC
