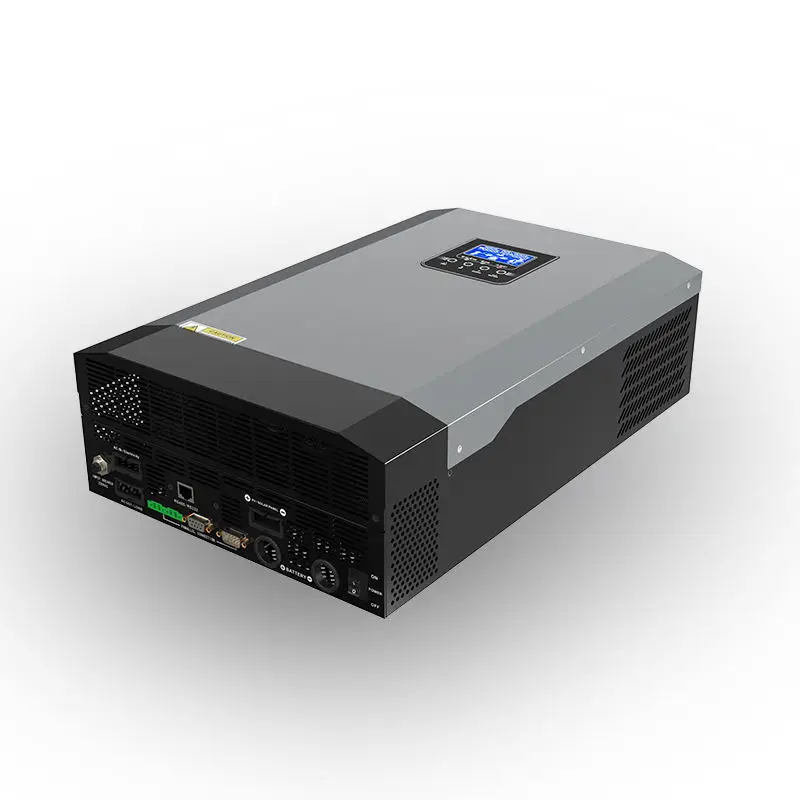

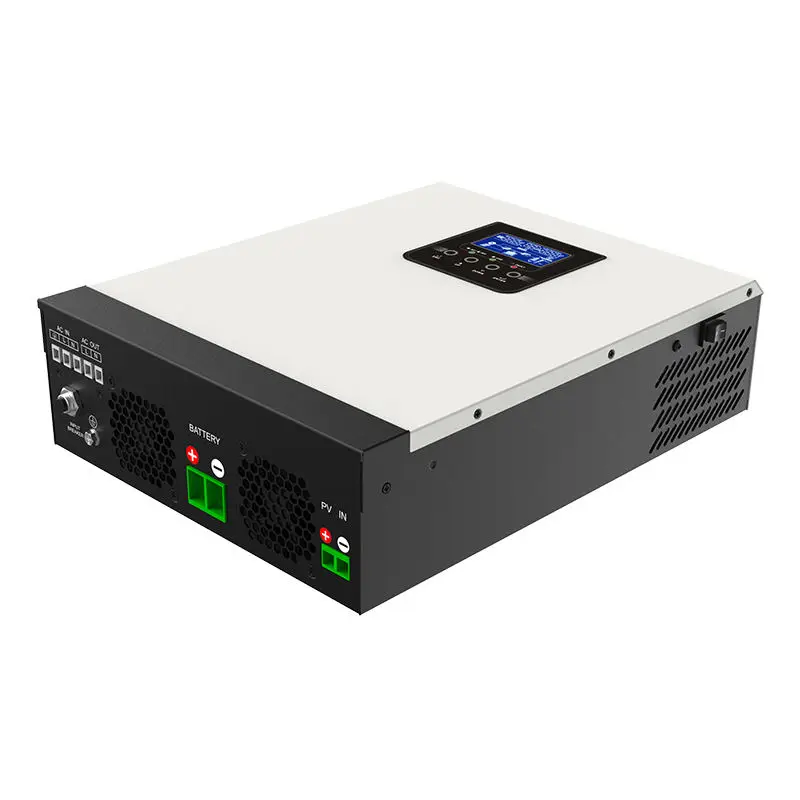

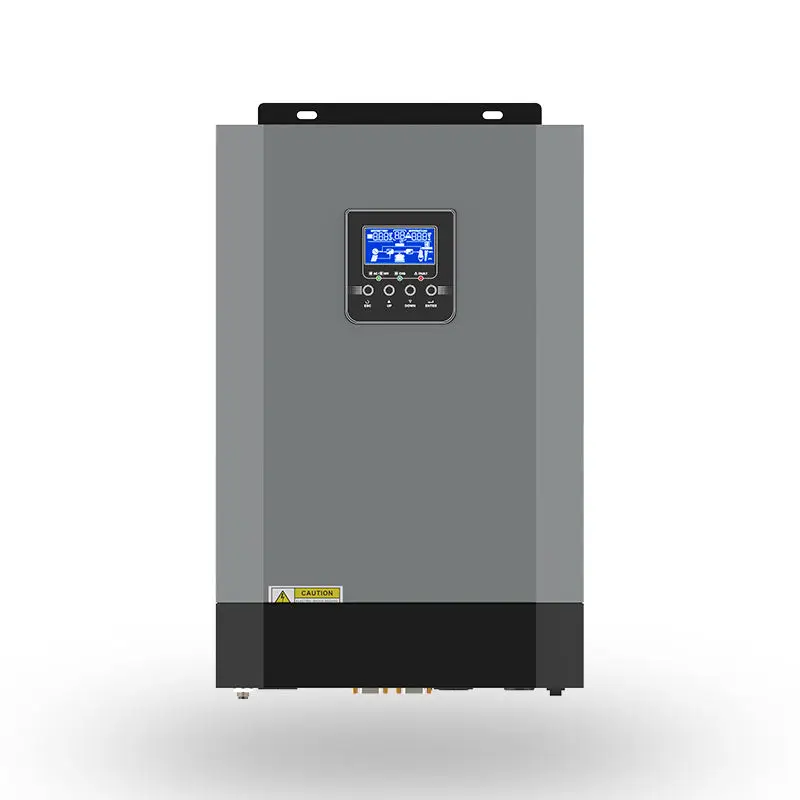

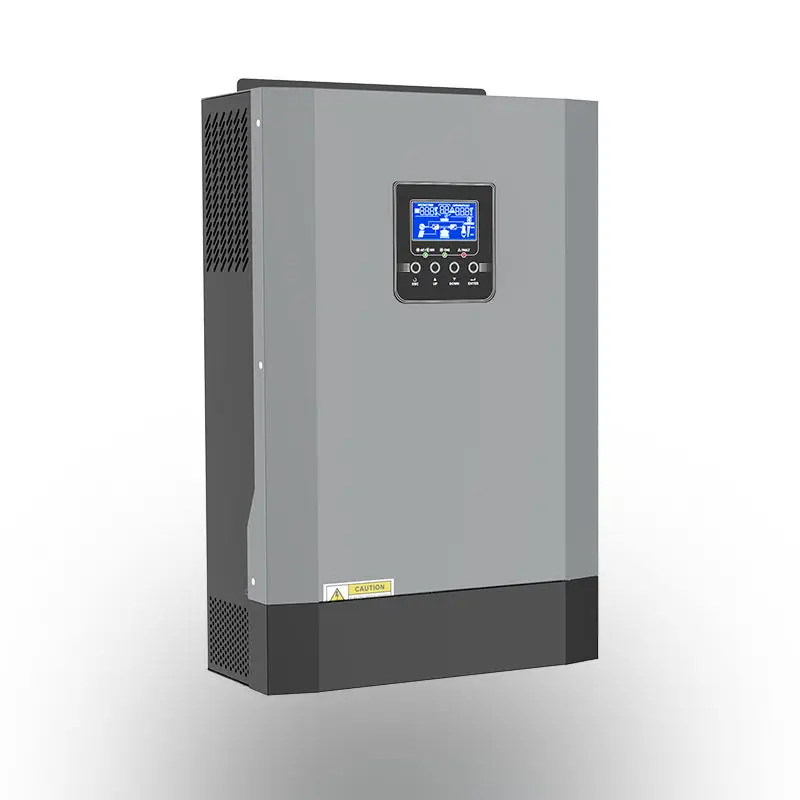

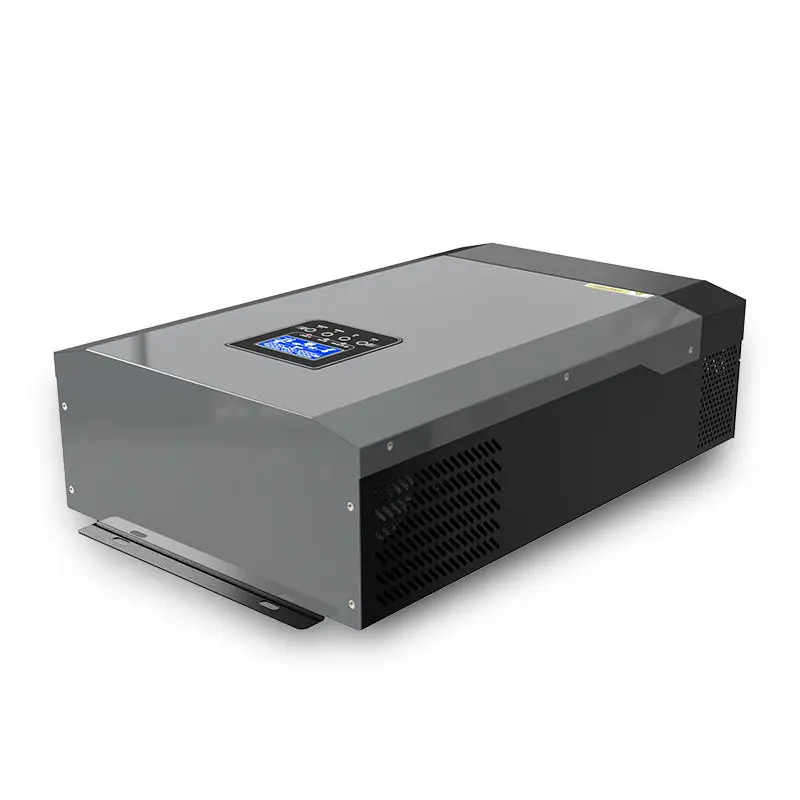

MANUFACTURE 12v 220v 1kva off grid solar inverter with mppt controller, hybrid solar inverter 1000va
- Category: >>>
- Supplier: Foshan Yaheng Plastic Packaging Co. Ltd.
Share on (1600714972085):
Product Overview
Description
Features of 24V/48VDC solar power inverter
1.Pure sine wave inverter
2.Built-in PWM solar charge controller
3.Selectable input voltage range for home appliances and personal computers.
4.Selectable charging current based on applications
5.Configurable AC/Solar input priority via LCD setting
6.Compatible to mains voltage or generator power
7.Auto restart while AC is recovering
8.Overload and short circuit protection
9.Smart battery charger design for optimized battery performance
10.Cold start function
11.Parallel operation with up to 4 units only available for MKS 4K/5K
2.Built-in PWM solar charge controller
3.Selectable input voltage range for home appliances and personal computers.
4.Selectable charging current based on applications
5.Configurable AC/Solar input priority via LCD setting
6.Compatible to mains voltage or generator power
7.Auto restart while AC is recovering
8.Overload and short circuit protection
9.Smart battery charger design for optimized battery performance
10.Cold start function
11.Parallel operation with up to 4 units only available for MKS 4K/5K
Model | PS 1KVA | PS3KVA | PS3KW | PS5KVA | |||
Rate Power | 800W | 2400W | 3000W | 4000W | |||
INPUT | |||||||
Voltage | 230Vac | ||||||
Phase&waveform | Single Phase & Pure Sine Wave | ||||||
Voltage selectable range | 170~280 VAC(for Personal Computer);90~280 VAC(for home appliance) | ||||||
Frequency | 50Hz/60Hz | ||||||
OUTPUT | |||||||
AC voltage Regulation | 230V AC ± 5% | ||||||
Surge Power | 2000VA | 6000VA | 10000VA | ||||
Efficiency | 90% | 93% | |||||
Transfer time | 10ms(for personal computers); 20ms (for home appliances) | ||||||
waveform | Pure Sine Wave | ||||||
Battery& AC charger | |||||||
battery voltage | 12Vdc | 24Vdc | 48Vdc | ||||
floating charge voltage | 13.5Vdc | 27Vdc | 54Vdc | ||||
Overcharge Protection | 15Vdc | 31Vdc | 60Vdc | ||||
maximum charge current | 10A or 20A | 20A or 30A | 60A | ||||
PV Input | |||||||
Solar Charger Type | PWM | ||||||
Max Solar Charger Current | 50A | ||||||
Max PV Array Open Circuit Voltage | 50VDC | 70VDC | 85VDC | ||||
Standy Powr Consumption | 2W | ||||||
Physical | |||||||
Dimension, D×W×H (mm) | 95×240×316 | 100×272×355 | 120×295×468 | ||||
Net Weight (Kgs) | 5 | 6.9 | 9.8 | ||||
Environmental | |||||||
Humidity | 5%-95% relative humidity ( non-condensing) | ||||||
Operation Temperature | 0℃-55℃ | ||||||
Storage Temperature | (-)15~60℃ | ||||||
Product Description
1. Can I have a sample order?
Yes, welcome buy the sample to test and marketing.
2.What is your terms of payment?
Usually, we accept T / T, irrevocable L / C at sight. For regular orders, Terms of payment is 30% deposit, the balance paid before shipment.
3.What is the lead time?
It usually takes 30 to 45 days after sample confirmed and received the advance payment. The specific delivery time depends on item and the volume of order.
4. What is your terms of packing?
Generally, we will provide standard packing and customized packing service is available for mass production.
5.What is your terms of delivery?
We accept EXW, FOB,CIF, etc. please choose the one which is the most convenient or cost effective for you.
6. Do you have any MOQ limited?
It's depends on the actual products and from 100 to 3000pcs as usual.
7. Is it available to print my logo on product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
8.Do you offer guarantee for the products?
A: Yes, we offer two year warranty to our products.
9.what can you buy from us?
Solar Panel / Solar Light / Solar System
Solar Panel / Solar Light / Solar System
Where there is no grid
There is solar power
From SUNSHINE ENERGY SUNSHINE ENERGY LIMITED
(A subsidiary of Yaheng Group)
Our Contact:
E-mail: info@sunshine-energy.cn H/P: +86 133 2285 8504 (WhatsApp/Wechat) Website: www.sunshine-energy.cn
