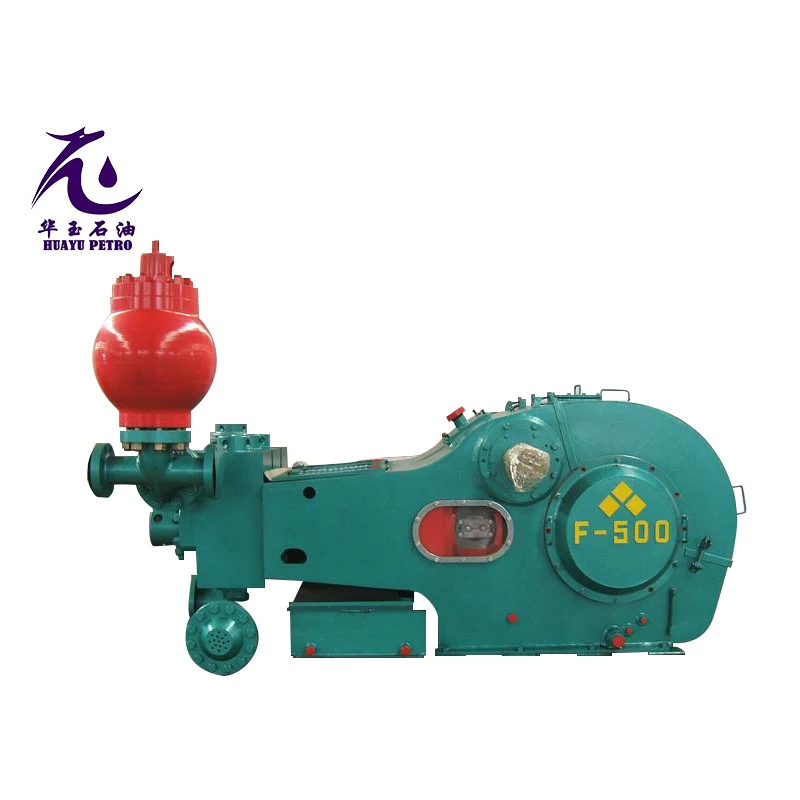

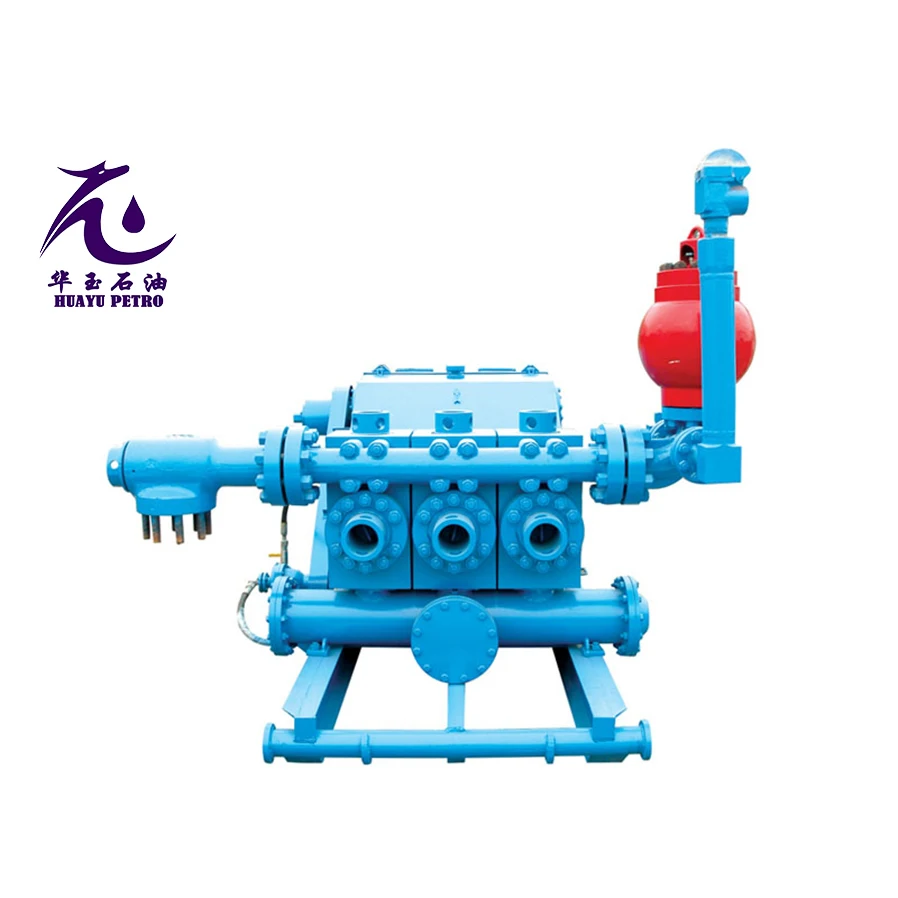

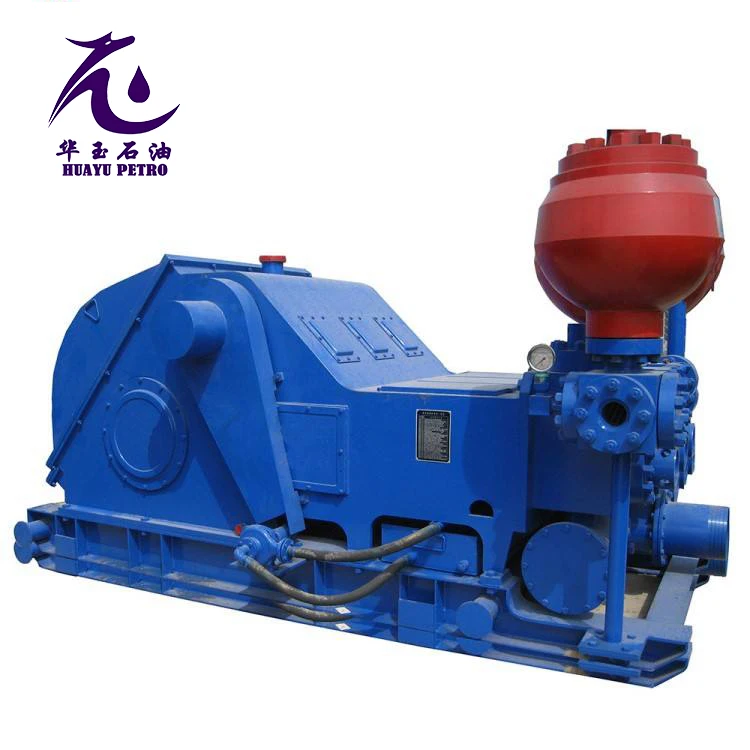

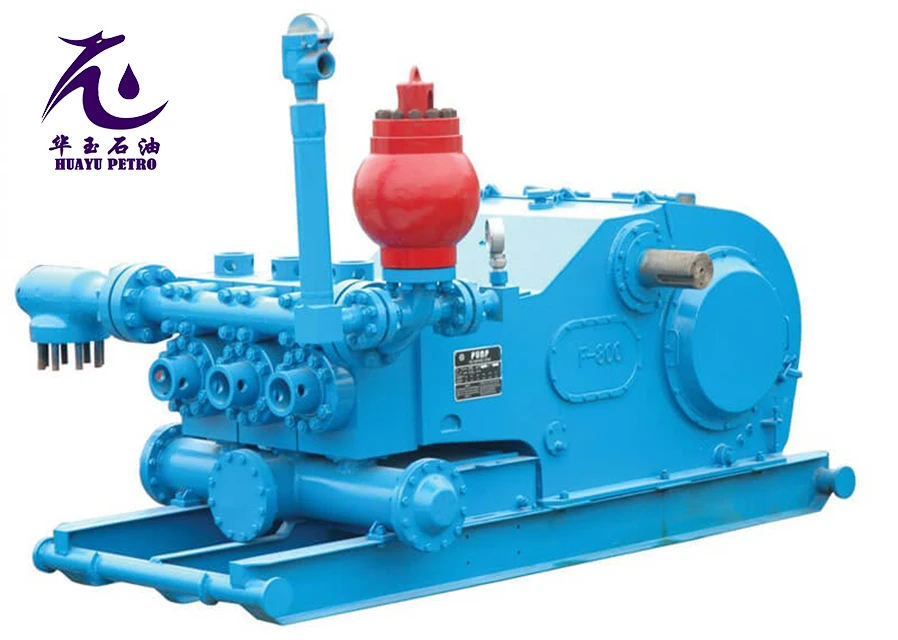

Model | F500 | F800 | F1000 | F1300 | F1600 |
Type | Triple cylinder,single action and piston type | Triple cylinder,single action and piston type | Triple cylinder,single action and piston type | Triple cylinder,single action and piston type | Triple cylinder,single action and piston type |
Max. Cylinder liner Dia*stroke | 170×191mm (6-3/4″*7.5″) | 170×229mm (6-3/4″*9″) | 170×254mm (6-3/4″*10″) | 180×305mm (7″*12″) | 180×305mm (7″*12″) |
Rated strokes | 165r/min | 150r/min | 140r/min | 120r/min | 120r/min |
Rated power | 373kW(500hp) | 596kW(800hp) | 746kW(1000hp) | 969kW(1300hp) | 1176kW(1600hp) |
Gear type | chevron gear | chevron gear | chevron gear | chevron gear | chevron gear |
Gear speed ratio | 4.286:1 | 4.185:1 | 4.207:1 | 4.206:1 | 4.206:1 |
Lubrication | Forced and splashed lubrication | Forced and splashed lubrication | Forced and splashed lubrication | Forced and splashed lubrication | Forced and splashed lubrication |
Suction spout | 8″flange(about 203mm) | 10″flange(about 254mm) | 12″flange(about 305mm) | 12″flange(about 305mm) | 12″flange(about 305mm) |
Discharge spout | 4″flange 5000psi | 5″flange 5000psi | 5″flange 5000psi | 5″flange 5000psi | 5″flange 5000psi |
Stroke number/minute SPM | Rated power | Diameter of cylinder liner mm (in) and rated pressure, Mpa(psi) | ||||||||||||||
170(6.69) | 160(6.30) | 150(5.91) | 140(5.51) | |||||||||||||
kW HP | 13.8 | 2000 | 15.6 | 2260 | 17.7 | 2570 | 20.3 | 2950 | ||||||||
Displacement L/S (GPM) | ||||||||||||||||
160 | 636 853 | 41.51 | 36.77 | 32.32 | 28.15 | |||||||||||
(658) | (583) | (512) | (446) | |||||||||||||
150 | 596 800 | 38.92 | 34.47 | 30.30 | 26.39 | |||||||||||
(617) | (546) | (480) | (418) | |||||||||||||
140 | 557 747 | 36.32 | 32.17 | 28.28 | 24.63 | |||||||||||
(575) | (510) | (448) | (390) | |||||||||||||
130 | 517 693 | 33.73 | 29.88 | 26.26 | 22.87 | |||||||||||
(534) | (473) | (416) | (362) | |||||||||||||
120 | 477 640 | 31.13 | 27.58 | 24.24 | 21.11 | |||||||||||
(493) | (437) | (384) | (334) | |||||||||||||
110 | 437 587 | 28.54 | 25.28 | 22.22 | 19.35 | |||||||||||
(452) | (400) | (352) | (307) | |||||||||||||
1 | 0.2594 | 0.2298 | 0.2020 | 0.1759 | ||||||||||||
(4.112) | (3.643) | (3.202) | (2.789) | |||||||||||||
Stroke number/minute SPM | Rated power | Diameter of cylinder liner mm (in) and rated pressure, Mpa(psi) | ||||||||||||||
130(5.12) | 120(4.72) | 110(4.33) | 100(3.94) | |||||||||||||
kW HP | 23.6 | 3420 | 27.7 | 4015 | 53.0 | 4780 | 34.5 | 5000 | ||||||||
Displacement L/S (GPM) | ||||||||||||||||
160 | 636 853 | 24.27 | 20.68 | 17.38 | 14.36 | |||||||||||
(358) | (328) | (275) | (227) | |||||||||||||
150 | 596 800 | 22.76 | 19.39 | 16.29 | 13.47 | |||||||||||
(360) | (307) | (258) | (213) | |||||||||||||
140 | 557 747 | 21.24 | 18.10 | 15.21 | 12.57 | |||||||||||
(336) | (287) | (241) | (199) | |||||||||||||
130 | 517 693 | 19.72 | 16.81 | 14.12 | 11.67 | |||||||||||
(312) | (266) | (224) | (185) | |||||||||||||
120 | 477 640 | 18.21 | 15.51 | 13.03 | 10.77 | |||||||||||
(288) | (246) | (206) | (171) | |||||||||||||
110 | 437 587 | 16.69 | 14.22 | 11.59 | 9.87 | |||||||||||
(264) | (225) | (189) | (156) | |||||||||||||
1 | 0.1517 | 0.1293 | 0.1086 | 0.0898 | ||||||||||||
(2.405) | (2.049) | (1.722) | (1.423) | |||||||||||||
