Low Frequency 25KHz Piezoelectric Ceramic Ultrasonic Transducer Ultrasonic Oscillator For Ultrasonic Cleaning Machine

Product Overview

Description

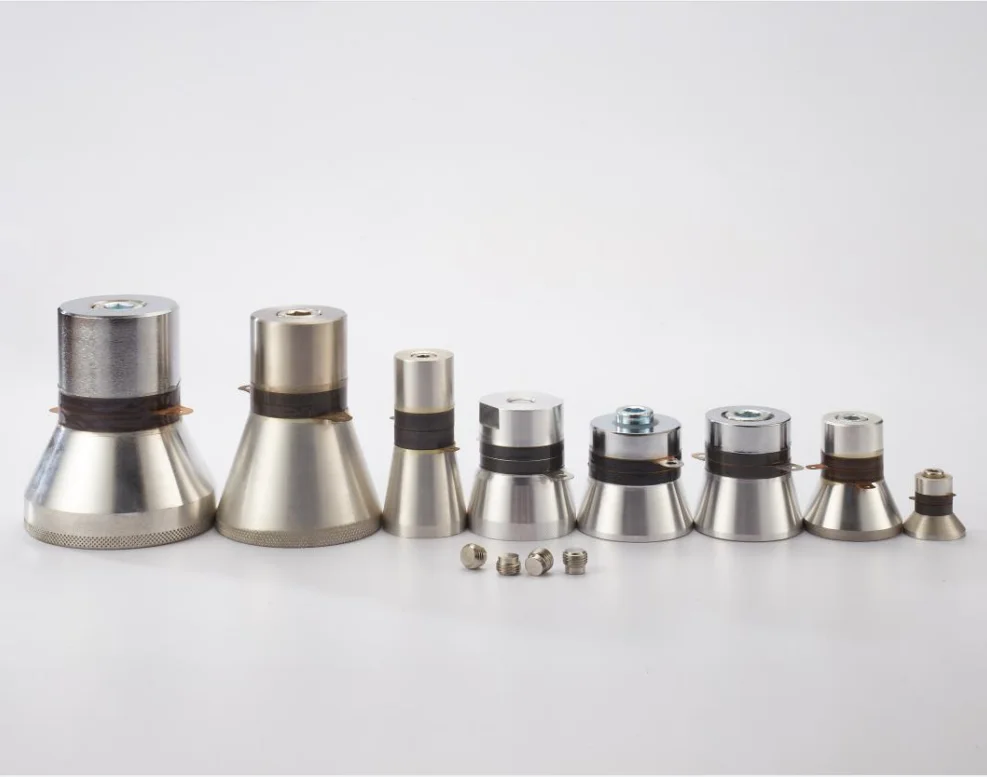

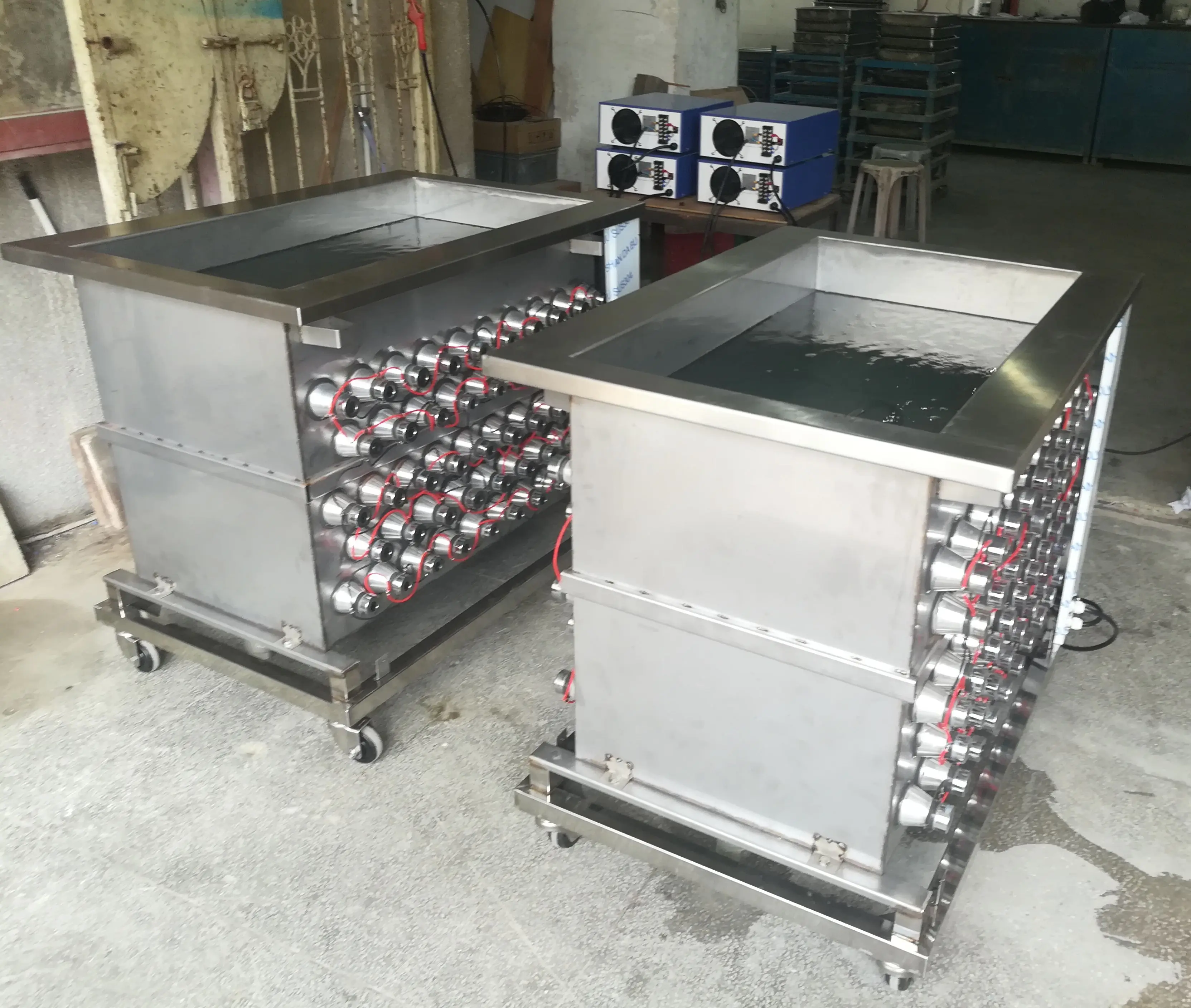

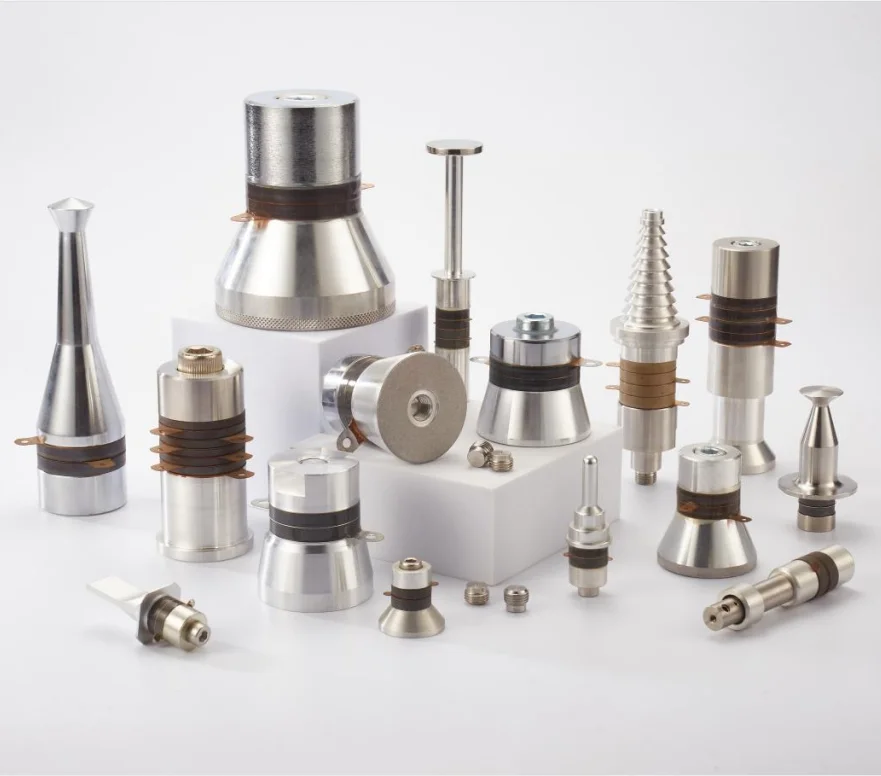

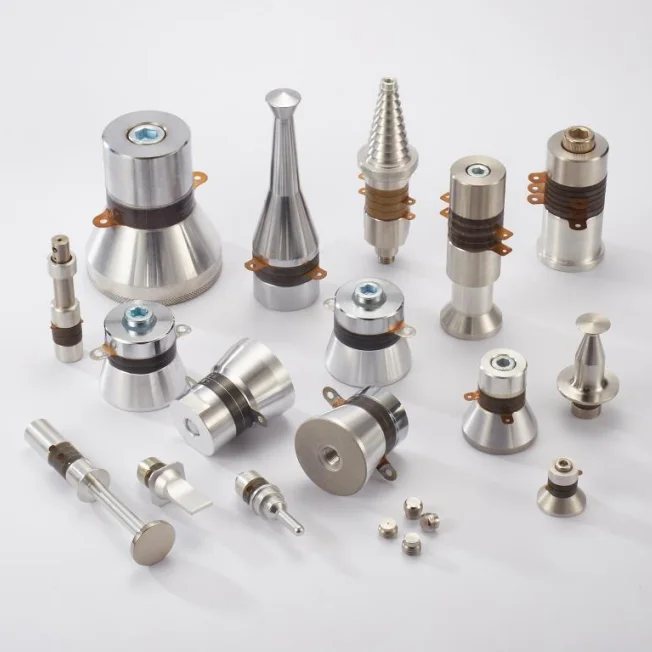

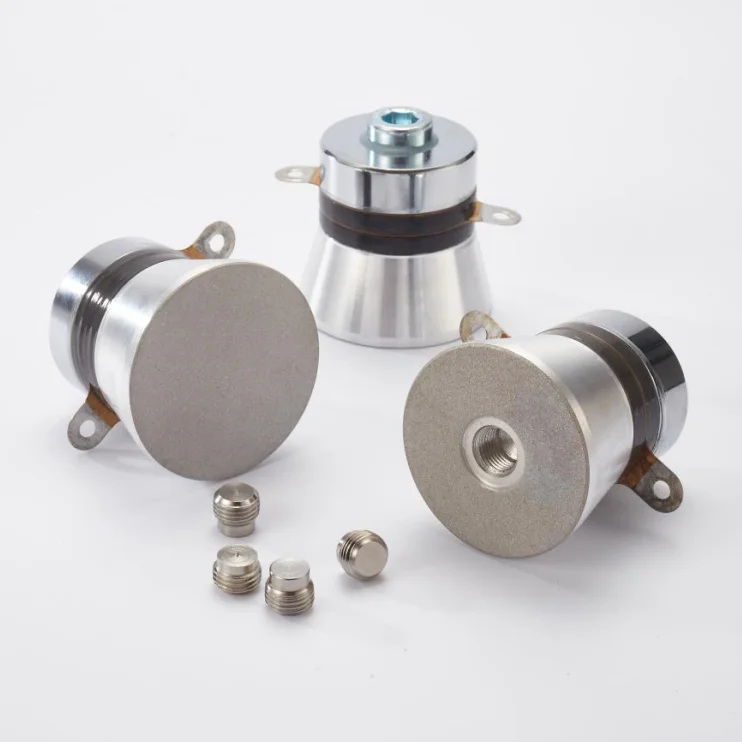

Low Frequency 25KHz Piezoelectric Ceramic Ultrasonic Transducer Ultrasonic Oscillator For Ultrasonic Cleaning Machine is a component that utilize the piezoelectricity for actualize electro-acoustic conversion.SL's langevin-type transducer are used where powerful ultrasonic wave must be generated, such as in Cleaning equipment and easy to install.These transducers are mounted into a structure that can be bolted almost anythere.





Model	Resonant frequency (KHZ)	Resonant impedance (Ω)	Capacity (PF)	Insulation resistance (10000MΩ)	Weight (g)	Power (w)
CL-50T	28±0.5	≤15	9000±5%	5000	730	100
CL-38T(A)	28±0.5	≤15	5500±5%	5000	450	60
CL-38T(B)	40±0.5	≤15	5500±5%	5000	240	60
CL-35T(B)	40±0.5	≤15	4500±5%	5000	240	50



Product Characteristic

1. High Mechanical Quality and excellent electro-acoustic conversion efficiency, providing a high output amplitude.


2. Piezoelectric element offer a high speed of vibration. Through bolt-on mounting, mechanical intensity and amplitude have been improved.


3. Having steady output amplitude even the load markedly changed.


4. Extended using temperature, ensuring good amplitude linearity. Lower resonant impedance, ensuring high conversion efficiency.

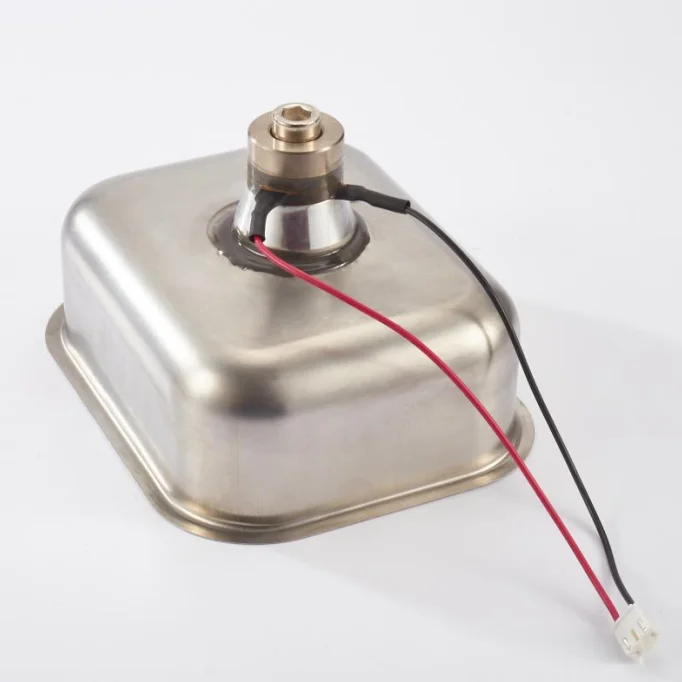

5. Bolt-on mounting gives the fasteasy installation and high reliability.

We can customize all specifications of Non-standard Ultrasonic Transducer according to your requirement.
