high viscosity flux sand bead media mill grinding machine used for chemical industry mainly
- Category: >>>
- Supplier: Shanghai Root Mechanical And Electrical Equipment Co. Ltd.
Share on (1600715019031):
Product Overview
Description
Product Description
Main Applications:

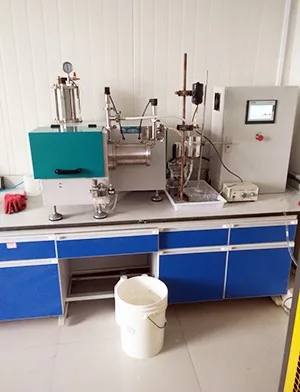

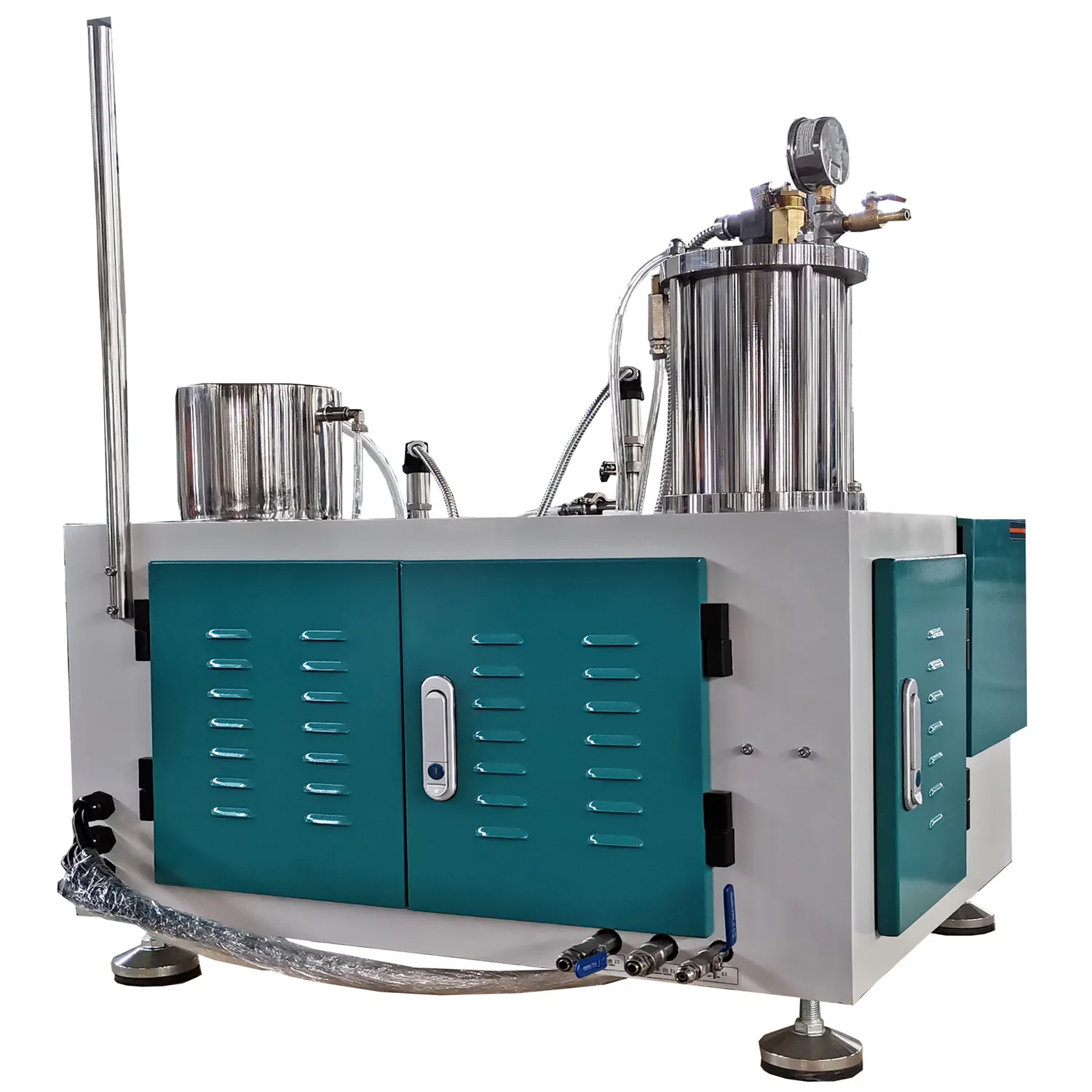

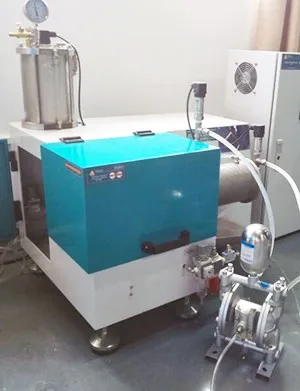

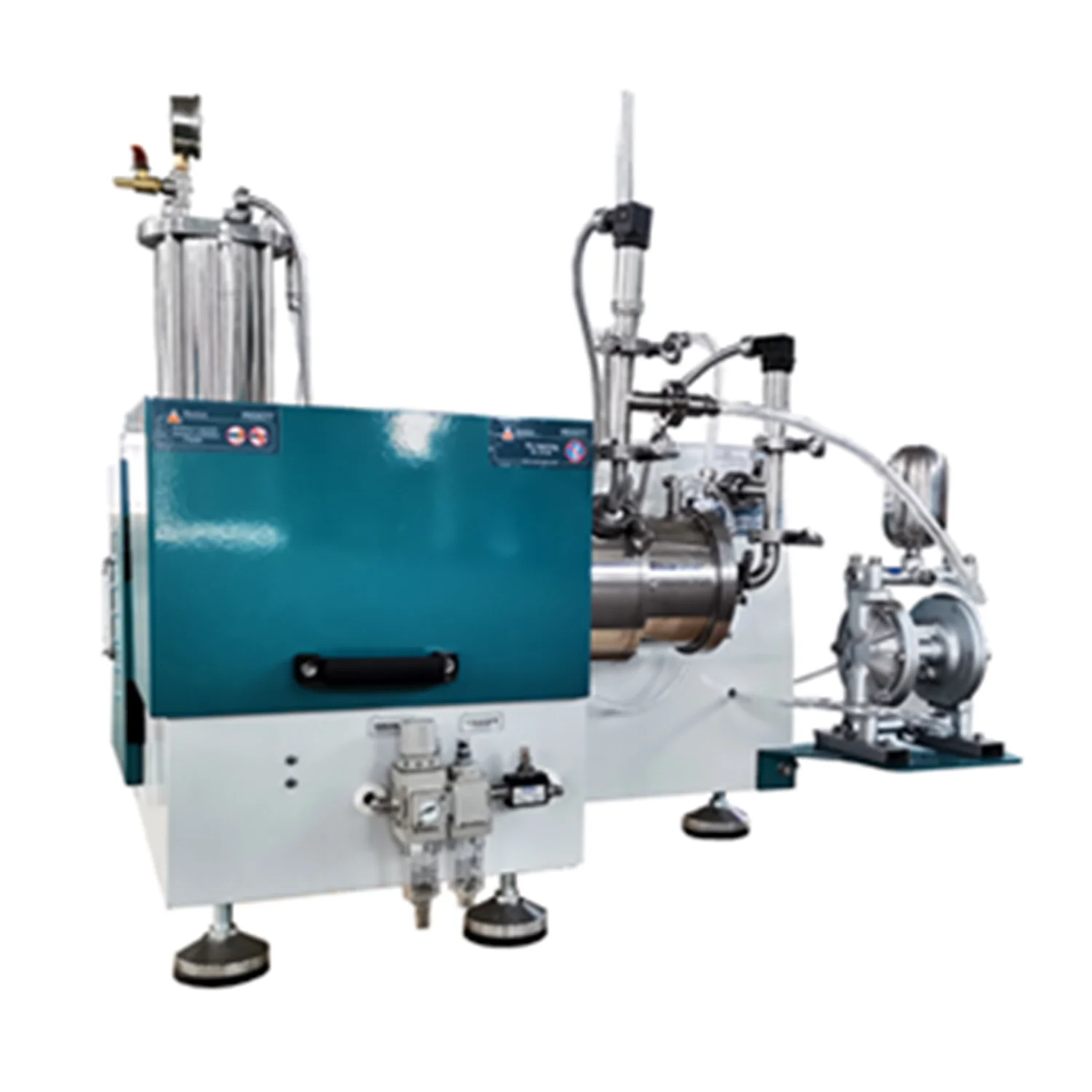

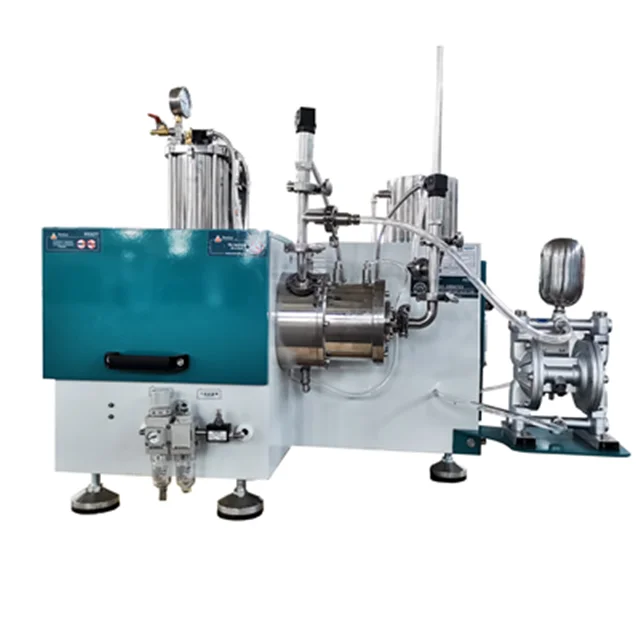

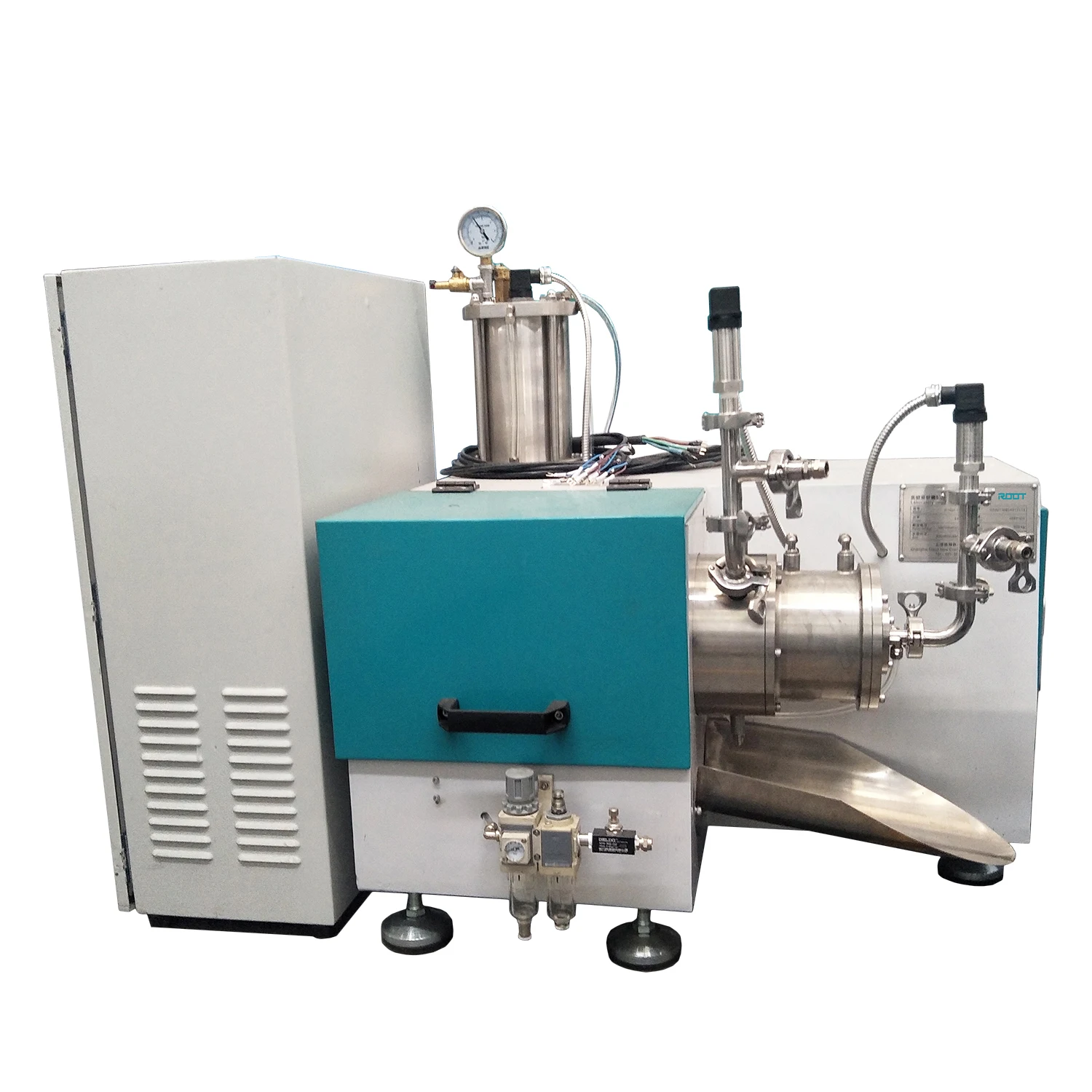

RTSM-0.5BJD laboratory horizontal bead mill is Root self-deseign/manufacturing new-type integrated dispersing bead mill. RTSM-0.5BJ(D) has very wide application. The finish size can be from D90=100nm to D90=20mcron. It is the ideal model for research institute, university lab and Scientific researchers. RTSM-0.5BJ(D) can be applied for the production of pesticide SC, pharmaceutical material, textile printing inkjet ink, digital printing ink, glass inkjet ink, ceramic ink, MLCC, phraphene, nano coating, flourscent brightener, electric paste, positive and negative pole material etc.
Main Features:
· Steady Working
RTSM-0.5BJ(D) adopts Root assembly type double-end mechanical seal, with good sealing and steady working. The coolant for mechanical seal can be changed based on different material to avoid the potential cross pollution due to leakage.
· No Grinding Dead-corner
RTSM-0.5BJ(D) adopted turbine and pin grinding structure, avoiding the traditional disadvantage of uneven distribution of the grinding media and failure of rotating the beads due to low speed. The grinding media under the force of high linear speed and new grinding structure can get the most energy to form a even moving track, thus to enhance the grinding efficiency and no grinding dead-corner.
· Self-protection system for safe working
1) Air pressure protection, material pressure protection, water pressure protection, material temperature protection etc. All these points are set in control box, once the pressure or temperature has passed the set values, the machine will stop work to protect itself.
2)When mechanical sealing cooling oil is lower than normal lever, the machine will stop automatically for self-protection.
TECHNICAL INFORMATION FOR RTSM-0.5BJ(D) LAB BEAD MILL | ||||||
Grinding System | Grinding chamber volume: 0.5L | |||||
Outer chamber material: all body stainless steel Advantage: Easy maintenance and less corrosion | ||||||
Inner chamber material: wear resistant hard alloy or ceramic material Advantage: High wear resistant. Two material for selection, for different application | ||||||
Grinding rotor material: Hard alloy/Zirconia | ||||||
Grinding rotor structure: Turbine+Pin | ||||||
Main shaft material: SS304 | ||||||
Bearing: Imported SKF | ||||||
Grinding chamber working pressure: 4KG | ||||||
Grinding chamber dismantle: 360° rotated Chamber, easy for beads adding and material discharge. | ||||||
Sealing system | Mechanical sealing type: Assembled double end mechanical sealing. Longg durability , easy maintenance. | |||||
Dynamic-Static ring material: wolfram carbide. High wear resistance. It could form a perfect water/oil film to prevent the material going into the mechanical sealing. Better sealing performance | ||||||
Mechanical sealing support material: stainless steel(304). | ||||||
Material transportation system | Material Feeding: ARO Pneumatic diaphragm pump | |||||
Material Discharging: Static discharge (Filter sieve) | ||||||
Separate material: Stainless steel | ||||||
Electrical and Control system | Motor: 4KW | |||||
Motor Brand: Customized (Standard: Siemens Motor) | ||||||
Power Supply: Customized (Standard: 220V 50HZ Single PH) | ||||||
Operation: Push Button | ||||||
Protection system | Air pressure protection, material pressure protection, water pressure protection, material temperature protection etc. All these points are set in control box, once the pressure or temperature has passed the set values, the machine will stop work to protect itself. | |||||
When mechanical sealing cooling oil is lower than normal lever, the machine will stop automatically for self-protection | ||||||
Packing & Delivery
Packing Details : The machine will be covered with anti-abrasion film and then packed in plywood cases.
Delivery Details : 30-60 working days after reception of down payment by our side.

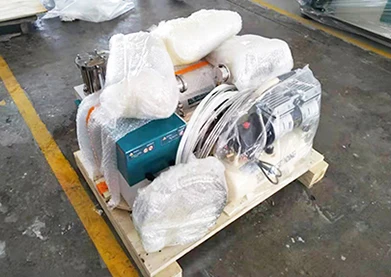

1. parts packed in carton box
2. beads packed with pallets

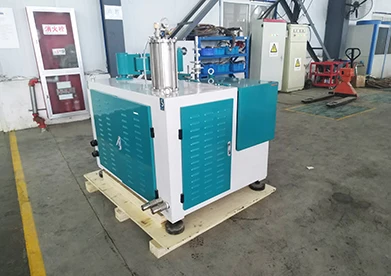

3. laboratory sand mill packing
4. lab mill packed in plywood case
5. Industrial sand mill packing
6. Ship by FCL

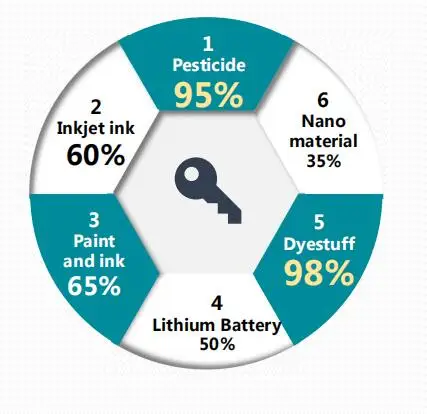

Pesticide, fertilizer, ink, coating, nano new material, all types of chemical products exist in every part of our life. They’re very very closely related to everyone's life on this planet.

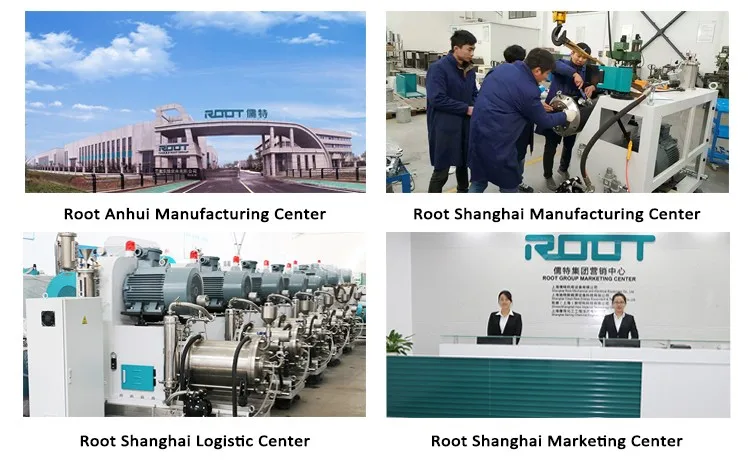

ROOT group, a professional wet grinding supplier/provider of intelligent production solution for fine chemical industry, devoting to R&D, manufacturing, sales and services of fine grinding, mixing, powder transportation, packing and EPC projects. Now ROOT group have formed a special, unique and complete supply chain in the industry of fine chemical and new material. Our marketing center, located in Shanghai Hongqiao Economic Zone, that is the most important window to ROOT’s global customers. Having Asia’s largest wet grinding equipment production base, with 40000 square meter production area, ROOT manufacturing center represents the advanced research and manufacturing ability in China’s fine chemical production equipment industry.
As a member of Root Group, Shanghai Root Mechanical and Electrical Equipment Co., Ltd is focused on the research & development, design and manufacturing of wet grinding machinery. Owning 10 years experience in the wet grinding field, Root is your best choice for laboratory sand mill, industrial sand mill, three roller mill and basket mill, auxiliary machines such as disperser and mixer.With business cooperation with many famous universities, research institutes, experts and experienced engineers, Root has been concentrating on technique of wet grinding machine since 2000.
Now Root wet grinding mills are applied in more than 80 countries such as Europe, America, Asia, Africa and Australia, etc. around the world, being served for factory production of paint, ink, dye, magnetic material, paste, agriculture chemicals, adhesion, cosmetics, ceramic etc. With our own modern Nano Laboratory and manufacturing factory, we have the full capabilities of providing clients with the most suitable business solutions for one-stop wet grinding production sand/bead mills. We have owned a professional project engineer team who are able to provide the most technical installation guide and training for each and every one of our global customers of all time.

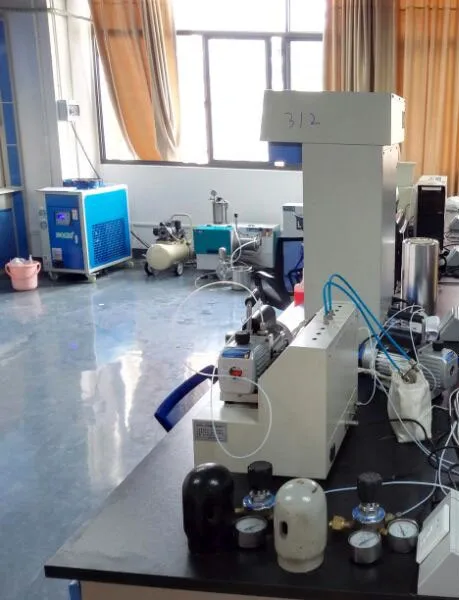

Root Nano Lab offers free-of-charge (FOC) experiment services for customers. Now Root Nano Lab has various testing equipment including:
1. Better size micron size particle sizer, PSS nano-size particle sizer
2. microscope
3. viscosity testing equipment
4. PH value testing equipment
5. disperse dye diffusity testing equipment
6. and all the agents, anti-foams etc.
All these equipment can help customer get ideal experiment results for whichever product they have. All the experiment results can be scaled up to industrial production. Root Nano Lab has been equipped with Root lab series sand mills and disperser: RT-FS1.5, RT-0.2CD, RT-0.5AD, RT-0.5BJD, RT-1.0BJ, RT-1.0BDD, which can fully satisfy for all types of experiment requirements of different material, different feeding size, different viscosity and different finish size etc.
Our greatest thanks for all supports and trusts from the new and the old customers, ROOT will consistently make the first-rate quality and reputation as the premise of all our research & development, making our contributions to the fast development of the wet grinding machine industry worldwide.Driven by new policy and green production concept, ROOT group have created green, intelligent, complete, realizing the combination of economic and environmental benefits. "Quality contributes to strength, credibility prolongs life”, ROOT group will always take corporate cultures as our spiritual guide. “Based on technology, win in quality” boosts global fine chemical industry, development with high quality so as to make a better world for mankind.
ROOT group, a professional wet grinding supplier/provider of intelligent production solution for fine chemical industry, devoting to R&D, manufacturing, sales and services of fine grinding, mixing, powder transportation, packing and EPC projects. Now ROOT group have formed a special, unique and complete supply chain in the industry of fine chemical and new material. Our marketing center, located in Shanghai Hongqiao Economic Zone, that is the most important window to ROOT’s global customers. Having Asia’s largest wet grinding equipment production base, with 40000 square meter production area, ROOT manufacturing center represents the advanced research and manufacturing ability in China’s fine chemical production equipment industry.
As a member of Root Group, Shanghai Root Mechanical and Electrical Equipment Co., Ltd is focused on the research & development, design and manufacturing of wet grinding machinery. Owning 10 years experience in the wet grinding field, Root is your best choice for laboratory sand mill, industrial sand mill, three roller mill and basket mill, auxiliary machines such as disperser and mixer.With business cooperation with many famous universities, research institutes, experts and experienced engineers, Root has been concentrating on technique of wet grinding machine since 2000.
Now Root wet grinding mills are applied in more than 80 countries such as Europe, America, Asia, Africa and Australia, etc. around the world, being served for factory production of paint, ink, dye, magnetic material, paste, agriculture chemicals, adhesion, cosmetics, ceramic etc. With our own modern Nano Laboratory and manufacturing factory, we have the full capabilities of providing clients with the most suitable business solutions for one-stop wet grinding production sand/bead mills. We have owned a professional project engineer team who are able to provide the most technical installation guide and training for each and every one of our global customers of all time.
Root Nano Lab offers free-of-charge (FOC) experiment services for customers. Now Root Nano Lab has various testing equipment including:
1. Better size micron size particle sizer, PSS nano-size particle sizer
2. microscope
3. viscosity testing equipment
4. PH value testing equipment
5. disperse dye diffusity testing equipment
6. and all the agents, anti-foams etc.
All these equipment can help customer get ideal experiment results for whichever product they have. All the experiment results can be scaled up to industrial production. Root Nano Lab has been equipped with Root lab series sand mills and disperser: RT-FS1.5, RT-0.2CD, RT-0.5AD, RT-0.5BJD, RT-1.0BJ, RT-1.0BDD, which can fully satisfy for all types of experiment requirements of different material, different feeding size, different viscosity and different finish size etc.
Our greatest thanks for all supports and trusts from the new and the old customers, ROOT will consistently make the first-rate quality and reputation as the premise of all our research & development, making our contributions to the fast development of the wet grinding machine industry worldwide.Driven by new policy and green production concept, ROOT group have created green, intelligent, complete, realizing the combination of economic and environmental benefits. "Quality contributes to strength, credibility prolongs life”, ROOT group will always take corporate cultures as our spiritual guide. “Based on technology, win in quality” boosts global fine chemical industry, development with high quality so as to make a better world for mankind.
