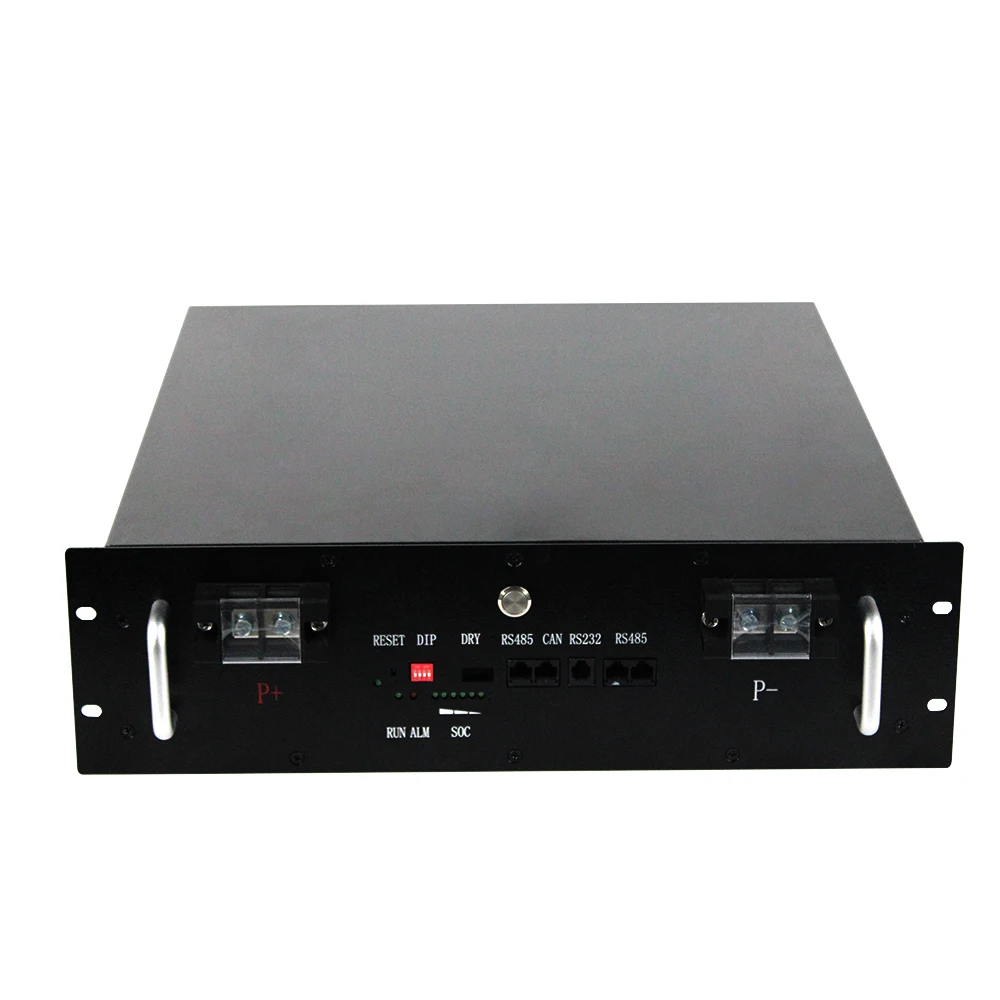

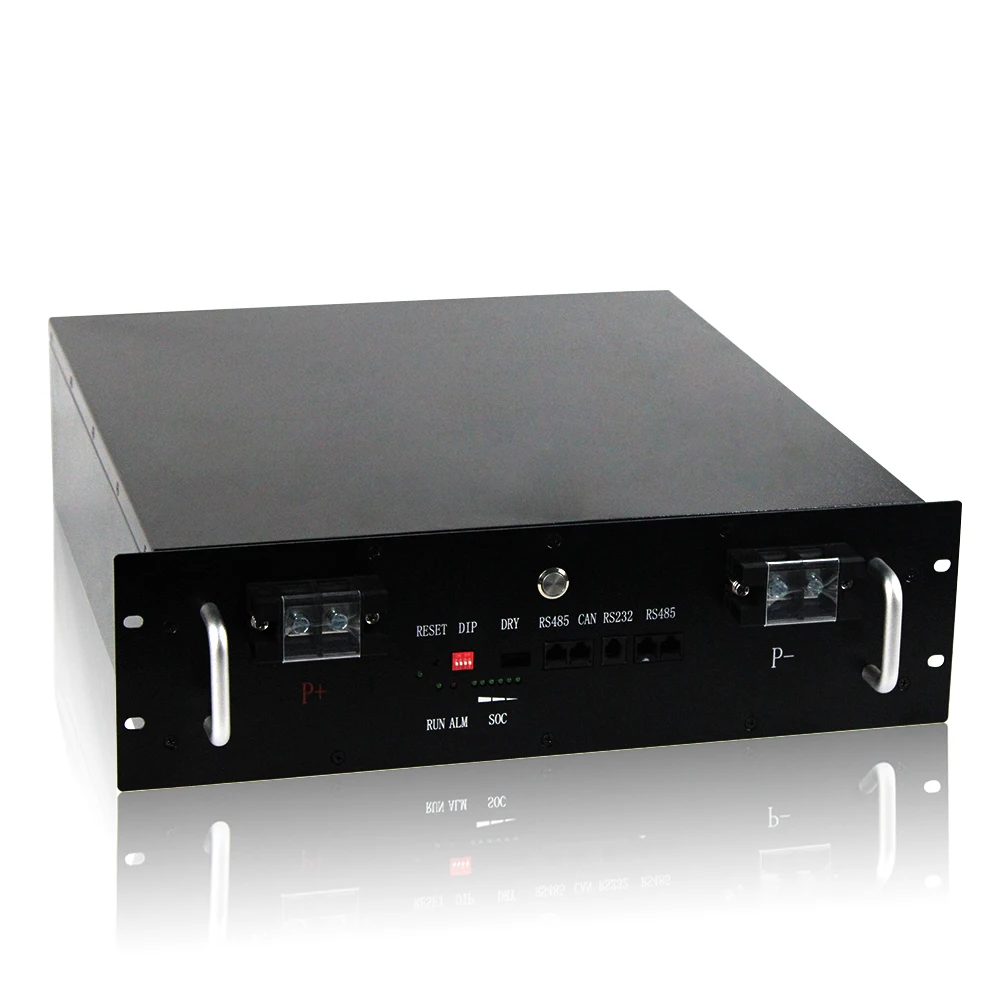

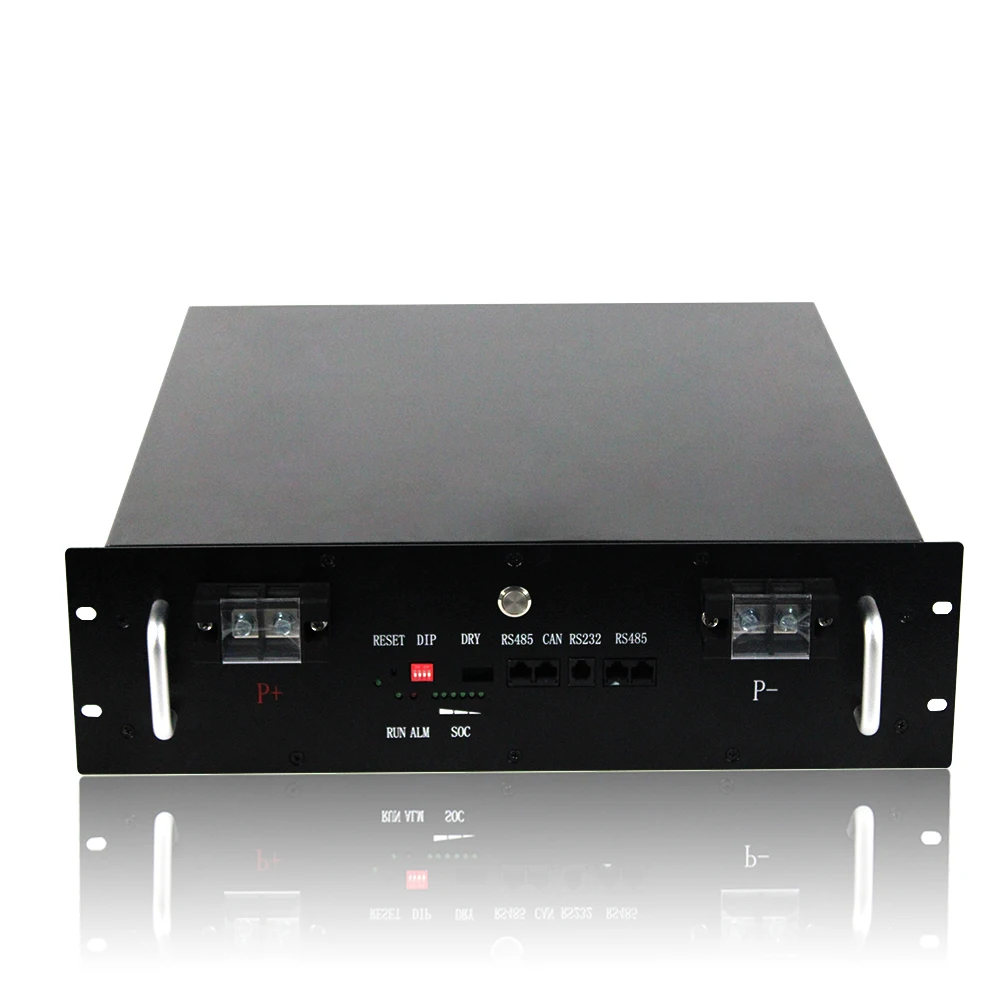

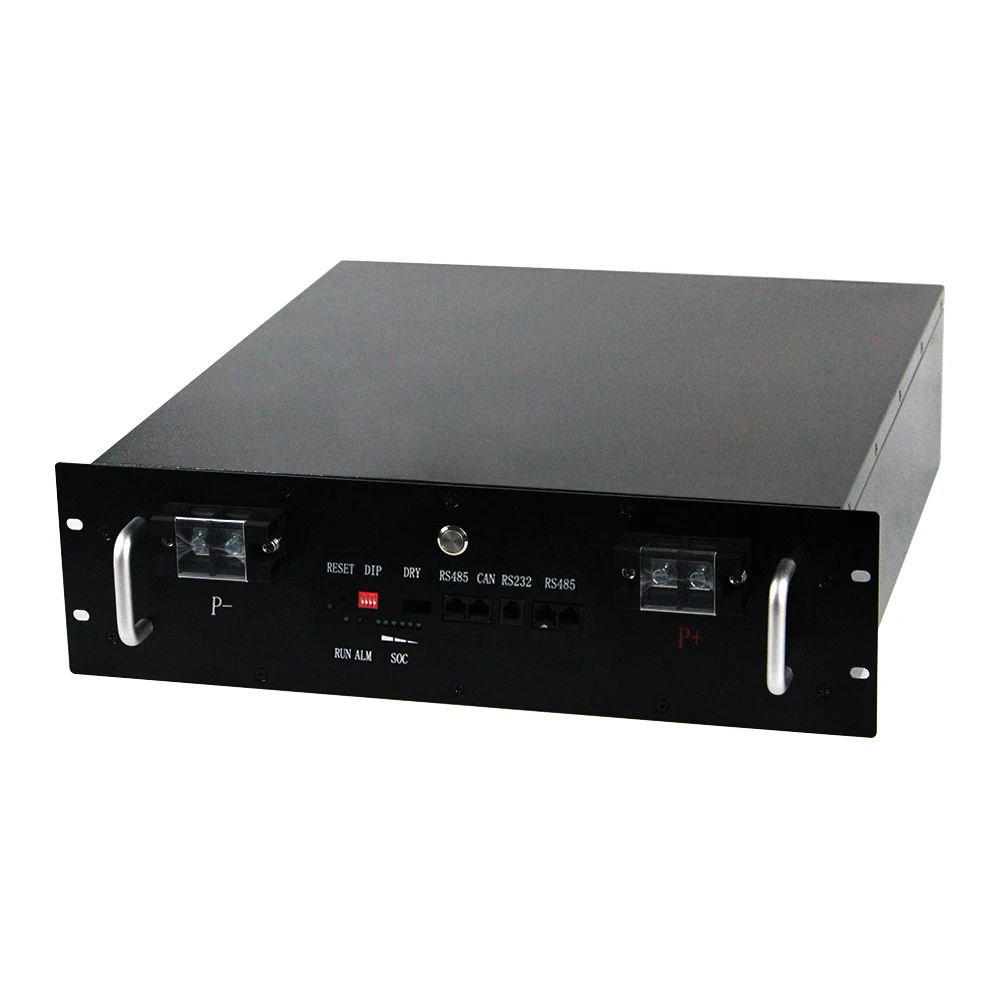

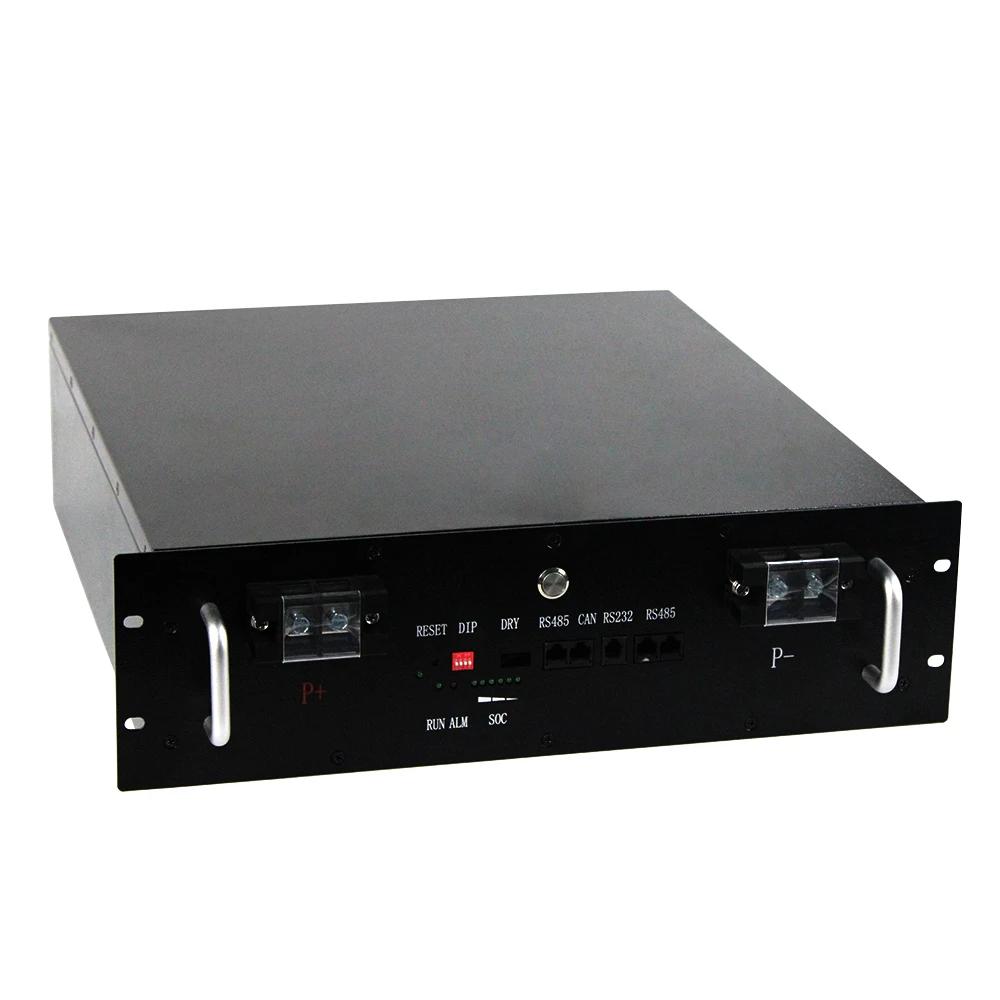

Elite Nominal Voltage 51.2V Li ion Battery 48V 50Ah 100Ah 130Ah 200Ah Lithium LiFePO4 Battery For Home Energy Storage System
- Category: >>>
- Supplier: Dongguan Elite New Energy Co. Ltd.
Share on (1600715550852):
Product Overview
Description
Product Description
Safety
Safest Lithium battery, CE MSDS UN38.3 approved, built-in BMS
Standard
Safest Lithium battery, CE MSDS UN38.3 approved, built-in BMS
Standard

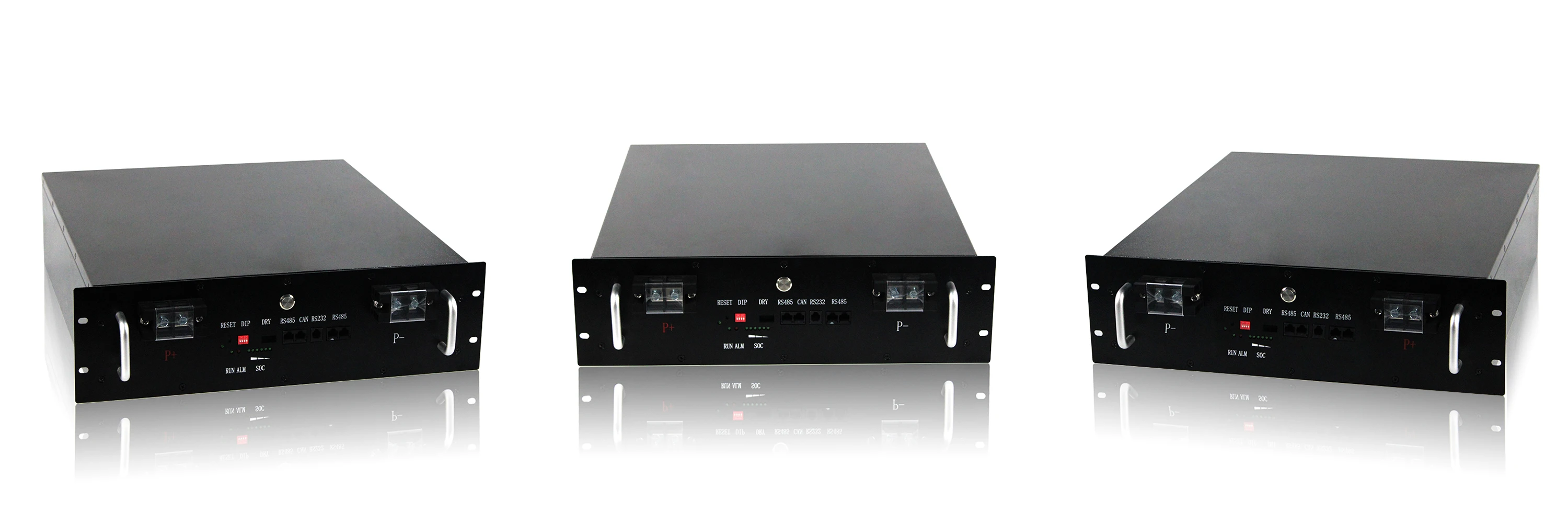

19inch qack-mounted battery type design
Flexible
Support parallel connection to expand battery capacity to meet different applications
Long Life Cycle
More than 4000 times, 6-8 times of lead acid battery
Models
48V/51.2V 50Ah/100Ah/130Ah/200Ah are optional
Support parallel connection to expand battery capacity to meet different applications
Long Life Cycle
More than 4000 times, 6-8 times of lead acid battery
Models
48V/51.2V 50Ah/100Ah/130Ah/200Ah are optional
Product Paramenters
Model | ELT51250R | ELT512100R | ELT512130R | ELT512200R | |||
2560Wh | 5120Wh | 6656Wh | 10240Wh | ||||
Battery Type | LiFePO4 Battery | ||||||
Internal Resistance | ≤10mΩ | ||||||
Cycle Life | >4000 cycles@1C 100% DOD | ||||||
Months Self Discharge | <3% | ||||||
Efficiency of Charge | 100%@0.5C | ||||||
Efficiency of Discharge | 96-99% @1C | ||||||
Charge Cut-off Voltage | 58.4±0.2V | ||||||
Charge Mode | 0.2C to 58.4V, then 58.4V charge current to 0.02C(CC/CV) | ||||||
Recommend Charge Current | 20-50A | 20-50A | 20-50A | 20-50A | |||
Max. Charge Current | 50A | 100A | 100A | 100A | |||
Max. Continuous Discharge Current | 50A | 100A | 100A | 100A | |||
Max. Pulse Current | 60A,@<10s | 120A,@<10s | 120A,@<10s | 130A,@<10s | |||
Discharge Cut-off Voltage | 40V | ||||||
Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity | ||||||
Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity | ||||||
Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity | ||||||
Water Dust Resistance | IP21 | ||||||
Package | Metal case | ||||||
Dimensions(mm.in.) | 483*400*133mm/ 19*15.74*5.24'' | 483*400*133mm/ 19*15.74*5.24'' | 483*558*177mm/ 19*21.97*6.97'' | 483*500*267mm / 19*19.69*10.51'' | |||
Weight(lbs./kg.) | 30kg/66.13 lbs | 50kg/110.23 lbs | 56kg/123.46 lbs | 83kg/182.99 lbs | |||
Display screen | Optional | ||||||
Bluetooth | Optional | ||||||
Parallel Connection | Yes | ||||||
Communication | RS485/CAN | ||||||
Certification | CE, MSDS, UN38.3 | ||||||
Warranty | Standard 3 years, 5+ years upon request | ||||||
OEM | Support for customized dimension, current, logo and so on. | ||||||
Related Products

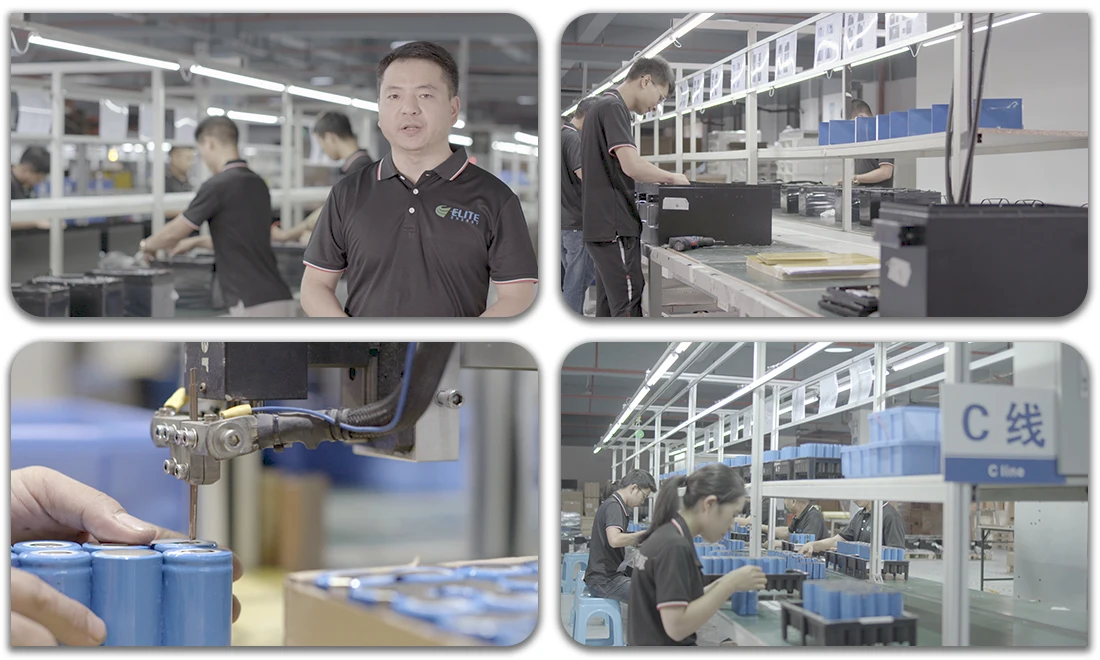

Company Profile
Company Information
Founded in 2017, Elite New Energy Co., Ltd. is a high-tech enterprise specializing in the R&D and production of LiFePO4 battery systems for EV, ESS, lead acid battery replacement and many other different applications.
Equipped with state-of-art facilities and equipment, certified with Quality System ISO9001, Environmental Management System
ISO14001, and Occupation Health and Management System ISO45001, complied with up- to-date certifications: CE, BIS, MSDS, UN38.3,
Equipped with state-of-art facilities and equipment, certified with Quality System ISO9001, Environmental Management System
ISO14001, and Occupation Health and Management System ISO45001, complied with up- to-date certifications: CE, BIS, MSDS, UN38.3,
Elite New Energy’s products perfectly meet international standards with most excellent performance and safety Compliance, and fully qualified for high end OEM/ODM markets.
Elite New Energy now have strong R&D centers for developing leading technologies and applying them to the product design, so as to providing high quality and excellent performance LiFePO4 battery solution.
Elite New Energy now have strong R&D centers for developing leading technologies and applying them to the product design, so as to providing high quality and excellent performance LiFePO4 battery solution.
Our Advantages
With its innovation and reliablity, Elite gains a lot of recognition and and appriciation from our customers. Adhering to the
mission of " Strive for Excellence,Continue to Improve,Serve for Customers", relying on expertising knowledge in lifepo4 battery area and professional technical team, Elite focuses on providing customers with high quality services and to meet customers'personalized customization requirements, thus providing customers with comprehensive battery solutions and technical support. The advantages of Elite are as follow:
mission of " Strive for Excellence,Continue to Improve,Serve for Customers", relying on expertising knowledge in lifepo4 battery area and professional technical team, Elite focuses on providing customers with high quality services and to meet customers'personalized customization requirements, thus providing customers with comprehensive battery solutions and technical support. The advantages of Elite are as follow:
Certifications
Packing & Delivery
With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Standard batteries lead time: Samples: 15-20 days, Bulk order: 25-30 days.
Customized batteries lead time: Samples: 30-40 days, Bulk order: 30-40 days.
Standard batteries lead time: Samples: 15-20 days, Bulk order: 25-30 days.
Customized batteries lead time: Samples: 30-40 days, Bulk order: 30-40 days.
By air, by sea, by express, railway transportation and so on.
FAQ
Q1. Do you have MOQ (Minimum Order Quantity) limit?
A: No, Elite do not have MOQ limit, sample order or small volume is available.
Q2. What about the lead time?
A: Standard product lead time: Samples: 3-5 days, Bulk order: 3-4 weeks.
Customized product lead time: 3-4 weeks both for sample or bulk order.
Q3. How do you ship the goods? How about the shipping time?
A: By air door to door (6-12 days): FEDEX, UPS or DHL, suitable for urgent small order.
By sea door to door (25-50 days): suitable for bulk order.
By sea to delivery port (20-35 days): Suitable for bulk order.
By Air to airport (3-5 days): Suitable for urgent heavy package.
Q4. How to proceed with an order?
A: Firstly, providing your requirements or applications, then we will provide battery solution and quote accordingly. Secondly, confirming the order and do the deposit for it, then we will arrange the production.
Q5. Is it available to print my logo on the product?
A: Yes. Just send us you logo and we will make a label for the product. For product with metal/aluminum case, logo silk-print on the case is available.
Q6.Which Certificates do you have?
A: Factory with ISO9001, ISO14001 and ISO45001 approved;
Products with CE/UKCA/UN38.3/MSDS/etc..
Q7.How about the product warranty?
A: 3 years warranty + product lifetime technical support.
Q8: How can I pay for the order?
A: T/T, Paypal, L/C, etc..
Other payment options please contact us before order confirmation.
A: No, Elite do not have MOQ limit, sample order or small volume is available.
Q2. What about the lead time?
A: Standard product lead time: Samples: 3-5 days, Bulk order: 3-4 weeks.
Customized product lead time: 3-4 weeks both for sample or bulk order.
Q3. How do you ship the goods? How about the shipping time?
A: By air door to door (6-12 days): FEDEX, UPS or DHL, suitable for urgent small order.
By sea door to door (25-50 days): suitable for bulk order.
By sea to delivery port (20-35 days): Suitable for bulk order.
By Air to airport (3-5 days): Suitable for urgent heavy package.
Q4. How to proceed with an order?
A: Firstly, providing your requirements or applications, then we will provide battery solution and quote accordingly. Secondly, confirming the order and do the deposit for it, then we will arrange the production.
Q5. Is it available to print my logo on the product?
A: Yes. Just send us you logo and we will make a label for the product. For product with metal/aluminum case, logo silk-print on the case is available.
Q6.Which Certificates do you have?
A: Factory with ISO9001, ISO14001 and ISO45001 approved;
Products with CE/UKCA/UN38.3/MSDS/etc..
Q7.How about the product warranty?
A: 3 years warranty + product lifetime technical support.
Q8: How can I pay for the order?
A: T/T, Paypal, L/C, etc..
Other payment options please contact us before order confirmation.
