Heat-resistant gasket oil-resistant gasket asbestos-free plate silicone ring gasket
- Category: Seals >>>
- Supplier: Langfang,Xinlai,Fireproof,Material,Co.,Ltd.
Share on:
Product Overview
Description
Product description:
Suitable for tank mouth, manhole, hand hole seal, boiler manhole, smoke box belt, steam ball seal. Products are used in chemical industry (medicine, pesticide, fertilizer, dye, polymer, intermediate, etc.) petroleum, electronics, machinery, electric power, environmental protection and many other fields. However, it has been recognized internationally that asbestos is a carcinogen. In the 1970s, many countries put forward non-asbestos project, after more than 20 years of efforts, the United States, Japan and Australia have developed various series of non-asbestos gasket materials, in 1990, United States Environmental Protection Agency EPA issued government regulations to prohibit the use of asbestos materials and their products. Now, the world's advanced countries have extended non-asbestos materials to all application fields and banned the use of asbestos materials.
Asbestos Gasket belongs to Gasket series
Advantage:
1: Good Sealing Performance Advantage
2: excellent corrosion resistance
Operating Temperature: -100-+ 1000 operating pressure: PN < 5.0 MP
Advantage:
1: Good Sealing Performance Advantage
2: excellent corrosion resistance
Operating Temperature: -100-+ 1000 operating pressure: PN < 5.0 MP
Main technical parameters of asbestos gaskets:
Model XB200 XB250 XB300 XB350 XB400 XB450
The tensile strength ： 5MPa 6MPa 8MPa 9MPA 11MPa 18MPa
Temperature 200°C 250°C 300°C 350°C 400°C 450°C
The tensile strength ： 5MPa 6MPa 8MPa 9MPA 11MPa 18MPa
Temperature 200°C 250°C 300°C 350°C 400°C 450°C
Main types of asbestos gaskets:
Low-pressure asbestos gasket, medium-pressure asbestos gasket, high-pressure asbestos gasket, oil-resistant asbestos rubber gasket
Classification: Asbestos Fiber, rubber as the main raw materials, supplemented by rubber compounding agent and filler, after mixing, hot roll molding, vulcanization and other processes made.
Asbestos rubber gasket can be divided into ordinary asbestos rubber gasket and oil-resistant asbestos rubber gasket according to its formula, technological properties and uses. According to the use of temperature and pressure, can be divided into low-pressure asbestos rubber gasket, medium-pressure asbestos rubber gasket and high-pressure asbestos rubber gasket. Suitable for water, water vapor, oil, solvent, medium acid, alkali seal, asbestos gasket is mainly used in low-pressure flange connection of the seal.
Low pressure asbestos gasket (G2183) : low pressure asbestos gasket is made of a white chrysotile fiber, suitable for most low temperature, low pressure needs, asbestos gasket is mainly used for steam, water, gas, oil and non-corrosive media seal.Medium-pressure asbestos gasket (G2182) : mainly used for steam, water, gas, oil and non-corrosive medium seal. High-pressure asbestos gasket (G2181) : mainly used for steam, water, gas, oil and non-corrosive medium seal. Oil-resistant asbestos gasket (G2184) : mainly used for steam, water, gas, oil solvents and non-corrosive media seal.
Asbestos Rubber Gasket is a composite of asbestos and rubber gasket products, used in liquid sealing environment. Asbestos Rubber Gasket Manufacturing, in addition to asbestos fiber and rubber, but also to add ingredients, fillers and other substances, through mixing, hot roll molding and vulcanization processes and made of good sealing performance
Medium-pressure asbestos gasket (G2182) : mainly used for steam, water, gas, oil and non-corrosive medium seal.
High-pressure asbestos gasket (G2181) : mainly used for steam, water, gas, oil and non-corrosive medium seal.
Oil-resistant asbestos gasket (G2184) : mainly used for steam, water, gas, oil solvents and non-corrosive media seal.
Asbestos Rubber Gasket maximum processing size: ~ 1300mm; special specifications or various non-standard products can be set according to customer requirements.
Application: oil-resistant Asbestos Gasket is mainly used for steam, water, gas, oil solvents and non-corrosive sealing medium
Classification: Asbestos Fiber, rubber as the main raw materials, supplemented by rubber compounding agent and filler, after mixing, hot roll molding, vulcanization and other processes made.
Asbestos rubber gasket can be divided into ordinary asbestos rubber gasket and oil-resistant asbestos rubber gasket according to its formula, technological properties and uses. According to the use of temperature and pressure, can be divided into low-pressure asbestos rubber gasket, medium-pressure asbestos rubber gasket and high-pressure asbestos rubber gasket. Suitable for water, water vapor, oil, solvent, medium acid, alkali seal, asbestos gasket is mainly used in low-pressure flange connection of the seal.
Low pressure asbestos gasket (G2183) : low pressure asbestos gasket is made of a white chrysotile fiber, suitable for most low temperature, low pressure needs, asbestos gasket is mainly used for steam, water, gas, oil and non-corrosive media seal.Medium-pressure asbestos gasket (G2182) : mainly used for steam, water, gas, oil and non-corrosive medium seal. High-pressure asbestos gasket (G2181) : mainly used for steam, water, gas, oil and non-corrosive medium seal. Oil-resistant asbestos gasket (G2184) : mainly used for steam, water, gas, oil solvents and non-corrosive media seal.
Asbestos Rubber Gasket is a composite of asbestos and rubber gasket products, used in liquid sealing environment. Asbestos Rubber Gasket Manufacturing, in addition to asbestos fiber and rubber, but also to add ingredients, fillers and other substances, through mixing, hot roll molding and vulcanization processes and made of good sealing performance
Medium-pressure asbestos gasket (G2182) : mainly used for steam, water, gas, oil and non-corrosive medium seal.
High-pressure asbestos gasket (G2181) : mainly used for steam, water, gas, oil and non-corrosive medium seal.
Oil-resistant asbestos gasket (G2184) : mainly used for steam, water, gas, oil solvents and non-corrosive media seal.
Asbestos Rubber Gasket maximum processing size: ~ 1300mm; special specifications or various non-standard products can be set according to customer requirements.
Application: oil-resistant Asbestos Gasket is mainly used for steam, water, gas, oil solvents and non-corrosive sealing medium
ASBESTOS RUBBER SHEET SEALING GASKET | ||
Product name | Asbestos Rubber Sheet Gasket | |
Use temperature | -100C~+510°C | |
Technical parameters | XB200B/XB250/XB300/XB350/XB400/XB450/XB500/XB510 | |
pressure | 1.6MPa/2.0MPa/3.0MPa/3.5MPa/4.0MPa/4.5MPa6.0MPa | |
Temperature | +100°C/+200°C/+350°C/+400°C/+450°C/-500°C | |
Product material | With medium-length asbestos fiber, rubber as the main raw material pressed from | |
Product use | Suitable for water, water vapor, oil, solvent, medium acid, alkali sealing, asbestos gasket is mainly used in the low-pressure flange connection of the sealing | |
OIL RESISTANT ASBESTOS RUBBER PLATE GASKET | ||
Product name | Oil-resistant asbestos rubber sheet gasket | |
Use temperature | -100°C~+510°C | |
Technical parameters | NY250/NY30O/NY400/NY510 | |
Temperature | +250°C/+300°C/+400°C/+510°C | |
Product material | It is made of high quality medium and long fibre asbestos and oil resistant synthetic rubber by pressing and carbonizing | |
Product use | Used for oil, petroleum, kerosene, diesel oil, lubricating oil, hot oil, animal and vegetable oil, solvent, carbon and other media of equipment and pipe flange connection sealing gasket material | |
NON-ASBESTOS ARAMID FIBER RUBBER GASKET | ||
Product name | Non-asbestos aramid fiber rubber gasket | |
Use temperature | 100℃~+300°℃ | |
Technical parameters | WNY200B/WNY250/WNY300 | |
pressure | 2.0MPa/2.5MPa/3.0MPa | |
Temperature | +200°C/+250°C/+300°C | |
Product material | With special heat-resistant fiber, oil-resistant synthetic rubber as raw materials, pressed, vulcanized | |
Product use | Used for oil, petroleum, lubricating oil, animal and vegetable oil, water, steam, gas, inert gas, and other media of equipment and pipe flange connection sealing gasket material | |

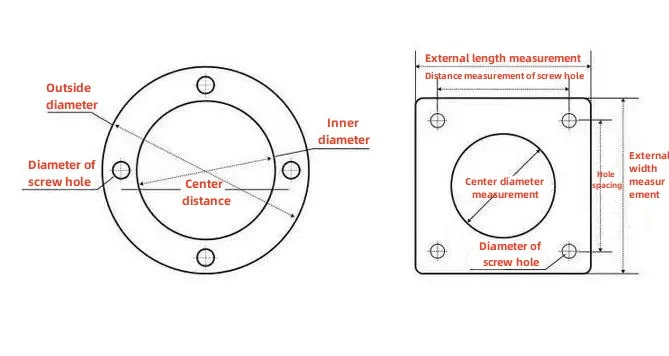

MEASURING METHOD
Product Description

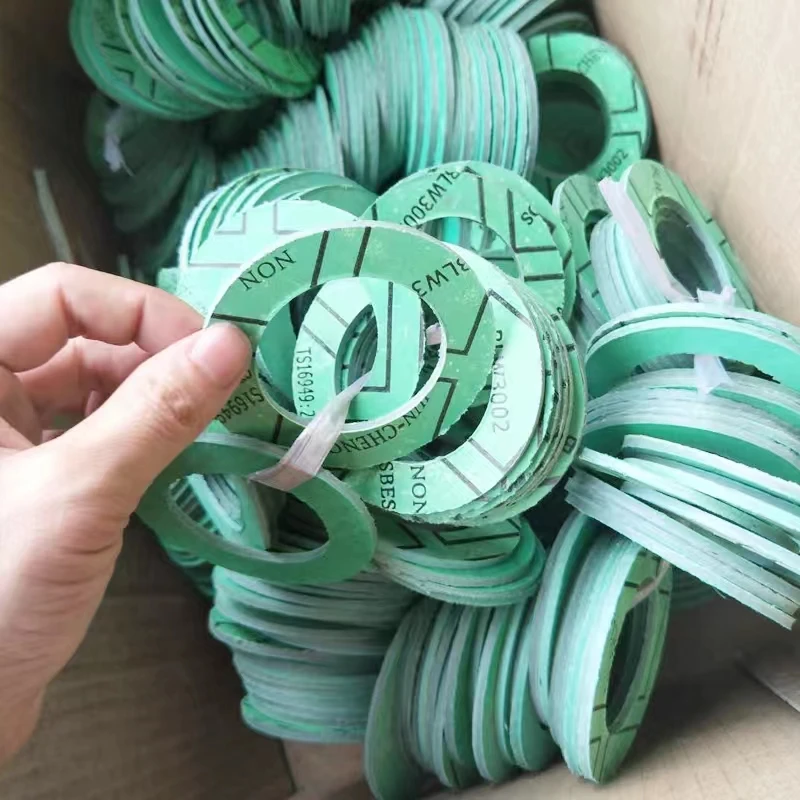

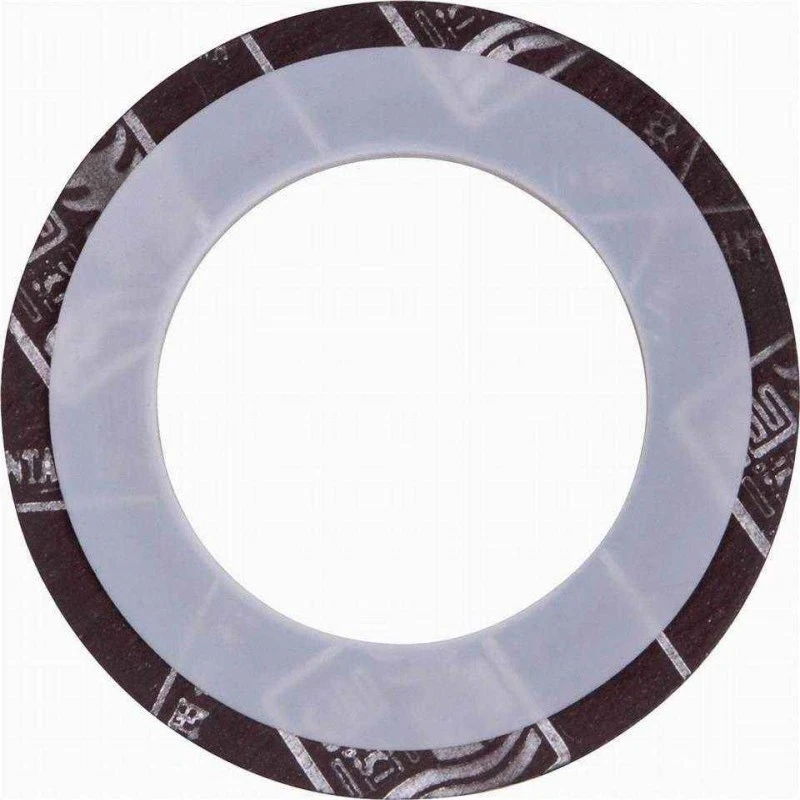

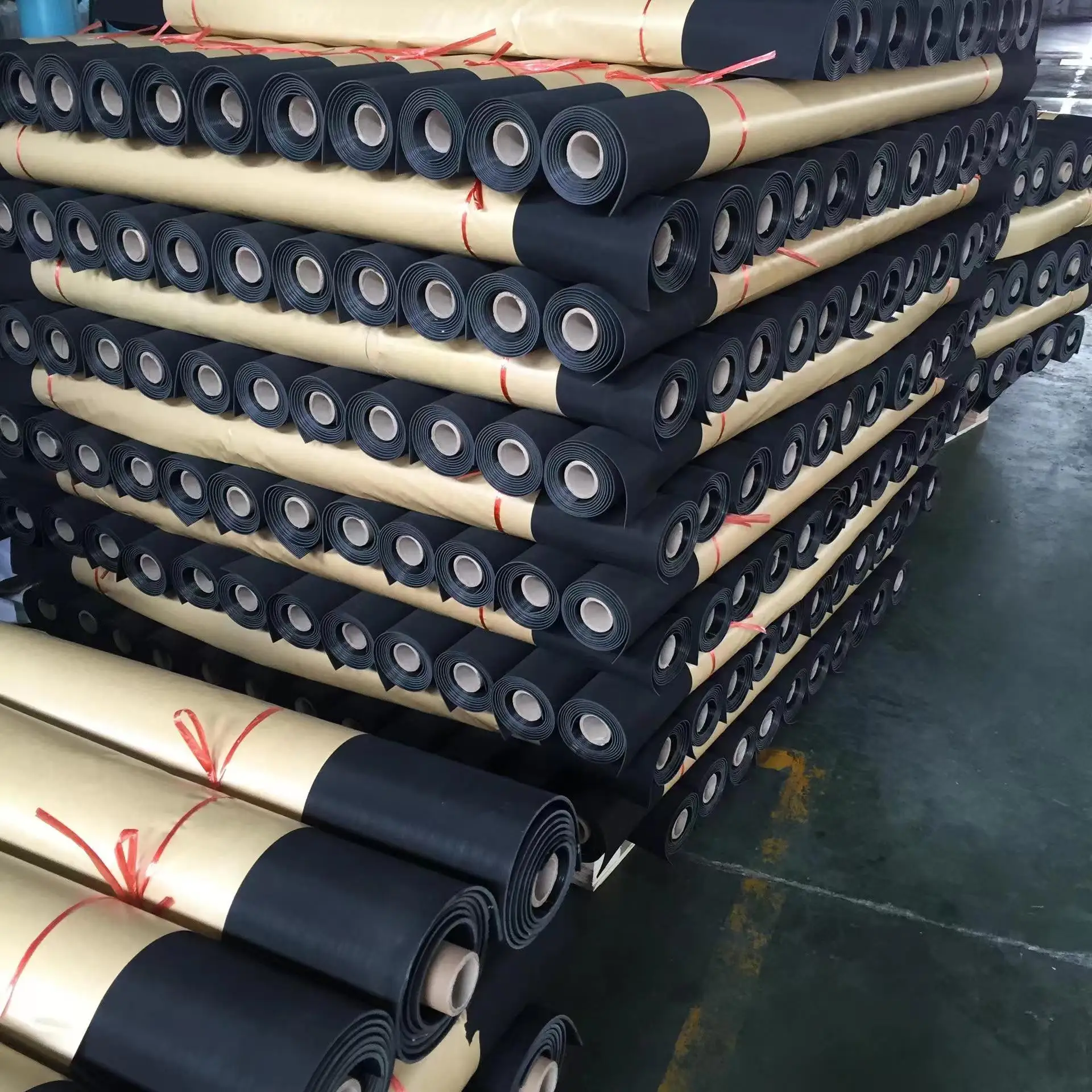

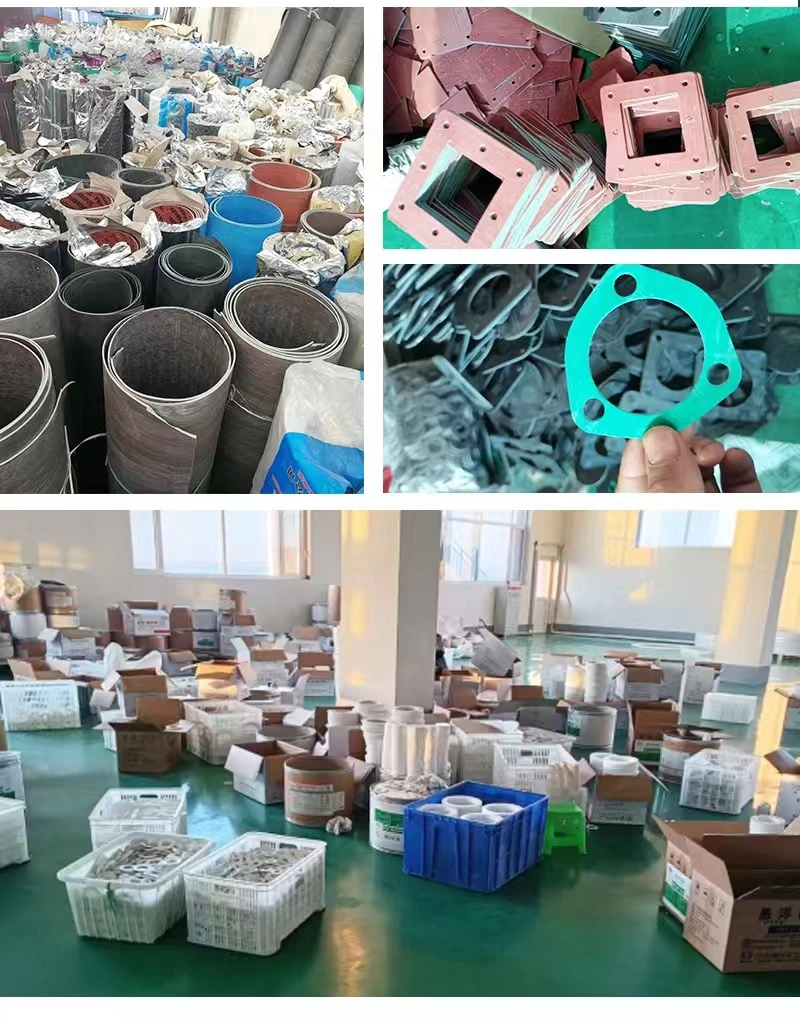

Product Pictures
Specification
Good sealing performance advantage | Asbestos Seal gasket/ Non-asbestos gasket | |
Excellent corrosion resistance | ||
Service temperature | -100℃-500℃ | |
Use Pressure | 4.0MPA/4.5MPA/6.0/PA 1.6MPA/2.0MPA/3.0MPA/3.5MPA | |
Product material | With medium-length asbestos fiber, rubber as the main raw material pressed from | |
The main types of asbestos gaskets | Low-pressure asbestos gasket, medium-pressure asbestos gasket, high-pressure asbestos gasket, oil-resistant asbestos rubber gasket | |
Recommend Products
Company Profile
Packing & Delivery
FAQ
1. Delivery Date?
Usually 10-15 days after receipt of deposit, the specific delivery date depends on the order quantity.
2. How will you conduct quality control?
We will supervise all processes before and after production until we ship the goods from the factory.
3. What's Your Minimum Order?
3. What's Your Minimum Order?
The minimum order may vary according to customers' special requirements; we try our best to meet your business needs.
4. What kind of products do you offer?
4. What kind of products do you offer?
The company can provide a variety of fire sealing materials. For example: metal winding gasket, non-asbestos gasket, industrial rubber plate, Teflon Plate, teflon gasket, ceramic fiber cloth, fireproof cloth, glass fiber cloth, rubber gasket, non-asbestos gasket, Teflon rod, graphite paper, graphite gasket, graphite packing, Teflon packing, aramid packing, carbon fiber packing and other products.
5. Can we have a look around your factory?
5. Can we have a look around your factory?
Yes! Of course, you are welcome to visit our factory anytime on site or online!
