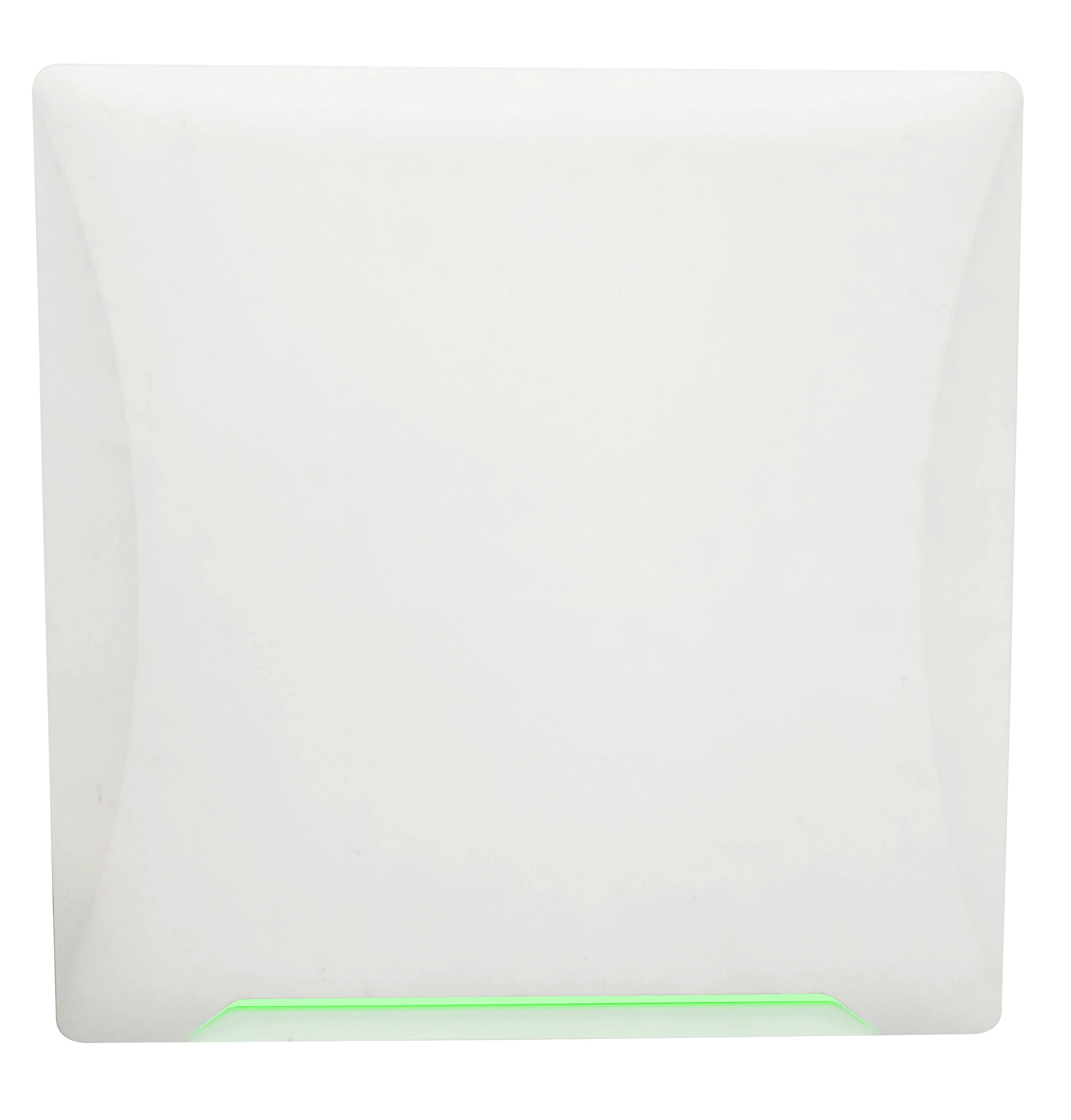

ZKRadio ZUR500B UHF RFID Parking Lot Reader With 12dBi Antenna With ISO18000 6C/EPC C1G2 Protocol IP66 Waterproof
- Category: >>>
- Supplier: Shenzhen radio Technology Co. Ltd
Share on (1600715603703):
Product Overview
Description
OVERVIEW
ZUR500 series is a third generation UHF RFID product developed by our company for fixed car parking lot management and remote access control. This product USES the industry's most cost-effective UHF reading card chip, and part of the integrated design of module, card reader to make the product technical requirements to meet in the parking lot at the same time, has the card read performance is stable, card read performance good consistency and working current and temperature is low, service life is long, card read performance is affected by the outside world is small, and can reach the grade IP66 waterproof, The product is also a product that fully meets the CE/FCC technical requirements, and has obtained CE/FCC and other safety certification certificates.
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | OEM |
Model | ZUR500B |
Frequency | 865-868MHz(ZUR500BE), 902-928MHz (ZHR500BF) |
Protocol | ISO18000-6C/EPC C1G2 |
RF Power | 19-30dBm |
Communication interface | Wiegand, RS485, USB, |
Power supply | DC 9V~15V |
Working current | 120~500mA |
Operating temperature | -20℃~65℃，<85%(+ 25℃) |
Storage Temp. and Humidity | 20℃~65℃，<85%(+ 25℃) |
Communication interface | Wiegand, RS485, USB, TCP/IP(Optional) |
Read range | ＜20m |
Antenna gain | 12dBI |
IP level | IP66 waterproof |
Wiring definition | Red (+12V), Black(GND), Green(D0), White(D1), Purple(Trigger, low level INT)， Gray(GND), Blue(USB), Yellow(USB), Gray(USB), Brown (RS485+)，Orange(RS485-), Gray(GND) |
FEATURE
* IP66 waterproof grade, strong and durable.
* Support to set the standby state and card state of the LED lamp of the reading head through the DEMO software.
* Long distance automatic reading without parking, long distance swipe card, convenient operation and time saving.
* It adopts integrated structure, with read-write module and antenna.
* Built-in high-gain antenna, long range identification, 9DB antenna reading distance is less than 10 meters, 12DB antenna reading distance is less than 20 meters.

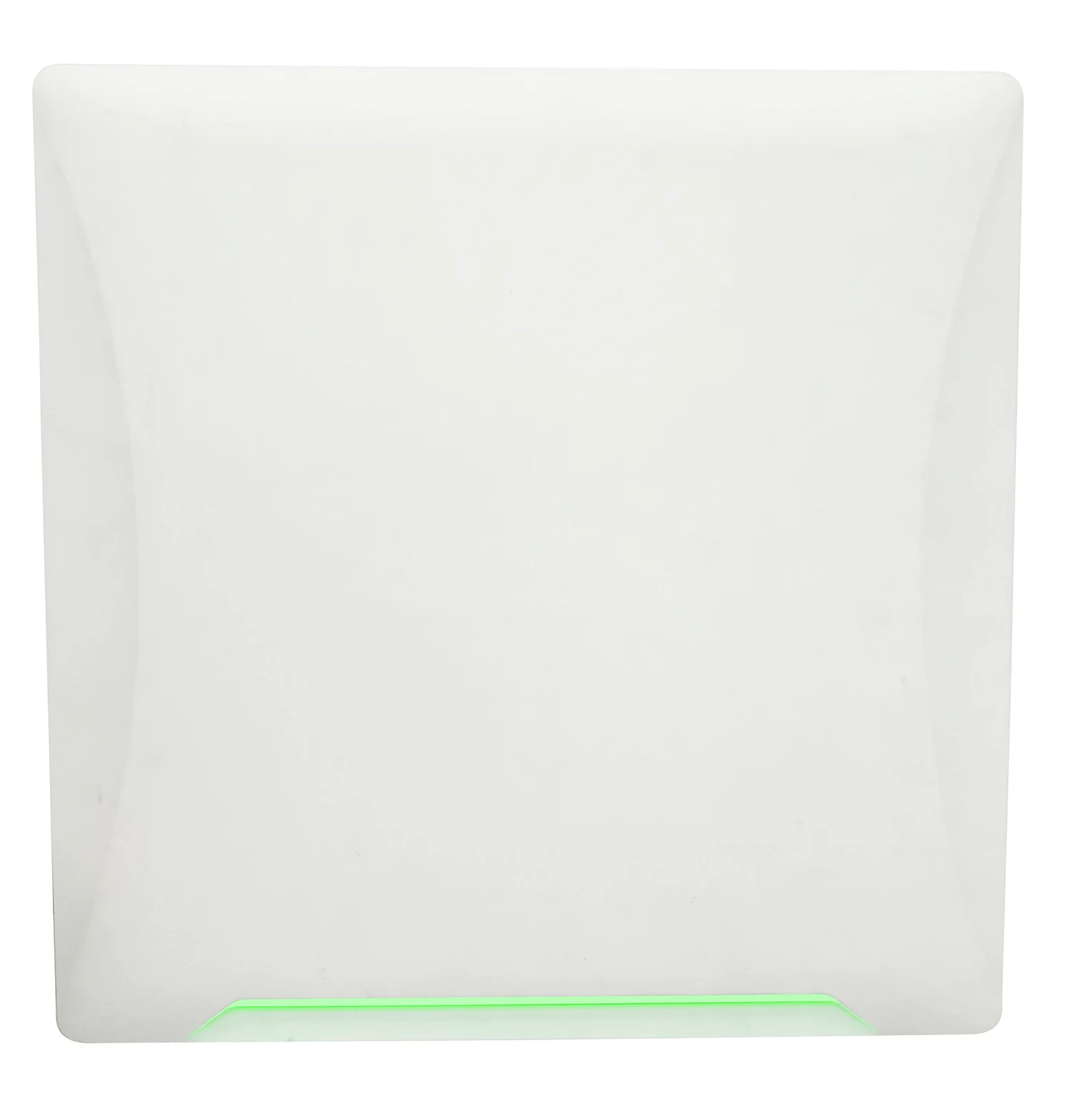

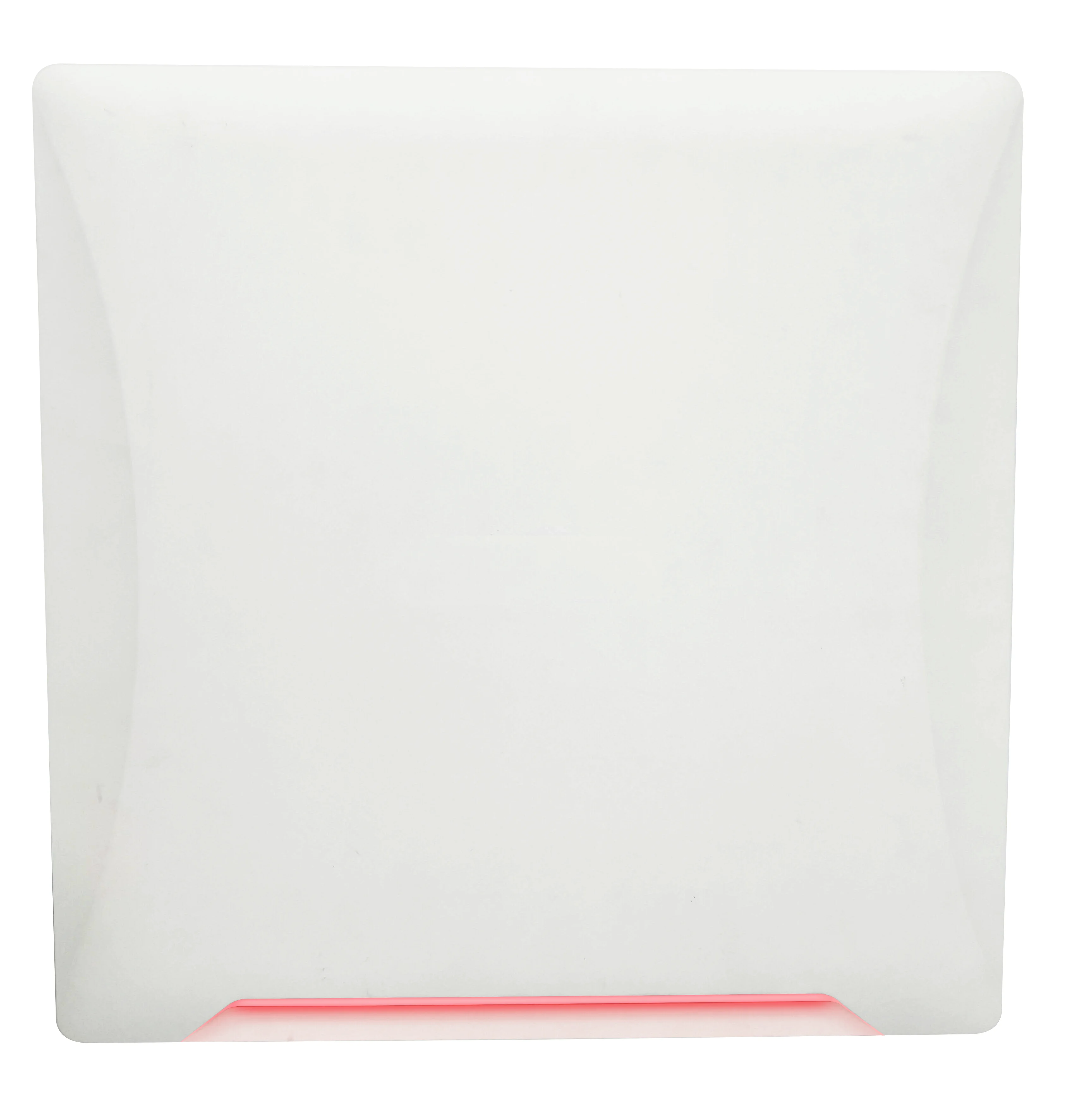

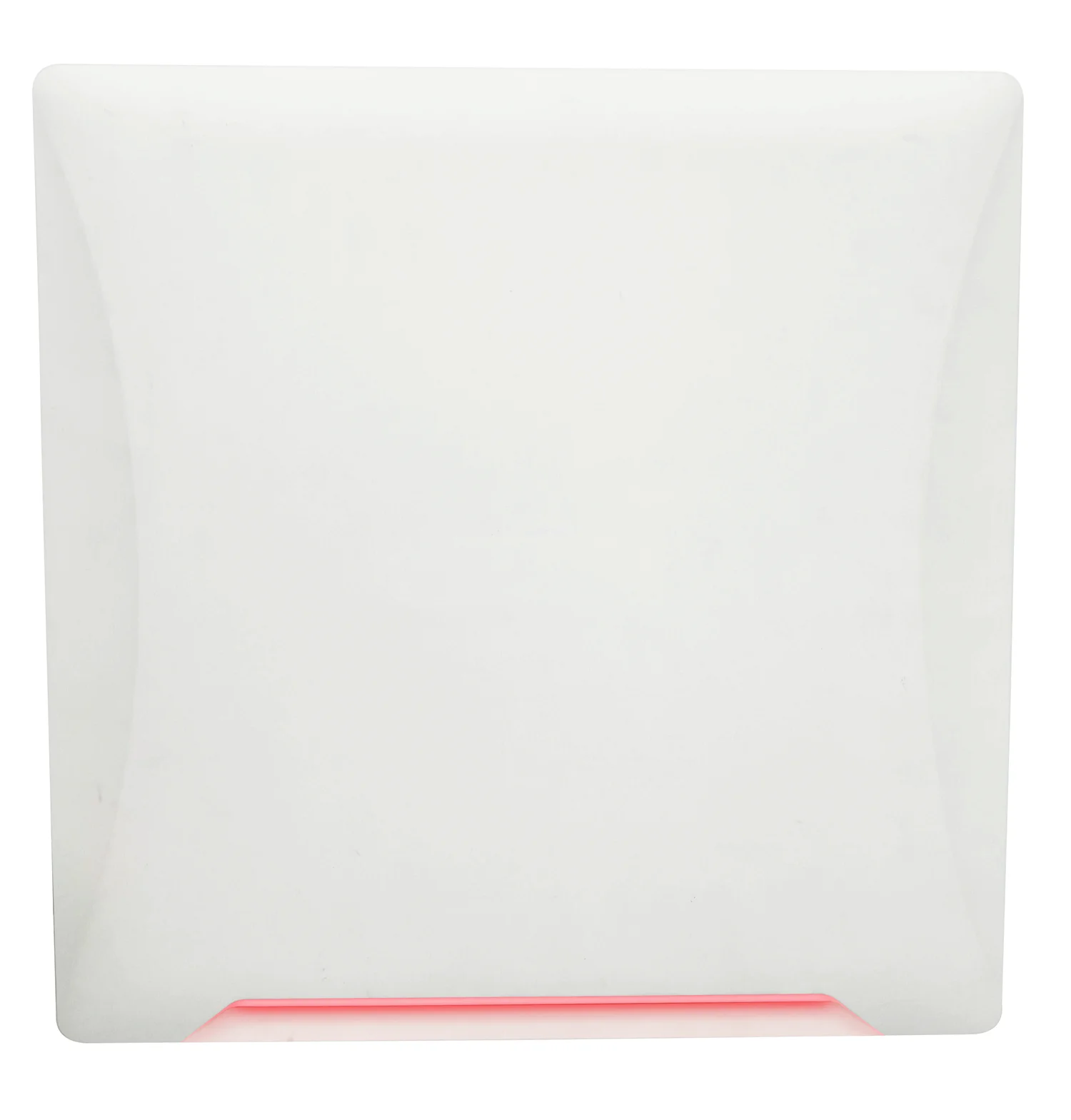

* LED display multi-color configurable, customers can choose: red, green, white, blue and other seven colors.
* Support to set the standby state and card state of the LED lamp of the reading head through the DEMO software.
* Long distance automatic reading without parking, long distance swipe card, convenient operation and time saving.
* It adopts integrated structure, with read-write module and antenna.
* Built-in high-gain antenna, long range identification, 9DB antenna reading distance is less than 10 meters, 12DB antenna reading distance is less than 20 meters.
* LED display multi-color configurable, customers can choose: red, green, white, blue and other seven colors.
Recommend tags

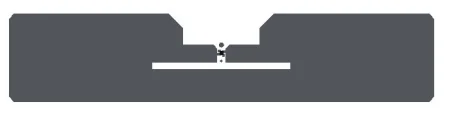

TAG TYPE | UHF Parking card tag | UHF Parking Label | |
SIZE | 85.6*54.0*0.8mm | 100.0x23.2x0.4mm | |
WORK FREQUENCY | 840-960MHz | ||
PROTOCOL | ISO18000-6C/EPC C1 G2 | ||
DATA CAPACITY | 32bit TID/64bit unique TID/96bit EPC/512bit USER | ||

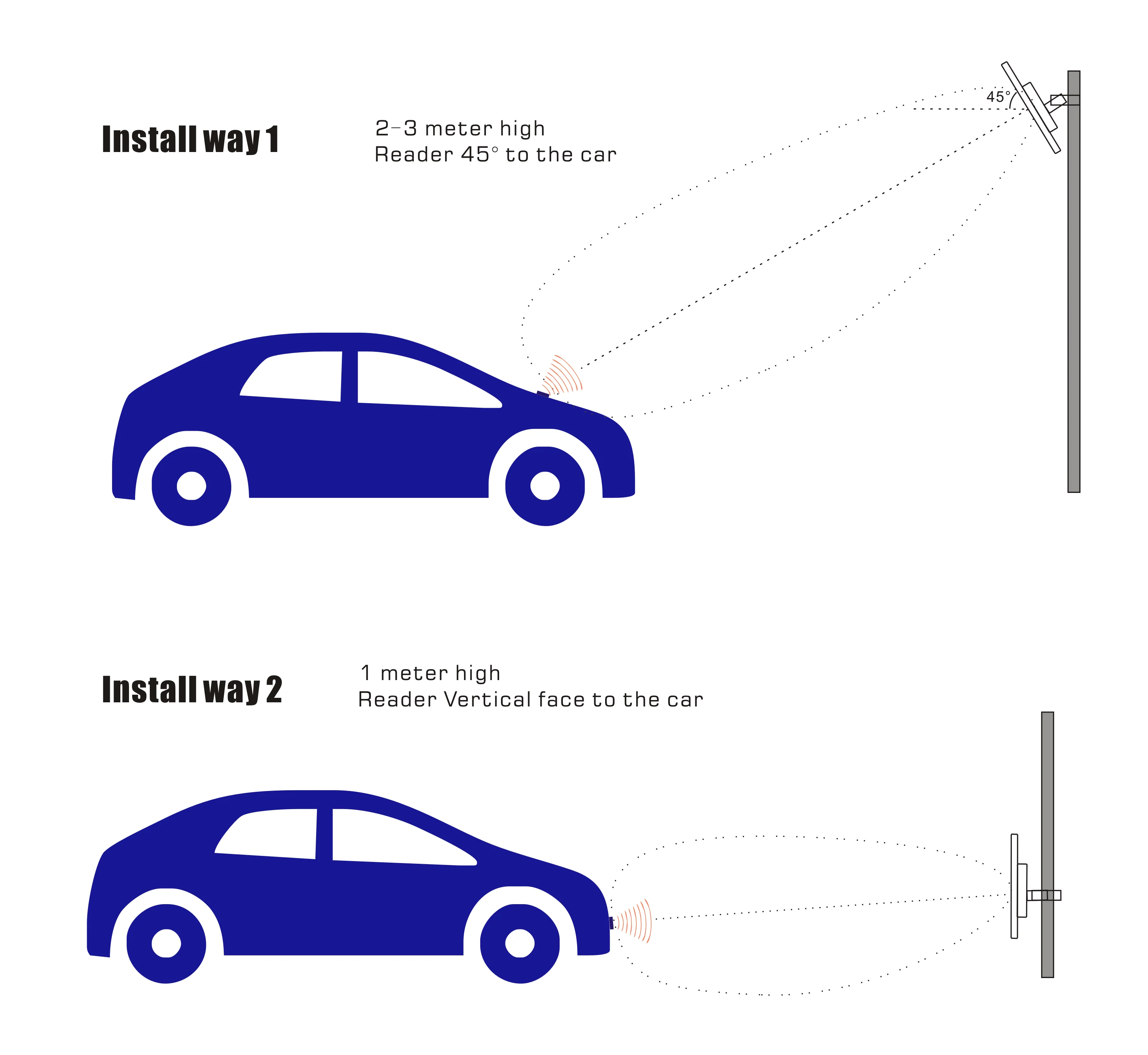

INSTALLATION SITE | windshield | Car lamp | |
FAQ
1. who are we?
We are based in Guangdong, China, start from 2016,sell to North America(20.00%),Northern Europe(20.00%),Domestic Market(20.00%),Southeast Asia(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),South America(5.00%),Mid East(5.00%),South Asia(4.00%),Africa(2.00%),Central America(2.00%),Southern Europe(2.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Access control,RFID security Reader,IoT security access control,IC card reader,UHF RFID reader
4. why should you buy from us not from other suppliers?
ZKRadio Tech. have over 20 years of experience in RFID field, a leader company of RFID access control products in China. We have our own R&D team and factory for your need, welcome to place OEM/ODM order.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,GBP,CNY;
Accepted Payment Type: T/T,Credit Card,Western Union;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2016,sell to North America(20.00%),Northern Europe(20.00%),Domestic Market(20.00%),Southeast Asia(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),South America(5.00%),Mid East(5.00%),South Asia(4.00%),Africa(2.00%),Central America(2.00%),Southern Europe(2.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Access control,RFID security Reader,IoT security access control,IC card reader,UHF RFID reader
4. why should you buy from us not from other suppliers?
ZKRadio Tech. have over 20 years of experience in RFID field, a leader company of RFID access control products in China. We have our own R&D team and factory for your need, welcome to place OEM/ODM order.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,GBP,CNY;
Accepted Payment Type: T/T,Credit Card,Western Union;
Language Spoken:English,Chinese
