China aluminum rolls sell a large number of aluminum alloy coil 3003 aluminum roll price
- Category: >>>
- Supplier: Shandong Lihongyuan Metal Material Co. Ltd.
Share on (1600715607170):
Product Overview
Description

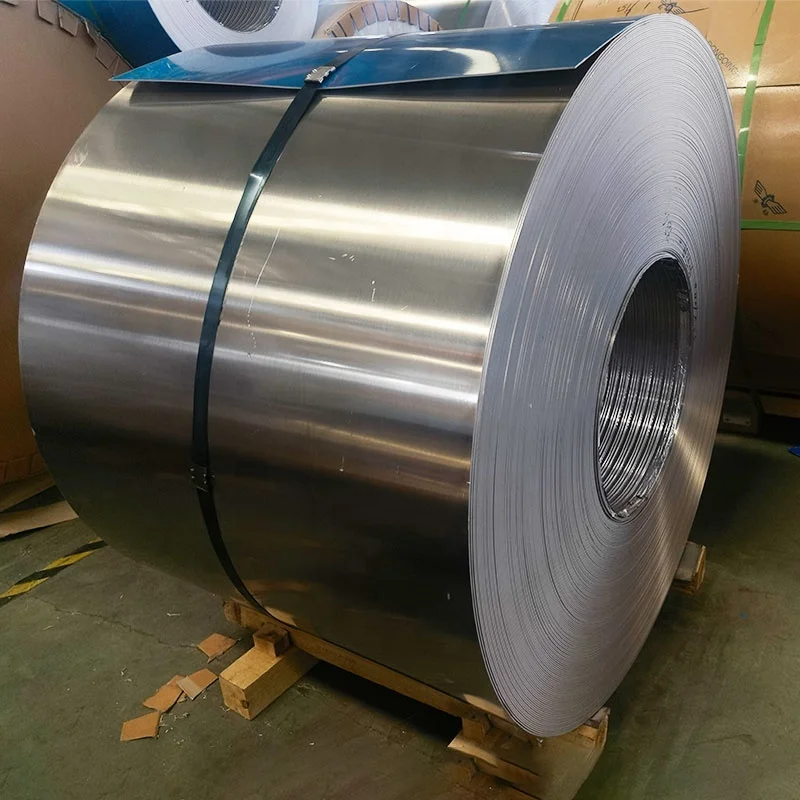

Mill Finish 3003 3005 Aluminum Coil Aluminum Coil Stock 2.5mm
Products Description
Item | Value |
Place of Origin | Shandong |
Model Number | 3003 3005 |
Type | Coil\\Roll |
Width | 100-2600mm As Required |
Thickness | 0.2-2.5mm or As Required |
Alloy Or Not | Is Alloy |
Grade | 3000 Series |
Surface Treatment | Embossed or Mill Finish |
Temper | O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38 |
Tolerance | ±1% |
Delivery Time | 15-21 days |
Product Name | Aluminum Coil |
MOQ | 1 Ton |
Sample | Avaliable |
Packing | Standard Sea-worthy Packing |
Color | Natural Color |
Processing Service | Bending, Decoiling, Welding, Punching, Cutting |
Alloy | 1050/1060/1100/1200/3003/3004/3005/3104/3105/5052/5754/5005/5182/6061 |
Characteristics, applications and commonly used grades of 1-8 series aluminum coils
1 series aluminum coil
1 series aluminum coil
Features: Industrial pure aluminum coil has good elongation and tensile strength, good plasticity, corrosion resistance, electrical conductivity and thermal conductivity, the production process is relatively simple, the production technology is relatively mature, and the price has a huge advantage over other high-grade aluminum alloys. The disadvantage is that the strength is low, it cannot be strengthened by heat treatment, the machinability is not good, it is not easy to braze, and it is easy to be deformed by compression.
Application: Mainly used in products that do not require high strength, such as automotive thermal insulation rolls, billboards, building exterior decoration, wall decoration, electrical lighting, heat exchangers, kitchen utensils, electrical conductor materials, chemical equipment, electronic devices, inland ships Equipment, various containers (wine cans, pressure tanks, tea stoves, etc.), instruments and meters, signs (equipment signs, road signs, motor vehicle license plates, etc.), hardware cooking utensils, machine parts with little force.
Common grades: 1050, 1050A, 1060, 1070, 1100
2 series aluminum coil
Features: Also known as duralumin, the main alloying element is copper. It has high strength and good machinability, has certain heat resistance, and can be heat treated. The disadvantage is that it has poor corrosion resistance.
Application: Mainly used in aircraft structures (such as skins, etc.), aerospace, weapons, engines, pistons, automobile bodies, ship hulls and stressed components.
Common grades: 2017, 2024, 2A12
3 series aluminum coil
Features: Also known as anti-rust aluminum coil, the main alloying element is manganese. The strength is higher than that of industrial pure aluminum coil, and the formability, weldability and corrosion resistance are good. Since it cannot be strengthened by heat treatment, cold working is often used in the process to improve its mechanical properties.
Application: It is mainly used in the application field of industrial pure aluminum coil and other fields with higher hardness requirements. It is often used in various fields such as kitchenware, food and chemical storage and transportation, heat sinks, home appliances (such as air conditioners, refrigerators, washing machines, etc.) .
Common grades: 3003, 3004, 3014
4 series aluminum coil
Features: Most of the aluminum alloys with silicon as the main alloying element cannot be strengthened by heat treatment. Usually the silicon content is between 4.5-6.0%. Low melting point, good melt fluidity, easy feeding, good corrosion resistance; good wear resistance and heat resistance.
Application: Mainly used in welding materials, etc.
Commonly used grades: 4343
5 series aluminum coil
Features: It is a high-grade aluminum alloy coil, and the main alloying element is Mg. It has good formability, corrosion resistance, weldability, fatigue strength and moderate static strength. It cannot be strengthened by heat treatment, but the surface can be polished, which is relatively beautiful. Resistant to marine climates.
Application: mostly used in architectural decoration, pressure vessels, ship structures and offshore facilities, aircraft fuel tanks, automobile fuel tanks, automobile gas tanks, containers, etc.
Common grades: 5052, 5083, 5754, 5182
6 series aluminum coil
Features: The main alloying elements are magnesium and silicon, with medium strength, good corrosion resistance, good weldability and oxidation effect.
Application: Mainly used in construction, ships, rail vehicles, electronics, electrical appliances, durable consumer goods and other fields.
Common grades: 6061, 6063, 6082
7 series aluminum coil
Features: Super hard aluminum alloy series, the main alloying elements are zinc, magnesium and copper. The representative grades 7050 and 7075, the heat treatment effect is particularly good, the high-strength deformed aluminum alloy coil has good plasticity after solid solution treatment, and has good mechanical properties, wear resistance and fatigue resistance. The disadvantage is that the welding performance is poor, and there is a tendency for stress corrosion cracking, which requires aluminum cladding or other protection treatments.
Application: It is mainly used as the preferred material for aerospace equipment, and is also widely used in various machinery, mold and other processing and production fields.
Common grades: 7075, 7050
8 series aluminum coil
Features: It belongs to aluminum-lithium alloy, the main component is lithium, because lithium is the lightest metal in nature, after adding lithium element to the aluminum coil, it can effectively reduce the specific gravity of the aluminum coil while ensuring the strength of the aluminum coil.
Application: The aluminum coil with the main function of making the bottle cap is also used in the radiator, and most of the applications are aluminum foil.
Common grades: 8011, 8011A

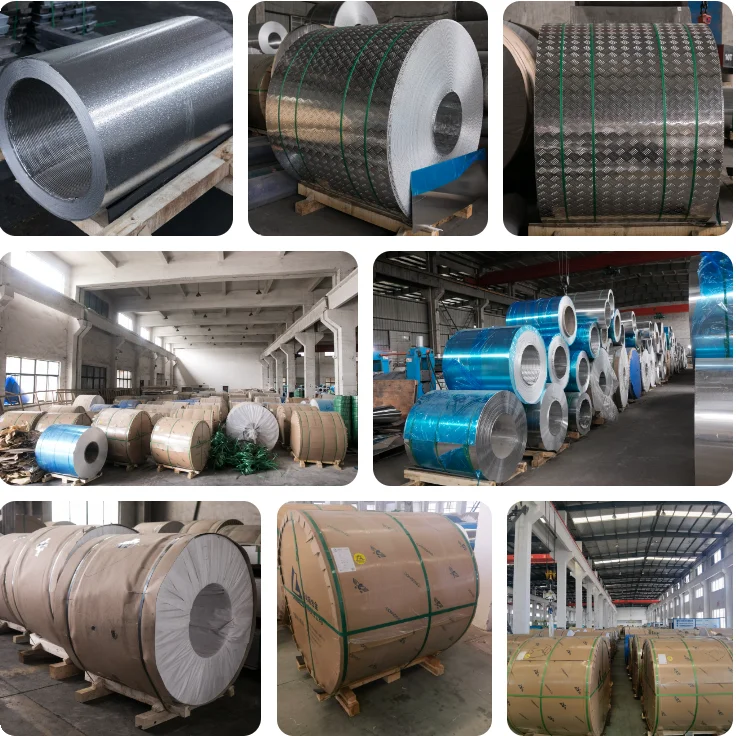

Product Display

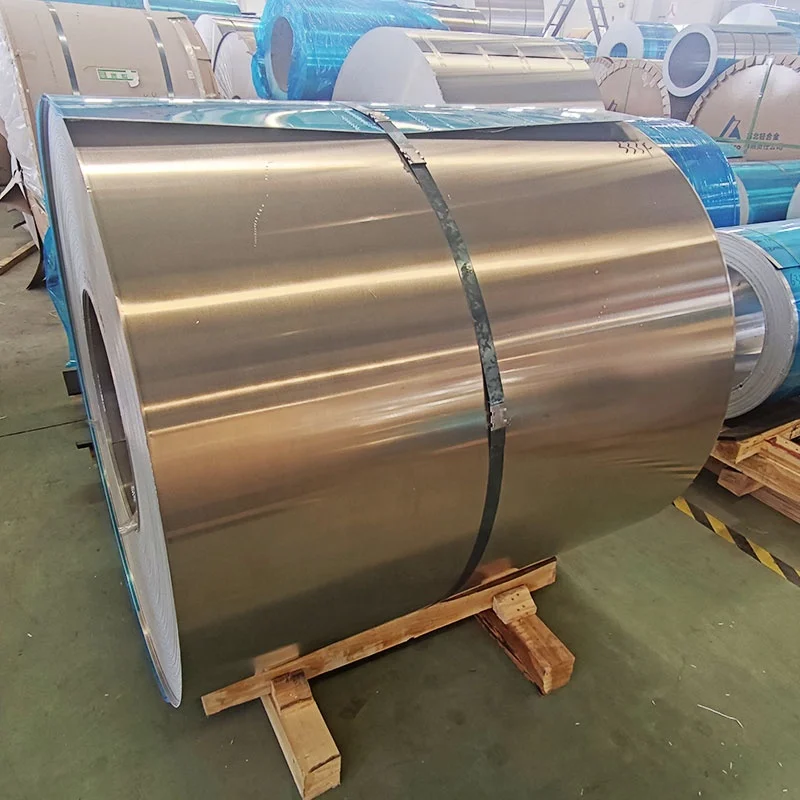

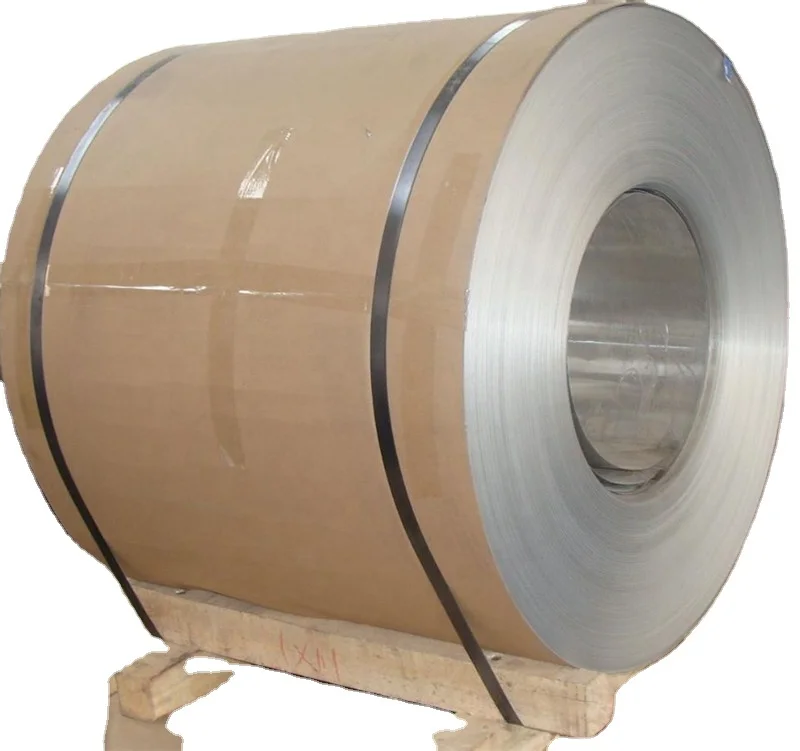

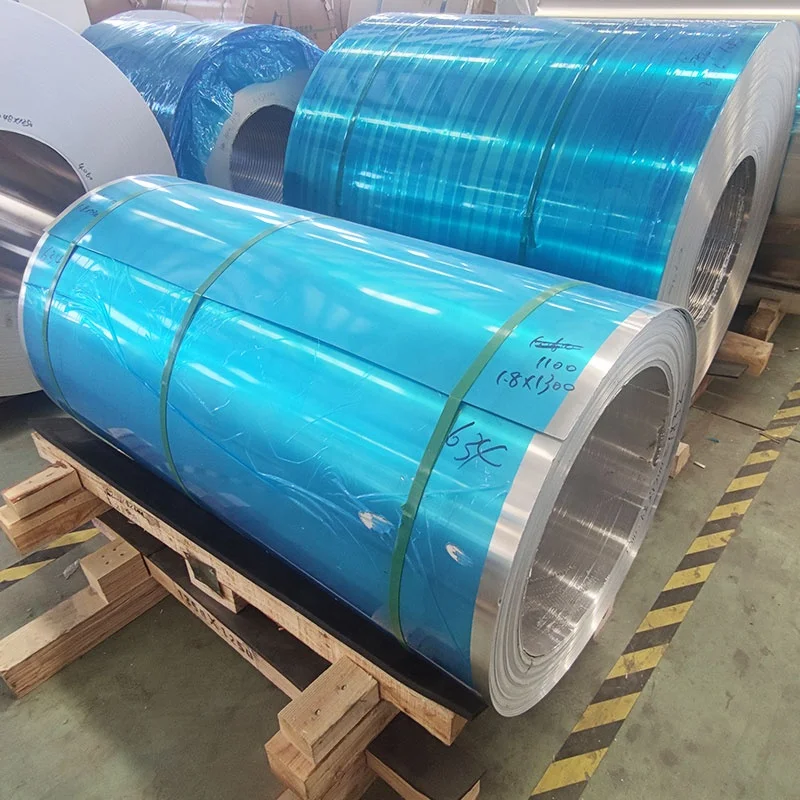

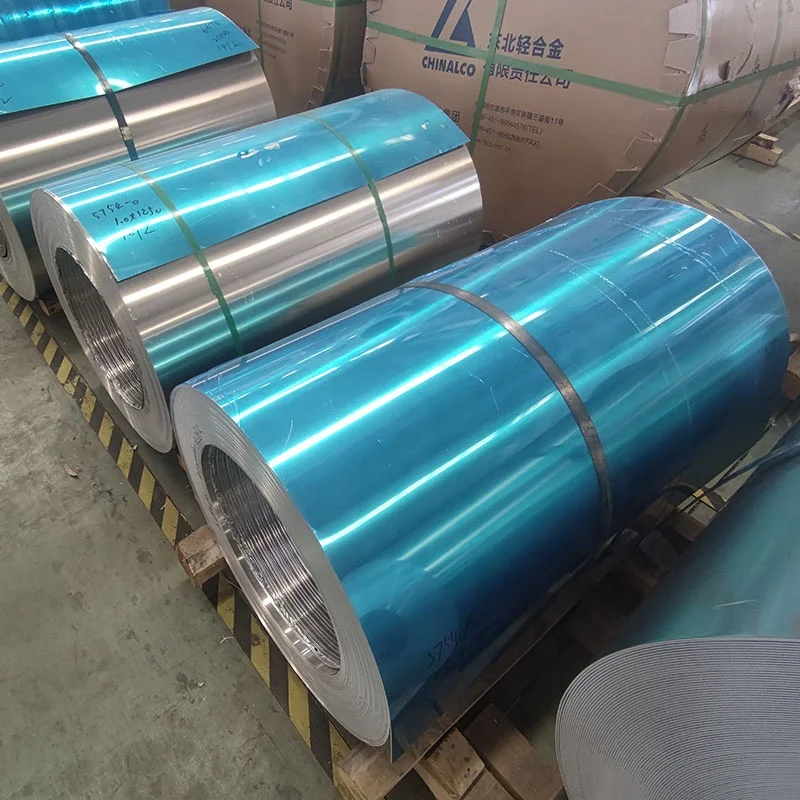

3003 aluminum coil:
It is an AL-Mn alloy, which is the most widely used anti-rust aluminum. The strength of this alloy is not high (slightly higher than that of industrial pure aluminum) and cannot be strengthened by heat treatment, so cold working is used to improve its strength. Mechanical properties: high plasticity in annealed state, good plasticity in semi-cold work hardening, low plasticity in cold work hardening, good corrosion resistance, good weldability and poor machinability.

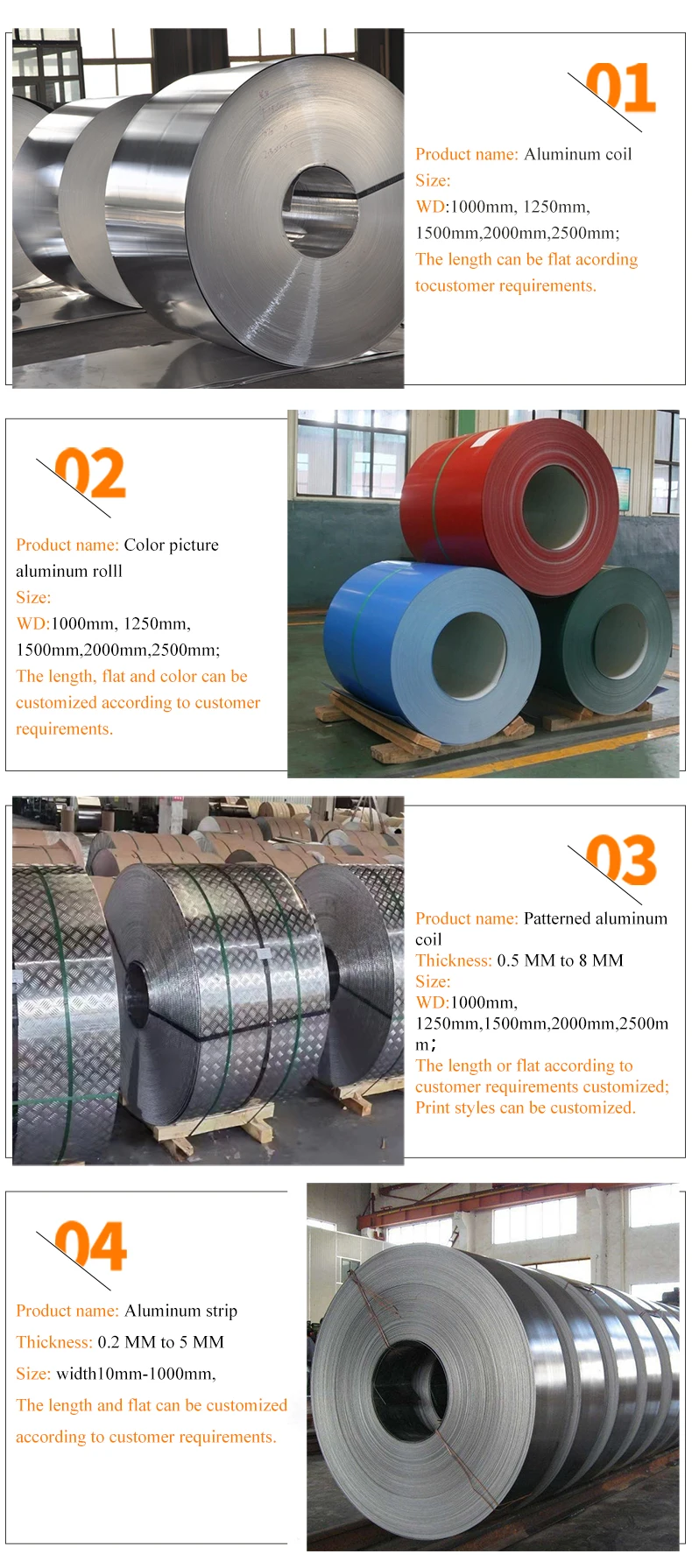

Main Products
Standard size of aluminum coil： Width 1000mm/1250mm/1500mm/2500mm,The length can be customized |
Standard size of aluminum plate：1000mm*2000mm/1250mm*2500mm/1500mm*3000mm/2000mm*6000mm |
Conventional standard thickness： 0.2mm 0.3mm 0.4mm 0.5mm 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm 5.0mm 6.0mm 8.0mm 10mm 12mm 15mm 20mm 25mm 30mm 35mm 40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm 80mm 85mm 90mm 95mm 100mm 105mm 110mm 115mm 120mm 125mm 130mm 135mm 140mm 145mm 150mm 155mm 160mm 165mm 170mm 175mm 180mm 185mm 190mm 195mm 200mm |
Aluminum foil:Thickness: 0.0045mm--0.2mm;Width:10mm-500mm / The length supports customization |
Aluminum strip: Thickness:0.2mm-4mm, Width:10mm-1000mm / The length supports customization |
Hardness H0 H12 H14 H18 H22 H24 H26 H32 H111 H114 T4 T6 Other hardness can be customized |
It can be used for color drawing, embossing, cutting, pattern, strip and other processing |
The above are the standard common sizes of coil, and customization is supported |
Material table | Product use | |
1000 series (1050,1060,1100) | Food, chemical and extrusion coils, various hoses, fireworks powder | |
Chemical equipment is its typical use | ||
Chemical products, food industry installations and storage containers, weldments, heat exchangers, printed boards, nameplates and reflective appliances | ||
2000 series (2024,2A12,2A14) | Aircraft structures, rivets, missile components, truck hubs, propeller components and other structural components | |
Aircraft skin, spacer frame, wing rib, wing beam, rivet, etc., and structural parts of buildings and transportation vehicles | ||
Free forging and die forging with complex shape | ||
3000 series (3003,3004,3105) | Kitchen utensils, food and chemical products, storage equipment, storage tanks for transporting liquid products, and various pressure vessels and pipelines | |
Chemical product production and storage devices, plate processing parts, building processing parts, building tools and various lamp parts | ||
Room partition, baffle, movable room board, eaves gutter and downpipe, sheet forming parts, bottle caps, corks, etc | ||
4000 series (4032,4043,4343) | Piston, cylinder head | |
Building distribution frame | ||
The products are widely used in automobiles, water tanks, radiators, etc. | ||
5000 series (5052,5083,5754) | Aircraft fuel tank, oil pipe, traffic vehicle and ship sheet metal parts, instruments, street lamp supports and rivets, hardware products, etc | |
Plate Weldments of ships, automobiles and aircraft; Pressure vessel, refrigeration device, TV Tower, drilling equipment,transportation equipment | ||
Storage tanks, pressure vessels, ship materials | ||
6000 series (6005,6061,6063) | Ladder, TV antenna, etc | |
Pipes, rods, profiles and plates for trucks, towers, ships, trams, furniture, mechanical parts, precision machining, etc | ||
Building profiles, irrigation pipes and extruded materials for vehicles, stands, furniture, fences, etc | ||
7000 series (7075,7175,7475) | It is used for manufacturing aircraft structure and other high stress structural parts and molds with high strength and strong corrosion resistance | |
High strength structure for forging aircraft. | ||
Aluminum clad and non aluminum clad plates for fuselage, wing frame, stringer, etc. Other parts with high strength and high fracture toughness | ||
8000 series (8011) | The aluminum plate with bottle cap as the main function is also used in radiators, most of which are used in aluminum foil products | |
9 Series: | The 9 series alloys are backup alloys. | |
For other materials, you can consult customer service！ | ||

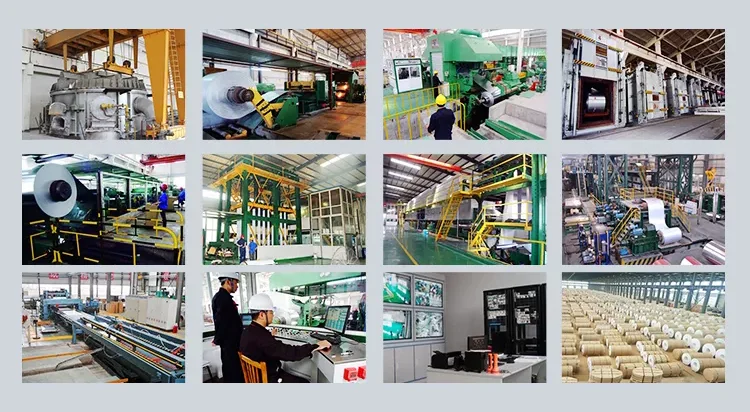

Company Profile
Shandong Lihongyuan Metal Material Co., Ltd. is located in Liaocheng City, Shandong Province, adjacent to important iron and steel machinery industrial bases such as Hebei and Henan. The company has a registered capital of 50 million yuan, and its main products include: aluminum plates, aluminum tubes, aluminum coils, aluminum strips, aluminum foils, etc. The company has strong technical strength, advanced production equipment, complete testing equipment, complete quality management system, equipped with domestic first-class large-scale equipment, which can be used for processing reel, bending, laser cutting, water jet cutting, etc., to provide customers with one-stop solutions. Excellent and stable quality, reasonable price, punctual delivery and thoughtful and efficient service have made us deeply trusted by old customers in more than 30 countries including the United States, Australia, South Korea, Turkey, Iran, Saudi Arabia, and India. We are committed to continuously improving product quality and service levels, and serving more customers. Lihong Yuan has become the preferred supplier of metal products. We always pay attention to the integration of resources, based on the concept of win-win cooperation, and sincerely hope to establish long-term and stable business relations with you.
Why Choose Us

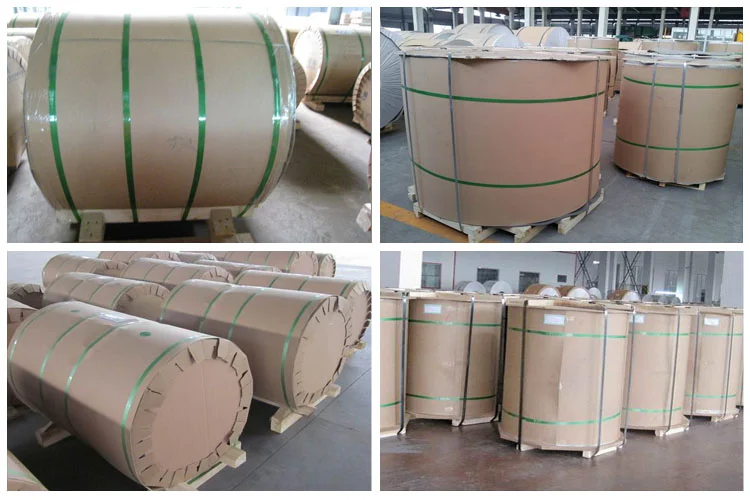

Packaging & Shipping
FAQ
Q: Are you manufacturer?
A: Yes, we are.
Q:Can you produce according to my requirement?
A:Yes, all the design, size, printing and packaging can be done according to customer's request. About any further detail, please feel free to contact us.
Q: Do you offer free samples?
A: Sure,we are glad to send you free samples for your evaluation.But currently we need you to kindly pay the delivery charge on your side if you'd like to have our samples.
Q: What's your MOQ?
A: Normally 5 Tons are requested as the minimum order quantity on our side.We can accept smaller quantities if the warehouse has the right stock size.
Q:How long is your delivery time?
A: About 15-25 days.
Q:What specification should I tell you if I wanna get the quotation?
A: 1. Alloy 2.Size 3. Temper 4. Estimated quantity
Q: What's your payment term?
A: We accept T/T
A: Yes, we are.
Q:Can you produce according to my requirement?
A:Yes, all the design, size, printing and packaging can be done according to customer's request. About any further detail, please feel free to contact us.
Q: Do you offer free samples?
A: Sure,we are glad to send you free samples for your evaluation.But currently we need you to kindly pay the delivery charge on your side if you'd like to have our samples.
Q: What's your MOQ?
A: Normally 5 Tons are requested as the minimum order quantity on our side.We can accept smaller quantities if the warehouse has the right stock size.
Q:How long is your delivery time?
A: About 15-25 days.
Q:What specification should I tell you if I wanna get the quotation?
A: 1. Alloy 2.Size 3. Temper 4. Estimated quantity
Q: What's your payment term?
A: We accept T/T
